LED PERFORMANCE SOLAR STREETLIGHT
LDPFM SOLAR ST 20.00 W/3000 K
Model Number: P-SOLST-20-730
Shipping box / 1
Show all packages
PRODUCT DETAILS
Product benefits
- All-in-one design, no wiring required, flexible installation
- Extremely high system luminous efficacy 185 lm-W to maximize the battery performance
- Rotatable LED module, ensures the light to reach the target surface amply
- Grade A bifacial monocrystalline solar panel, higher sunlight absorbing efficiency than single-sided monocrystalline solar panel
- Adjustable install arm, multi-angle adjustment, make solar panel easy to apply to sunlight trajectory from different directions
Areas of application
- Streets
- Road lighting
- Rural areas, villages
- Parks
- Areas where no power supply is available
Product features
- System wattage 10 W, 20 W, 30 W, 40 W, 50 W and 60 W
- Battery technology: LiFePO4
- Battery overcharge, overdischarge, overheat and short circuit protections
- Available with and without motion sensor
- Meet ME4 road lighting class requirement thanks to professional optical design
- Intelligent controller, rainy day intelligent delay
- Automatically on-off according to brightness of daylight
- Type of protection: IP66
- Certificate: CB
Electrical data
| Nominal wattage | 20.00 W |
| Protection class | III |
| Operating mode | Battery |
Photometrical data
| Luminous flux | 3700 lm |
| Luminous efficacy | 185 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | White |
| Color rendering index Ra | > 70 |
| Standard deviation of color matching | < 5 sdcm |
| Beam angle | 30 ° x 150 ° |
Dimensions & Weight
| Length | 753.00 mm |
| Height | 130.00 mm |
| Width | 358.00 mm |
| Product weight | 10900.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | 0…+50 °C |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK07 |
| Dimmable | No |
| Mounting type | Side entry |
| Mounting location | Pole |
| Application environment | Outdoor |
| Replaceable light source | No |
BATTERY
| Battery size [GMS] | Others |
Certificates & Standards
| Standards | CB |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075562929 | Shipping box 1 |
805 mm x 443 mm x 184 mm | 12063.00 g | 65.62 dm³ |
User instruction / safety instructions
LED PERFORMANCE SOLAR STREETLIGHT
LED PERFORMANCE SOLAR STREETLIGHT

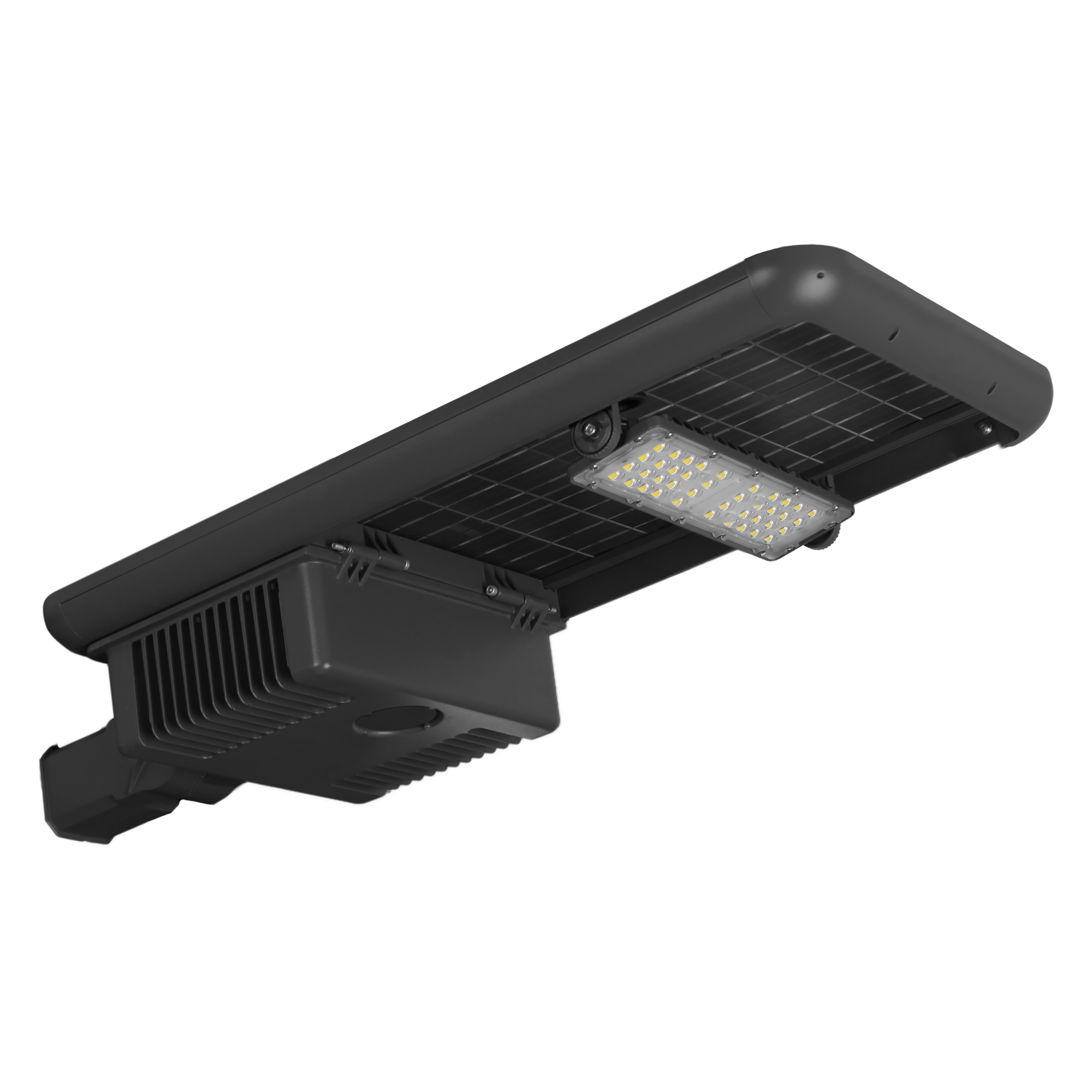

Product image: white background, spacial
LDPFM SOLAR ST 20W
LDPFM SOLAR ST 20W
Product line drawing with numbers
LDPFM SOLAR ST 20W
LDPFM SOLAR ST 20W
IES file (IES)
LDPFM SOLAR ST 20W
LDPFM SOLAR ST 20W
| EAN | AU model number |
|---|---|
| 4058075562929 | P-SOLST-20-730 |
