LEDVANCE SubstiTUBE T8 Connected improves smart lighting for car parks, industry and warehouses
LED replacements provide energy savings of 50 percent or more compared with conventional fluorescent lamps and feature new configuration of Master and Slave sensors for multizone control.

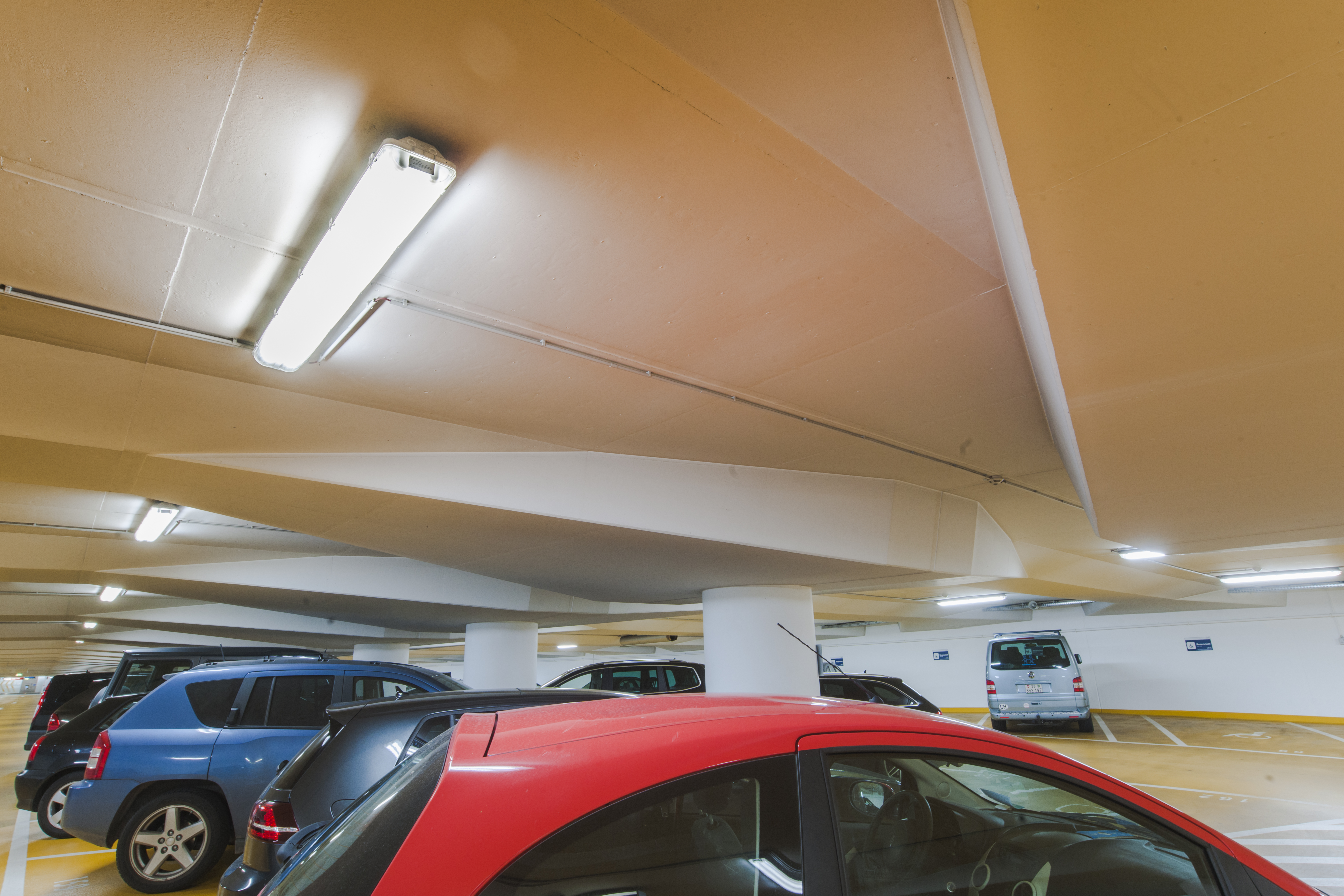

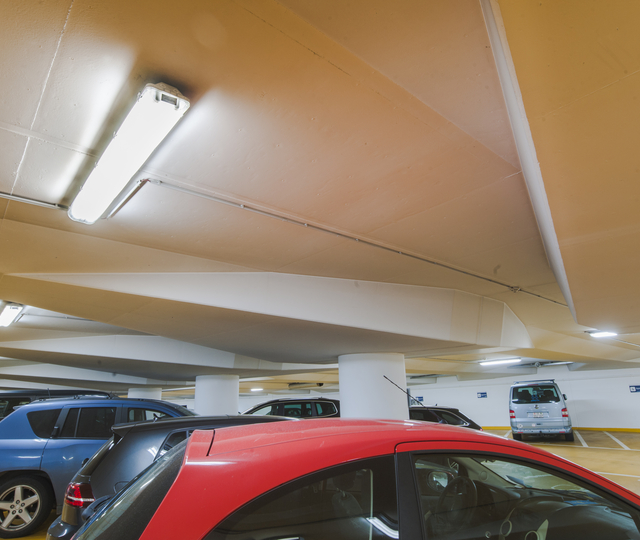

The second generation of SubstiTUBE T8 Connected LED tubes is an update of the already existing SubstiTUBE T8 Connected and specially developed for the use in car parks with several points of access, factories, warehouses, and corri-dors.
The system solution SubstiTUBE T8 Connected from LEDVANCE allows smart lighting without programming or rewiring which can reduce time and labour costs significantly. With both, the sensors and the SubstiTUBEs communicating via the new ZigBee 3.0 standard, large groups of up to 200 devices – tubes and sensors – can be wirelessly controlled to extend the presence detection and the corresponding automated lighting to cover large areas. For example, with sensors at several entrances and exits, the tubes can be automatically turned on in sync if someone enters the premises through one of the entrances. Therefore, the SubstiTUBE T8 Connected is ideal to meet the specific and demanding lighting requirements in car parks.
The new SubstiTUBE T8 Connected features a Master and Slave mode for multizone control. The factory setting of the multi-sensor is the slave mode, but it can be config-ured to be a master sensor during network installation.
Thanks to multi zonal dimming, occupancy sensing and daylight ambient setting, the intelligent system of new SubstiTUBE T8 Connected and sensors achieves significant energy savings of 50 percent or more compared to conventional fluorescent lamps plus additional 20 to 30 percent via the connected sensor.
The SubstiTUBE T8 Connected comes in glass design with shatter protection ?lm, has a very high efficiency of up to 150 lm/W and a lifetime of up to 50,000 hours. The tubes are available in lengths of 1,200 mm and 1,500 mm with a five-year guarantee.
The LEDVANCE Connected Sensors come in two variants for different installation heights: LB (Low Bay) for heights up to 4 meters and HB (High Bay) for heights from 4 up to 14 meters.
More information on SubstiTUBE T8 Connected can be found on the LEDVANCE website.
With offices in more than 50 countries and business activities in more than 140 countries, LEDVANCE is one of the world's leading general lighting providers for professional users and end consumers. Having emerged from the general lighting business of OSRAM GmbH, LEDVANCE offers a wide-ranging assortment of LED luminaires for a broad spectrum of application areas, intelligent lighting products for Smart Homes and Buildings, one of the largest LED lamps portfolios in the industry, traditional light sources, electronic components and light management systems. Based on an agreement with OSRAM, LEDVANCE will continue to use the trusted OSRAM brand for many of its products (SYLVANIA for the USA and Canada). Further information can be found at www.ledvance.com.
