LED BASE CLASSIC A
LED Base Classic A 75 10W 827 Frosted E27
GTIN: 4058075184992
Folding box / 4
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Shockproof and vibration-proof thanks to LED technology
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
- Can be easily fitted instead of ordinary light bulbs
- Lower thermal output (compared with the standard reference product)
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not dimmable
- Base: E27, B22d
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 10 W |
| Construction wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 75 W |
| Nominal current | 70 mA |
| Type of current | AC |
| Inrush current | 4.2 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 219 |
| Max. lamp number on MCB B16 A | 229 |
| Total harmonic distortion | 111.70 % |
| Power factor λ | 0.65 |
Photometrical data
| Luminous flux | 1055 lm |
| Luminous efficacy | 105 lm/W |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | 80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Beam angle | 150 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 109.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 26.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 100 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 10000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.93 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 10.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, UKCA, EAC |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| ILCOS | DRAA/F-10,5/827-220-240-E27-60 |
| Order reference | BASECLA75 10W/8 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 W |
| Claim of equivalent power | Yes |
| Length | 109.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| Chromaticity coordinate x | 0.458 |
| Chromaticity coordinate y | 0.410 |
| R9 Colour rendering index | 7 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.905 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1403213,523312,1351504,1857051 |
| Model number | AC31154,AC45002,AC24697,AC55986,AC55986 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075184992 | Folding box 4 |
61 mm x 192 mm x 153 mm | 117.00 g | 1.79 dm³ |
| 4058075185005 | Shipping box 40 |
395 mm x 318 mm x 136 mm | 1820.00 g | 17.08 dm³ |
Declarations of conformity
Classic A_B_P 15000h FR
Classic A_B_P 15000h FR
Declarations of conformity
LED CLASSIC A_P NON-DIM
LED CLASSIC A_P NON-DIM
PRODUCT DATASHEET
BASECLA75 10W/827 230VFR E27 10X4 OSRAM
BASECLA75 10W/827 230VFR E27 10X4 OSRAM
PRODUCT DATASHEET
BASECLASA75FR10W2700KE 27en
BASECLASA75FR10W2700KE 27en
Product datasheet -> old version of product
LEDBaseClassicA7510W82 7FrostedE27en
LEDBaseClassicA7510W82 7FrostedE27en
Product image: white background, diagonal with OSRAM logo
LED CLA FR E27 OSRAM BRAND
LED CLA FR E27 OSRAM BRAND
Product image: white background, diagonal
LED CLASSIC A75 E27
LED CLASSIC A75 E27
Product image: white background, upright, OSRAM logo
LED CLA FR E27 OSRAM BRAND
LED CLA FR E27 OSRAM BRAND
Product image: white background, upright
LED CLASSIC A75 E27
LED CLASSIC A75 E27
Product line drawing with letters
LED CLASSIC A75 E27
LED CLASSIC A75 E27
Product line drawing with numbers
LED CLASSIC A 75 FROSTED E27
LED CLASSIC A 75 FROSTED E27
Product line drawing, front, no dimensions
LED CLASSIC A75 E27
LED CLASSIC A75 E27

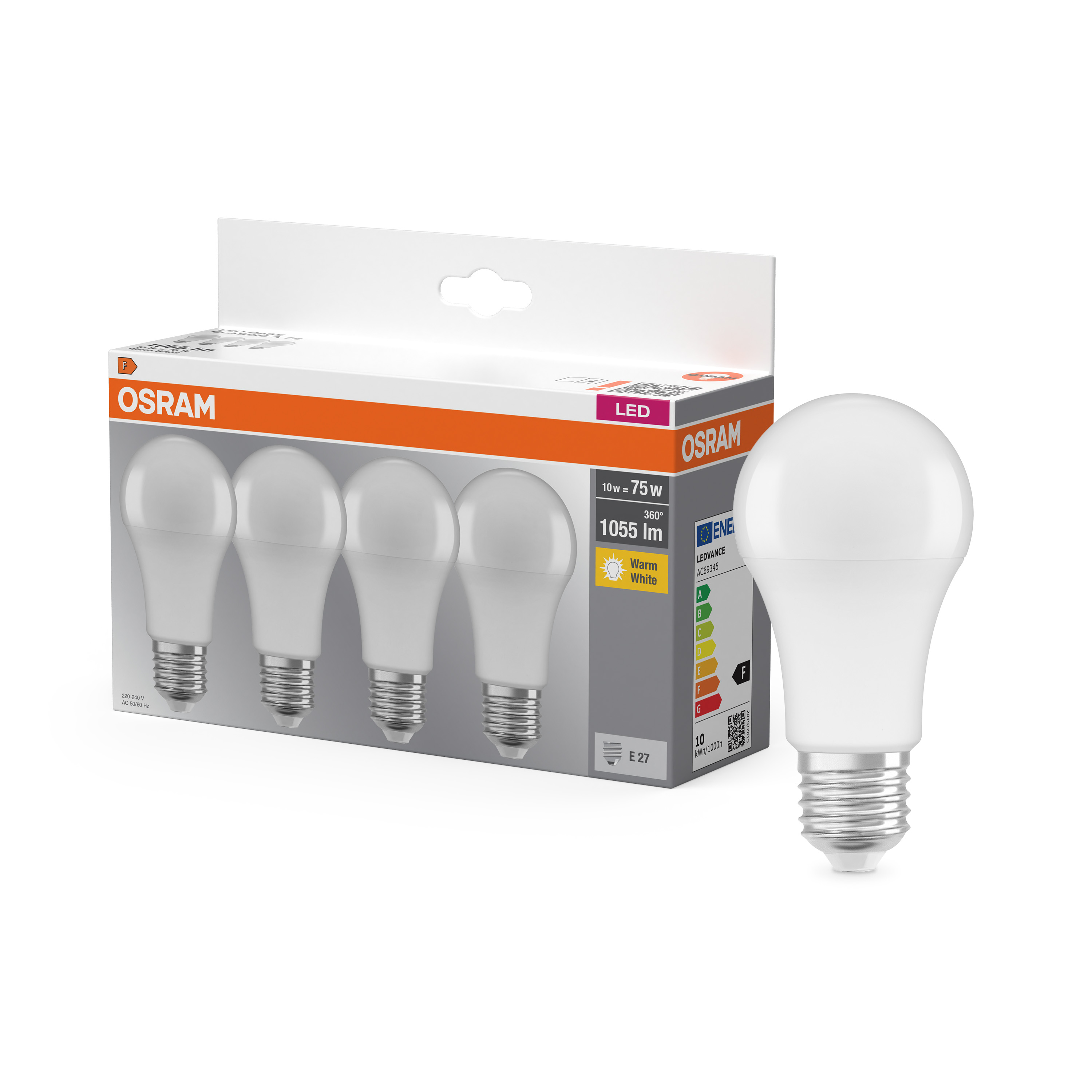

Combo Shot = Product Beauty Shot + Packaging Image
