LED STAR CLASSIC A
LED Star Classic A 75 10W 827 Frosted E27
GTIN: 0
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 10 W |
| Construction wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 75 W |
| Nominal current | 84 mA |
| Type of current | AC |
| Inrush current | 10 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 92 |
| Max. lamp number on MCB B16 A | 147 |
| Total harmonic distortion | 150 % |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 1055 lm |
| Nominal useful luminous flux 90° | 1055 lm |
| Luminous efficacy | 105 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 200 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 118.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 32.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 100 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 10.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, CB, ERP |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRAA/F-10,5/827-220-240-E27-60 |
| Order reference | LEDSCLA75 10W/8 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 118.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| EPREL ID | 1403213,523312,1351504,1857051,2192483 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899282971 | Blister 1 |
61 mm x 140 mm x 120 mm | 46.00 g | 1.02 dm³ |
| 4058075122529 | Folding box 1 |
60 mm x 60 mm x 145 mm | 39.00 g | 0.52 dm³ |
| 4058075588608 | Shipping box 6 |
202 mm x 134 mm x 120 mm | 340.00 g | 3.25 dm³ |
| 4052899282988 | Shipping box 6 |
381 mm x 153 mm x 132 mm | 389.00 g | 7.69 dm³ |
| 4058075122536 | Shipping box 10 |
328 mm x 135 mm x 137 mm | 550.00 g | 6.07 dm³ |
Declarations of conformity
Classic A_B_P 15000h FR
Classic A_B_P 15000h FR
Declarations of conformity
LED CLASSIC A_P NON-DIM
LED CLASSIC A_P NON-DIM
PRODUCT DATASHEET
LEDSCLA75 10W/827 230VFR E27 6XBLI1OSRAM
LEDSCLA75 10W/827 230VFR E27 6XBLI1OSRAM
PRODUCT DATASHEET
STCLASA75FR10W2700KE27 en
STCLASA75FR10W2700KE27 en
Product datasheet -> old version of product
LEDStarClassicA7510W82 7FrostedE27en
LEDStarClassicA7510W82 7FrostedE27en
Product image: white background, diagonal with OSRAM logo
655306_Clasisc A 40/60/75
655306_Clasisc A 40/60/75
Product image: white background, diagonal with OSRAM logo
LED CLA FR E27 OSRAM BRAND
LED CLA FR E27 OSRAM BRAND
Product image: white background, diagonal
LED CLASSIC A75 E27
LED CLASSIC A75 E27
Product image: white background, upright, OSRAM logo
655301_Clasisc A 40/60/75
655301_Clasisc A 40/60/75
Product image: white background, upright, OSRAM logo
LED CLA FR E27 OSRAM BRAND
LED CLA FR E27 OSRAM BRAND
Product image: white background, upright
LED CLASSIC A75 E27
LED CLASSIC A75 E27
Product line drawing with letters
LED CLASSIC A75 E27
LED CLASSIC A75 E27
Product line drawing with numbers
LED CLASSIC A75 E27
LED CLASSIC A75 E27
Product line drawing with numbers
LED CLASSIC A 75 FROSTED E27
LED CLASSIC A 75 FROSTED E27
Product line drawing, front, no dimensions
LED CLASSIC A75 E27
LED CLASSIC A75 E27

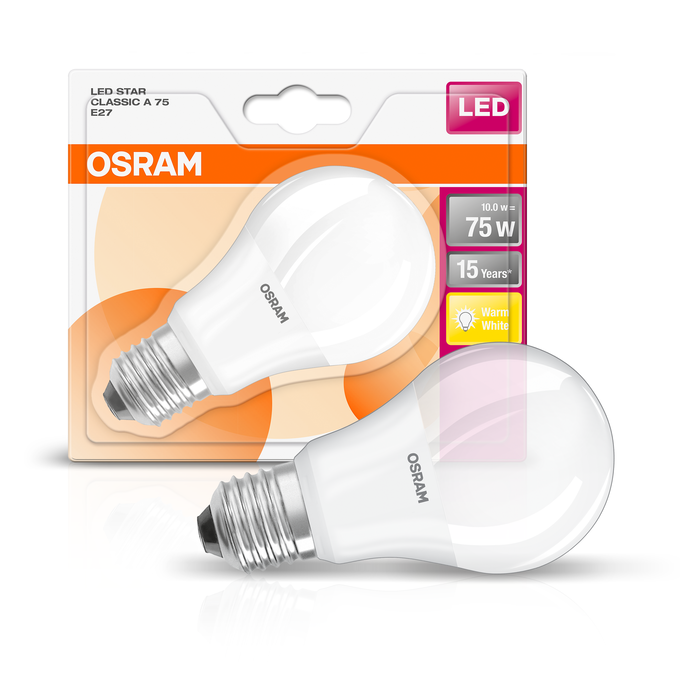

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLA75 10W827 230VFR E27 BLI1 Combo Shot
LEDSCLA75 10W827 230VFR E27 BLI1 Combo Shot
Combo Shot = Product Beauty Shot + Packaging Image
LED ST CLA 75 10W 827 FR E27 MiCh
LED ST CLA 75 10W 827 FR E27 MiCh
Packaging image, frontal
LED ST CLA 75 11W 827 FR E27 MiCh Front
LED ST CLA 75 11W 827 FR E27 MiCh Front
Packaging image, frontal
LED ST CLA 75 11.0W 827 FR E27 MiCh
LED ST CLA 75 11.0W 827 FR E27 MiCh
Packaging image, spacial
LED ST CLA 75 11.0W 827 FR E27 MiCh
LED ST CLA 75 11.0W 827 FR E27 MiCh
Energy label
EL-4052899282971-AC246 97
EL-4052899282971-AC246 97
Energy label
EL-4058075122529-AC311 54
EL-4058075122529-AC311 54
Energy label
EL-4058075122529-AC246 97
EL-4058075122529-AC246 97
Energy label
EL-4058075122529-AC450 02
EL-4058075122529-AC450 02
Energy label
EL-4058075122529-AC559 86
EL-4058075122529-AC559 86
Energy label
EL-4058075122529-AC693 08
EL-4058075122529-AC693 08
Spectral power distribution
EPREL Data Spectral Diagram LEDr_classic A_B_P_2700K_827
EPREL Data Spectral Diagram LEDr_classic A_B_P_2700K_827
| EAN | EFO number |
|---|---|
| 4052899282971 | 3710887 |
