LED BASE CLASSIC B
LED Base Classic B 60 Filament 5.9W 865 Frosted E14
GTIN: 4099854235399
Folding box / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower thermal output (compared with the standard reference product)
- Lower energy consumption than incandescent or halogen lamps
- Shockproof and vibration-proof thanks to LED technology
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
- Simple direct replacement for conventional incandescent lamps
Areas of application
- General illumination
- Domestic applications
- Chandeliers
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not suitable for use with dimmers
- Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
- Base: E14, B22d
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 5.9 W |
| Construction wattage | 5.90 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 38 mA |
| Type of current | AC |
| Inrush current | 1.18 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 184 |
| Max. lamp number on MCB B16 A | 219 |
| Total harmonic distortion | 111 % |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 806 lm |
| Luminous efficacy | 136 lm/W |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Light color (designation) | Cool Daylight |
| Color temperature | 6500 K |
| Color rendering index Ra | 80 |
| Light color | 865 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | ≤1.0 |
| Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 100.00 mm |
| Diameter | 35.00 mm |
| Maximum diameter | 35 mm |
| Product weight | 16.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 70 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 10000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.93 |
Additional product data
| Base (standard designation) | E14 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | D 1) |
| Energy consumption | 6.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC, UKCA |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | BASECLB60 5,9W/ |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E14 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0 W |
| Claim of equivalent power | Yes |
| Length | 100.00 mm |
| Height | 35.00 mm |
| Width | 35.00 mm |
| Chromaticity coordinate x | 0.3123 |
| Chromaticity coordinate y | 0.3283 |
| R9 Colour rendering index | 16 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| Displacement factor | > 0.5 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1838171,2218559 |
| Model number | AC57896,AC73620 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854235399 | Folding box 3 |
39 mm x 116 mm x 138 mm | 67.00 g | 0.62 dm³ |
| 4099854235405 | Shipping box 30 |
241 mm x 204 mm x 117 mm | 791.00 g | 5.75 dm³ |
Declarations of conformity
LED Lamp
LED Lamp
Declarations of conformity
LED lamps
LED lamps

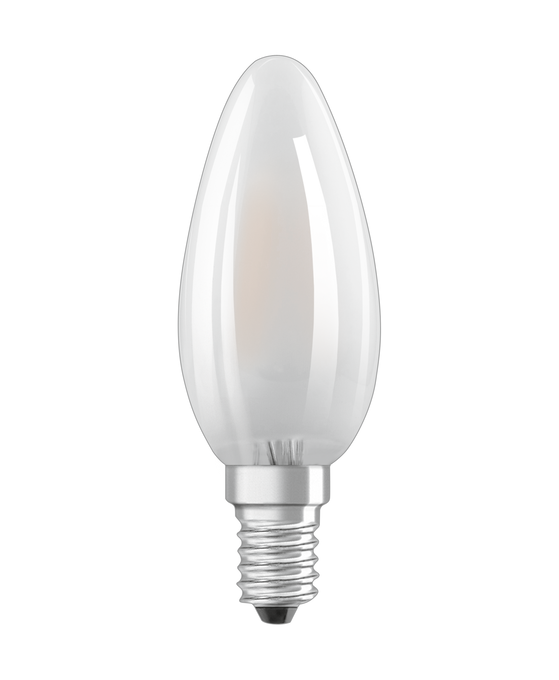

Product image: white background, diagonal
CLB GL FR E14
CLB GL FR E14
Product image: white background, upright
CLB GL FR E14
CLB GL FR E14
Product line drawing with letters
LED CLB GL FR E14
LED CLB GL FR E14
Product line drawing with numbers
LED CLASIC B 4-FILAMENTS E14
LED CLASIC B 4-FILAMENTS E14
Product line drawing, front, no dimensions
LED CLB GL FR E14
LED CLB GL FR E14
Combo Shot = Product Beauty Shot + Packaging Image
FC3 LED BASE CLB 60 5.9W 865 GLFR E14
FC3 LED BASE CLB 60 5.9W 865 GLFR E14
Packaging image, frontal
FC3 LED BASE CLB 60 5.9W 865 GLFR E14
FC3 LED BASE CLB 60 5.9W 865 GLFR E14
Packaging image, spacial
FC3 LED BASE CLB 60 5.9W 865 GLFR E14
FC3 LED BASE CLB 60 5.9W 865 GLFR E14
Energy label
EL-4099854235399-AC578 96
EL-4099854235399-AC578 96
Energy label
EL-4099854235399-AC736 20
EL-4099854235399-AC736 20
Spectral power distribution
EPREL data spectral diagram PROF LEDr 6500K
EPREL data spectral diagram PROF LEDr 6500K
