LED BASE CLASSIC B
LED Base Classic B 40 4.9W 827 Frosted B22d
GTIN: 4052899961517
Folding box / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower thermal output (compared with the standard reference product)
- Lower energy consumption than incandescent or halogen lamps
- Shockproof and vibration-proof thanks to LED technology
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
- Simple direct replacement for conventional incandescent lamps
Areas of application
- General illumination
- Domestic applications
- Chandeliers
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not suitable for use with dimmers
- Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
- Base: E14, B22d
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 4.9 W |
| Construction wattage | 4.90 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 40 W |
| Nominal current | 36 mA |
| Type of current | AC |
| Inrush current | 10 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 210 |
| Max. lamp number on MCB B16 A | 320 |
| Total harmonic distortion | 125 % |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 470 lm |
| Nominal useful luminous flux 90° | 470 lm |
| Luminous efficacy | 95 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.9 |
Light technical data
| Beam angle | 200 ° |
| Warm-up time (60 %) | 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 100.00 mm |
| Diameter | 37.00 mm |
| Maximum diameter | 37 mm |
| Product weight | 21.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 78 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 10000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | B22d |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 5.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | ROHS 2.0, REACH, CE, CB, ERP |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| ILCOS | DRBB/F-5,7-220-240-B22D-35 |
| Order reference | BASECLB40 4,9W/ |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | B22d |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 |
| Networked standby power for CLS | 0 W |
| Claim of equivalent power | Yes |
| Length | 100.00 mm |
| Height | 37.00 mm |
| Width | 37.00 mm |
| Chromaticity coordinate x | 0.458 |
| Chromaticity coordinate y | 0.410 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.5 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1403057,523319 |
| Model number | AC31161,AC24795 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899961517 | Folding box 3 |
39 mm x 116 mm x 138 mm | 82.00 g | 0.62 dm³ |
| 4052899961524 | Shipping box 30 |
241 mm x 204 mm x 117 mm | 946.00 g | 5.75 dm³ |
Declarations of conformity
CLASS B,P LED lamp
CLASS B,P LED lamp
PRODUCT DATASHEET
BASECLB40 5,5W/827220-240FRB22D1 0X3OSRAM
BASECLB40 5,5W/827220-240FRB22D1 0X3OSRAM
Product image: white background, diagonal with OSRAM logo
655093_Classic B 40 frosted non-dim B22d
655093_Classic B 40 frosted non-dim B22d
Product image: white background, diagonal
723259_LED CLB 40 5,7W/827 B22d FR
723259_LED CLB 40 5,7W/827 B22d FR

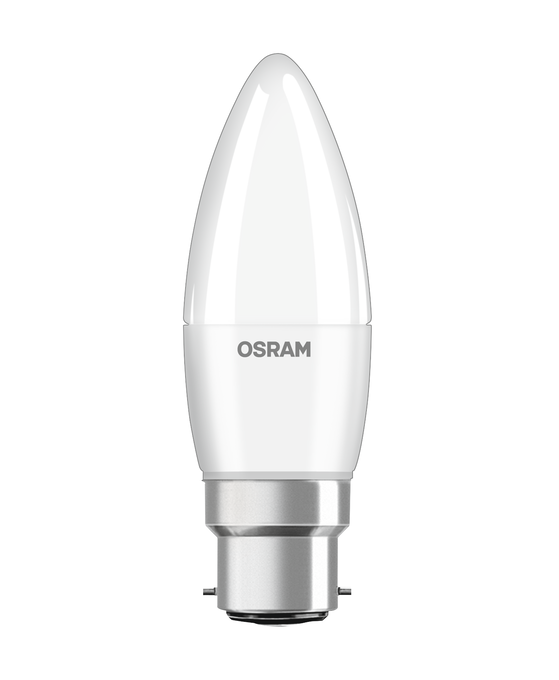

Product image: white background, upright, OSRAM logo
655072_Classic B 40 frosted non-dim B22d
655072_Classic B 40 frosted non-dim B22d
Product image: white background, upright
723265_LED CLB 40 5,7W/827 B22d FR
723265_LED CLB 40 5,7W/827 B22d FR
Product line drawing with letters
666451_Classic B 40 frosted non-dim B22d
666451_Classic B 40 frosted non-dim B22d
Product line drawing, front, no dimensions
666475_Classic B 40 frosted non-dim B22d
666475_Classic B 40 frosted non-dim B22d

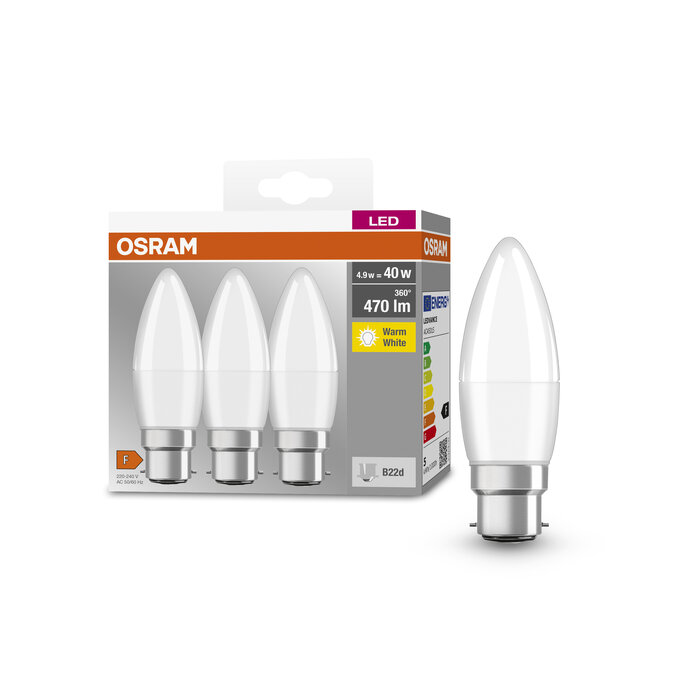

Combo Shot = Product Beauty Shot + Packaging Image
