LED STAR STICK
LED Star Classic Stick 60
GTIN: MP_4058075428423
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Attractive lamp appearance
Areas of application
- All domestic rooms, especially where the lamps are visible
- Wherever compact and efficient lamps are needed
- Where the lamps need to last a long time or have to withstand frequent on/off switching
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Construction wattage | 8.00 W |
| Type of current | AC |
| Inrush current | 7.04 A |
| Operating frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 30 |
| Max. lamp number on MCB B16 A | 36 |
| Total harmonic distortion | 104.40 % |
Photometrical data
| Nominal useful luminous flux 90° | 806 lm |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Warm-up time (60 %) | 0.50 s |
Dimensions & Weight
| Overall length | 118.00 mm |
| Maximum diameter | 38 mm |
Temperatures & operating conditions
| Maximum temperature at tc test point | 90 °C |
Lifespan
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Certificates & Standards
| Energy consumption | 8.00 kWh/1000h |
| Standards | CE, UKCA, EAC |
LOGISTICAL DATA
| Temperature range at storage | -40…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Standby power | 0.00 W |
| Claim of equivalent power | Yes |
| Chromaticity coordinate x | 0.382 |
| Chromaticity coordinate y | 0.380 |
| R9 Colour rendering index | >0 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.7 |
| LED light source replaces a fluorescent light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075125704 | Blister 1 |
45 mm x 140 mm x 120 mm | 48.00 g | 0.76 dm³ |
| 4058075125711 | Shipping box 6 |
285 mm x 153 mm x 136 mm | 359.00 g | 5.93 dm³ |
Declarations of conformity
LED Stick lamp
LED Stick lamp
Declarations of conformity
LED CLASSIC / LED STICK
LED CLASSIC / LED STICK
PRODUCT DATASHEET
LEDSSTICK60 8W/840 230VFR E146XBLI1OSRAM
LEDSSTICK60 8W/840 230VFR E146XBLI1OSRAM
PRODUCT DATASHEET
STSTICK60FR8W4000KE14e n
STSTICK60FR8W4000KE14e n
Product image: white background, diagonal
LED VALUE STICK 7W E14
LED VALUE STICK 7W E14
Product image: white background, upright
LED Value Stick 7W E14
LED Value Stick 7W E14
Product line drawing with letters
LED Stick Frosted with E14 socket drawing with letters
LED Stick Frosted with E14 socket drawing with letters
Product line drawing, front, no dimensions
LED Stick Frosted with E14 socket drawing
LED Stick Frosted with E14 socket drawing
Combo Shot = Product Beauty Shot + Packaging Image
LED ST STICK 60 8.0W 840 FR E14 MiCh
LED ST STICK 60 8.0W 840 FR E14 MiCh
Packaging image, frontal
LED ST STICK 60 8W 840 FR E14 MiCh
LED ST STICK 60 8W 840 FR E14 MiCh
Packaging image, frontal
LED ST STICK 60 8.0W 840 FR E14 MiCh Front
LED ST STICK 60 8.0W 840 FR E14 MiCh Front
Packaging image, spacial
LED ST STICK 60 8W 840 FR E14 MiCh
LED ST STICK 60 8W 840 FR E14 MiCh
Energy label
EL-4058075428423-AC311 33
EL-4058075428423-AC311 33
Energy label
EL-4058075428423-AC175 05
EL-4058075428423-AC175 05
Energy label
EL-4058075428423-AC559 61
EL-4058075428423-AC559 61
IES file (IES)
LEDSSTICK60 8W 840 FR OSRAM
LEDSSTICK60 8W 840 FR OSRAM
LDT file (Eulumdat)
AC08413_STICK60 8W 230V FR E14
AC08413_STICK60 8W 230V FR E14
Light distribution curve type polar
LEDSSTICK60 8W 840 230VFR E14 BLI1 OSRAM
LEDSSTICK60 8W 840 230VFR E14 BLI1 OSRAM

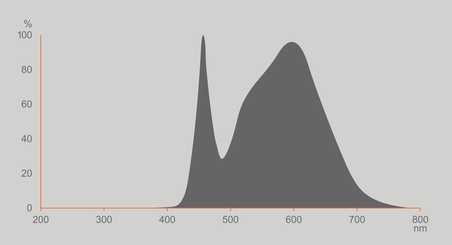

Spectral power distribution
