LED Retrofit CLASSIC P

LED Star Classic P 15 Filament

GTIN: MP_4058075434325 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Beam angle: up to 300°
  • Lifetime up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Construction wattage 1.50 W
Type of current AC
Inrush current 1.45 A
Operating frequency 50/60 Hz
Max. lamp number on MCB B10 A 310
Max. lamp number on MCB B16 A 666
Photometrical data
Nominal useful luminous flux 90° 136 lm
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Overall length 77.00 mm
Maximum diameter 45 mm
Temperatures & operating conditions
Maximum temperature at tc test point 55 °C
Lifespan
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Certificates & Standards
Energy consumption 2.00 kWh/1000h
Standards CE, EAC
Country-specific categorizations
ILCOS DRBP/C-1,3-827-220-240-E27-45
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.40
LED light source replaces a fluorescent light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
Declarations of conformity
LED lamps CLA,B,G,P
PDF (223.84 KB)
PRODUCT DATASHEET
LED STAR CL P FIL 15 non-dim 1,5W/827 E27
PDF (235.33 KB)
PRODUCT DATASHEET
STCLASP15CL1.5W2700KE2 7en
PDF (488.96 KB)
Product image: white background, diagonal
LED CL P FIL 15 E27
JPG (1.23 MB)
Product image: white background, diagonal
597747_RFCLP25 2 W/827 E27 clear
TIF (40.62 MB)
Product image: white background, upright
LED CL P FIL 15 E27
JPG (1.07 MB)
Product image: white background, upright
597760_RFCLP25 2 W/827 E27 clear
TIF (40.62 MB)
Product line drawing with letters
LED CL P FIL 15 E27
EPS (1.1 MB)
Product line drawing with letters
603587_RFCLP25 2 W/827 E27 clear
SVG (11.49 KB)
Product line drawing with numbers
LED CL P FIL 15 E27
EPS (1.1 MB)
Product line drawing, front, no dimensions
603602_RFCLP25 2 W/827 E27 clear
SVG (8.32 KB)
Product line drawing - technical
LED CL P FIL 15 E27
EPS (1.09 MB)

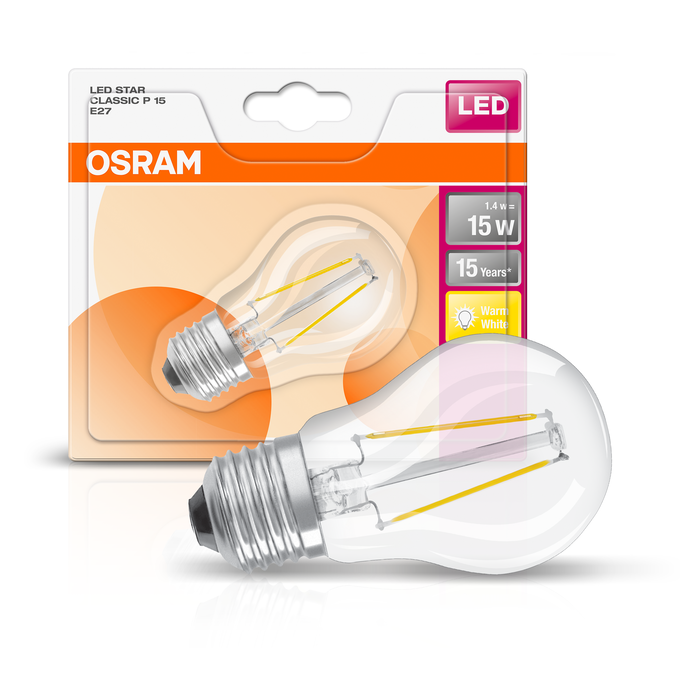

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLP15 1,5W-827 230V FIL E27 FS1 OSRAM
JPG (1.11 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLP15 1,4W827 230VFILE27 BLI1 Combo Shot
TIF (64.6 MB)
Packaging image, frontal
LED ST CLP 15 1.5W 827 FIL E27 MiCh
TIF (1.28 MB)
Packaging image, frontal
LED ST CLP 15 1.6W 827 FIL E27 MiCh Front
TIF (9.02 MB)
Packaging image, spacial
LED ST CLP 15 1.5W 827 FIL E27 MiCh
TIF (1.53 MB)
Energy label
EL-4058075434325-AC324 68
PDF (21.9 KB)
Energy label
EL-4058075434325-AC174 70
PDF (21.33 KB)
Energy label
EL-4052899400344-AC174 70
PDF (21.33 KB)
Spectral power distribution
EPREL data spectral diagram PROF LEDr 2700K
PNG (103.24 KB)
Spectral power distribution
LISO spectral power distribution 6500K CRI80 v2
PNG (104.45 KB)
EAN EFO number
4058075434325 3730091
