LED PCR LAMP WITH CLASSIC A

LED Star Classic A 40

GTIN: MP_4058075304178 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Mercury-free lamps
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Electrical data
Construction wattage 4.90 W
Type of current AC
Inrush current 11.2 A
Operating frequency 50…60 Hz
Max. lamp number on MCB B10 A 35
Max. lamp number on MCB B16 A 45
Total harmonic distortion 140 %
Photometrical data
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Cool White
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Overall length 105.00 mm
Maximum diameter 59 mm
Temperatures & operating conditions
Maximum temperature at tc test point 100 °C
Lifespan
Lumen maintenance at end of service lifetime 0.93
Additional product data
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Certificates & Standards
Energy consumption 5.00 kWh/1000h
Standards CE, UKCA, EAC
Country-specific categorizations
ILCOS DRAA/F-5/840-220-240-E27-60
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0.00 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.3818
Chromaticity coordinate y 0.3797
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.934
LED light source replaces a fluorescent light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
Declarations of conformity
Classic A_B_P 15000h FR
PDF (414.95 KB)
Declarations of conformity
LED CLASSIC A_P NON-DIM
PDF (236.64 KB)
PRODUCT DATASHEET
LEDSCLA40 5,5W/840 230VFR E276XBLI1OSRAM
PDF (219.49 KB)
PRODUCT DATASHEET
STCLASA40FR4.9W4000KE2 7en
PDF (600.26 KB)
Product datasheet -> old version of product
LEDStarClassicA404.9W8 40FrostedE27en
PDF (207.55 KB)
Product datasheet -> old version of product
LEDStarClassicA404.9W8 40FrostedE27en
PDF (0 B)
Product image: white background, diagonal with OSRAM logo
LED CLA FR E27 WITH OSRAM BRAND
JPG (1.31 MB)
Product image: white background, diagonal with OSRAM logo
655306_Clasisc A 40/60/75
TIF (3.32 MB)
Product image: white background, diagonal
LED CLASSIC A40 E27
JPG (1.33 MB)
Product image: white background, upright, OSRAM logo
LED CLA FR E27 WITH OSRAM BRAND
JPG (1.26 MB)
Product image: white background, upright, OSRAM logo
655301_Clasisc A 40/60/75
TIF (2.55 MB)
Product image: white background, upright
LED CLASSIC A40 E27
JPG (1.21 MB)
Product line drawing with letters
LED CLASSIC A40 E27
SVG (7.55 KB)
Product line drawing with numbers
LED Classic A60 FR E27
SVG (12.01 KB)
Product line drawing with numbers
LED CLASSIC A E27
SVG (0 B)
Product line drawing with numbers
LED CLASSIC A40 E27
SVG (12.09 KB)
Product line drawing, front, no dimensions
LED CLASSIC A40 E27
SVG (4.64 KB)

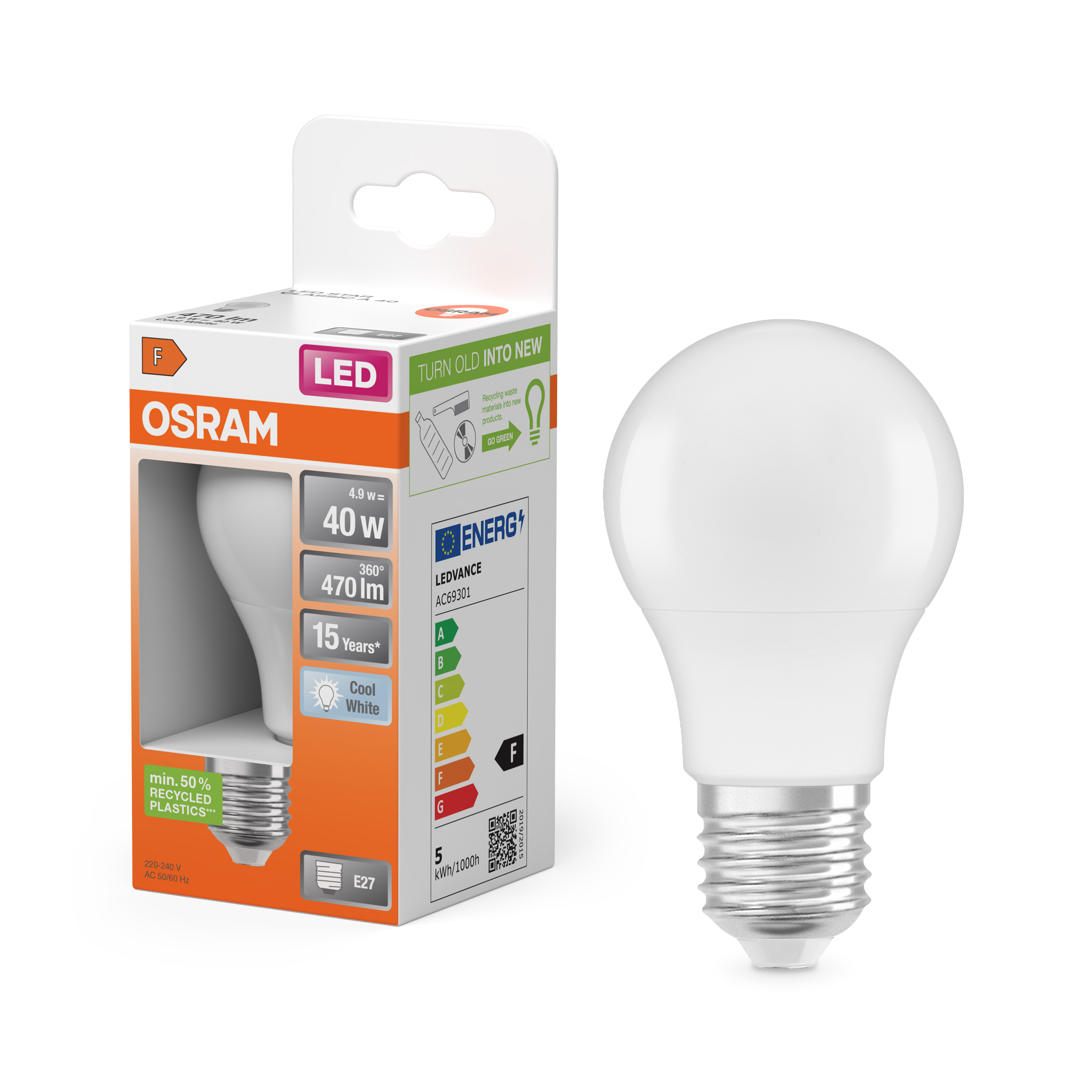

Combo Shot = Product Beauty Shot + Packaging Image
LED ST CLA 40 4.9W 840 FR E27 MiCh
JPG (642.17 KB)

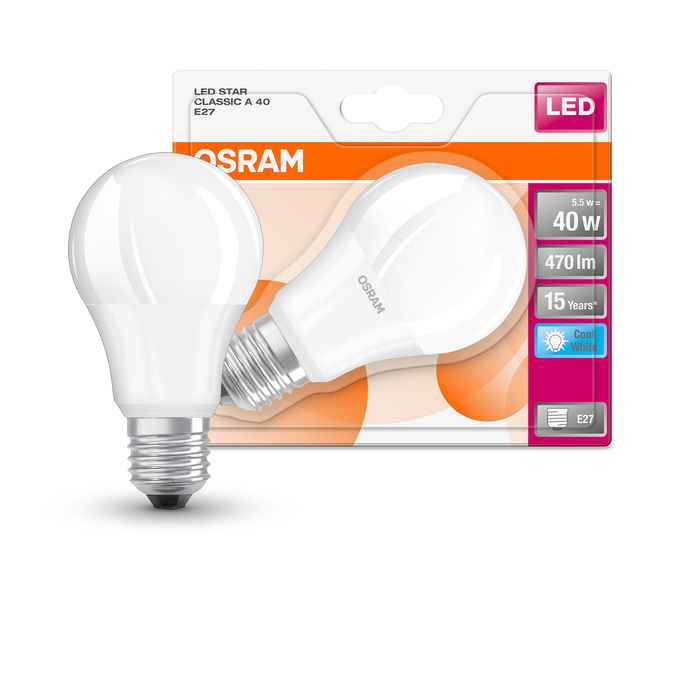

Combo Shot = Product Beauty Shot + Packaging Image
