LED PIN G9 DIM
LED PIN 30 300° DIM 3W 827 Clear G9

GTIN: 4058075607286
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Good all-around light emission
- Very long lifetime of up to 25,000 h
- Ideal for decorative and free-burning applications
- Four year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Atmospheric accent lighting throughout the home
- Shops, hotels and restaurants
- Outdoor use in suitable outdoor luminaires only
Product features
- Dimmable (with many common dimmers, see also www.ledvance.com/dim)
- LED alternative to conventional high voltage lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
- For Guarantee see www.osram-lamps.com/guarantee
- For further products and actual information concerning LED lamps see www.osram-lamps.com/led-lamps
Electrical data
Nominal wattage | 3 W |
Construction wattage | 3.00 W |
Nominal voltage | 220…240 V |
Operating mode | AC Mains |
Claimed equiv. conventional lamp power | 30 W |
Nominal current | 18 mA |
Type of current | AC |
Inrush current | 0.08 A |
Operating frequency | 50/60 Hz |
Mains frequency | 50/60 Hz |
Max. lamp number on MCB B10 A | 444 |
Max. lamp number on MCB B16 A | 711 |
Total harmonic distortion | 83 % |
Power factor λ | > 0.40 |
Photometrical data
Luminous flux | 320 lm |
Nominal useful luminous flux 90° | 320 lm |
Luminous efficacy | 106 lm/W |
Lumen main.fact.at end of nom.life time | 0.96 |
Light color (designation) | Warm White |
Color temperature | 2700 K |
Color rendering index Ra | 80 |
Light color | 827 |
Standard deviation of color matching | ≤6 sdcm |
Flickering metric (Pst LM) | 1.0 |
Stroboscope effect metric (SVM) | 0.4 |
Light technical data
Beam angle | 300 ° |
Warm-up time (60 %) | ‹ 0.50 s |
Starting time | < 0.5 s |
Dimensions & Weight
Overall length | 49.00 mm |
Diameter | 18.00 mm |
Maximum diameter | 18 mm |
Product weight | 7.00 g |
Temperatures & operating conditions
Ambient temperature range | -20…+40 °C |
Maximum temperature at tc test point | 90 °C |
Lifespan
Lifespan L70/B50 at 25 °C | 25000 h |
Number of switching cycles | 100000 |
Lumen maintenance at end of service lifetime | 0.96 |
Additional product data
Base (standard designation) | G9 |
Mercury content | 0.0 mg |
Mercury-free | Yes |
Design / version | Clear |
Capabilities
Dimmable | Yes 1) |
1) Check dimmer compatibility at ledvance.com/compatibility
Certificates & Standards
Energy efficiency class | F 1) |
Energy consumption | 3.00 kWh/1000h |
Type of protection | IP20 |
Standards | CE, EAC, UKCA |
Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference | LEDPIN30D CL 3W |
LOGISTICAL DATA
Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | MLS |
Light source cap-type (or other electric interface) | G9 |
Connected light source (CLS) | No |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | SINGLE_VALUE |
Standby power | 0 W |
Claim of equivalent power | Yes |
Length | 49.00 mm |
Height | 18.00 mm |
Width | 18.00 mm |
Chromaticity coordinate x | 0.458 |
Chromaticity coordinate y | 0.410 |
R9 Colour rendering index | 7 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0.9 |
Displacement factor | 0.5 |
LED light source replaces a fluorescent light source | No |
EPREL ID | 522888,1368324,1856543 |
Model number | AC32117,AC45792,AC58917,AC58917 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075607286 | Folding box 1 |
20 mm x 49 mm x 95 mm | 15.00 g | 0.09 dm³ |
4058075607293 | Shipping box 6 |
109 mm x 79 mm x 104 mm | 100.00 g | 0.90 dm³ |
4058075607309 | Shipping box 48 |
236 mm x 176 mm x 237 mm | 1250.00 g | 9.84 dm³ |

Declarations of conformity
LED SPECIAL PIN30
LED SPECIAL PIN30

Declarations of conformity
LED PIN G9
LED PIN G9

PRODUCT DATASHEET
PINDIM303W2700KG9en
PINDIM303W2700KG9en

Product datasheet -> old version of product
LEDPIN30300°DIM3W827C learG9en
LEDPIN30300°DIM3W827C learG9en

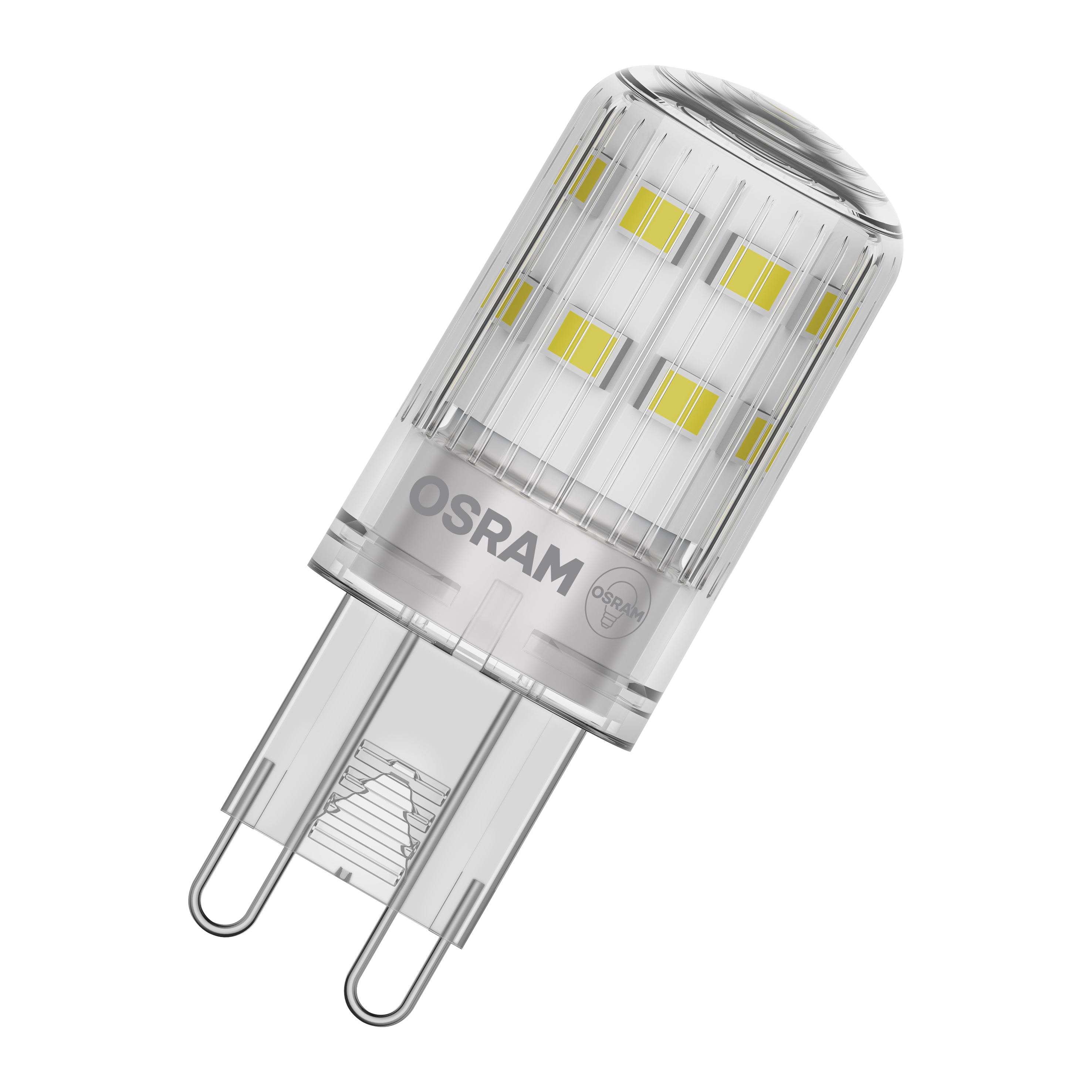

Product image: white background, diagonal with OSRAM logo
LED PIN30 DIM 230V Clear G9 Plastic
LED PIN30 DIM 230V Clear G9 Plastic

Product image: white background, diagonal
LED PIN30 DIM 230V Clear G9 Plastic
LED PIN30 DIM 230V Clear G9 Plastic

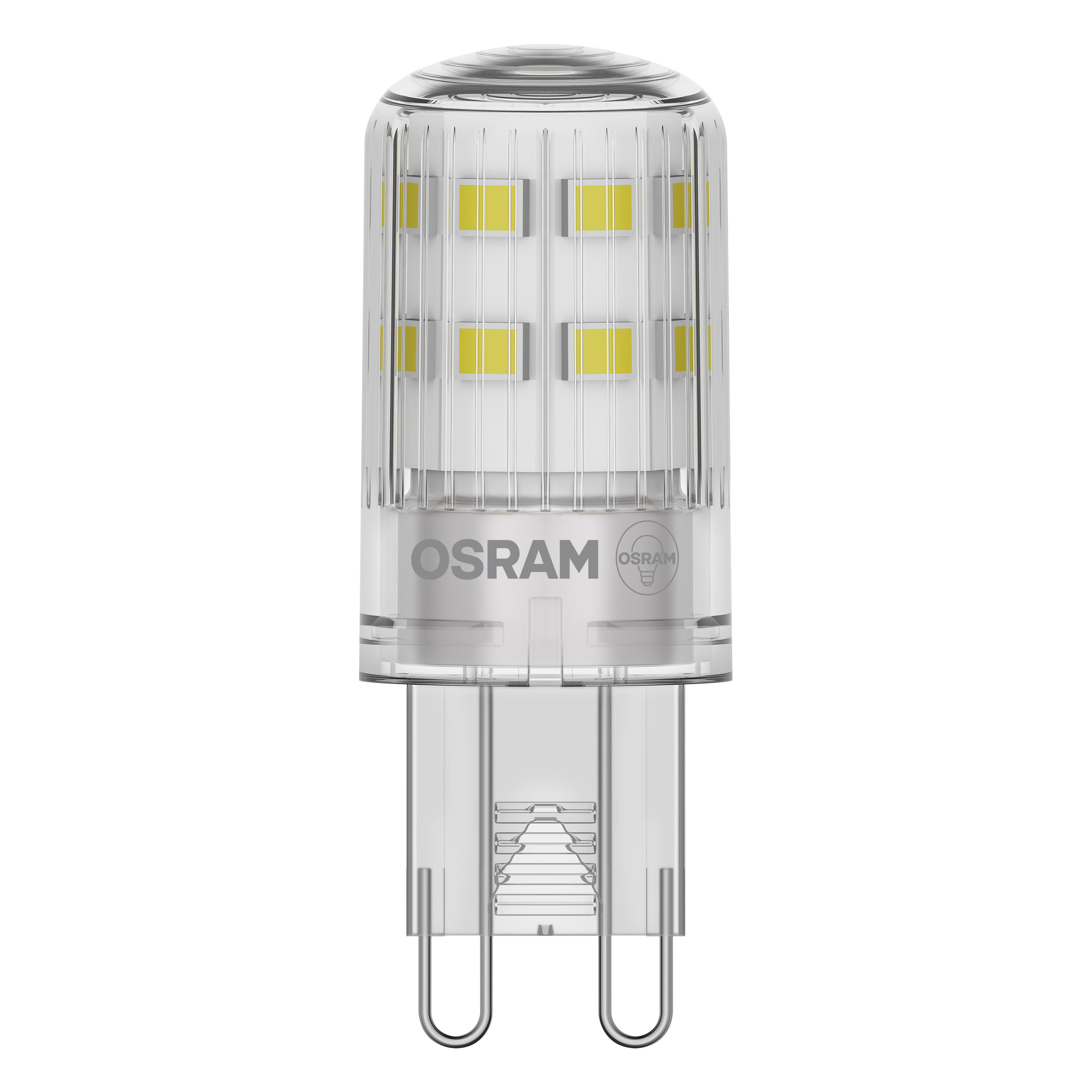

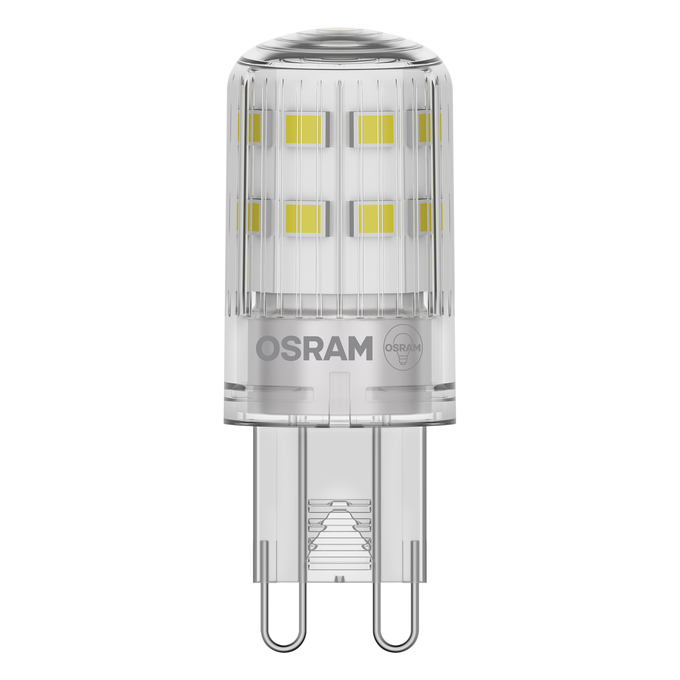

Product image: white background, upright, OSRAM logo
LED PIN30 DIM 230V Clear G9 Plastic
LED PIN30 DIM 230V Clear G9 Plastic

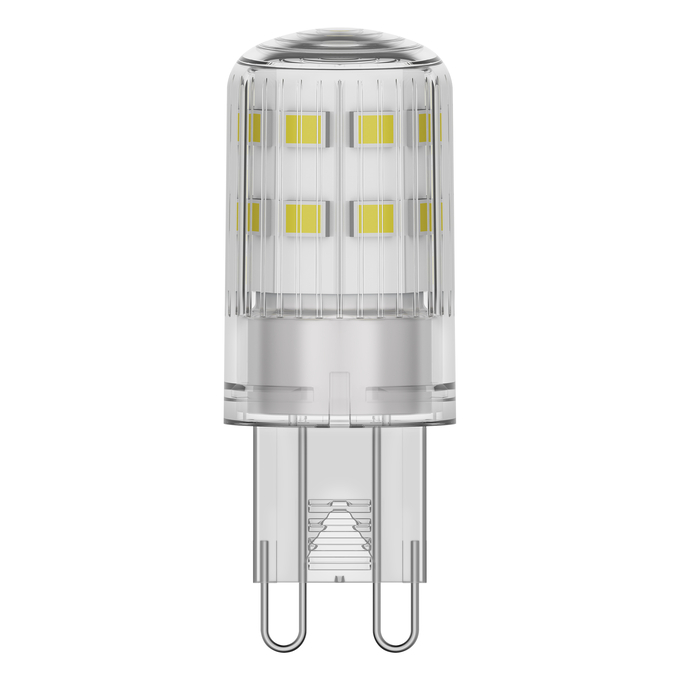

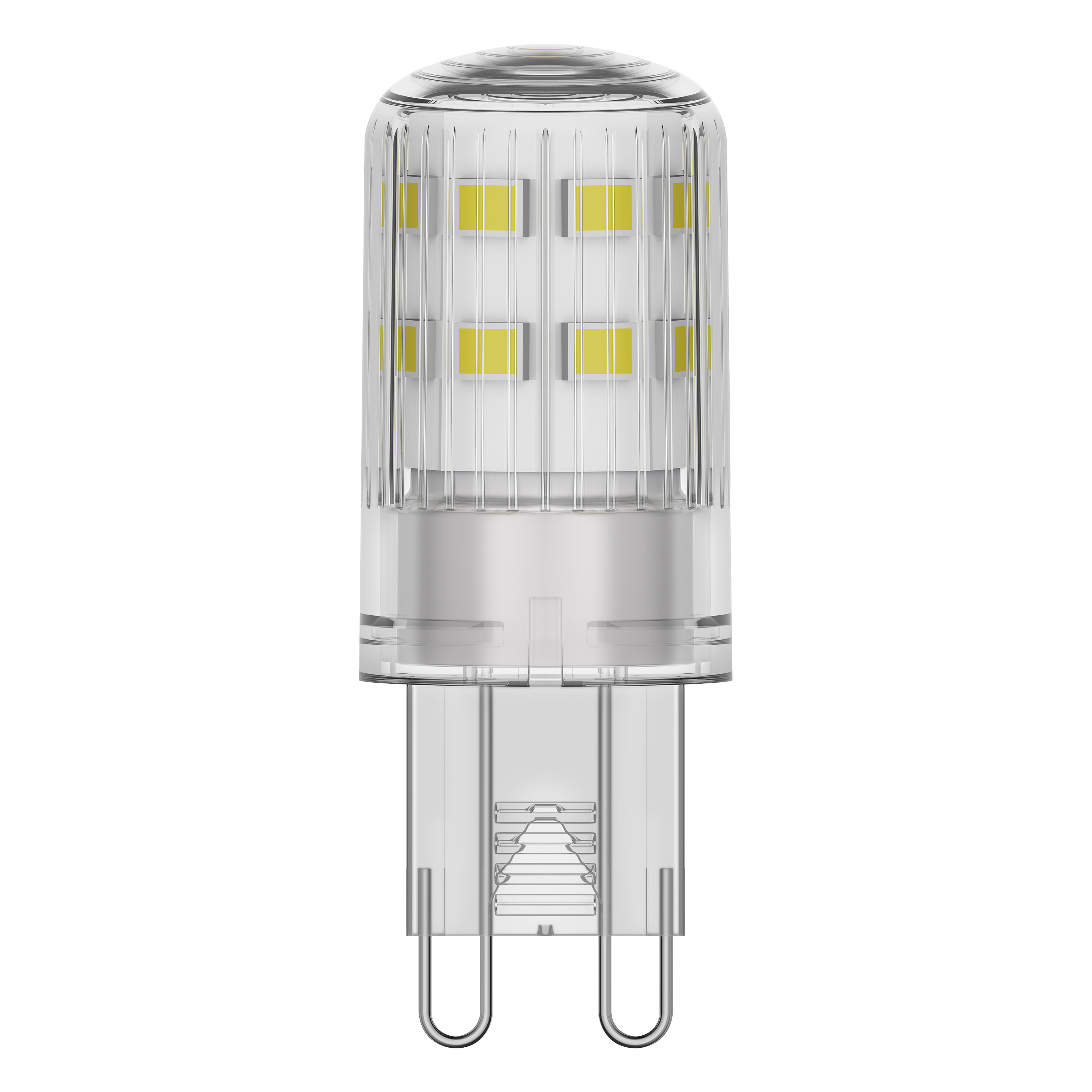

Product image: white background, upright
LED PIN30 DIM 230V Clear G9 Plastic
LED PIN30 DIM 230V Clear G9 Plastic
Product line drawing with letters
LED PIN30 DIM 230V Clear G9 Plastic
LED PIN30 DIM 230V Clear G9 Plastic
Product line drawing with numbers
LED PIN30 DIM 230V Clear G9 Plastic
LED PIN30 DIM 230V Clear G9 Plastic
Product line drawing - technical
LED PIN30 DIM 230V Clear G9 Plastic
LED PIN30 DIM 230V Clear G9 Plastic

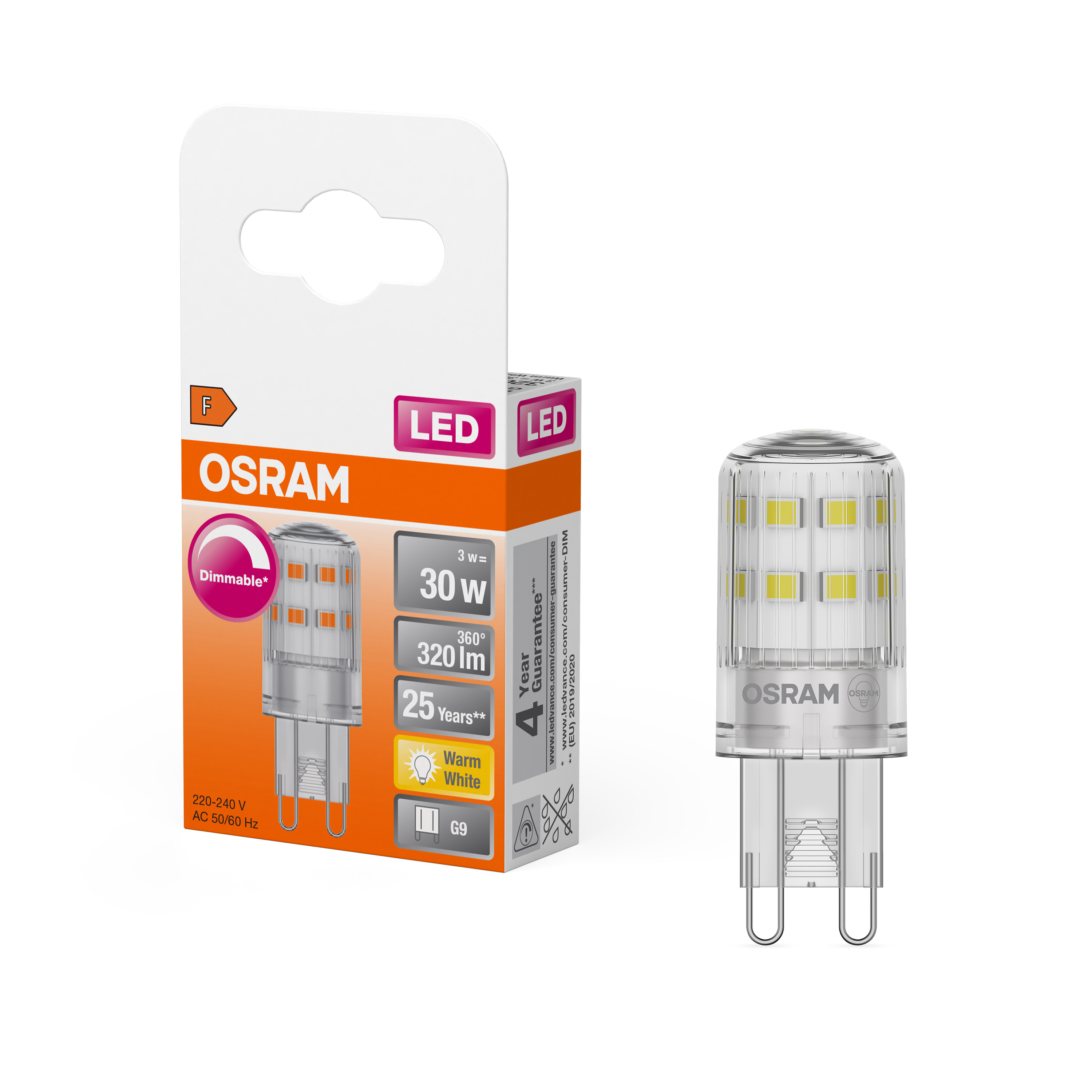

Combo Shot = Product Beauty Shot + Packaging Image
LED SST PIN 30 DIM 3W 827 CL G9 MiCh
LED SST PIN 30 DIM 3W 827 CL G9 MiCh

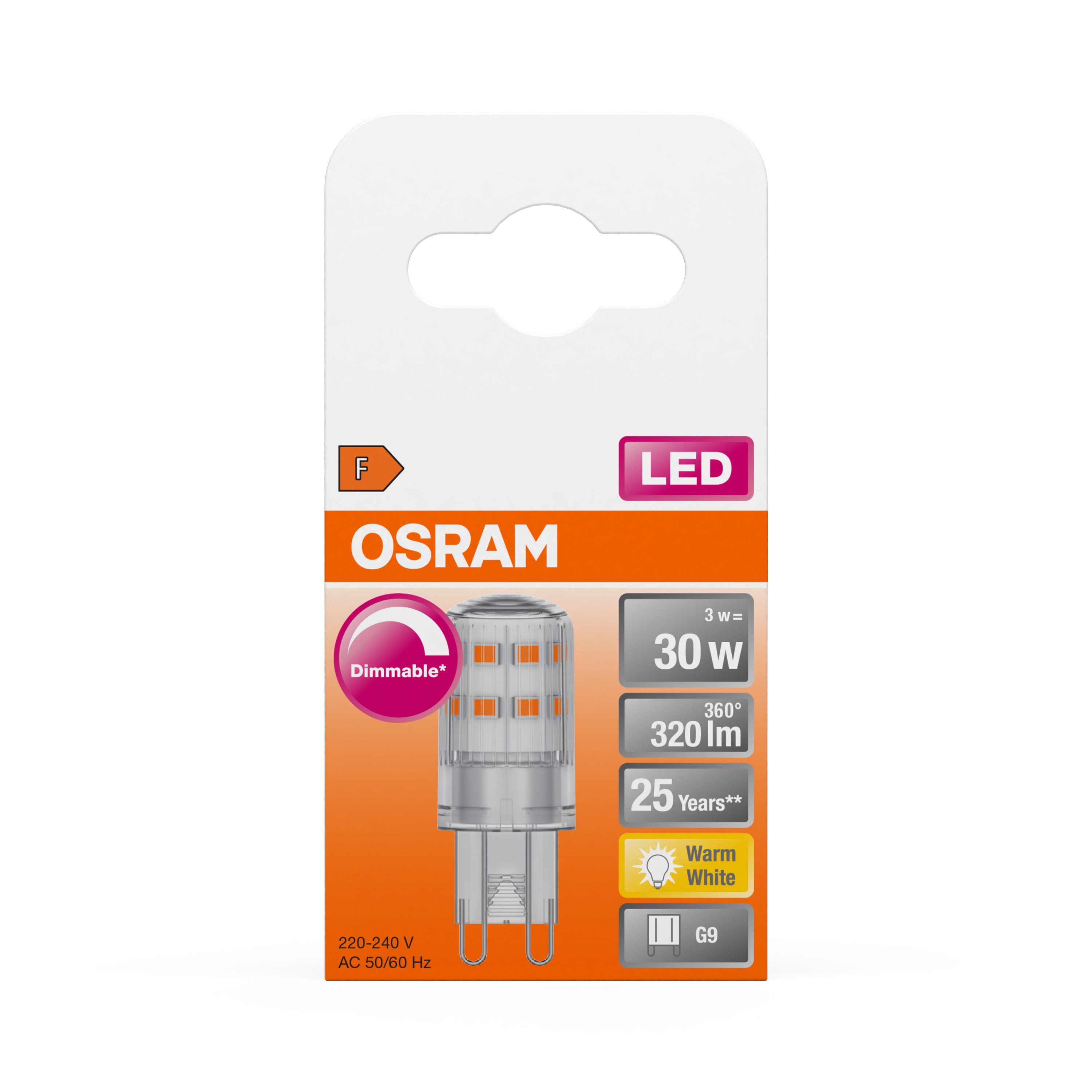

Packaging image, frontal
LED SST PIN 30 DIM 3W 827 CL G9 MiCh
LED SST PIN 30 DIM 3W 827 CL G9 MiCh

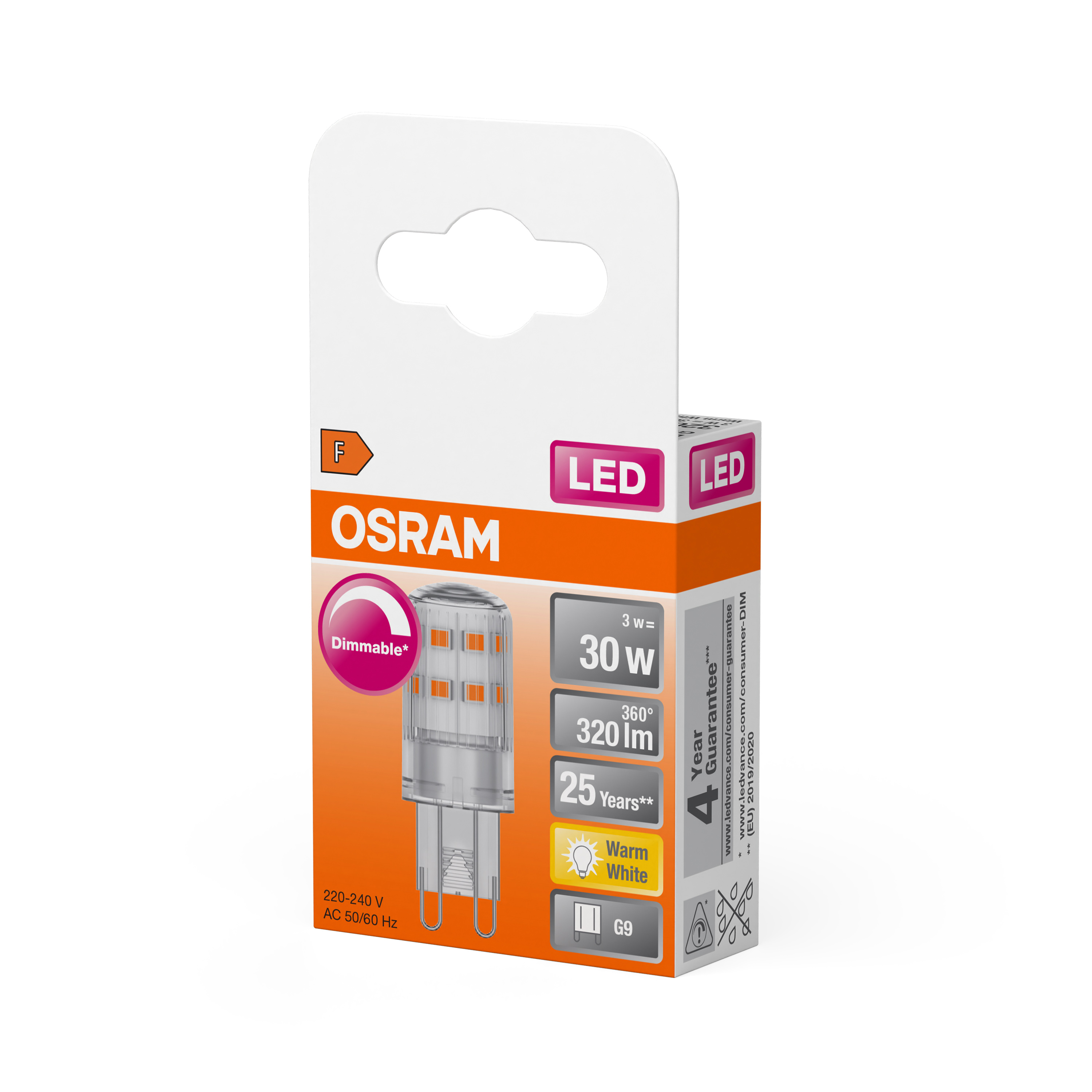

Packaging image, spacial
