LED PIN G9 DIM

LED PIN 50 320° DIM 4.4W 827 Clear G9

GTIN: 4099854247583 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to conventional high voltage lamps
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Electrical data
Nominal wattage 4.4 W
Construction wattage 4.40 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 48 W
Nominal current 27 mA
Type of current AC
Inrush current 0.17 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 296
Max. lamp number on MCB B16 A 474
Total harmonic distortion ≤180 %
Power factor λ > 0.40
Photometrical data
Luminous flux 600 lm
Nominal useful luminous flux 90° 600 lm
Luminous efficacy 136 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm white
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 59.00 mm
Diameter 18.00 mm
Maximum diameter 18 mm
Product weight 11.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 102.3 °C
Lifespan
Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96
Additional product data
Base (standard designation) G9
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes 1)
1) Check dimmer compatibility at ledvance.com/compatibility
Certificates & Standards
Energy efficiency class D 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference LEDPIN50D 4,4W/
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G9
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 59.00 mm
Height 18.00 mm
Width 18.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 8
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.4
LED light source replaces a fluorescent light source No
EPREL ID 1856546
Model number AC58973,AC58973
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854247583 Folding box
1
20 mm x 49 mm x 95 mm 18.00 g 0.09 dm³
4099854247590 Shipping box
6
109 mm x 79 mm x 104 mm 139.00 g 0.90 dm³
4099854247606 Shipping box
48
236 mm x 176 mm x 237 mm 1432.00 g 9.84 dm³
Declarations of conformity
LED PIN DIM G9
Product image: white background, diagonal with OSRAM logo
LED PIN 40 DIM G9 clear

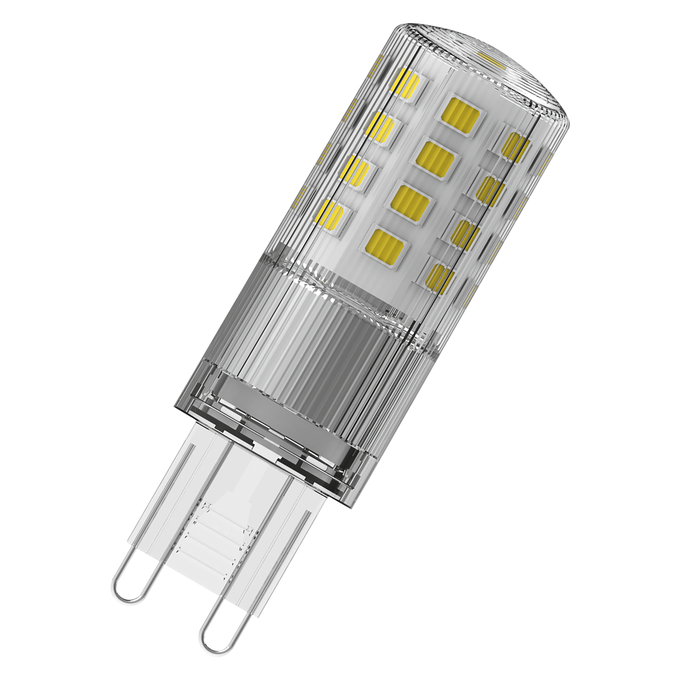

Product image: white background, diagonal
LED PIN 40 DIM G9 clear

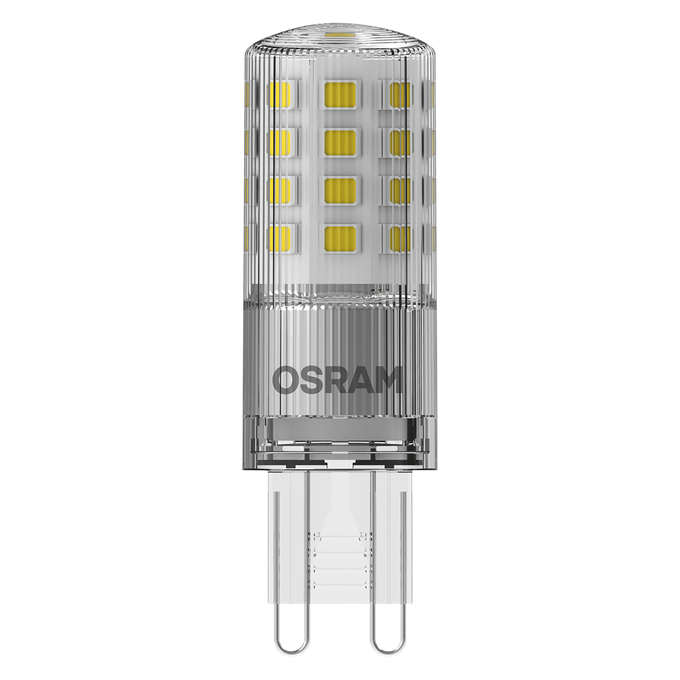

Product image: white background, upright, OSRAM logo
LED PIN 40 DIM G9 clear

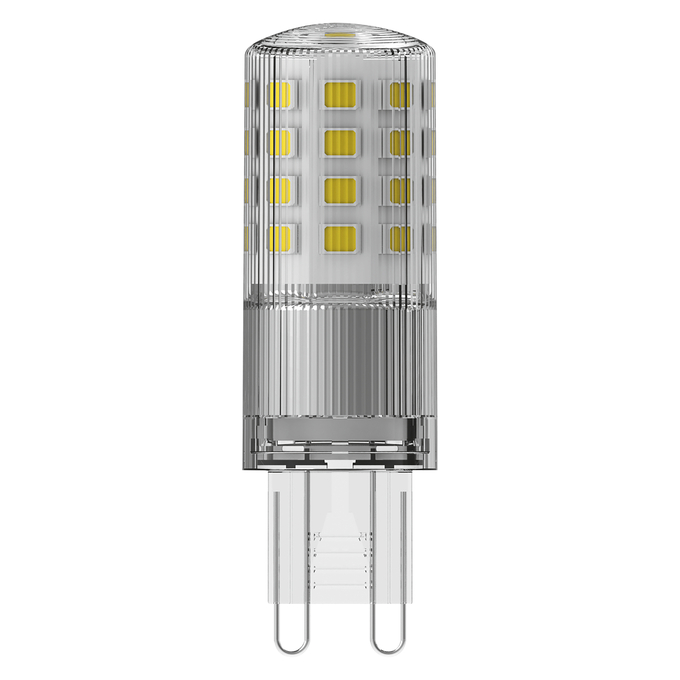

Product image: white background, upright
