LED STAR GX53
LED Star GX53 40 120° 4.9W 840 Frosted GX53

GTIN: 4058075433465
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Compact dimensions
- Easy installation
- Excellent luminous efficiency
- Good quality of light
- Low weight and low profile
- Three year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Area lighting
- As a downlight for marking walkways, doors, stairs, etc.
- Background lighting
- Domestic applications
- Entrance lighting
- Exhibitions, department stores
- For indoor use only
- Kitchen lighting
- Outdoor use in suitable outdoor luminaires only
Product features
- 230 V line voltage operation
- High color consistency: ≤ 6 SDCM
- Not dimmable
- Type of protection: IP20
- Very long average lifetime 15,000 h (15 years at 2.7 h per day)
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For Guarantee see www.osram-lamps.com/guarantee
Electrical data
Nominal wattage | 4.9 W |
Construction wattage | 4.90 W |
Nominal voltage | 220…240 V |
Operating mode | AC Mains |
Claimed equiv. conventional lamp power | 40 W |
Nominal current | 40 mA |
Type of current | AC |
Inrush current | 3.24 A |
Operating frequency | 50/60 Hz |
Mains frequency | 50/60 Hz |
Max. lamp number on MCB B10 A | 23 |
Max. lamp number on MCB B16 A | 37 |
Total harmonic distortion | 73.70 % |
Power factor λ | > 0.40 |
Photometrical data
Luminous flux | 470 lm |
Luminous efficacy | 95 lm/W |
Lumen main.fact.at end of nom.life time | 0.93 |
Light color (designation) | Cool White |
Color temperature | 4000 K |
Color rendering index Ra | 80 |
Light color | 840 |
Standard deviation of color matching | ≤6 sdcm |
Rated LLMF at 6,000 h | 0.80 |
Flickering metric (Pst LM) | ≤1 |
Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
Beam angle | 120 ° |
Warm-up time (60 %) | ‹ 0.50 s |
Starting time | < 0.5 s |
Dimensions & Weight
Overall length | 28.00 mm |
Diameter | 75,0 mm |
Maximum diameter | 74 mm |
Product weight | 28.00 g |
Temperatures & operating conditions
Ambient temperature range | -20…+40 °C |
Maximum temperature at tc test point | 85 °C |
Lifespan
Lifespan L70/B50 at 25 °C | 15000 h |
Number of switching cycles | 100000 |
Lumen maintenance at end of service lifetime | 0.93 |
Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
Base (standard designation) | GX53 |
Mercury content | 0.0 mg |
Mercury-free | Yes |
Capabilities
Dimmable | No |
Certificates & Standards
Energy efficiency class | F 1) |
Energy consumption | 5.00 kWh/1000h |
Type of protection | IP20 |
Standards | CE, EAC |
Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference | LSGX5340120 4,9 |
LOGISTICAL DATA
Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | MLS |
Light source cap-type (or other electric interface) | GX53 |
Connected light source (CLS) | No |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | SINGLE_VALUE |
Standby power | 0 W |
Claim of equivalent power | Yes |
Length | 28.00 mm |
Height | 75,0 mm |
Width | 75,0 mm |
Chromaticity coordinate x | 0.382 |
Chromaticity coordinate y | 0.380 |
R9 Colour rendering index | 9 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0.90 |
Displacement factor | >0.4 |
LED light source replaces a fluorescent light source | No |
EPREL ID | 1403181,522970,1368233 |
Model number | AC32711,AC45703,AC24560,AC45703,AC45703 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075433465 | Folding box 1 |
30 mm x 76 mm x 130 mm | 39.00 g | 0.30 dm³ |
4058075617131 | Shipping box 6 |
198 mm x 88 mm x 139 mm | 280.00 g | 2.42 dm³ |
4058075452978 | Shipping box 80 |
|||
4058075617148 | Shipping box 48 |
368 mm x 214 mm x 304 mm | 3040.00 g | 23.94 dm³ |

Declarations of conformity
PAR16 and GX53
PAR16 and GX53

PRODUCT DATASHEET
STGX53401204.9W4000KGX 53en
STGX53401204.9W4000KGX 53en

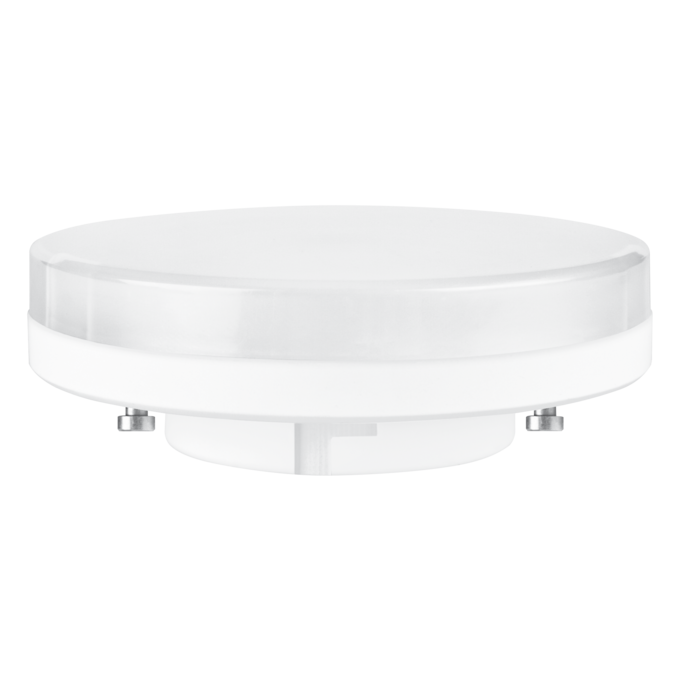

Product image: white background, diagonal
GX53 frosted
GX53 frosted

Product image: white background, upright
GX53 frosted
GX53 frosted
Product line drawing with letters
GX53 frosted
GX53 frosted
Product line drawing with numbers
GX53 frosted
GX53 frosted
Product line drawing, front, no dimensions
GX53 frosted
GX53 frosted

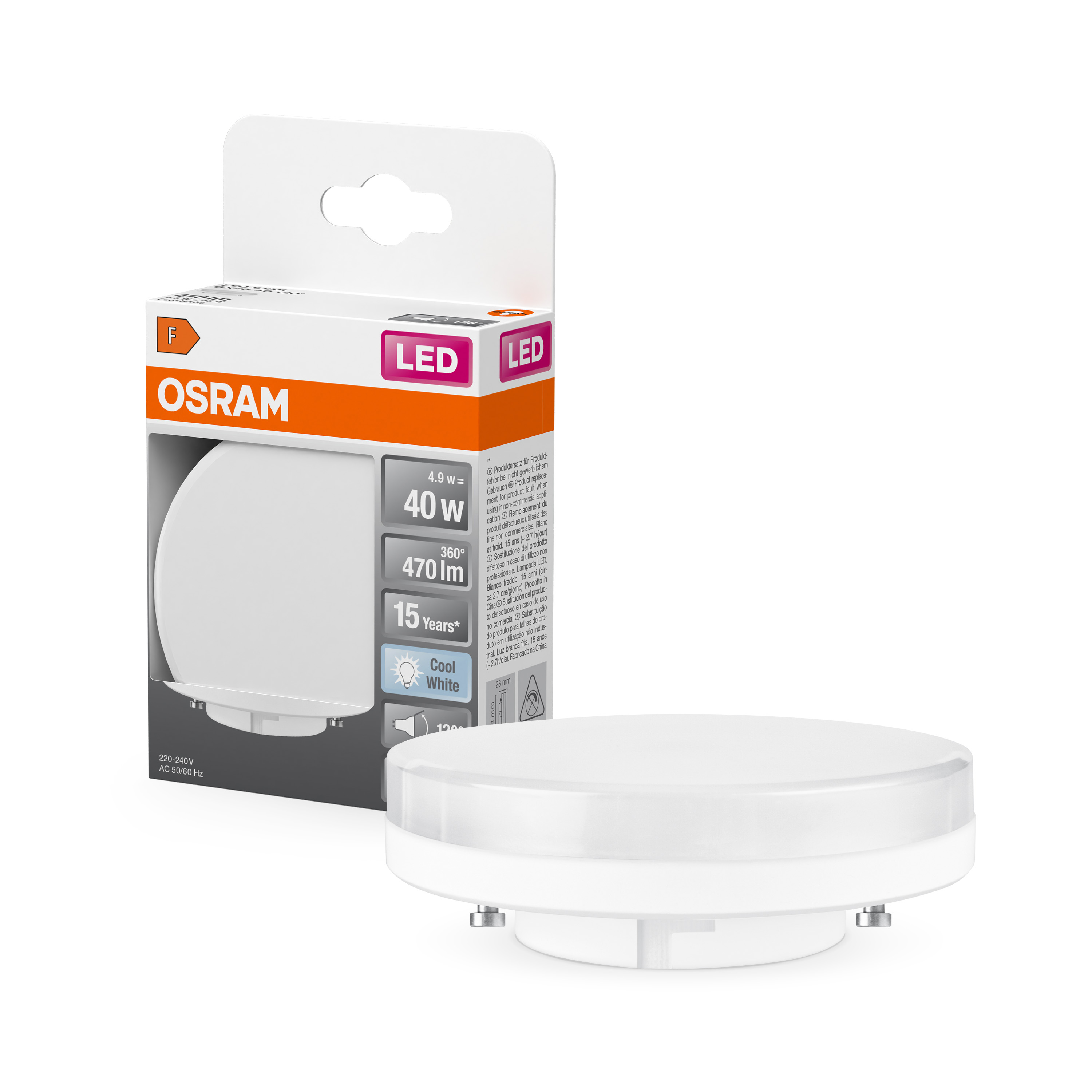

Combo Shot = Product Beauty Shot + Packaging Image
LED ST GX53 40 ba120 4.9W 840 FR GX53 MiCh
LED ST GX53 40 ba120 4.9W 840 FR GX53 MiCh

Packaging image, frontal
LED ST GX53 40 ba100 6W 840 FR GX53 MiCh
LED ST GX53 40 ba100 6W 840 FR GX53 MiCh

Packaging image, spacial
LED ST GX53 40 ba100 6W 840 FR GX53 MiCh
LED ST GX53 40 ba100 6W 840 FR GX53 MiCh

Energy label
EL-4058075433465-AC327 11
EL-4058075433465-AC327 11

Energy label
EL-4058075433465-AC245 60
EL-4058075433465-AC245 60

Energy label
EL-4058075433465-AC457 03
EL-4058075433465-AC457 03

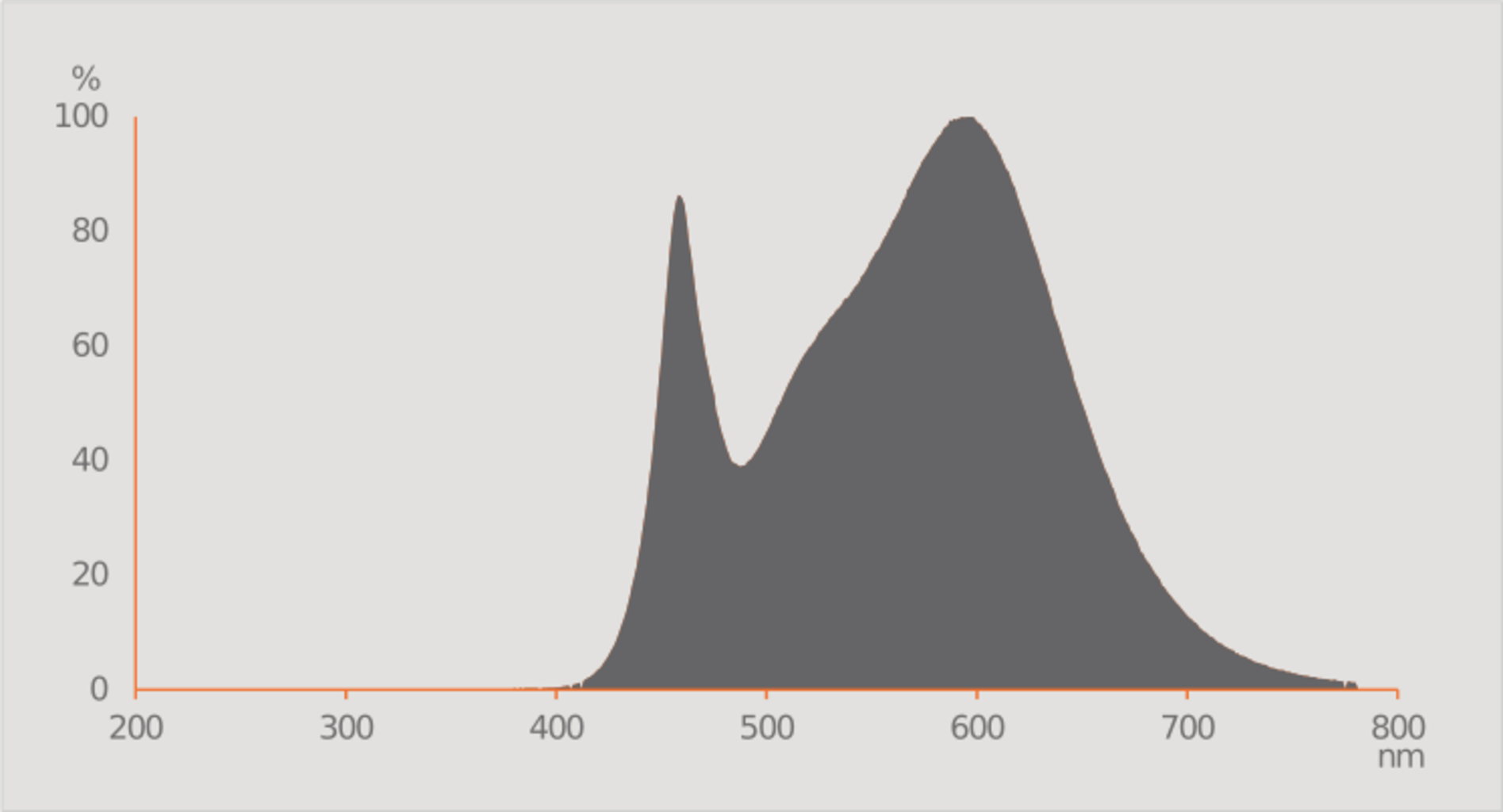

Spectral power distribution
Everlight 67-23ST KKE 4000K
Everlight 67-23ST KKE 4000K
EAN | SEG number | STK number | ELDAS number |
---|---|---|---|
4058075433465 | 8298023 | 4731852 | 941812390 |
