LED LINE R7S
LED Line 78 75 330° 8W 827 Clear R7s

GTIN: 4058075432611
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Fits into most R7s luminaires thanks to excentric base
- Good all-around light emission
- Lower thermal output (compared with the standard reference product)
- Long lifetime of up to 15,000 h
- Three year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- General illumination within ambient temperatures from -20…+40 °C
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional R7s lamps
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
- For Guarantee see www.osram-lamps.com/guarantee
- For further products and actual information concerning LED lamps see www.osram-lamps.com/led-lamps
Electrical data
Nominal wattage | 8 W |
Construction wattage | 8.00 W |
Nominal voltage | 220…240 V |
Operating mode | AC Mains |
Claimed equiv. conventional lamp power | 75 W |
Nominal current | 54 mA |
Type of current | AC |
Inrush current | 2.72 A |
Operating frequency | 50/60 Hz |
Mains frequency | 50/60 Hz |
Max. lamp number on MCB B10 A | 66 |
Max. lamp number on MCB B16 A | 83 |
Total harmonic distortion | 110 % |
Power factor λ | 0.50 |
Photometrical data
Luminous flux | 1055 lm |
Nominal useful luminous flux 90° | 1055 lm |
Luminous efficacy | 131 lm/W |
Lumen main.fact.at end of nom.life time | 0.70 |
Light color (designation) | Warm White |
Color temperature | 2700 K |
Color rendering index Ra | 80 |
Light color | 827 |
Standard deviation of color matching | ≤6 sdcm |
Rated LLMF at 6,000 h | 0.80 |
Flickering metric (Pst LM) | ≤1 |
Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
Beam angle | 300 ° |
Warm-up time (60 %) | ‹ 0.50 s |
Starting time | < 0.5 s |
Dimensions & Weight
Overall length | 78.00 mm |
Diameter | 29 mm |
Maximum diameter | 28 mm |
Product weight | 36.00 g |
Temperatures & operating conditions
Ambient temperature range | -20…+40 °C |
Maximum temperature at tc test point | 95 °C |
Lifespan
Lifespan L70/B50 at 25 °C | 15000 h |
Number of switching cycles | 100000 |
Lumen maintenance at end of service lifetime | 0.70 |
Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
Base (standard designation) | R7s |
Mercury content | 0.0 mg |
Mercury-free | Yes |
Design / version | Clear |
Capabilities
Dimmable | No |
Certificates & Standards
Energy efficiency class | E 1) |
Energy consumption | 8.00 kWh/1000h |
Type of protection | IP20 |
Standards | CE, EAC |
Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference | LEDLI7875 8W/82 |
LOGISTICAL DATA
Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | MLS |
Light source cap-type (or other electric interface) | R7s |
Connected light source (CLS) | No |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | SINGLE_VALUE |
Standby power | 0.00 |
Networked standby power for CLS | 0 W |
Claim of equivalent power | Yes |
Length | 78.00 mm |
Height | 29 mm |
Width | 29 mm |
Chromaticity coordinate x | 0.458 |
Chromaticity coordinate y | 0.410 |
R9 Colour rendering index | 1 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0.90 |
Displacement factor | 0.50 |
LED light source replaces a fluorescent light source | No |
EPREL ID | 1402933,522902,1368309 |
Model number | AC32098,AC45783,AC11922 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075432611 | Folding box 1 |
30 mm x 49 mm x 130 mm | 49.00 g | 0.19 dm³ |
4058075653368 | Shipping box 6 |
112 mm x 111 mm x 106 mm | 320.00 g | 1.32 dm³ |

Declarations of conformity
LED LINE SPECIAL
LED LINE SPECIAL

PRODUCT DATASHEET
LINER7s78.00mm758.2W27 00KR7sen
LINER7s78.00mm758.2W27 00KR7sen

Product image: white background, diagonal with OSRAM logo
LED LINE R7s 78mm
LED LINE R7s 78mm

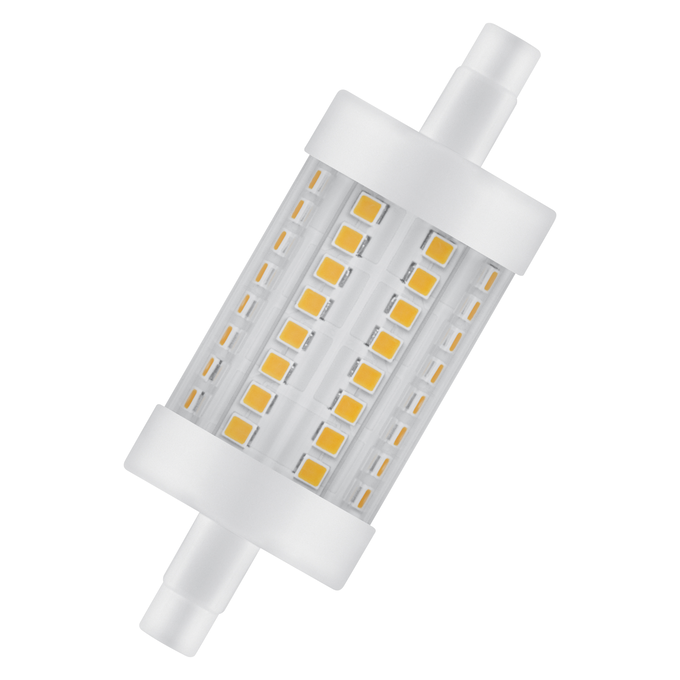

Product image: white background, diagonal
LED LINE R7s 78mm
LED LINE R7s 78mm

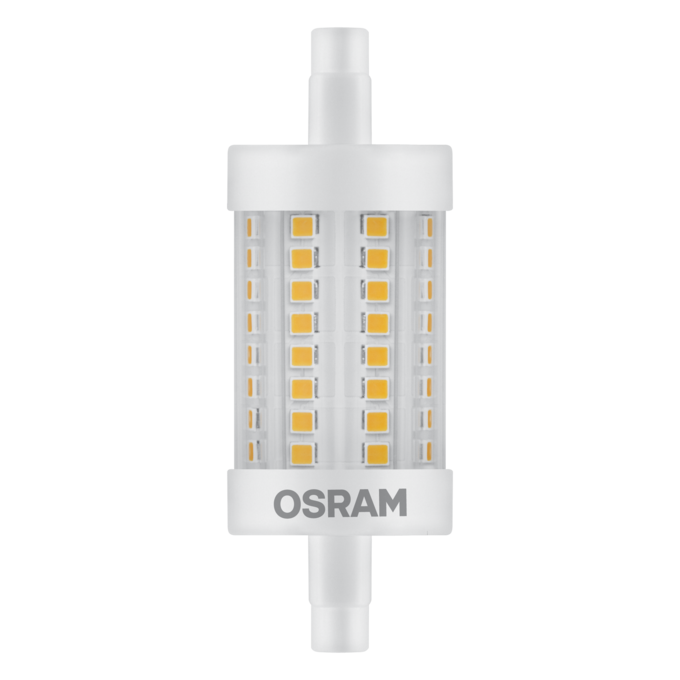

Product image: white background, upright, OSRAM logo
