SUBMARINE THROUGHWIRING
Submarine Through Wiring 120cm 15W 4000K
GTIN: 4058075576438
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy installation, no tools required for connection
- Quick and easy lamp replacement
- Good, even illumination
- Easy installation on wall and ceiling with through-wiring option
- Quick and easy wiring, due to tool-free housing opening
Areas of application
- Basements, garages, warehouses
- For indoor use only
Product features
- Durable and energy-saving LED luminaire
- Dust-protected and jet-proof (IP65)
- Pre-assembled through wiring kit
- Through Wiring Kit: 3 x 1.5 mm with fast connector
- Through-wiring 3x1.5mm² already installed
Equipment / Accessories
- Through-wiring cable kit included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Inrush current | 5.2 A |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1600 lm |
| Total luminous flux of contained light sources | 1800 lm |
| Luminous efficacy | 110 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 140 ° |
Dimensions & Weight
| Length | 1261.00 mm |
| Height | 75.00 mm |
| Width | 66.00 mm |
| Product weight | 1120.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Plastic |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+35 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Lifespan L80/B10 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075576438 | Folding box 1 |
77 mm x 71 mm x 1,265 mm | 1219.00 g | 6.92 dm³ |
| 4058075576445 | Shipping box 9 |
1,282 mm x 236 mm x 265 mm | 11770.00 g | 80.18 dm³ |
User instruction / safety instructions
SUBMARINE THRUWIRING
SUBMARINE THRUWIRING
Declarations of conformity
SUBMARINE LED
SUBMARINE LED

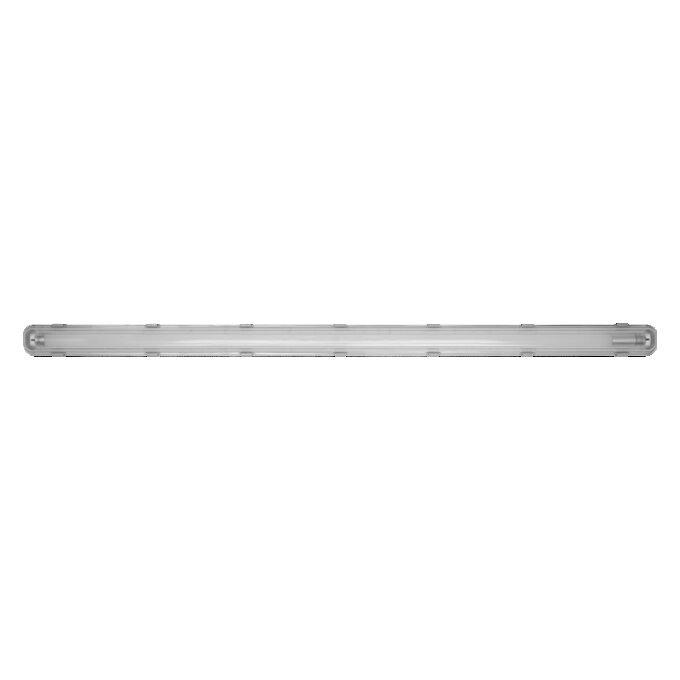

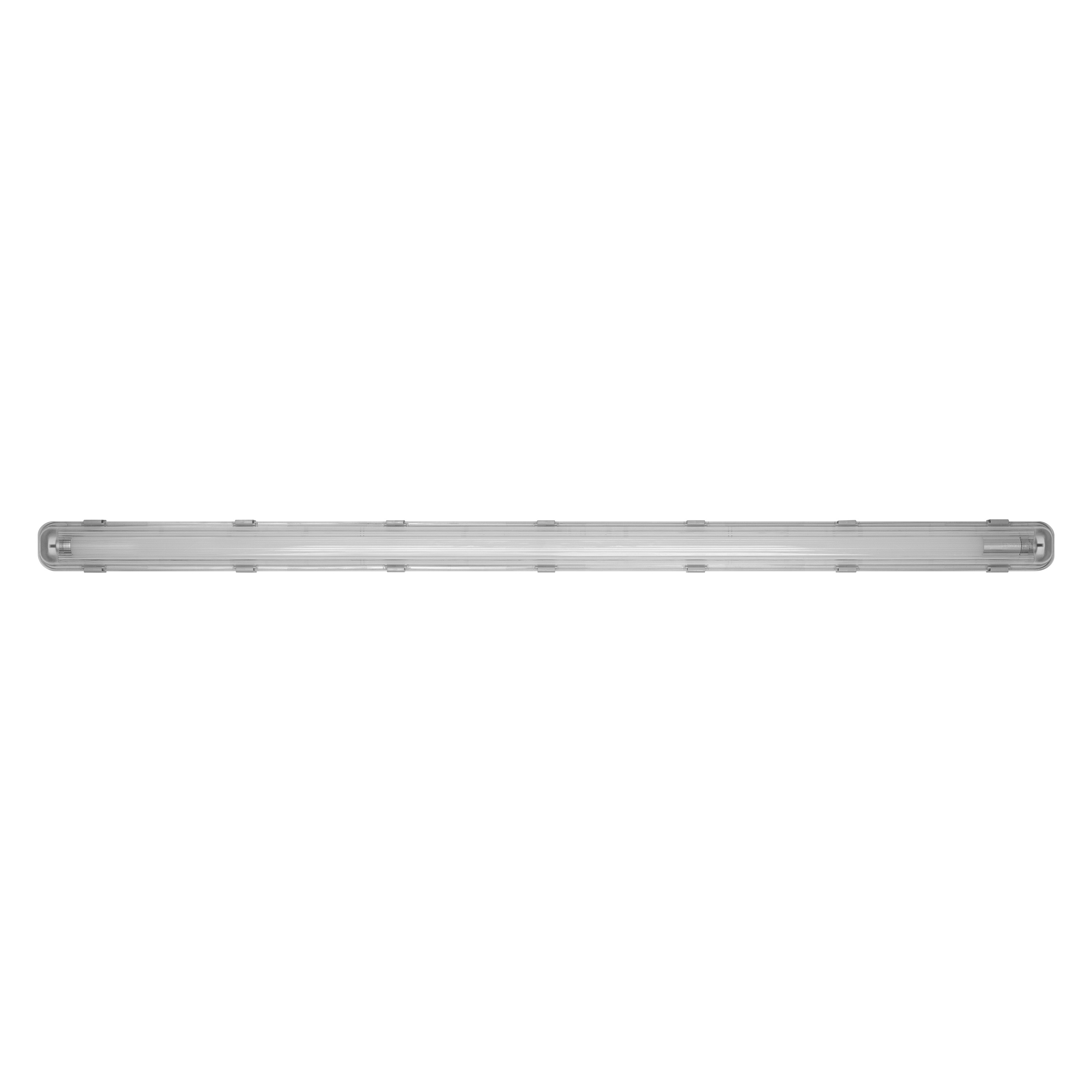

Product image: white background, upright
SUBMARINE THRUWIRING120CM 15W 840GR
SUBMARINE THRUWIRING120CM 15W 840GR

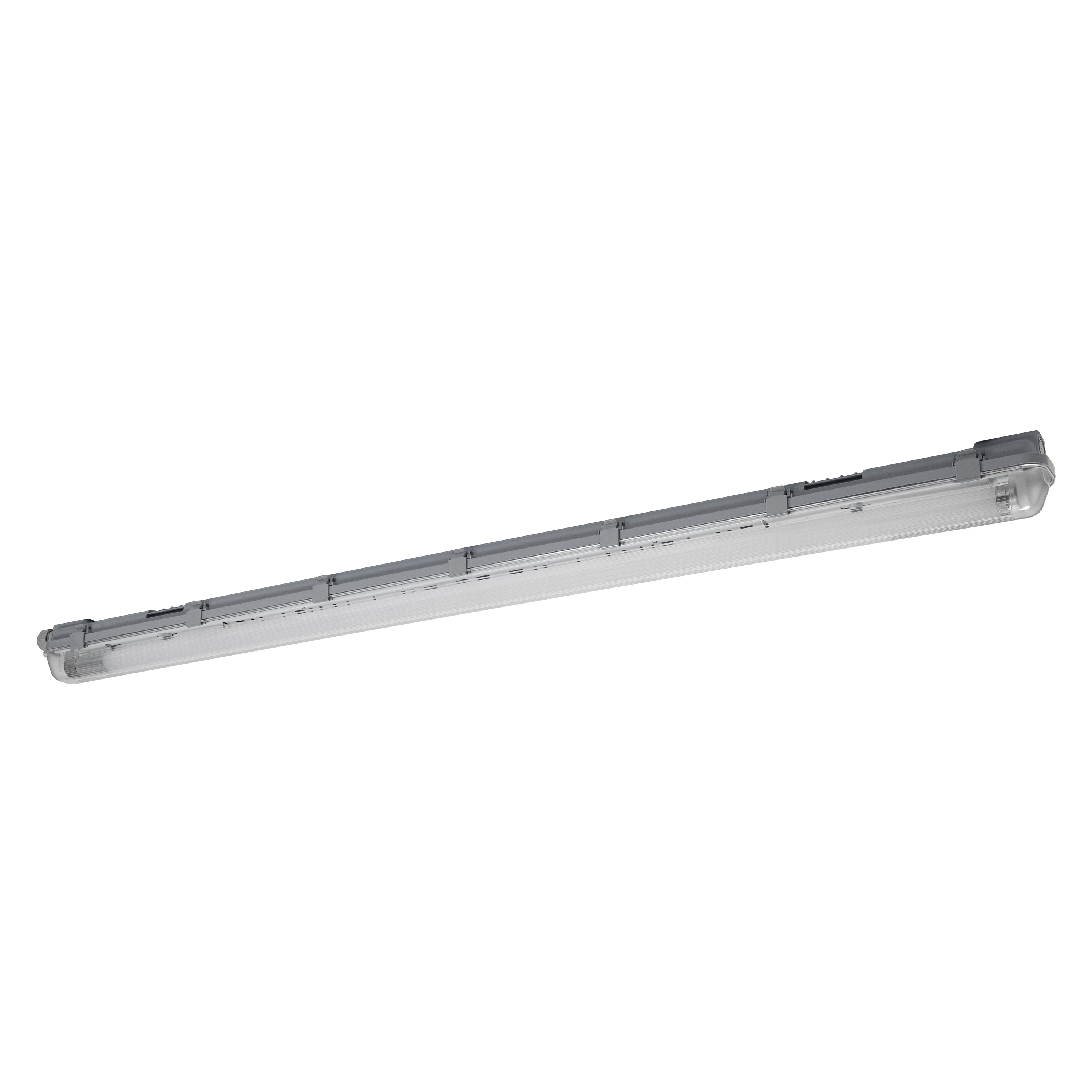

Product image: white background, upright, alternative image
SUBMARINE THRUWIRING120CM 15W 840GR
SUBMARINE THRUWIRING120CM 15W 840GR

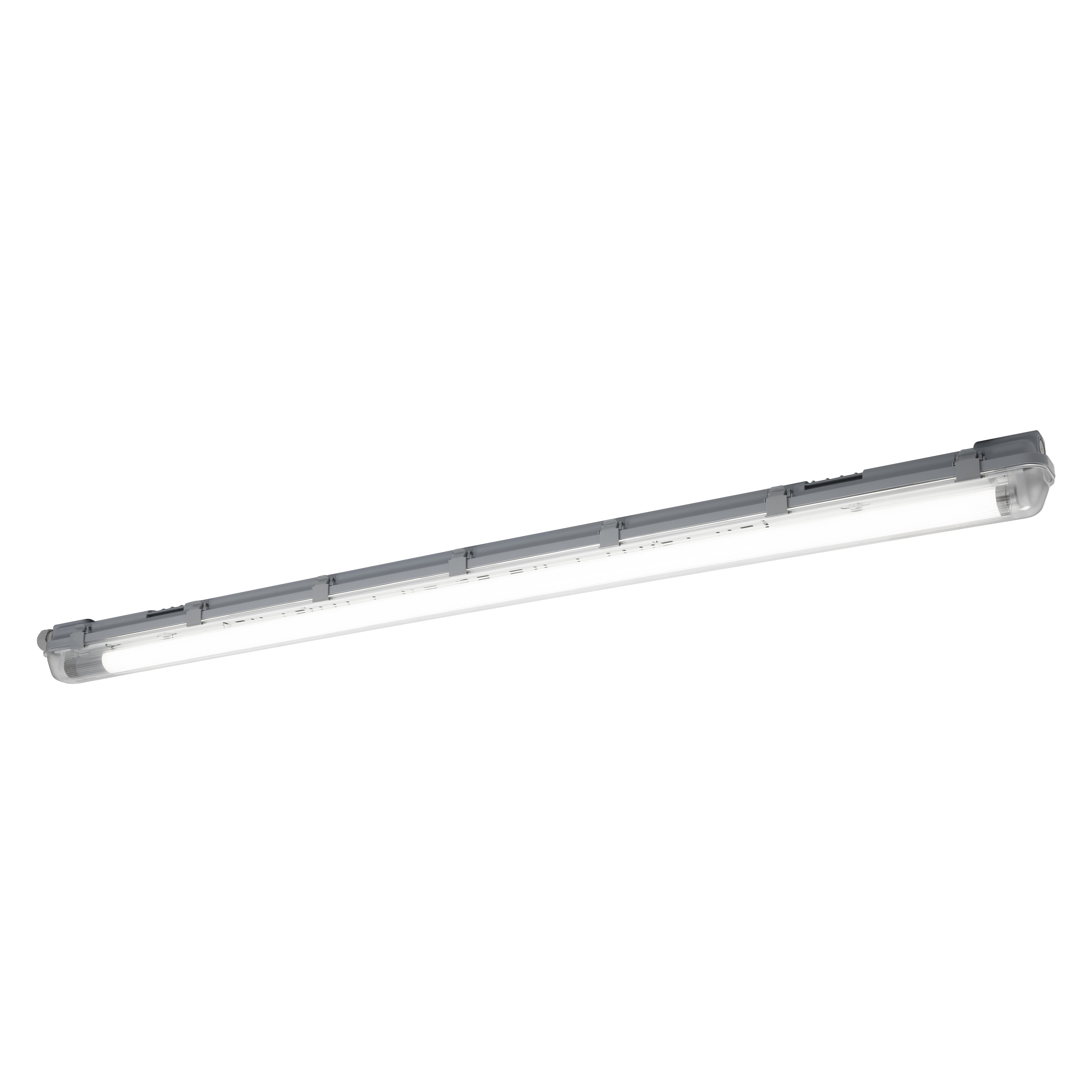

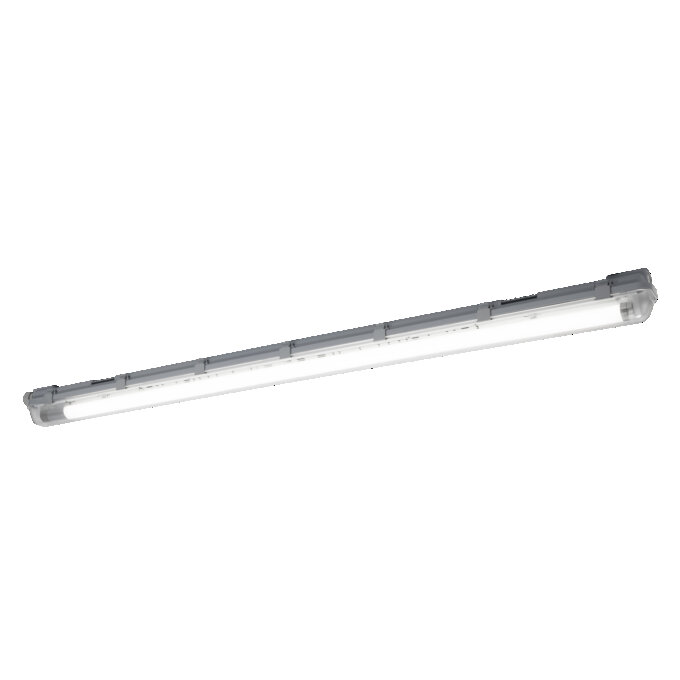

Product image: white background, upright, switched on
SUBMARINE THRUWIRING120CM 15W 840GR
SUBMARINE THRUWIRING120CM 15W 840GR
Product line drawing with letters
SUBMARINE 120CM
SUBMARINE 120CM
Product line drawing with letters
SUBMARINE 120CM
SUBMARINE 120CM
Product line drawing with letters
SUBMARINE 120CM
SUBMARINE 120CM
Product line drawing with numbers
SUBMARINE 120CM
SUBMARINE 120CM
Product line drawing with numbers
SUBMARINE 120CM
SUBMARINE 120CM
Product line drawing with numbers
SUBMARINE 120CM
SUBMARINE 120CM
Product line drawing, front, no dimensions
SUBMARINE 120CM
SUBMARINE 120CM
Product line drawing, front, no dimensions
SUBMARINE 120CM
SUBMARINE 120CM
Product line drawing, front, no dimensions
SUBMARINE 120CM
SUBMARINE 120CM

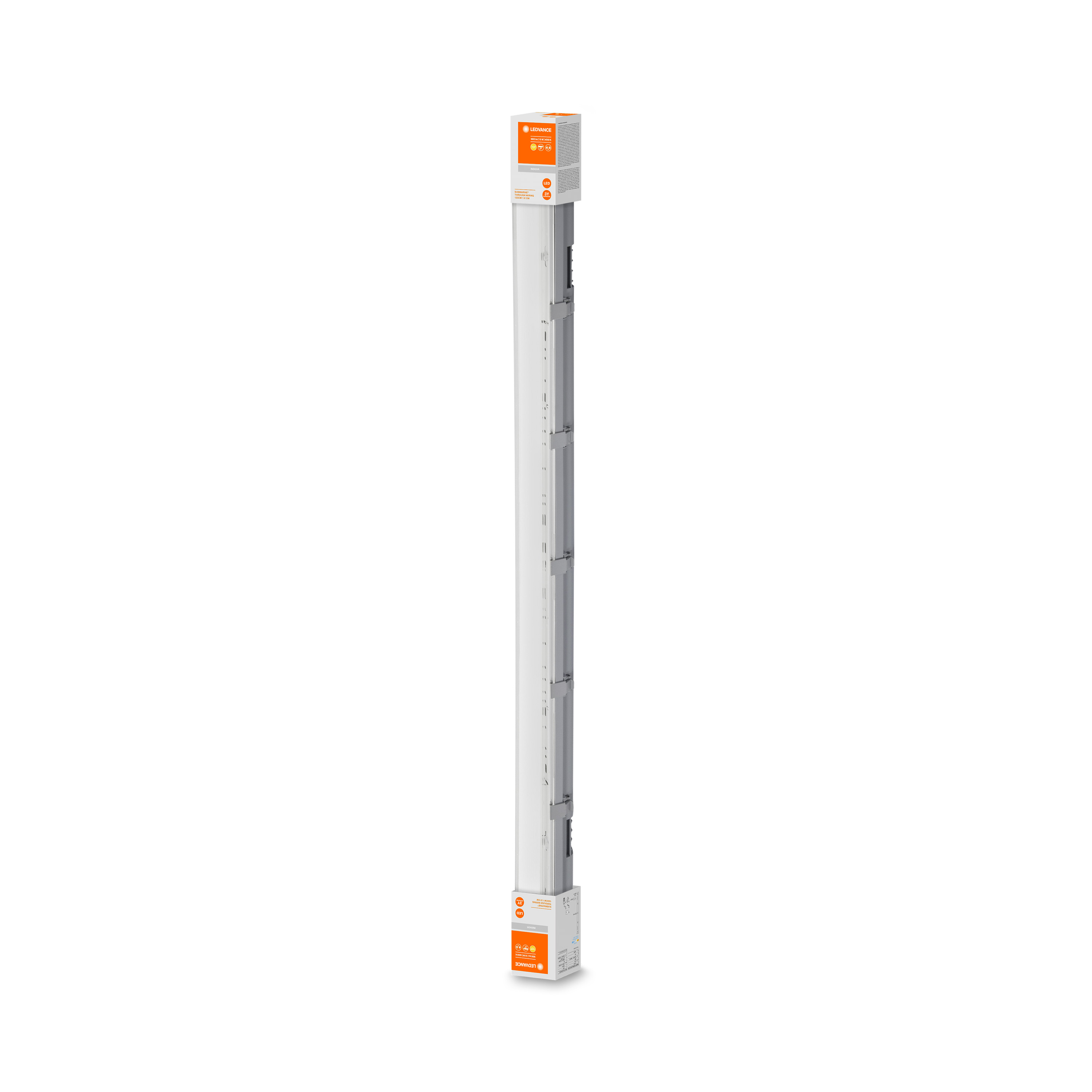

Combo Shot = Product Beauty Shot + Packaging Image
LUM EC THRUW 120CM 15W GR MiPRC
LUM EC THRUW 120CM 15W GR MiPRC

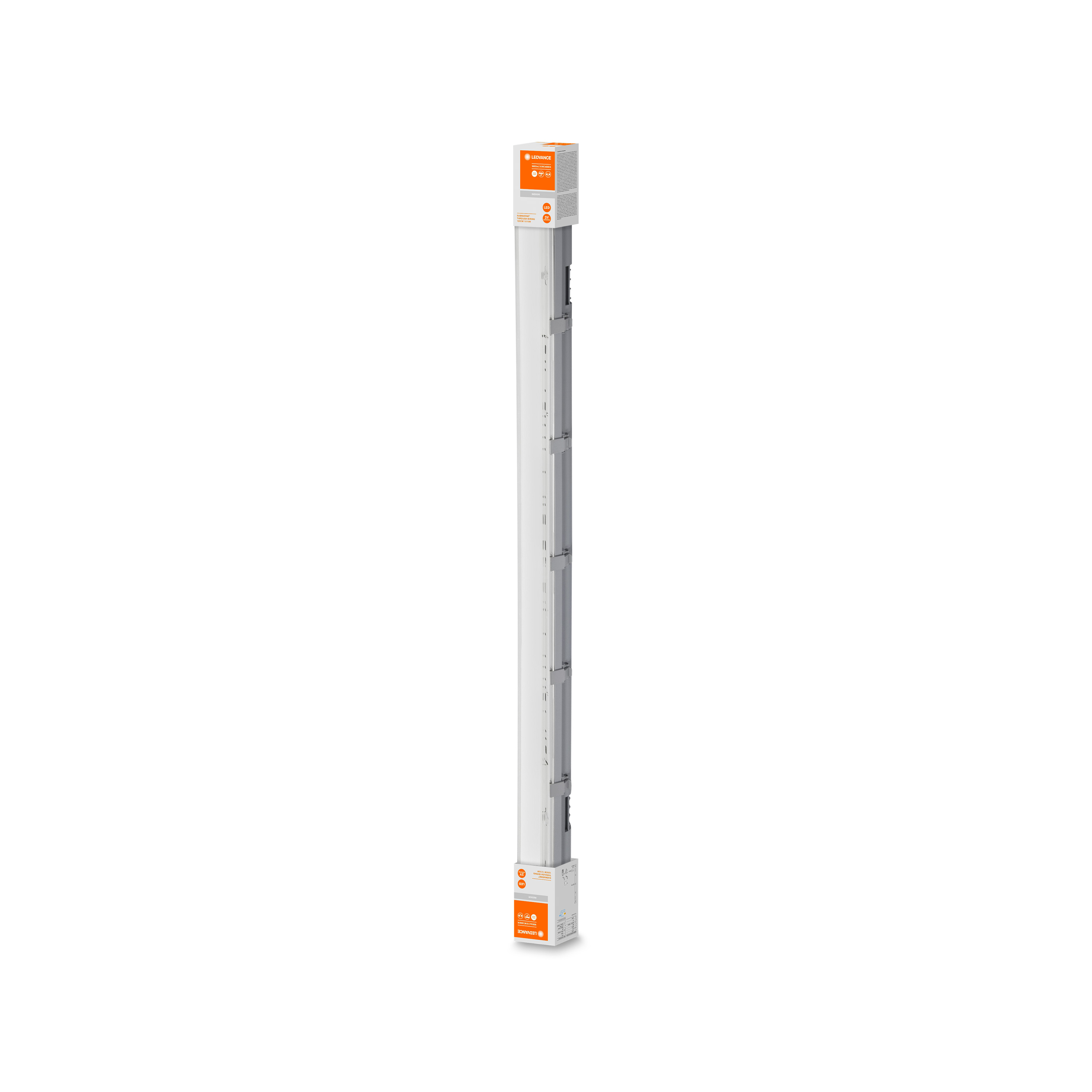

Combo Shot = Product Beauty Shot + Packaging Image
