Decor Yoyo Pendant
Decor Yoyo 3XPendant LN 18W 830 Beige
GTIN: 4058075847002
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Adjustable height
- Minimalistic style fits to every room
- Geometric shapes meet even illumination
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal and plastic
- High-power LED
- Color temperature: 3,000 K
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 18.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 80.000 mA |
| Inrush current | 0.08 A |
| Inrush current time Th50 | 4 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 160 |
| Max. number of luminaires per miniature circuit breaker C10 | 100 |
| Max. number of luminaires per miniature circuit breaker C16 | 160 |
| Power factor λ | > 0.90 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1100 lm |
| Total luminous flux of contained light sources | 2400 lm |
| Luminous efficacy | 61 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 700.00 mm |
| Height | 1840.00 mm |
| Width | 150.00 mm |
| Product weight | 2235.00 g |
Materials & Colors
| Product color | Beige |
| Housing color | Beige |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Suspended |
| Mounting location | Ceiling |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from June 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), Tripnehyl Phosphate (115-86-6) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075847002 | Folding box 1 |
158 mm x 183 mm x 773 mm | 3223.00 g | 22.35 dm³ |
| 4099854476174 | Shipping box 2 |
795 mm x 195 mm x 335 mm | 7146.00 g | 51.93 dm³ |
User instruction / safety instructions
DECOR YOYO PENDANT+LINEAR
DECOR YOYO PENDANT+LINEAR
Product image: white background, upright
DECOR YOYO 3XPENDANT LINEAR 18W 830 BG side off
DECOR YOYO 3XPENDANT LINEAR 18W 830 BG side off

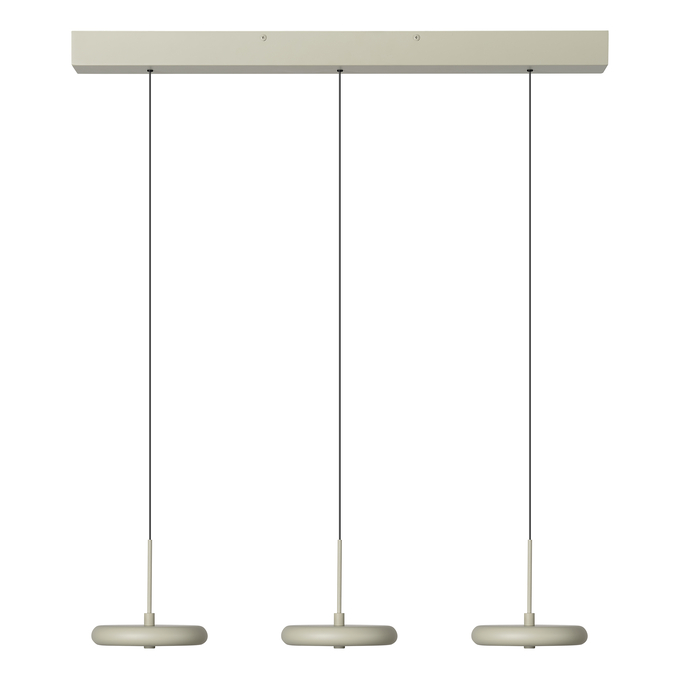

Product image: white background, upright, alternative image
DECOR YOYO 3XPENDANT LINEAR 18W 830 BG front
DECOR YOYO 3XPENDANT LINEAR 18W 830 BG front

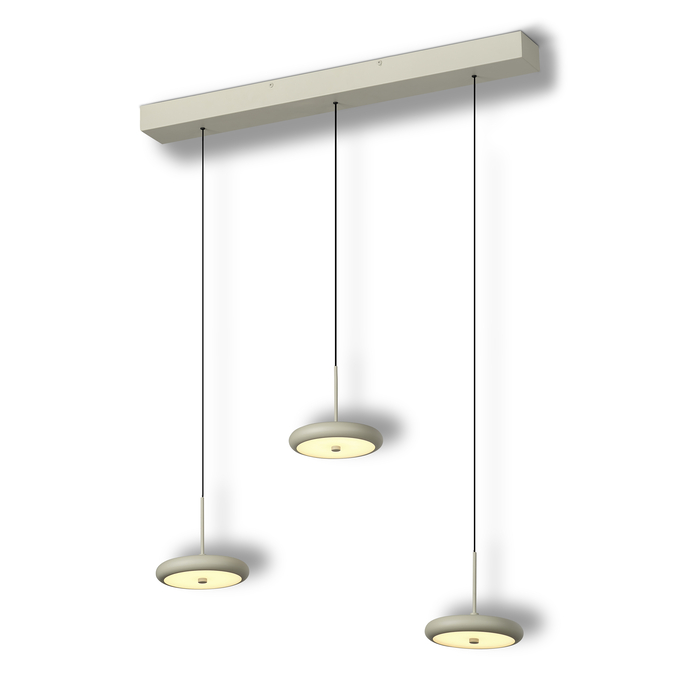

Product image: white background, upright, switched on
DECOR YOYO 3XPENDANT LINEAR 18W 830 BG side on
DECOR YOYO 3XPENDANT LINEAR 18W 830 BG side on
Product line drawing with letters
DECOR YOYO 3XPENDANT LN 18W 830 BG
DECOR YOYO 3XPENDANT LN 18W 830 BG
Product line drawing with numbers
DECOR YOYO 3XPENDANT LN 18W 830 BG
DECOR YOYO 3XPENDANT LN 18W 830 BG
Product line drawing - technical
DECOR YOYO 3XPENDANT LN 18W 830 BG
DECOR YOYO 3XPENDANT LN 18W 830 BG
Combo Shot = Product Beauty Shot + Packaging Image
FC DECOR24 YOYO 3xPENDANT LINEAR
FC DECOR24 YOYO 3xPENDANT LINEAR
Packaging image, frontal
FC DECOR24 YOYO 3xPENDANT LINEAR
FC DECOR24 YOYO 3xPENDANT LINEAR
Packaging image, spacial
FC DECOR24 YOYO 3xPENDANT LINEAR
FC DECOR24 YOYO 3xPENDANT LINEAR

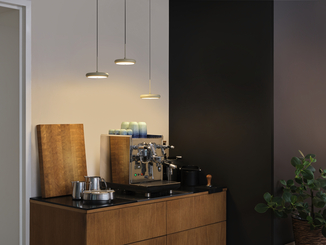

Application pictures
