FLEX RGB WITH REMOTE CONTROL

Flex 5M RGB + RC

GTIN: 4099854095443 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
Areas of application
  • Living areas
  • Indirect lighting
Product features
  • RGB color control
  • Flexible, bendable LED strips
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • Remote control and battery included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 14.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 82.000 mA
Inrush current 22 mA
Power factor λ > 0.5
Total harmonic distortion < 100 %
Protection class II
Photometrical data
Luminous flux 1300 lm
Total luminous flux of contained light sources 1300 lm
Luminous efficacy 92 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °
Dimensions & Weight
Length 5000.00 mm
Height 2.00 mm
Width 10.00 mm
Product weight 140.00 g
Materials & Colors
Product color White
Housing color White
Body material Plaster
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Mounting type Surface
Application environment Indoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 25000 h 1)
Number of switching cycles 10000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
Battery size [GMS] CR2025
Certificates & Standards
Standards CE
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854095443 Folding box
1
52 mm x 157 mm x 128 mm 184.00 g 1.04 dm³
4099854095450 Shipping box
8
340 mm x 230 mm x 160 mm 1800.00 g 12.51 dm³
User instruction / safety instructions
UI FLEX RGB and WHITE
Legal information
Legal Insert FLEX
Declarations of conformity
CE Declaration Flex COB and Audio

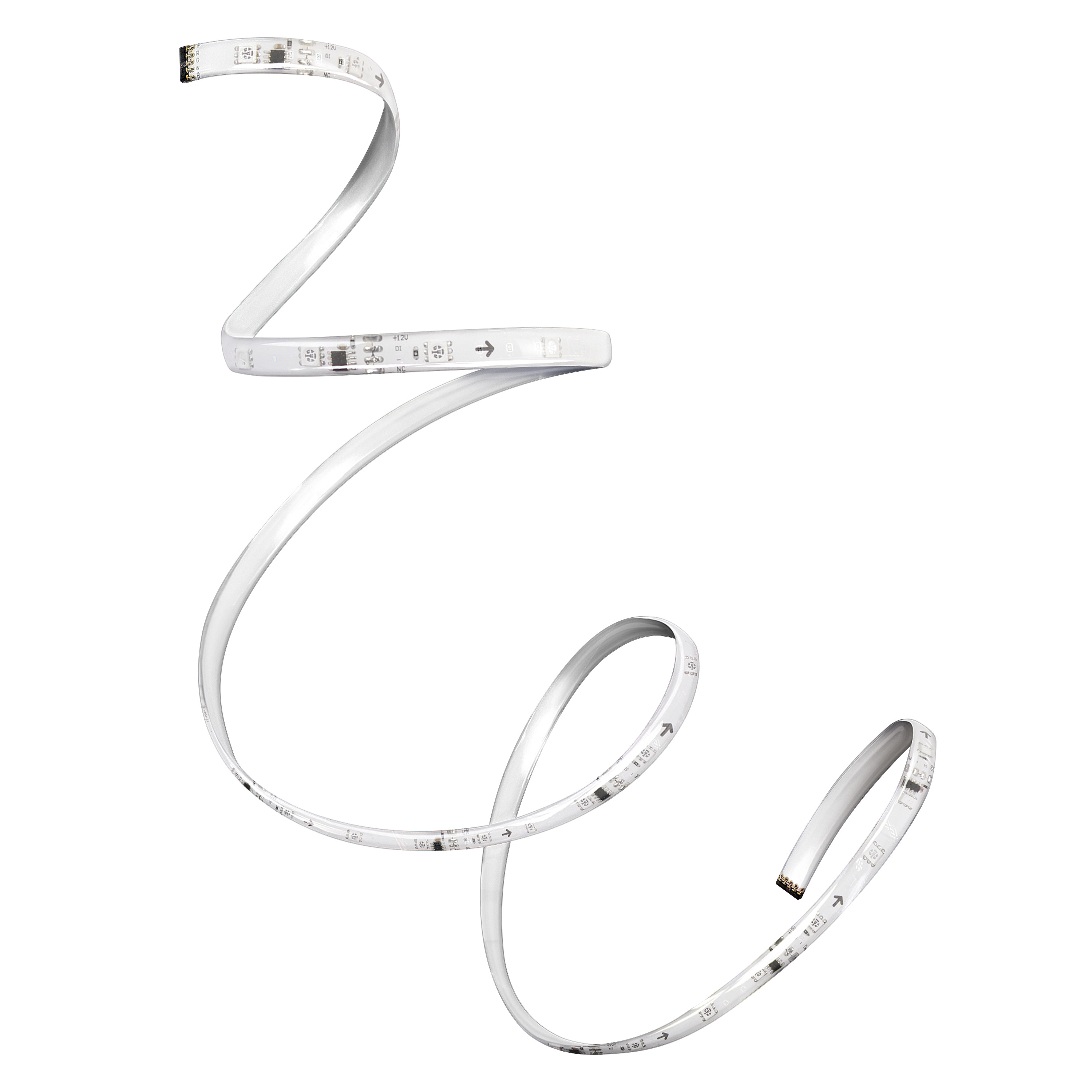

Product image: white background, upright
FLEX 5M RGB 830 RC

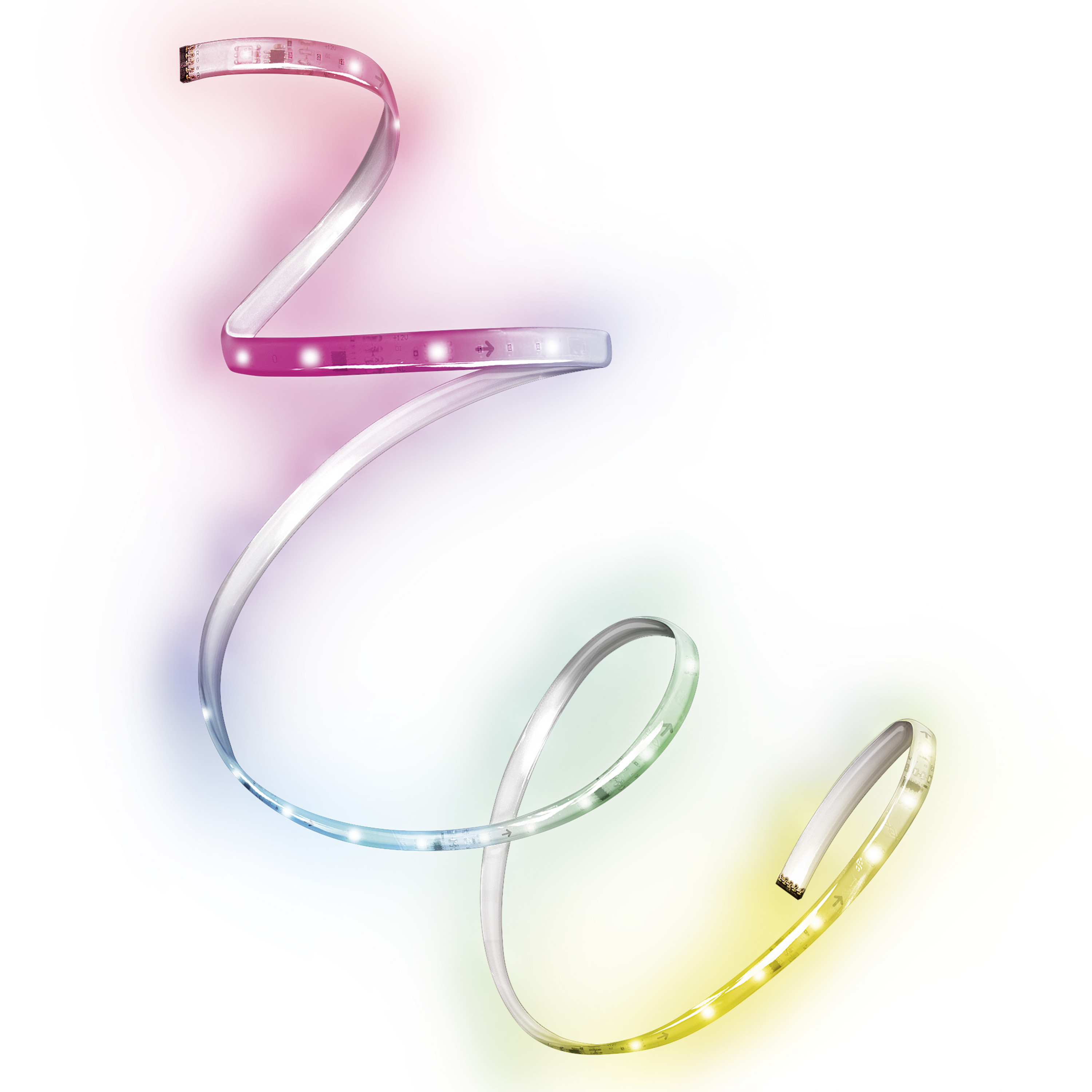

Product image: white background, upright, switched on
FLEX 5M RGB 830 RC

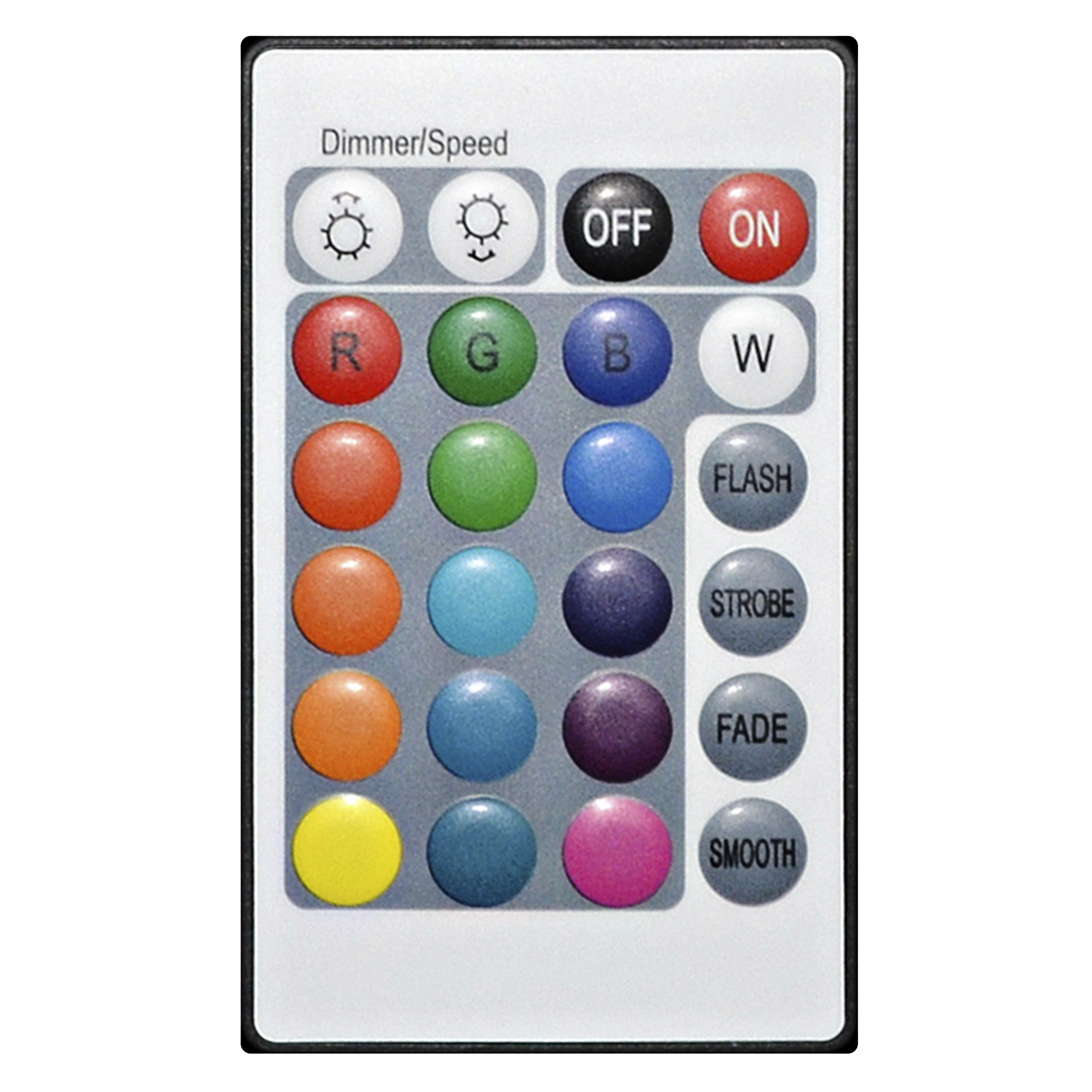

Product image: white background, with accessory, alternative image
FLEX RC
Product infographic (application image with text and graphic)
SmartP Wifi Magic E-Com_Grafik 1200x1200px 2023 EN
Product line drawing with letters
FLEX 5M RGB 830 RC
Product line drawing with numbers
FLEX 5M RGB 830 RC
Product line drawing, front, no dimensions
FLEX 5M RGB 830 RC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FLEX 5M RGB 830 RC MiPRC LDV
Packaging image, frontal
LUM FC FLEX 5M RGB 830 RC MiPRC LDV
Packaging image, spacial
LUM FC FLEX 5M RGB 830 RC MiPRC LDV

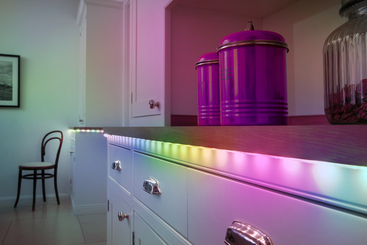

Application pictures
SMART+ Wifi Flexible Light Strips Colored
EAN ELDAS number
4099854095443 941603380
