DECOR SPOT CORK BLACK
Decor Spot Cork GU10 Black Spiral 3x3.4W 927 DIM
GTIN: 4058075828704
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Flexible thanks to replaceable LED lamps
- High-quality housing with matt white or matt black surface
- Dimmable OSRAM lamp included
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features
- Luminaire family features five versions with up to 4 spot heads
- Housing material: metal and cork
- Adjustable heads
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 10.20 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 51.000 mA |
| Inrush current | 2.7 A |
| Inrush current time Th50 | 600 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Max. number of luminaires per miniature circuit breaker C16 | 88 |
| Power factor λ | 0.70 |
| Total harmonic distortion | 64 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 690 lm |
| Total luminous flux of contained light sources | 690 lm |
| Luminous efficacy | 68 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 90 |
| Standard deviation of color matching | 5 sdcm |
| Luminous intensity | 400 cd |
| Flickering metric (Pst LM) | <10 % |
| Stroboscope effect metric (SVM) | 0.3 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 36 ° |
Dimensions & Weight
| Length | 318.00 mm |
| Height | 136.00 mm |
| Width | 293.00 mm |
| Product weight | 840.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | STEEL|CORK |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Mounting type | Surface |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | GU10 |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 5 W LED |
| Number of illuminants | 3 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075828704 | Folding box 1 |
162 mm x 322 mm x 323 mm | 1061.00 g | 16.85 dm³ |
| 4058075828711 | Shipping box 2 |
338 mm x 338 mm x 348 mm | 2784.00 g | 39.76 dm³ |
User instruction / safety instructions
DÉCOR SPOT CORK
DÉCOR SPOT CORK
Legal information
Decor LED Spot
Decor LED Spot
Declarations of conformity
CE Declaration LED Sport Octagon
CE Declaration LED Sport Octagon

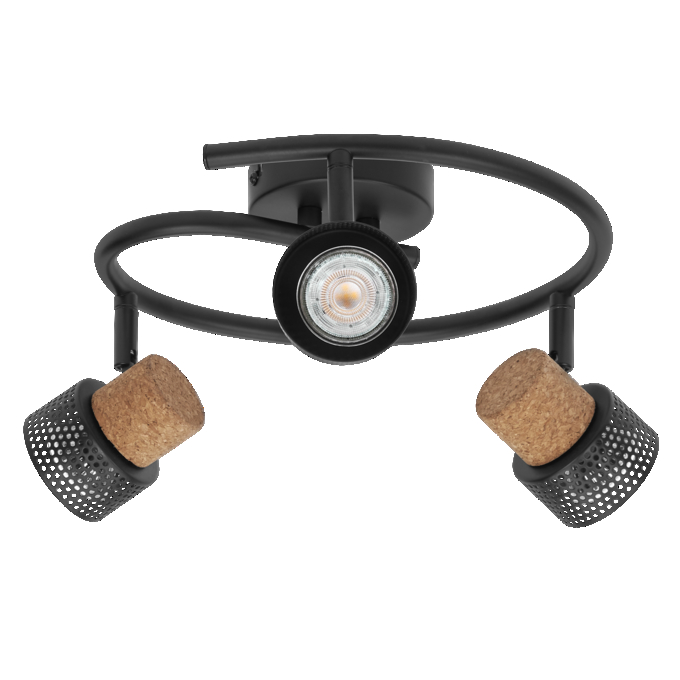

Product image: white background, upright
DECOR SPOT CORK SP 3X3.4W 927GU10BK
DECOR SPOT CORK SP 3X3.4W 927GU10BK
Product image: white background, upright, alternative image
DECOR SPOT CORK SP 3X3.4W 927GU10BK
DECOR SPOT CORK SP 3X3.4W 927GU10BK

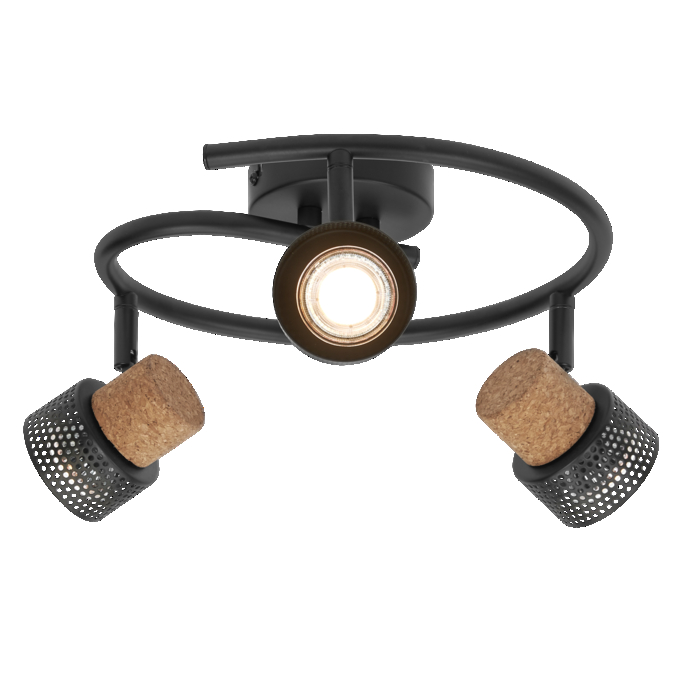

Product image: white background, upright, switched on
