WORKLIGHT BATTERY 18V POWER FOR ALL ALLIANCE
Worklight Battery Power for all Alliance 45W 840 DIM Powerbank Black
GTIN: 4058075843189
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High Quality Worklight compatible with 18V Power for All Alliance Accu by BOSCH
- Worklight fits to the 18V accu platform that includes many devices from many different brands from the DIY category
Areas of application
- Renovation
- Garages
- Basement
- Workshops
Product features
- Worklight with swiveling head
- Click-DIM version: dimmable in three steps by repeated switching
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 40.00 W |
| Nominal voltage | 18 V |
| Nominal current | 2200.000 mA |
| Protection class | III |
| Operating mode | Battery |
Photometrical data
| Luminous flux | 4500 lm |
| Luminous efficacy | 115 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | 1950 cd |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 100 ° |
Dimensions & Weight
| Length | 230.00 mm |
| Height | 290.00 mm |
| Width | 155.00 mm |
| Product weight | 1440.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Acrylonitrile butadiene styrene (ABS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Temperature range at storage | -20…+60 °C |
| Type of connection | USB |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | Yes |
| Type of dimming | 4DIM |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
| Number of switching cycles | 7500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075843189 | Folding box 1 |
240 mm x 166 mm x 303 mm | 1624.00 g | 12.07 dm³ |
| 4058075843196 | Shipping box 4 |
492 mm x 342 mm x 328 mm | 7358.00 g | 55.19 dm³ |
User instruction / safety instructions
WORKLIGHT BAT PB40W865DIM POWER4ALL
WORKLIGHT BAT PB40W865DIM POWER4ALL
Legal information
WORKLIGHT BAT PB40W865DIM POWER4ALL
WORKLIGHT BAT PB40W865DIM POWER4ALL
Declarations of conformity
WORKLIGHT BATTERY LUM
WORKLIGHT BATTERY LUM

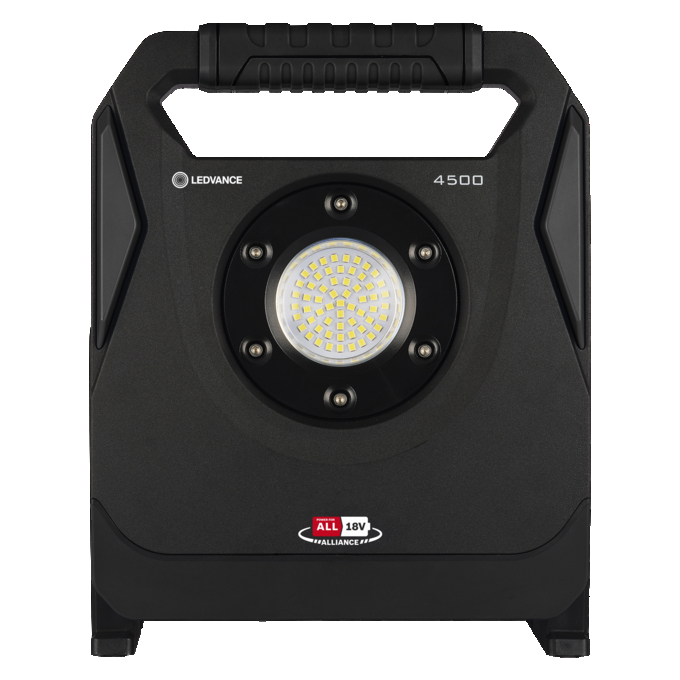

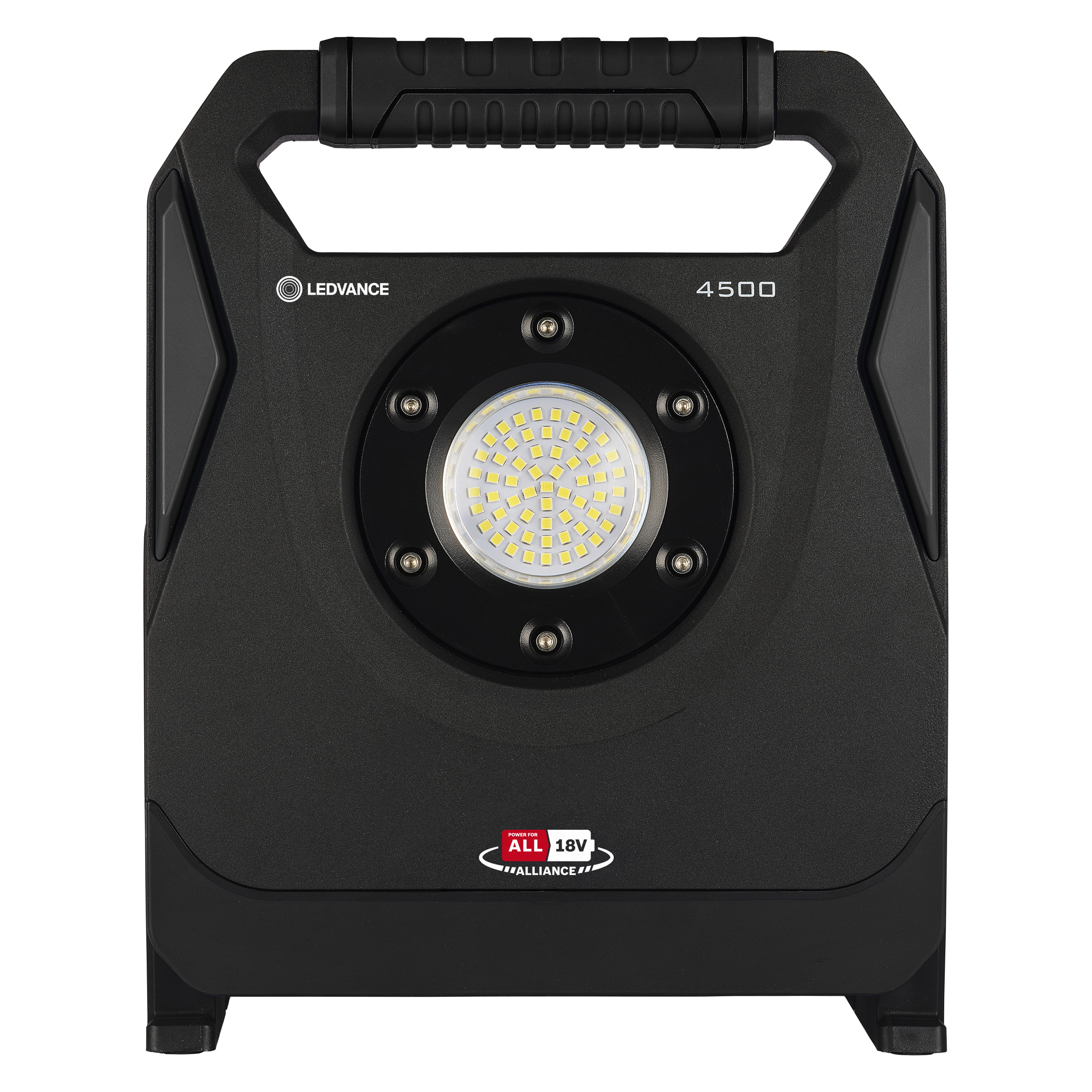

Product image: white background, upright
WORKLIGHT BAT PB45W840DIM POWER4ALL
WORKLIGHT BAT PB45W840DIM POWER4ALL

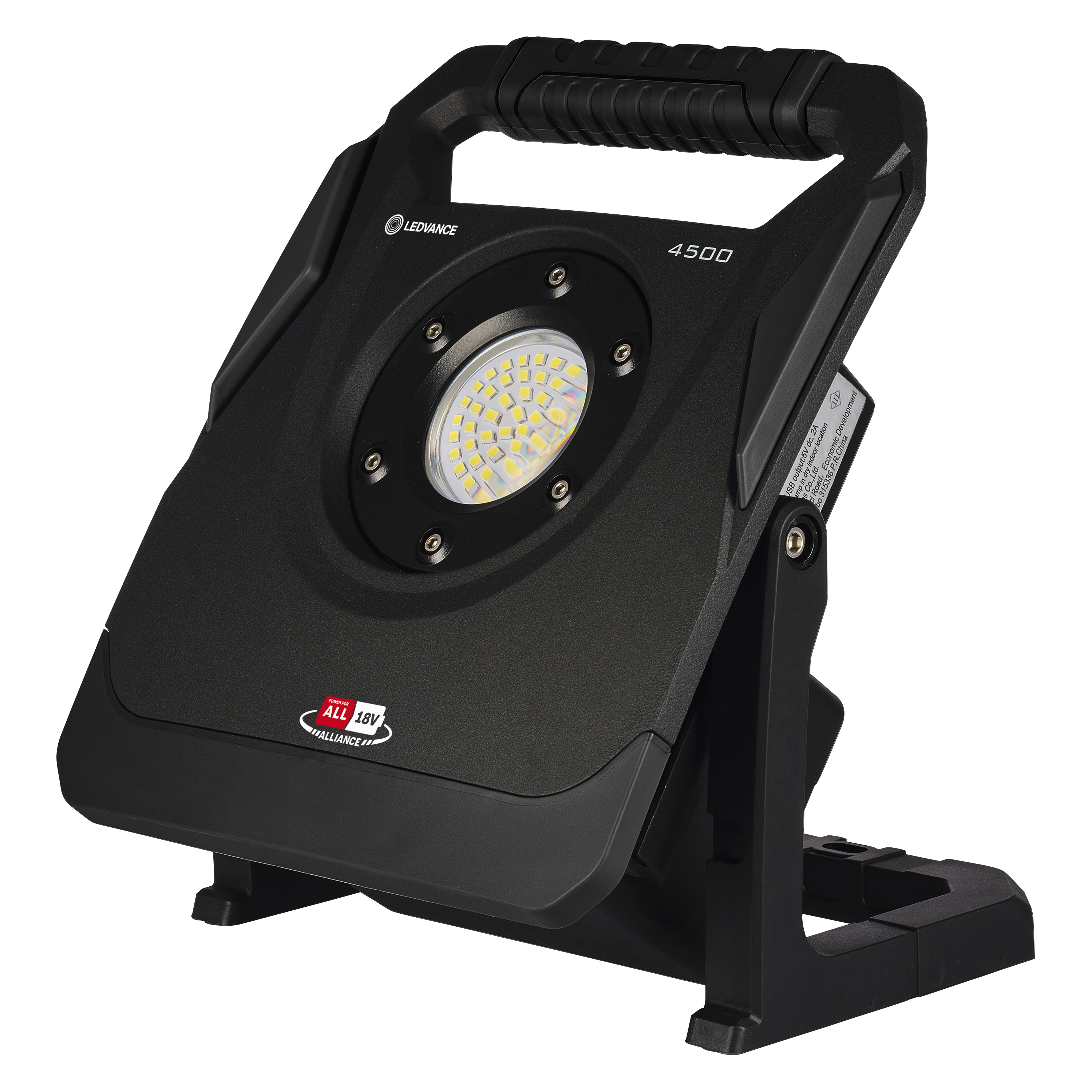

Product image: white background, upright, alternative image
WORKLIGHT BAT PB45W840DIM POWER4ALL
WORKLIGHT BAT PB45W840DIM POWER4ALL
Product image: white background, upright, alternative image
WORKLIGHT BAT PB45W840DIM POWER4ALL
WORKLIGHT BAT PB45W840DIM POWER4ALL

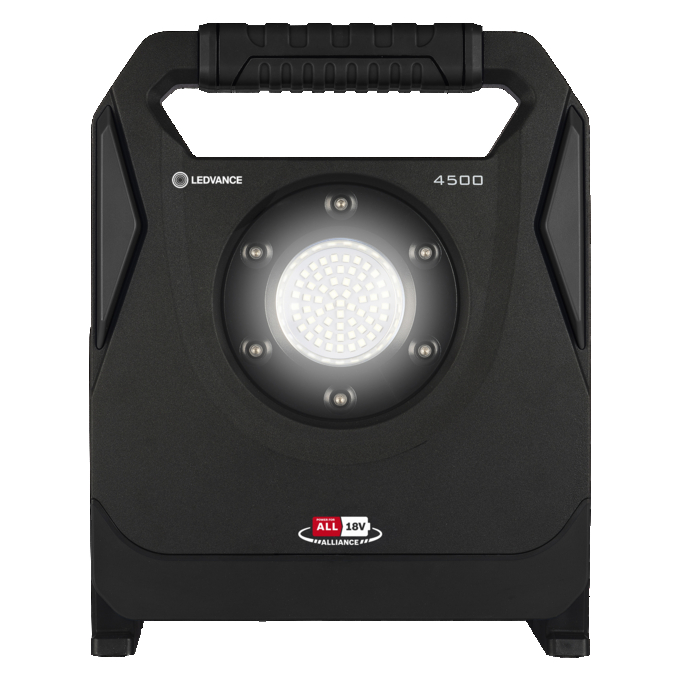

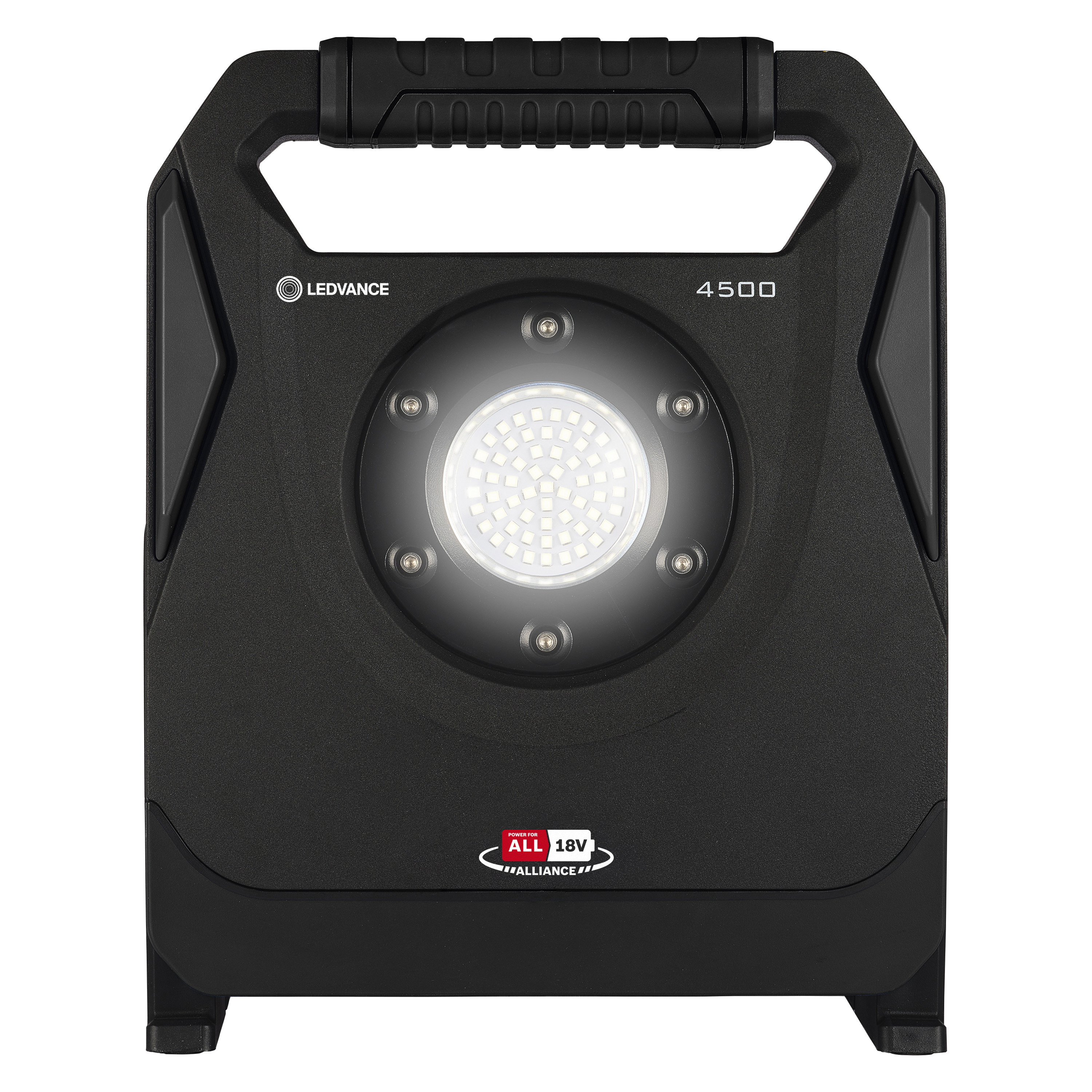

Product image: white background, upright, switched on
WORKLIGHT BAT PB45W840DIM POWER4ALL
WORKLIGHT BAT PB45W840DIM POWER4ALL
Product line drawing with letters
WORKLIGHT BAT PB45W840DIM POWER4ALL
WORKLIGHT BAT PB45W840DIM POWER4ALL
Product line drawing, front, no dimensions
WORKLIGHT BAT PB45W840DIM POWER4ALL
WORKLIGHT BAT PB45W840DIM POWER4ALL

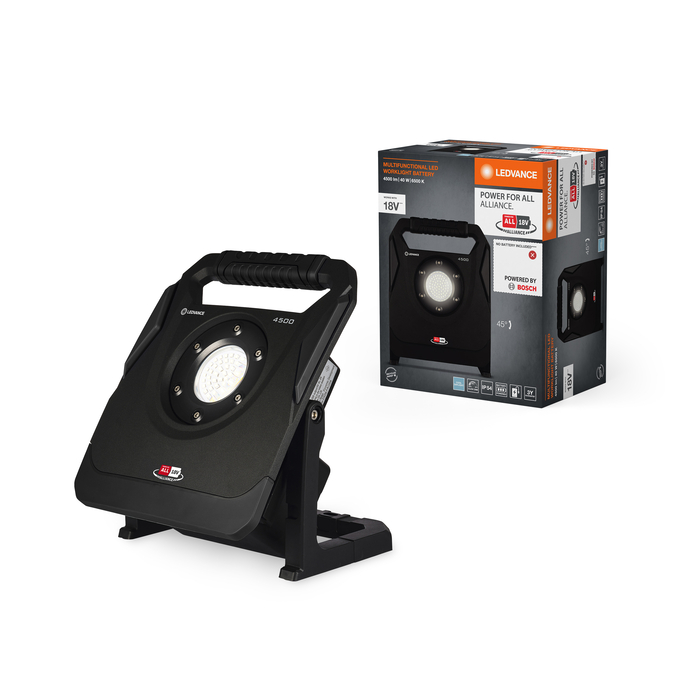

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC WL BAT PB 40W DIM P4A
LUM FC WL BAT PB 40W DIM P4A
Packaging image, frontal
LUM FC WL BAT PB 40W DIM P4A
LUM FC WL BAT PB 40W DIM P4A
Packaging image, spacial
LUM FC WL BAT PB 40W DIM P4A
LUM FC WL BAT PB 40W DIM P4A
Application pictures
Bosch Alliance Indoor Worklight Frontside Close-Up
Bosch Alliance Indoor Worklight Frontside Close-Up
Application pictures
Bosch Alliance Indoor Worklight with Bosch Product Close-Up
Bosch Alliance Indoor Worklight with Bosch Product Close-Up
Application pictures
Bosch Alliance Indoor Worklight Backside with Bosch Product Close-Up
Bosch Alliance Indoor Worklight Backside with Bosch Product Close-Up
Application pictures
Bosch Alliance Indoor Worklight Backside Close-Up
Bosch Alliance Indoor Worklight Backside Close-Up
Application pictures
Bosch Alliance Indoor Worklight at Paintwork
Bosch Alliance Indoor Worklight at Paintwork
Application pictures

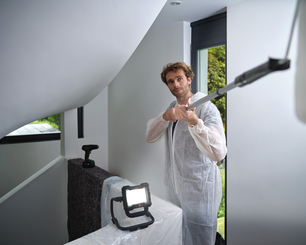

Bosch Alliance Indoor Worklight at Paintwork with Bosch Product
