SMART+WIFI Filament Classic RGBTW

SMART+ WiFi Filament Classic 40 Multicolour E27

GTIN: 4058075777859 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor applications only in suitable luminaires
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Network protocol: WiFi
  • Lifetime up to 15,000 h
  • Voice control works with Hey Google or Alexa
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Do not touch the lamp if broken.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 4.8 W
Construction wattage 4.80 W
Nominal voltage 220…240 V
Nominal current 50 mA
Mains frequency 50/60 Hz
Power factor λ 0.40
Claimed equiv. conventional lamp power 40 W
Operating mode AC Mains
Photometrical data
Light color (designation) RGBTW
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 470 lm
Luminous flux 470 lm
Luminous efficacy 97 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra 80
Flickering metric (Pst LM) <1.0
Stroboscope effect metric (SVM) <0.4
Light technical data
Beam angle 320 °
Starting time 0.5 s
Dimensions & Weight
Product weight 36.00 g
Diameter 60.00 mm
Maximum diameter 60 mm
Length 105.00 mm
Width 60.00 mm
Height 60.00 mm
Outer bulb [PICOS] A60
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Colors & materials
Product color Clear
Housing color Clear
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source Yes
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power ＜ 0.5 W
Networked standby power for CLS ＜ 0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1254721
Model number AC42286
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075777859 Folding box
1		 66 mm x 96 mm x 154 mm 121.00 g 0.98 dm³
4058075777866 Shipping box
4		 210 mm x 165 mm x 145 mm 597.00 g 5.02 dm³
Extended installation guide
SH Insert WIFI StartUpG Lamps RGBTW LDV
PDF (2.52 MB)
Declarations of conformity
SMART WIFI A40 / E40 / G40
PDF (300.79 KB)

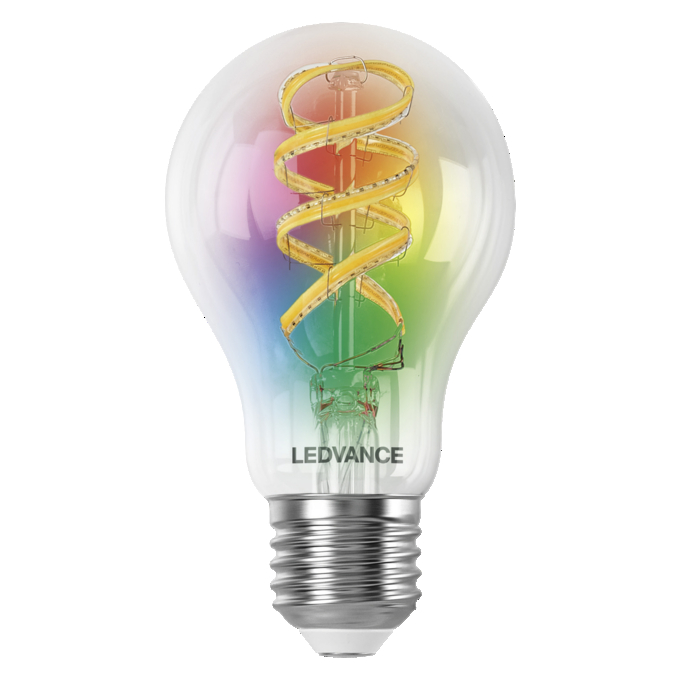

Product image: white background, upright
SMART WiFi RGBTW CLASSIC A40
JPG (588.26 KB)

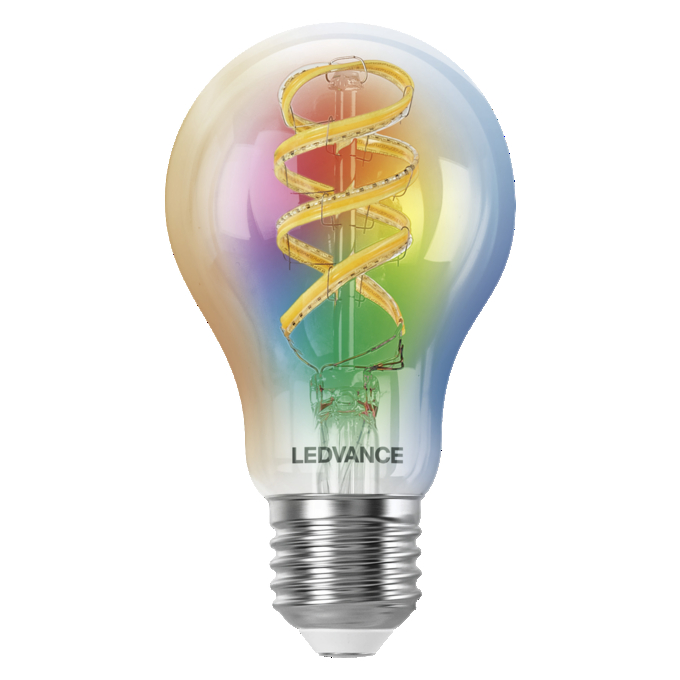

Product image: white background, upright, switched on
