SMART+ Candle Tunable White
SMART ZB B40 TW 4.9W 220V FR E14

GTIN: 4058075729087
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Wireless control via app
- Easy to install and use
- Contains no mercury
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- General illumination
- Residential interiors
- Professional (hotels, bars, boutiques etc.)
- Outdoor use in suitable outdoor luminaires only
Product features
- Controllable via compatible smart home system (gateway and app)
- Control via voice control available: Google Assistant or Amazon Alexa, depending on the smart home system in use
- Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
- Network protocol: ZigBee 3.0
- Dimmable
- Lifetime: up to 20,000 h
- For full functionality connection to a compatible smart home System (gateway and app) required
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
Nominal wattage | 4.9 W |
Construction wattage | 4.90 W |
Nominal voltage | 220…240 V |
Nominal current | 38 mA |
Mains frequency | 50 Hz |
Power factor λ | > 0.50 |
Claimed equiv. conventional lamp power | 40 W |
Operating mode | AC Mains |
Photometrical data
Light color (designation) | Tunable White |
Lumen main.fact.at end of nom.life time | 0.95 |
Standard deviation of color matching | ≤6 sdcm |
Nominal luminous flux | 470 lm |
Luminous flux | 470 lm |
Luminous efficacy | 95 lm/W |
Adjustable color temperature | 2700…6500 K |
Color temperature | 2700…6500 K |
Color rendering index Ra | 80 |
Flickering metric (Pst LM) | ≤1 |
Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
Beam angle | 200 ° |
Starting time | < 0.5 s |
Warm-up time (60 %) | ‹ 0.50 s |
Dimensions & Weight
Product weight | 32.00 g |
Diameter | 39.00 mm |
Maximum diameter | 37 mm |
Length | 115.00 mm |
Width | 39.0 mm |
Height | 39.0 mm |
Outer bulb [PICOS] | B40 |
Lifespan
Number of switching cycles | 100000 |
Lifespan | 20000 h |
Lumen maintenance at end of service lifetime | 0.95 |
Colors & materials
Product color | White |
Housing color | White |
Temperatures & operating conditions
Ambient temperature range | -20…+40 °C |
Additional product data
Mercury-free | Yes |
Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Base (standard designation) | E14 |
Capabilities
Dimmable | Yes 1) |
Compatible smart home technology | Amazon Alexa, Google Assistant, Philips Hue |
1) Via App
Certificates & Standards
Energy efficiency class | F 1) |
Energy consumption | 5.00 kWh/1000h |
Standards | CE |
Type of protection | IP20 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | MLS |
Light source cap-type (or other electric interface) | E14 |
Connected light source (CLS) | Yes |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | RANGE |
Standby power | < 0.5 W |
Networked standby power for CLS | < 0.5 W |
Claim of equivalent power | Yes |
Chromaticity coordinate x | 0.463 |
Chromaticity coordinate y | 0.42 |
R9 Colour rendering index | > 0 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0.90 |
LED light source replaces a fluorescent light source | No |
EPREL ID | 1160672 |
Model number | AC41286,AC41286 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075729087 | Folding box 1 |
61 mm x 96 mm x 154 mm | 103.00 g | 0.90 dm³ |
4058075729094 | Shipping box 4 |
210 mm x 165 mm x 135 mm | 534.00 g | 4.68 dm³ |

Extended installation guide
SMART+ INSTALLATION GUIDE
SMART+ INSTALLATION GUIDE

Declarations of conformity
SMART ZB TW A60/B40/P40/PAR16_ RGBW PAR16
SMART ZB TW A60/B40/P40/PAR16_ RGBW PAR16

Product image: white background, diagonal
SMART CANDLE B40 E14 (3.0)
SMART CANDLE B40 E14 (3.0)

Product image: white background, upright LEDVANCE logo
Smart+ CLB Candle E14_LEDV brand
Smart+ CLB Candle E14_LEDV brand

Product image: white background, upright
SMART CANDLE B40 E14 (3.0)
SMART CANDLE B40 E14 (3.0)

Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V1 1200x1200 2023 EN
Solar assortment E-Com-Grafik V1 1200x1200 2023 EN

Product infographic (application image with text and graphic)
Bluethooth Zigbee assortment E-Com-Grafik 1200x1200 2023 EN
Bluethooth Zigbee assortment E-Com-Grafik 1200x1200 2023 EN

Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART CANDLE B40 E14 (3.0)
SMART CANDLE B40 E14 (3.0)
Product line drawing with numbers
SMART CANDLE B40 E14 (3.0)
SMART CANDLE B40 E14 (3.0)
Product line drawing, front, no dimensions
SMART CANDLE B40 E14 (3.0)
SMART CANDLE B40 E14 (3.0)

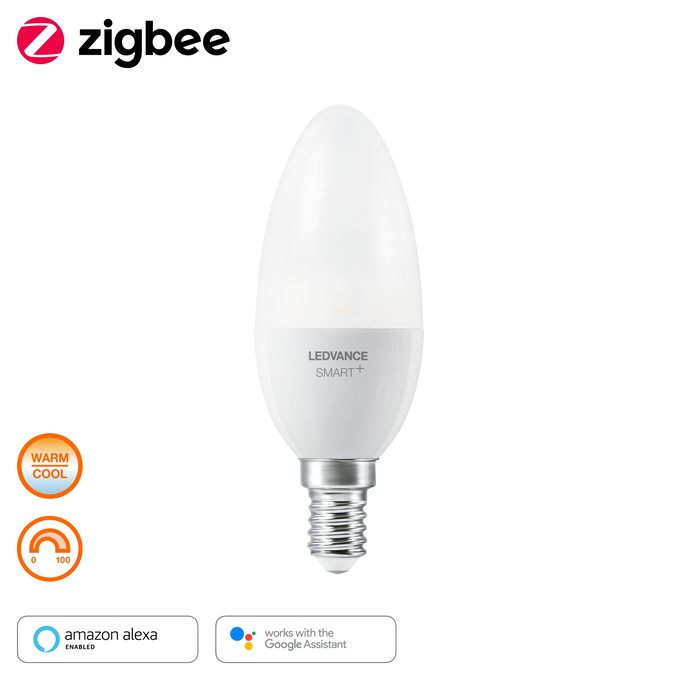

Beauty Shot
SMARTZBB40TW 6W 230VFR E14 4X1
SMARTZBB40TW 6W 230VFR E14 4X1

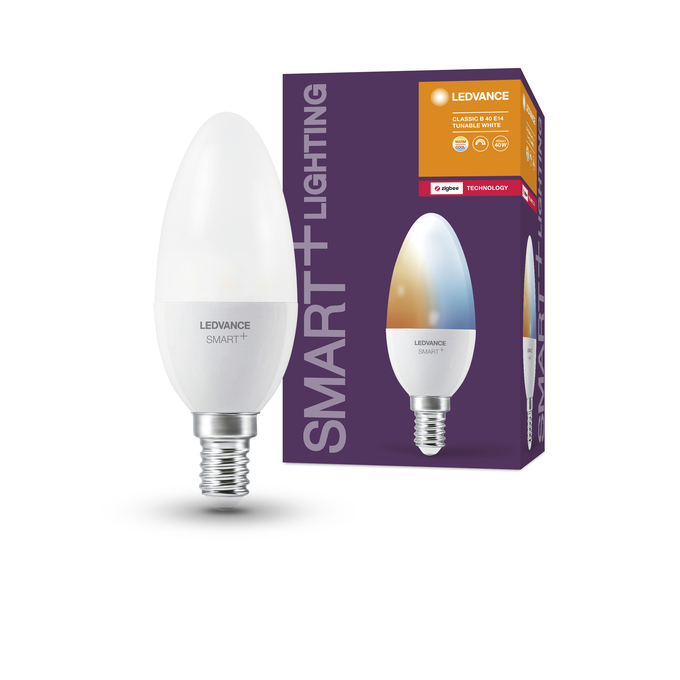

Combo Shot = Product Beauty Shot + Packaging Image
SMARTZBB40TW 5W 230VFR E14 4X1 LEDV
SMARTZBB40TW 5W 230VFR E14 4X1 LEDV

Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB B40TW 5W FR E27 MiPRC
SH FC ZB B40TW 5W FR E27 MiPRC

Packaging image, frontal
SMARTZBB40TW 5W 230VFR E14 4X1 LEDV
SMARTZBB40TW 5W 230VFR E14 4X1 LEDV

Packaging image, spacial
SMARTZBB40TW 5W 230VFR E14 4X1 LEDV
SMARTZBB40TW 5W 230VFR E14 4X1 LEDV

Energy label
EL-4058075729087-AC412 86
EL-4058075729087-AC412 86

Spectral power distribution
Everlight 67-23ST KKE 2700K
Everlight 67-23ST KKE 2700K

Application pictures
SMART+ Holiday Yoga Campaigntitle
SMART+ Holiday Yoga Campaigntitle

Application pictures
SMART+ Amazon Alexa3
SMART+ Amazon Alexa3

Application pictures
SMART+ Amazon Alexa6
SMART+ Amazon Alexa6

Application pictures
SMART+ Holiday Outdoor Campaigntitle woTypo
SMART+ Holiday Outdoor Campaigntitle woTypo

Application pictures
SMART+ Holiday Yoga Campaigntitle woTypo
SMART+ Holiday Yoga Campaigntitle woTypo
EAN | ELDAS number |
---|---|
4058075729087 | 941814490 |
