SMART SURFACE DOWNLIGHT TW
SMART+ Wifi Orbis Downlight Surface 400mm TW
GTIN: 4058075572935
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Surface downlight
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
- Kitchens
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: WiFi
- Housing material: metal
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 22.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Inrush current | ≤30 A |
| Inrush current time Th50 | 1000 µs |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 1800 lm |
| Total luminous flux of contained light sources | 2500 lm |
| Luminous efficacy | 81 lm/W |
| Color temperature | 3000…6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K 1) |
| Light color (designation) | Tunable White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
1) Performing a reset will restore the default values set by the manufacturer
Dimensions & Weight
| Diameter | 400.00 mm |
| Height | 40.00 mm |
| Product weight | 1270.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 15000 |
Emergency lighting
| Integrated test switch | No |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075572935 | Folding box 1 |
48 mm x 440 mm x 444 mm | 1448.00 g | 9.38 dm³ |
| 4058075572942 | Shipping box 5 |
459 mm x 268 mm x 472 mm | 8084.00 g | 58.06 dm³ |
User instruction / safety instructions
SMART+ WIFI ORBIS DOWNLIGHT
SMART+ WIFI ORBIS DOWNLIGHT
Declarations of conformity
SMART WIFI ORBIS DL SF
SMART WIFI ORBIS DL SF

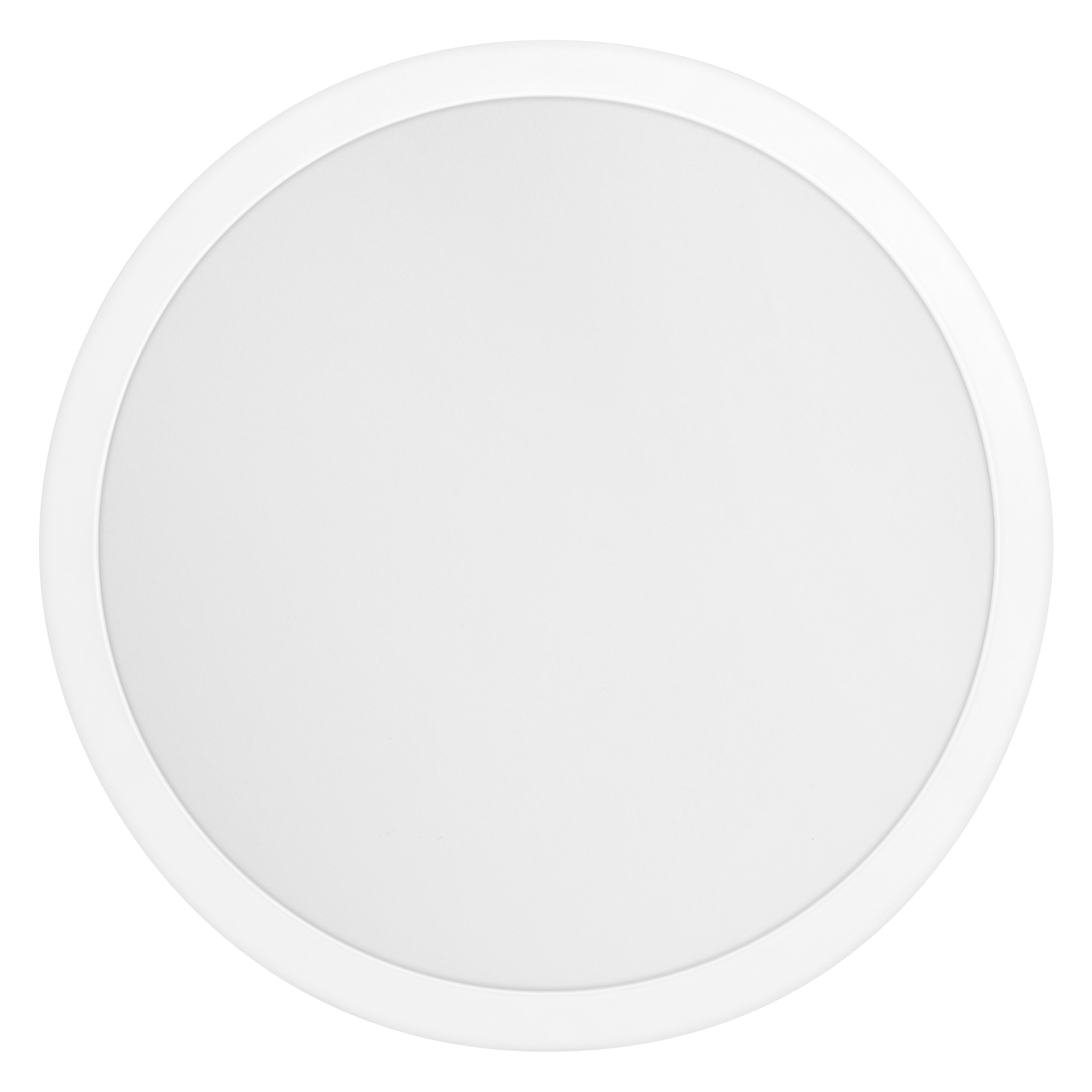

Product image: white background, upright
SMART WIFI ORBIS DOWNLIGHT
SMART WIFI ORBIS DOWNLIGHT

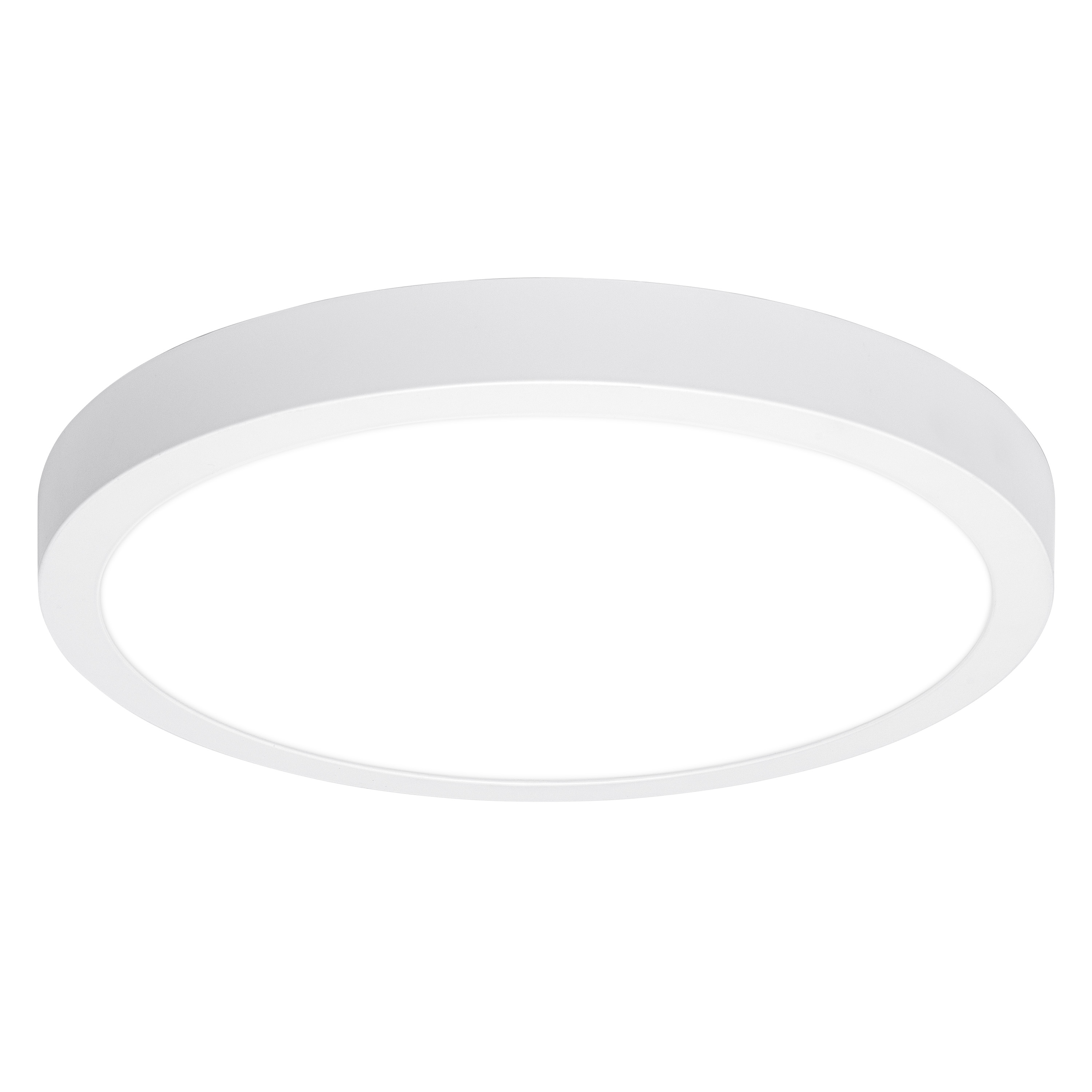

Product image: white background, upright, alternative image
SMART WIFI ORBIS DOWNLIGHT
SMART WIFI ORBIS DOWNLIGHT

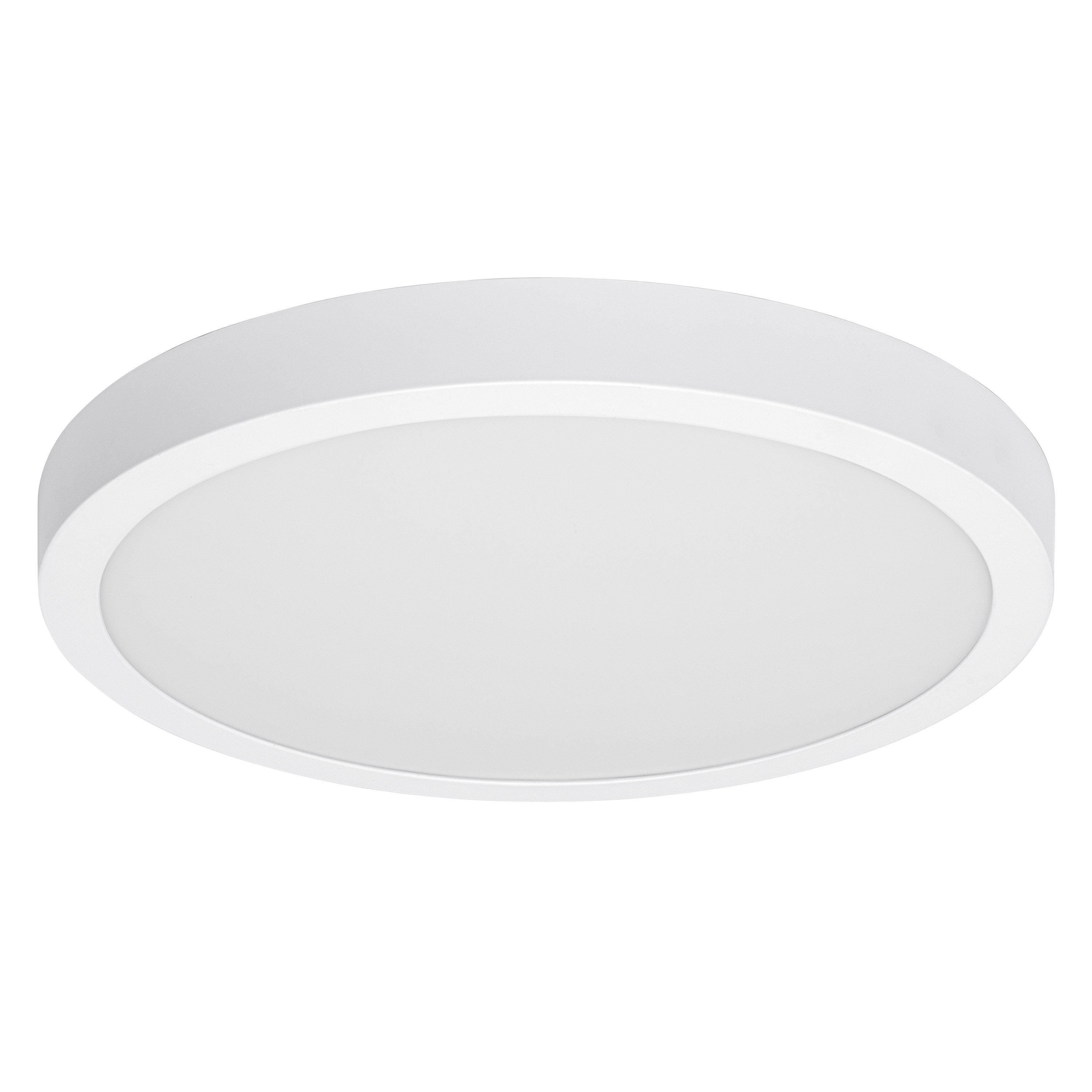

Product image: white background, upright, switched on
SMART WIFI ORBIS DOWNLIGHT
SMART WIFI ORBIS DOWNLIGHT
Product infographic (application image with text and graphic)
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI ORBIS DOWNLIGHT
SMART WIFI ORBIS DOWNLIGHT
Product line drawing with numbers
SMART WIFI ORBIS DOWNLIGHT
SMART WIFI ORBIS DOWNLIGHT
Product line drawing, front, no dimensions
SMART WIFI ORBIS DOWNLIGHT
SMART WIFI ORBIS DOWNLIGHT
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI DL SF 400RD TW WT MiPRC
SH FC WIFI DL SF 400RD TW WT MiPRC
Packaging image, frontal
SH FC WIFI DL SF 400RD TW WT MiPRC
SH FC WIFI DL SF 400RD TW WT MiPRC
Packaging image, spacial
SH FC WIFI DL SF 400RD TW WT MiPRC
SH FC WIFI DL SF 400RD TW WT MiPRC

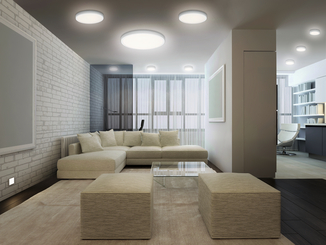

Application pictures Getty
SMART INDOOR WIFI ORBIS DOWNLIGHT SURFACE RD WARM LIGHT
SMART INDOOR WIFI ORBIS DOWNLIGHT SURFACE RD WARM LIGHT

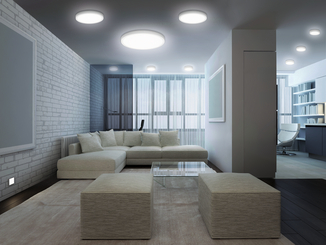

Application pictures Getty
SMART INDOOR WIFI ORBIS DOWNLIGHT SURFACE RD COOL LIGHT
SMART INDOOR WIFI ORBIS DOWNLIGHT SURFACE RD COOL LIGHT
| EAN | ELDAS number |
|---|---|
| 4058075572935 | 941390270 |
