UVC LED DISINFECTION BOX
UVC LED DISINFECTION BOX BATTERY UVC LED
GTIN: 4058075515994
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Reliable, chemical free disinfection by LED UV-C technology
- Strong USB rechargeable battery enables mobile use
Areas of application
- Indoor applications
Product features
- Two disinfection modes – for smooth or rough surfaces
- Skin and eye safety guaranteed by auto shut down mechanism when opening the box
- Robust, non-slippery and washable housing
Safety advice
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
Electrical data
| Nominal wattage | 5.00 W |
| Nominal voltage | 5 V |
| Nominal current | 1000.000 mA |
| Power factor λ | > 0.90 |
| Protection class | III |
| Operating mode | Battery |
Photometrical data
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 219.00 mm |
| Height | 63.00 mm |
| Width | 126.00 mm |
| Product weight | 450.00 g |
| Cable length | 1000 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | USB |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Standing |
| Mounting location | All surfaces |
| Application environment | Indoor |
Lifespan
| Lifespan L70/B50 at 25 °C | 1000 h |
| Number of switching cycles | 30000 |
BATTERY
| Type of Battery | Lithium ion |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 3.7 V |
| Battery charging time | 1 h |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075515994 | Folding box 1 |
78 mm x 238 mm x 155 mm | 553.00 g | 2.88 dm³ |
| 4058075516007 | Shipping box 6 |
327 mm x 247 mm x 260 mm | 3654.00 g | 21.00 dm³ |
User instruction / safety instructions
BATTERY UVC LED DISINFECTION BOX
BATTERY UVC LED DISINFECTION BOX
Declarations of conformity
BATTERY UVC LED DISINFECTION BOX
BATTERY UVC LED DISINFECTION BOX

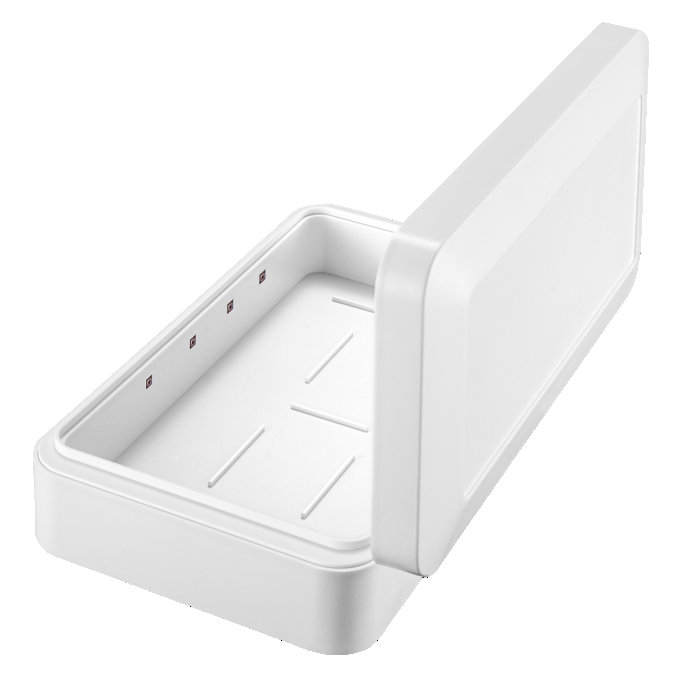

Product image: white background, upright
BATTERY UVC LED STERILIZATION BOX
BATTERY UVC LED STERILIZATION BOX
Product image: white background, upright, alternative image
BATTERY UVC LED STERILIZATION BOX
BATTERY UVC LED STERILIZATION BOX
Product line drawing with letters
BATTERY UVC LED STERILIZATION BOX
BATTERY UVC LED STERILIZATION BOX
Product line drawing with numbers
BATTERY UVC LED STERILIZATION BOX
BATTERY UVC LED STERILIZATION BOX

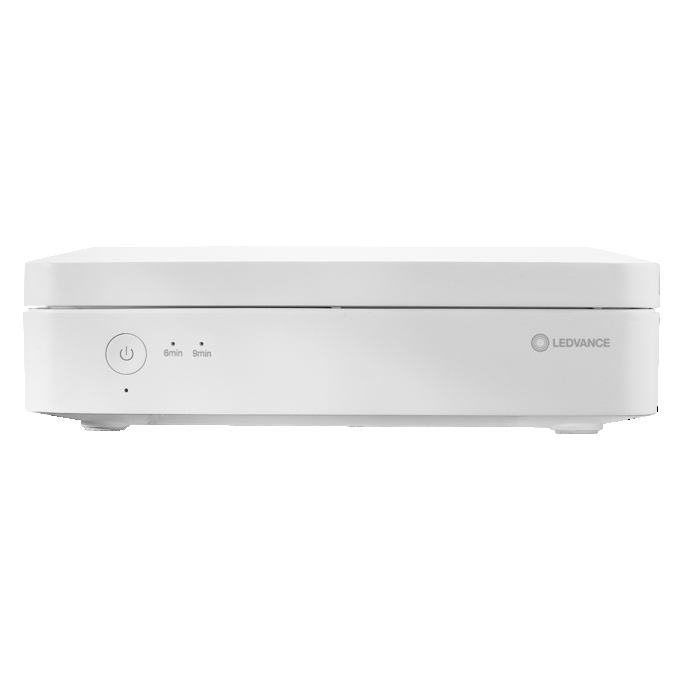

Product line drawing, front, no dimensions
BATTERY UVC LED STERILIZATION BOX
BATTERY UVC LED STERILIZATION BOX
Beauty Shot

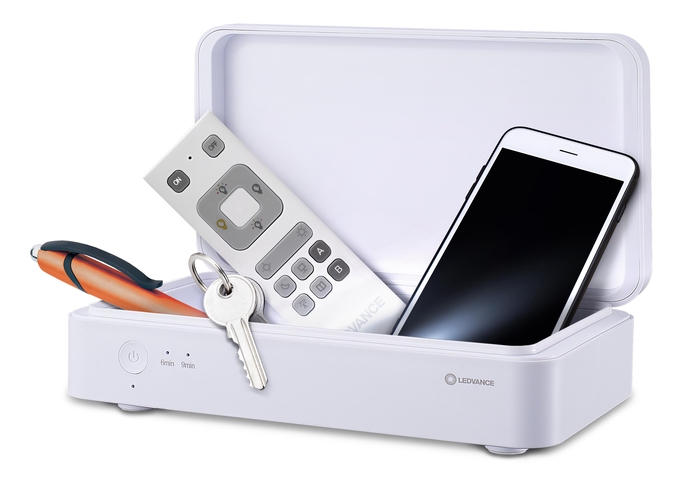

UVC Disinfection Box - new content
UVC Disinfection Box - new content
Combo Shot = Product Beauty Shot + Packaging Image

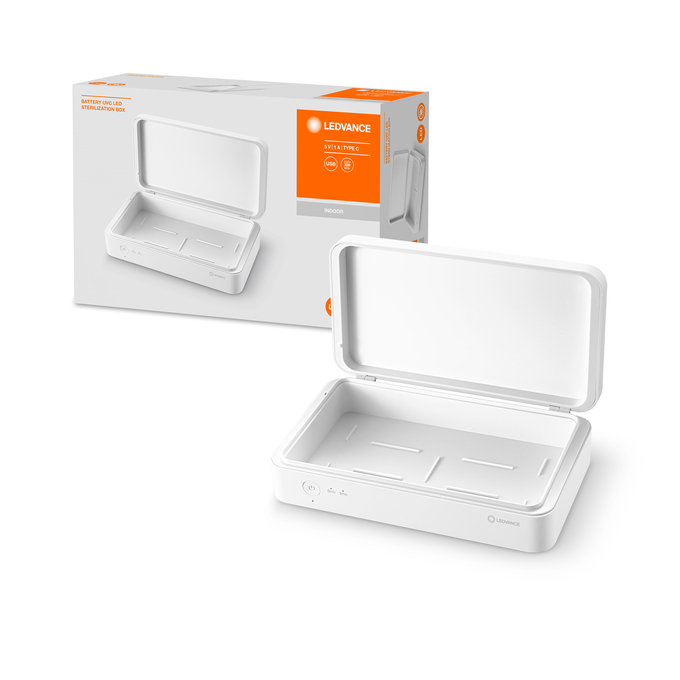

LUM FC UVC-BOX 5V 1A TypC USB MiPRC
LUM FC UVC-BOX 5V 1A TypC USB MiPRC
Combo Shot = Product Beauty Shot + Packaging Image

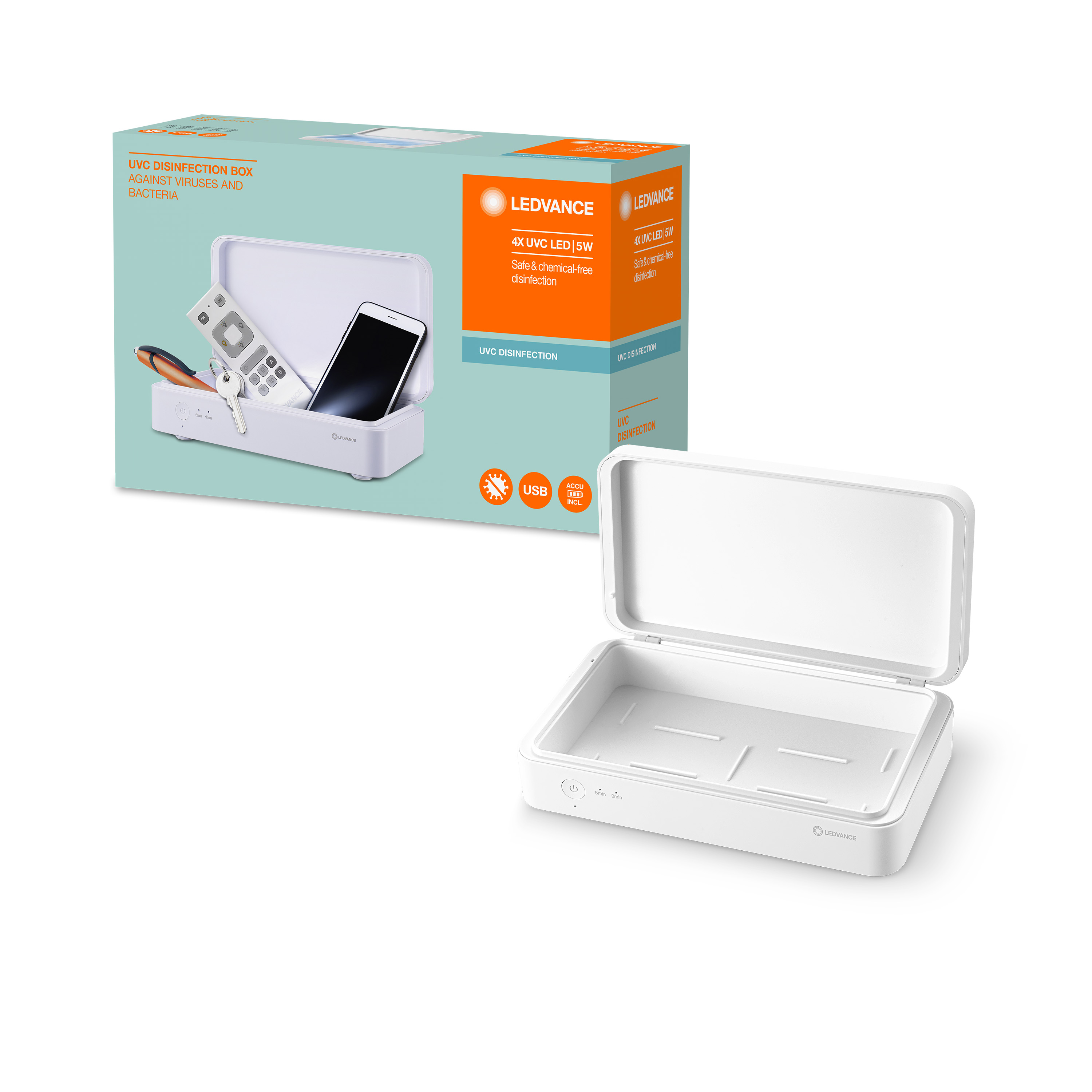

LUM FC UVC DISINFECTION BOX MiPRC
LUM FC UVC DISINFECTION BOX MiPRC
Packaging image, frontal
LUM FC UVC-BOX 5V 1A TypC USB MiPRC
LUM FC UVC-BOX 5V 1A TypC USB MiPRC
Packaging image, spacial
UVC Disinfection Box Packaging with Banderole Front
UVC Disinfection Box Packaging with Banderole Front
Application pictures
Sterilization Box Office
Sterilization Box Office
Application pictures
UV-C Sterilization Box Function Rays
UV-C Sterilization Box Function Rays
Application pictures
UV-C Box
UV-C Box
Application pictures
Sterilization Box Kitchen
Sterilization Box Kitchen
Application pictures
LDV UVC AIR PURIFIER BOX AP Family Office woman
LDV UVC AIR PURIFIER BOX AP Family Office woman
| EAN | SEG number | EFO number | ELDAS number |
|---|---|---|---|
| 4058075515994 | 7507223 | 5800355 | 941901990 |
