POWERSTAR HQI-E clear
HQI-E 400 W/N CL
GTIN: 4058075039780
Round wrap / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- E40 screw base for simple lamp handling
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Factories and workshops
- Exhibition halls and trade fairs
- Sports halls and multi-purpose halls
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light color: neutral white (N)
Electrical data
| Nominal wattage | 440 W |
| Construction wattage | 450.00 W |
| Nominal voltage | 124 V |
| Ignition voltage | 4.0/5.0 kVp 1) |
| Operating mode | Conventional control gear (CCG) and ignitor |
| Nominal current | 3.9 A |
| PFC capacitor at 50 Hz | 45 µF |
1) Minimum / Maximum
Photometrical data
| Luminous flux | 42000 lm |
| Luminous efficacy | 93 lm/W |
| Color temperature | 4000 K |
| Color rendering index Ra | 60 |
| Light color | 640 |
| Rated LLMF at 2,000 h | 0.86 |
| Rated LLMF at 4,000 h | 0.75 |
| Rated LLMF at 6,000 h | 0.68 |
| Rated LLMF at 8,000 h | 0.64 |
| UV protection | Yes |
Dimensions & Weight
| Overall length | 290.00 mm |
| Light center length (LCL) | 198,0 mm |
| Diameter | 120,0 mm |
| Product weight | 248.7 g |
Temperatures & operating conditions
| Maximum permitted outer bulb temperature | 500 °C |
| Maximum permitted base edge temperature | 250 °C |
Lifespan
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.99 |
| Rated lamp survival factor at 6,000 h | 0.70 |
| Lifespan B50 | 9000 h |
Additional product data
| Base (standard designation) | E40 |
| Mercury content | 60.0 mg |
| Design / version | Clear |
| Product remark | With NAV® control gear |
Capabilities
| Dimmable | No |
| Burning position | h45 |
| Enclosed luminaire required | Yes |
| Hot restart | No |
Certificates & Standards
| Energy efficiency class | F |
| Energy consumption | 450.00 kWh/1000h |
Country-specific categorizations
| ILCOS | MC/UB-400/637-H/E/SL-E40-120/290 |
| Order reference | HQI-E 400/N E40 |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | MH |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | E40 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | SECOND |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 290.00 mm |
| Height | 120,0 mm |
| Width | 120,0 mm |
| Chromaticity coordinate x | 0,380 |
| Chromaticity coordinate y | 0,395 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 546560 |
| Model number | AC34334 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075039780 | Round wrap 1 |
1,050 mm x 380 mm | 344.17 g | |
| 4058075039797 | Shipping box 12 |
545 mm x 410 mm x 410 mm | 5870.00 g | 91.61 dm³ |
User instruction / safety instructions
High Intensity Discharge Lamp UI
High Intensity Discharge Lamp UI
Declarations of conformity
EC Declaration of Conformity - 2021 9C1-4072118-EN-12 - HQI
EC Declaration of Conformity - 2021 9C1-4072118-EN-12 - HQI
Certificates
EAC RU C-DE.AYA46.B.16087_20 13.10.2020-12.10.2025 Rostest-Moskva - MH single capped
EAC RU C-DE.AYA46.B.16087_20 13.10.2020-12.10.2025 Rostest-Moskva - MH single capped
Certificates
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
Product image: white background, diagonal
327196_POWERSTAR HQI-E 400W CLEAR
327196_POWERSTAR HQI-E 400W CLEAR

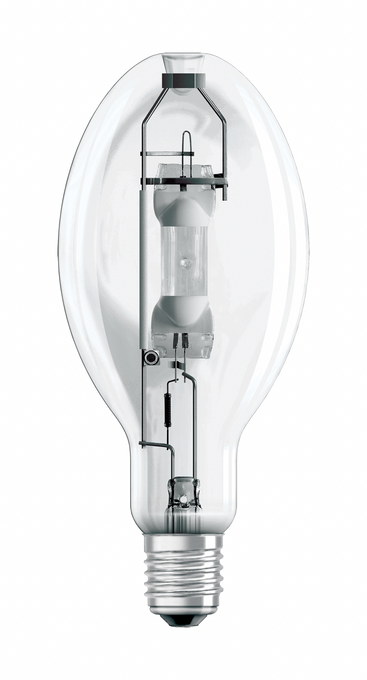

Product image: white background, upright
327194_POWERSTAR HQI-E 400W CLEAR
327194_POWERSTAR HQI-E 400W CLEAR
Product line drawing with letters
328152_POWERSTAR HQI-E CLEAR E40
328152_POWERSTAR HQI-E CLEAR E40
Product line drawing, front, no dimensions
327964_POWERSTAR HQI-E CLEAR E40
327964_POWERSTAR HQI-E CLEAR E40
Energy label
EL-4058075039780-AC343 34
EL-4058075039780-AC343 34
Spectral power distribution
384078_HQI_T_N_E40
384078_HQI_T_N_E40
| EAN | EFO number | ELDAS number |
|---|---|---|
| 4058075039780 | 3800107 | 948821600 |
