NEW
LED CLASSIC A ENERGY EFFICIENCY A DIM S
LED Classic A 60 Filament DIM Energy efficiency class A S 3.8W 827 Clear E27
GTIN: 4099854265303
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lamps with innovative LED "filament" technology
- Low energy consumption
- Design, dimensions, luminous flux comparable to a halogen lamp
- Instant 100 % light, no warm-up time
- Low flickering
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED lamps for line voltage
- Luminous efficacy: up to 210 lm/W
- Beam angle: up to 300°
- Very long lifetime of up to 50,000 h
- Very high number of switching cycles 500,000
- Dimmable
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see www.ledvance.com/dim
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 3.8 W |
| Construction wattage | 3.80 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 22 mA |
| Type of current | AC |
| Inrush current | 2.5 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 48 |
| Max. lamp number on MCB B16 A | 57 |
| Total harmonic distortion | 60 % |
| Power factor λ | 0.40 |
Photometrical data
| Luminous flux | 806 lm |
| Luminous efficacy | 212 lm/W |
| Lumen main.fact.at end of nom.life time | 0.96 |
| Light color (designation) | Warm white |
| Color temperature | 2700 K |
| Color rendering index Ra | 80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
| Beam angle | 320 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 105.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 35.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 52 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h |
| Number of switching cycles | 500000 |
| Lumen maintenance at end of service lifetime | 0.96 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
Capabilities
| Dimmable | Yes 1) |
1) Check dimmer compatibility at ledvance.com/compatibility
Certificates & Standards
| Energy efficiency class | A 1) |
| Energy consumption | 4.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, UKCA, EAC |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | LEDCLA60EELADIM |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 W |
| Networked standby power for CLS | Not relevant |
| Claim of equivalent power | Yes |
| Length | 105.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| Chromaticity coordinate x | 0.458 |
| Chromaticity coordinate y | 0.410 |
| R9 Colour rendering index | 8 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| Displacement factor | 0.5 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1874913 |
| Model number | AC59511,AC59511 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854265303 | Folding box 1 |
60 mm x 60 mm x 111 mm | 49.00 g | 0.40 dm³ |
| 4099854265310 | Shipping box 10 |
315 mm x 131 mm x 126 mm | 584.00 g | 5.20 dm³ |
Declarations of conformity
LED-Lamps
LED-Lamps

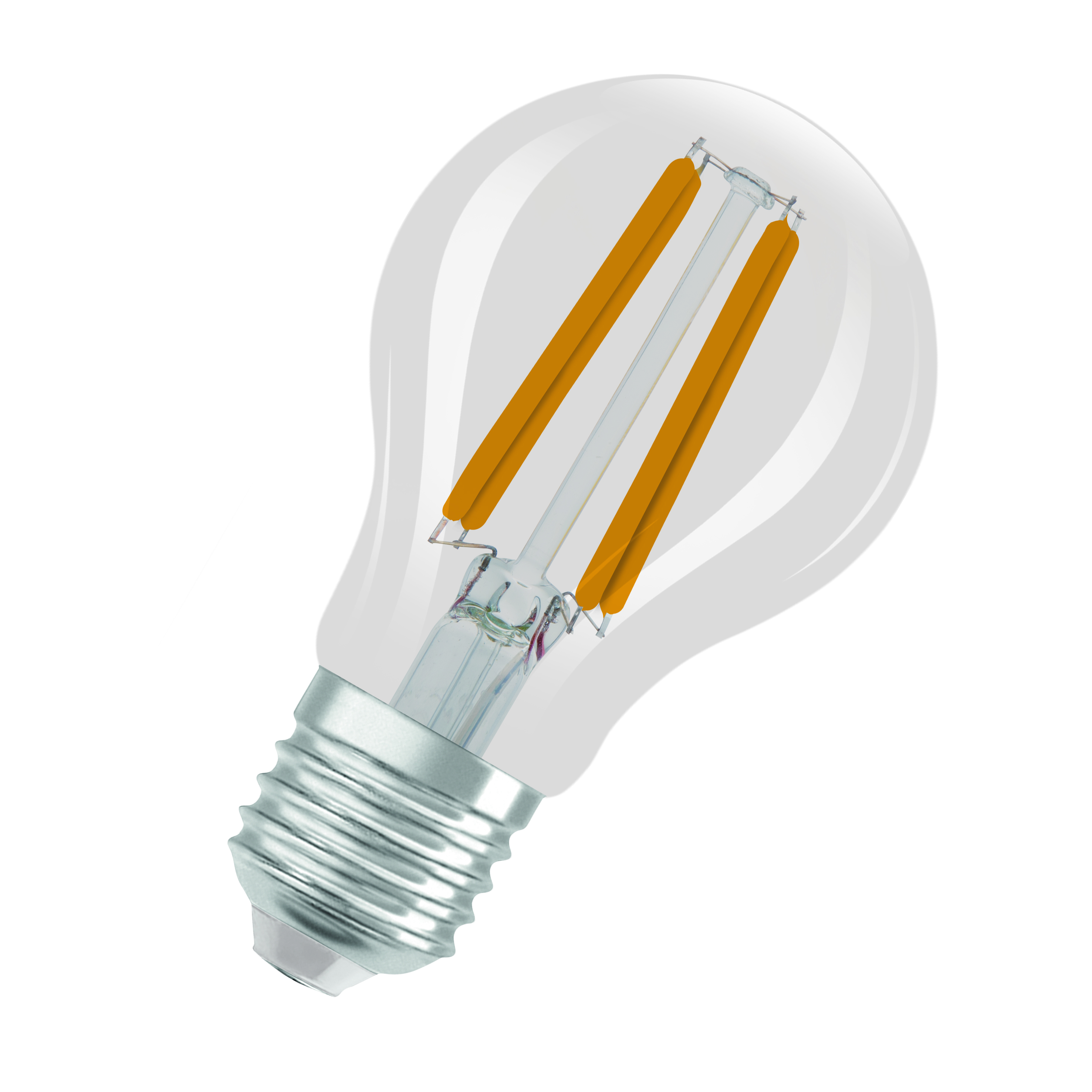

Product image: white background, diagonal with LEDVANCE logo
LED CLASSIC A60 EELA FIL CL E27
LED CLASSIC A60 EELA FIL CL E27
Product image: white background, diagonal
LED CLASSIC A 60/75 EEL A E27
LED CLASSIC A 60/75 EEL A E27
Product image: white background, upright LEDVANCE logo
LED CLASSIC A60 EELA FIL CL E27
LED CLASSIC A60 EELA FIL CL E27
Product image: white background, upright
LED CLASSIC A 60/75 EEL A E27
LED CLASSIC A 60/75 EEL A E27
Product line drawing with letters
LED CLASSIC A 60/75 EEL A E27
LED CLASSIC A 60/75 EEL A E27
Product line drawing with numbers
LED CLASSIC A 60/75 EEL A E27
LED CLASSIC A 60/75 EEL A E27
Product line drawing - technical
LED CLASSIC A 60/75 EEL A E27
LED CLASSIC A 60/75 EEL A E27
Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED CLA 40 DIM SUP ULTRA EFFICIENT 3.8W 827 FIL E27
FC1 LED CLA 40 DIM SUP ULTRA EFFICIENT 3.8W 827 FIL E27
Packaging image, frontal
FC1 LED CLA 40 DIM SUP ULTRA EFFICIENT 3.8W 827 FIL E27
FC1 LED CLA 40 DIM SUP ULTRA EFFICIENT 3.8W 827 FIL E27
Packaging image, spacial
FC1 LED CLA 40 DIM SUP ULTRA EFFICIENT 3.8W 827 FIL E27
FC1 LED CLA 40 DIM SUP ULTRA EFFICIENT 3.8W 827 FIL E27
Energy label
EL-4099854265303-AC595 11
EL-4099854265303-AC595 11
Spectral power distribution
Spectral graph classic A 2700K DIM
Spectral graph classic A 2700K DIM
| EAN | SEG number | STK number |
|---|---|---|
| 4099854265303 | 8299627 | 4737566 |
