NEW

LED CLASSIC GLOBE ENERGY EFFICIENCY A S
LED Classic Globe125 100 Filament Energy efficiency class A S 7.2W 827 Frosted E27

GTIN: 4099854280214
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lamps with innovative LED "filament" technology
- Low energy consumption
- Design, dimensions, luminous flux comparable to a halogen lamp
- Instant 100 % light, no warm-up time
- Low flickering
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED lamps for line voltage
- Luminous efficacy: up to 210 lm/W
- Beam angle: up to 300°
- Very long lifetime of up to 50,000 h
- Very high number of switching cycles 500,000
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see www.ledvance.com/dim
- For Guarantee see www.ledvance.com/guarantee
Electrical data
Nominal wattage | 7.2 W |
Construction wattage | 7.20 W |
Nominal voltage | 220…240 V |
Operating mode | AC Mains |
Claimed equiv. conventional lamp power | 100 W |
Nominal current | 59 mA |
Type of current | AC |
Inrush current | 5.88 A |
Operating frequency | 50/60 Hz |
Mains frequency | 50/60 Hz |
Max. lamp number on MCB B10 A | 37 |
Max. lamp number on MCB B16 A | 44 |
Total harmonic distortion | 130 % |
Power factor λ | 0.53 |
Photometrical data
Luminous flux | 1521 lm |
Luminous efficacy | 211 lm/W |
Lumen main.fact.at end of nom.life time | 0.96 |
Light color (designation) | Warm white |
Color temperature | 2700 K |
Color rendering index Ra | 80 |
Light color | 827 |
Standard deviation of color matching | ≤6 sdcm |
Flickering metric (Pst LM) | ≤1.0 |
Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
Beam angle | 330 ° |
Warm-up time (60 %) | ‹ 0.50 s |
Starting time | < 0.5 s |
Dimensions & Weight
Overall length | 168.00 mm |
Diameter | 125.00 mm |
Maximum diameter | 125 mm |
Product weight | 88.00 g |
Temperatures & operating conditions
Ambient temperature range | -20…+40 °C |
Maximum temperature at tc test point | 90 °C |
Lifespan
Lifespan L70/B50 at 25 °C | 50000 h |
Number of switching cycles | 500000 |
Lumen maintenance at end of service lifetime | 0.96 |
Additional product data
Base (standard designation) | E27 |
Mercury content | 0.0 mg |
Mercury-free | Yes |
Design / version | Frosted |
Capabilities
Dimmable | No |
Certificates & Standards
Energy efficiency class | A 1) |
Energy consumption | 8.00 kWh/1000h |
Type of protection | IP20 |
Standards | CE, EAC, UKCA |
Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference | LEDG125100EELA |
LOGISTICAL DATA
Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | MLS |
Light source cap-type (or other electric interface) | E27 |
Connected light source (CLS) | No |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | SINGLE_VALUE |
Standby power | 0 W |
Networked standby power for CLS | Not relevant |
Claim of equivalent power | Yes |
Length | 168.00 mm |
Height | 125.00 mm |
Width | 125.00 mm |
Chromaticity coordinate x | 0.463 |
Chromaticity coordinate y | 0.420 |
R9 Colour rendering index | 20 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0.90 |
Displacement factor | 0.5 |
LED light source replaces a fluorescent light source | No |
EPREL ID | 1902985,2185087 |
Model number | AC59160,AC70016 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4099854280214 | Folding box 1 |
140 mm x 140 mm x 189 mm | 146.00 g | 3.68 dm³ |
4099854280221 | Shipping box 10 |
710 mm x 290 mm x 203 mm | 1832.00 g | 41.80 dm³ |

Declarations of conformity
LED lamp
LED lamp

Declarations of conformity
LED lamps
LED lamps

Product image: white background, diagonal with LEDVANCE logo
LED GLOBE95 FILAMNET FROSTED EEA E27
LED GLOBE95 FILAMNET FROSTED EEA E27

Product image: white background, diagonal
LED GLOBE95 FILAMNET FROSTED EEA E27
LED GLOBE95 FILAMNET FROSTED EEA E27

Product image: white background, upright LEDVANCE logo
LED GLOBE95 FILAMNET FROSTED EEA E27
LED GLOBE95 FILAMNET FROSTED EEA E27

Product image: white background, upright
LED GLOBE95 FILAMNET FROSTED EEA E27
LED GLOBE95 FILAMNET FROSTED EEA E27
Product line drawing with letters
LED GLOBE95 FILAMNET FROSTED EEA E27
LED GLOBE95 FILAMNET FROSTED EEA E27
Product line drawing - technical
LED GLOBE95 FILAMNET FROSTED EEA E27
LED GLOBE95 FILAMNET FROSTED EEA E27

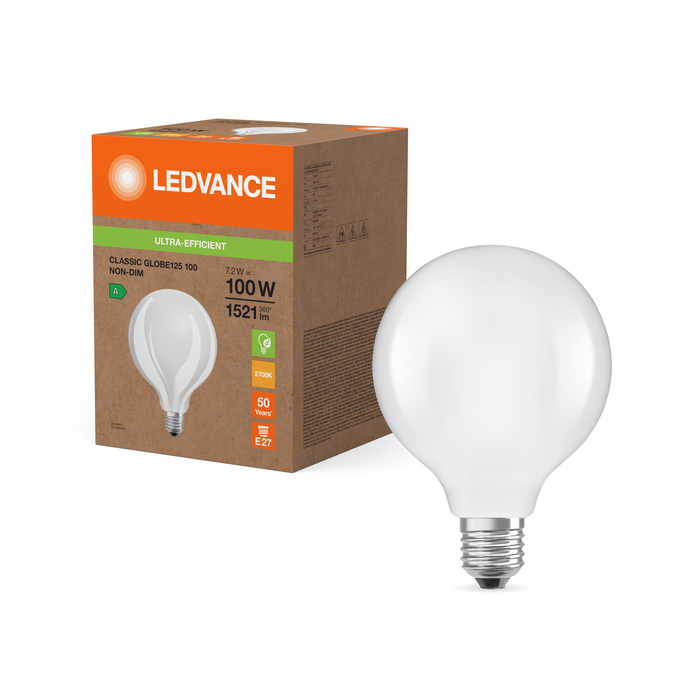

Combo Shot = Product Beauty Shot + Packaging Image
FC1 GLOBE125 100 SUP ULTRA EFFICIENT 7.2 827 GLFR E27
FC1 GLOBE125 100 SUP ULTRA EFFICIENT 7.2 827 GLFR E27

Packaging image, frontal
FC1 GLOBE125 100 SUP ULTRA EFFICIENT 7.2 827 GLFR E27
FC1 GLOBE125 100 SUP ULTRA EFFICIENT 7.2 827 GLFR E27

Packaging image, spacial
FC1 GLOBE125 100 SUP ULTRA EFFICIENT 7.2 827 GLFR E27
FC1 GLOBE125 100 SUP ULTRA EFFICIENT 7.2 827 GLFR E27

Energy label
EL-4099854280214-AC591 60
EL-4099854280214-AC591 60

Energy label
EL-4099854280214-AC700 16
EL-4099854280214-AC700 16

Spectral power distribution
EPREL Data Spectral Diagram LEDr _2700K_EELB
EPREL Data Spectral Diagram LEDr _2700K_EELB
EAN | SEG number | STK number |
---|---|---|
4099854280214 | 8299662 | 4737909 |
