Newer edition available:
LED Classic A 40 Filament Energy efficiency class A S 2.2W 830 Clear E27
LED CLASSIC A ENERGY EFFICIENCY A S

LED Classic A 40 Filament Energy efficiency class A S 2.5W 830 Clear E27

GTIN: 4058075747807 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Luminous efficacy: up to 210 lm/W
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles 500,000
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Electrical data
Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Operating mode Mains voltage
Claimed equiv. conventional lamp power 40 W
Nominal current 22 mA
Type of current AC
Inrush current 18 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 175
Max. lamp number on MCB B16 A 281
Total harmonic distortion 100 %
Power factor λ > 0.47
Photometrical data
Luminous flux 525 lm
Nominal useful luminous flux 90° 525 lm
Luminous efficacy 210 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0,90
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 105.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 31.00 g
Temperatures & operating conditions
Ambient temperature range -20…40 °C
Maximum temperature at tc test point 65 °C
Lifespan
Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 500000
Lumen maintenance at end of service lifetime 0.96
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Design / version Clear
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class A
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0
Country-specific categorizations
Order reference LED CLA40 2,5W/
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 105.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0,45
Chromaticity coordinate y 0,437
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,90
Displacement factor 0,474
LED light source replaces a fluorescent light source No
EPREL ID 1191489
Model number AC41193
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075747807 Folding box
1		 60 mm x 60 mm x 145 mm 46.00 g 0.52 dm³
4058075747814 Shipping box
6		 202 mm x 134 mm x 130 mm 378.00 g 3.52 dm³
Declarations of conformity
LED CL A lamp
PDF (306.33 KB)

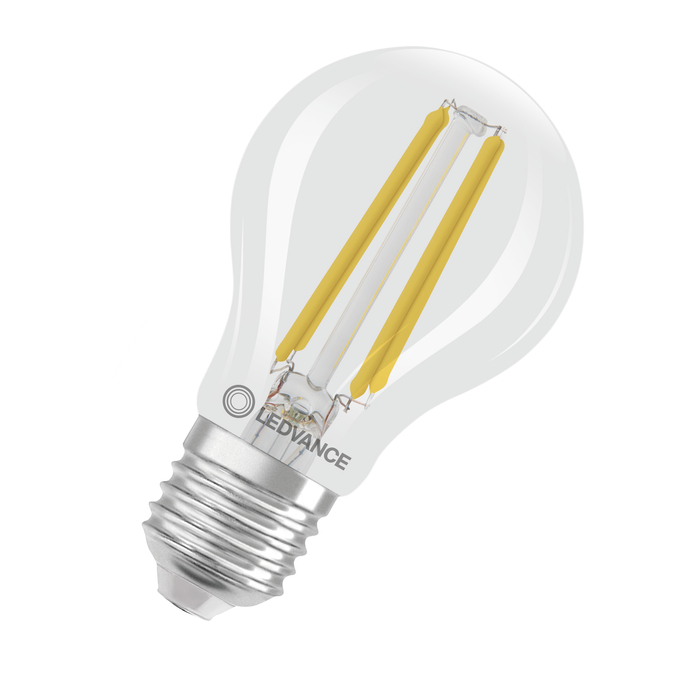

Product image: white background, diagonal
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
JPG (574.17 KB)
Product image: white background, upright
LED CLA45 2,5W-830 230V FIL E27 6X1LEDV
JPG (1.25 MB)
Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V2 1200x1200 2023 EN
JPG (727.86 KB)
Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V1 1200x1200 2023 EN
JPG (1.61 MB)
Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V3 1200x1200 2023 EN
JPG (629.36 KB)
Product line drawing with letters
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
SVG (14.33 KB)
Product line drawing with numbers
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
SVG (16.28 KB)
Product line drawing - technical
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
SVG (10.69 KB)

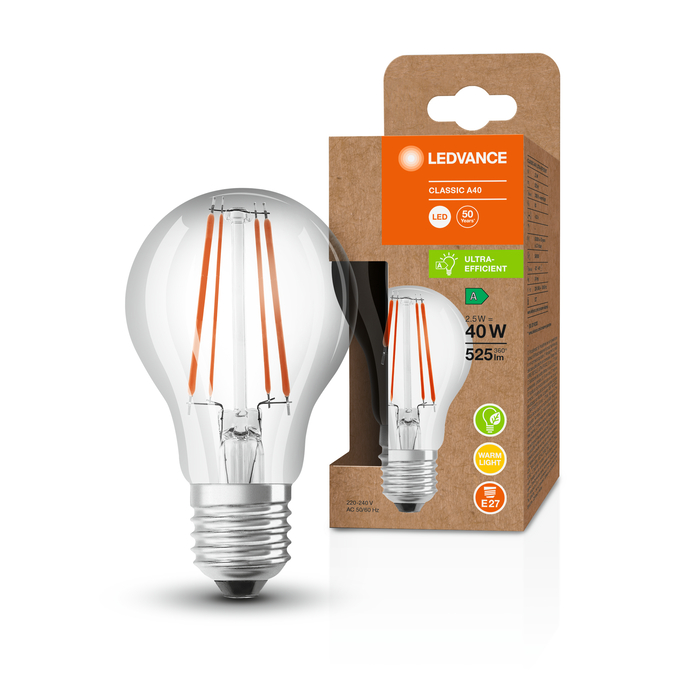

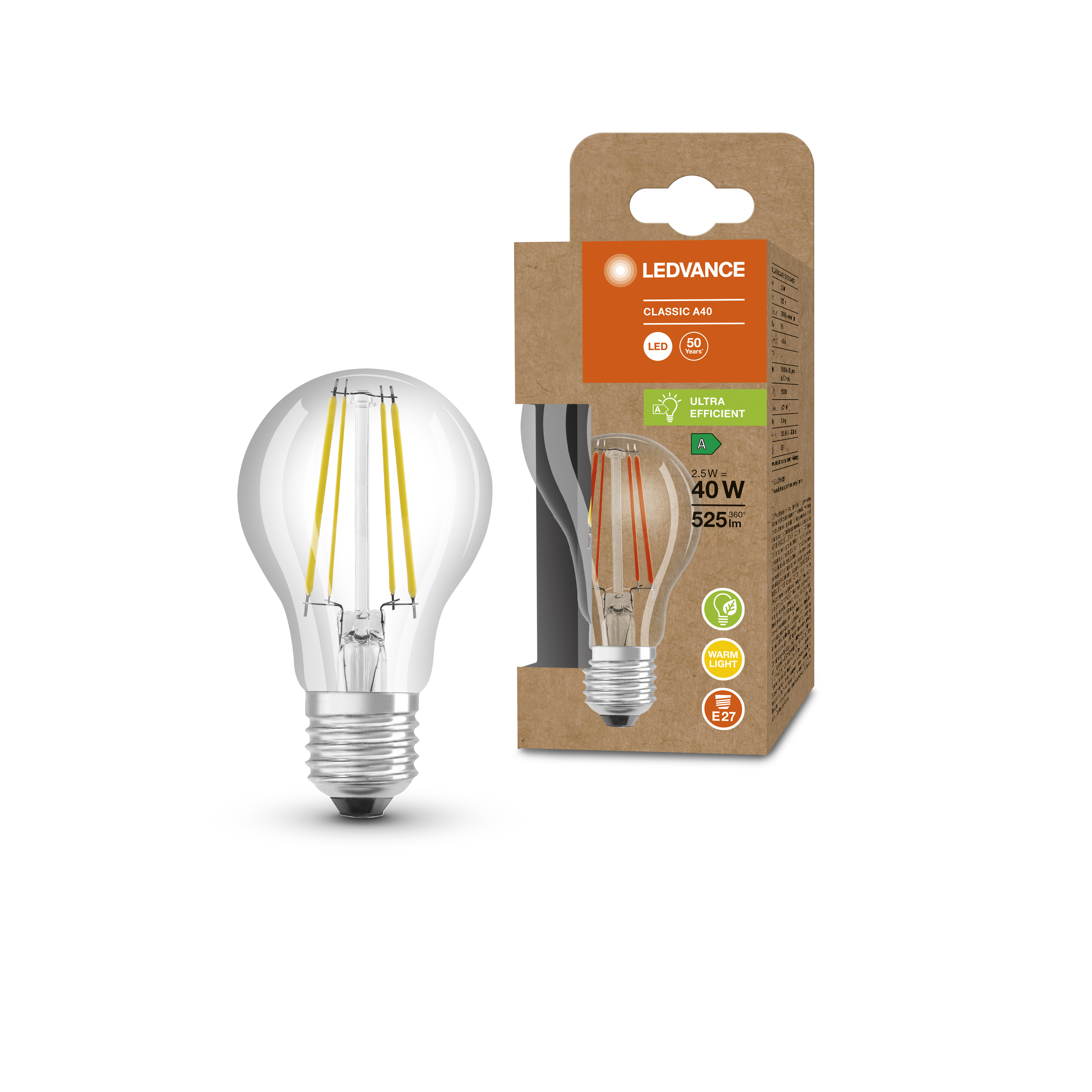

Combo Shot = Product Beauty Shot + Packaging Image
LED CLA 40 2.5W 830 E27 MiCh
JPG (1.66 MB)

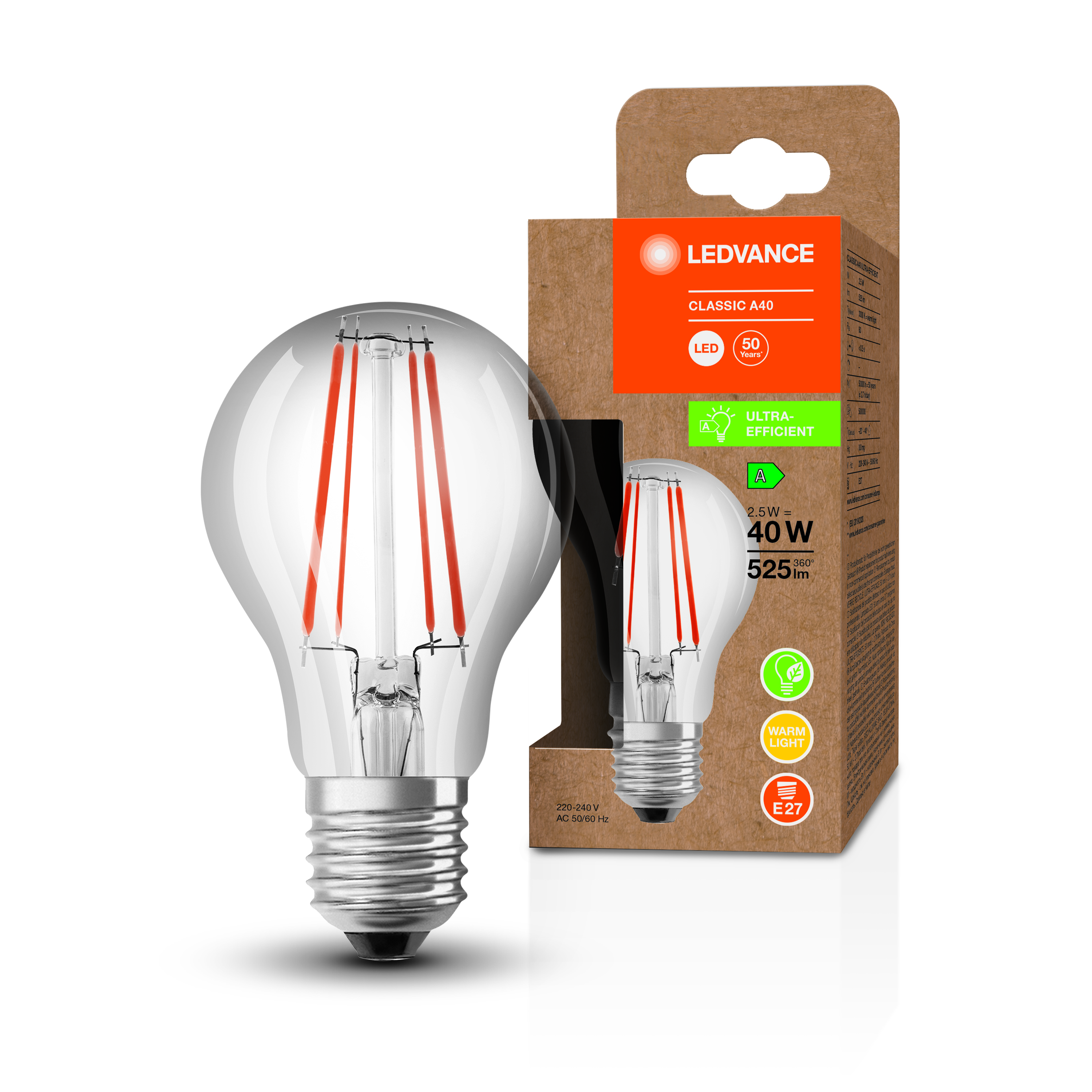

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA40ULTRAEFFICIENT 2.5W830E27
JPG (2.92 MB)

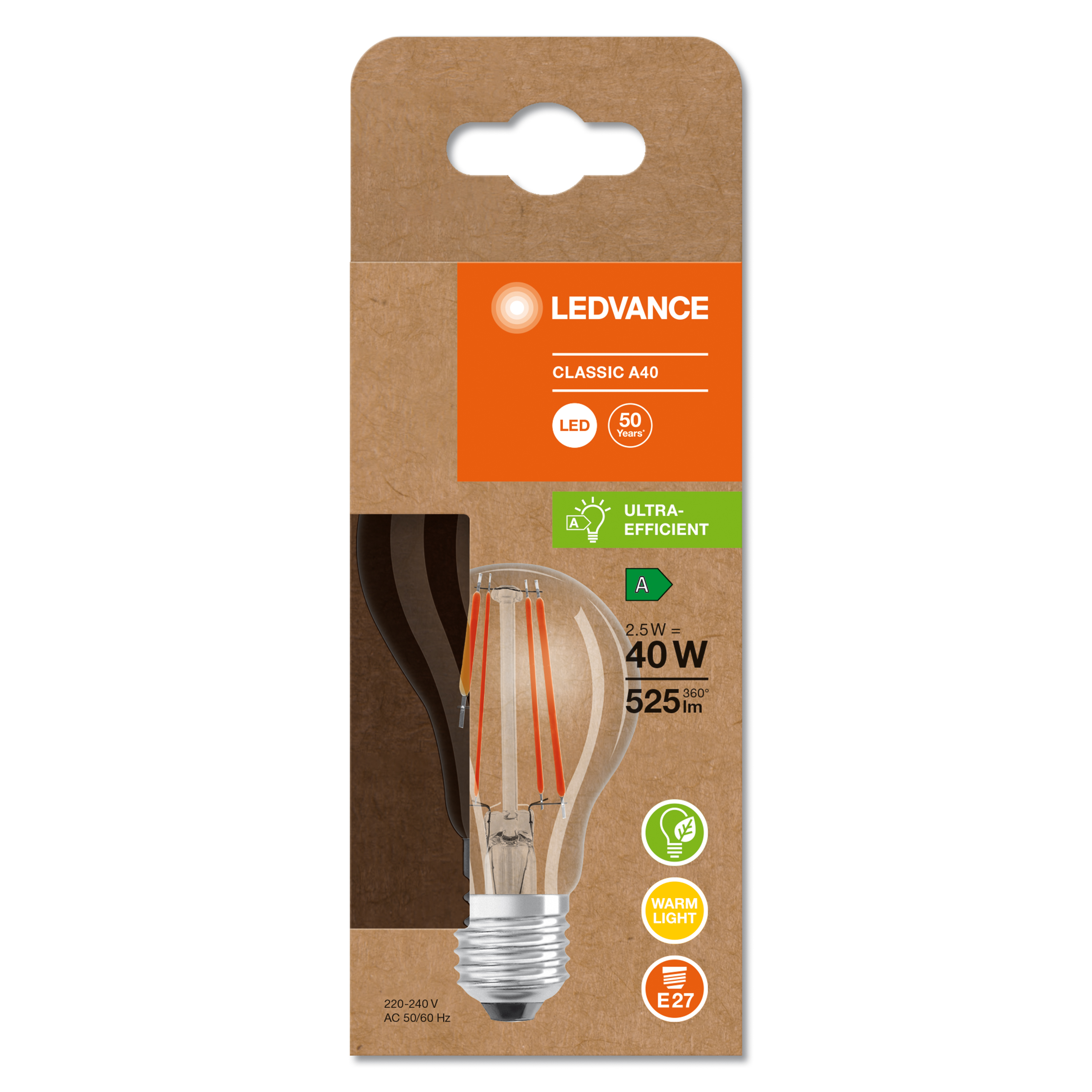

Packaging image, frontal
LED CLA 60 4W 830 E27 MiCh
JPG (1.84 MB)

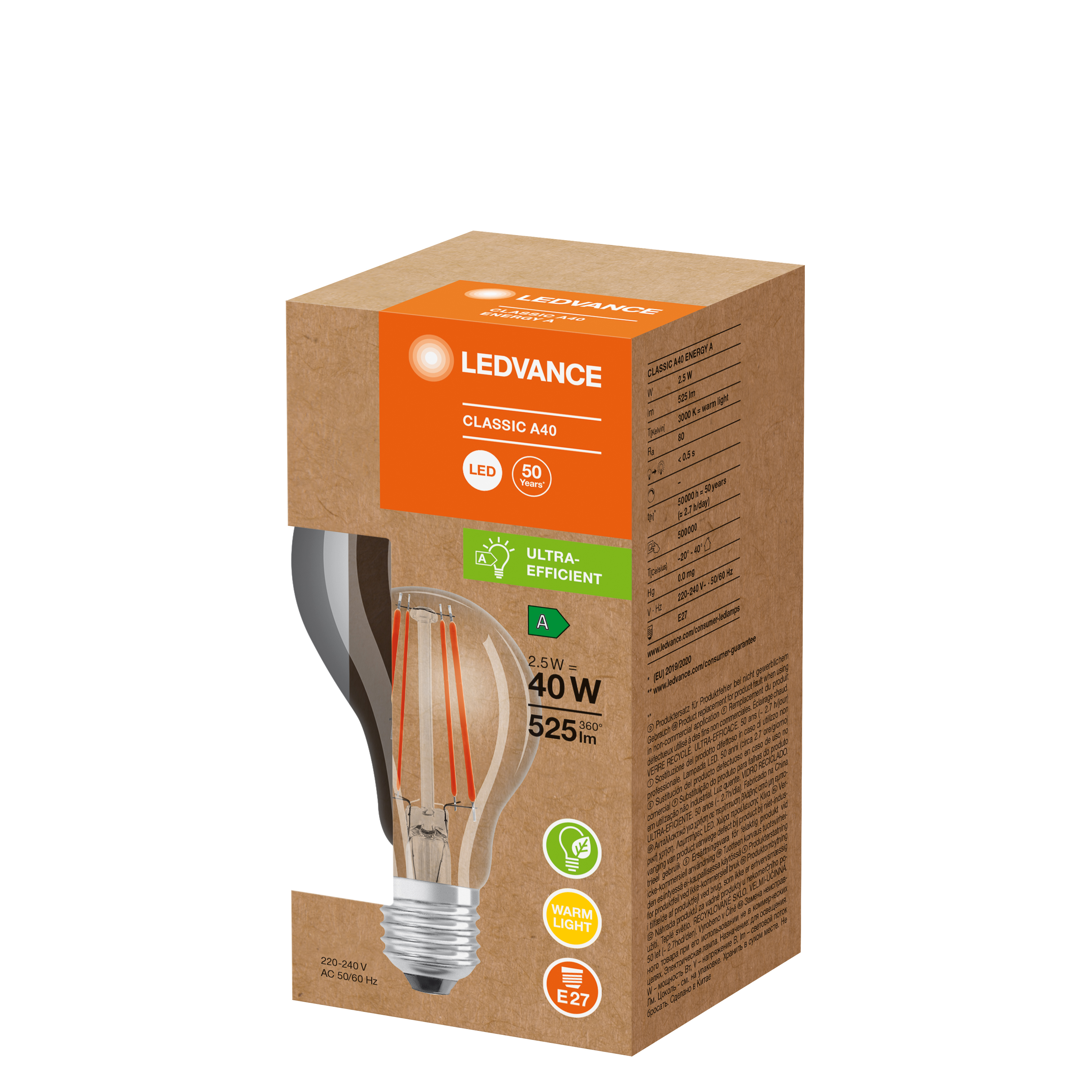

Packaging image, spacial
LED CLA 40 2,5W 830 E27 MiCh
JPG (2.41 MB)
Energy label
EL-4058075747807-AC411 93
PDF (21.5 KB)
Spectral power distribution
EPREL Data Spectral Diagram LEDr _3000K_Energy Class A
JPG (162.2 KB)
EAN SEG number STK number ELDAS number
4058075747807 8297897 4736627 941813580
