LED Classic A 60 Energy efficiency class A S 4W 830 Frosted E27

Newer edition available:

LED Classic A 60 Filament Energy efficiency class A S 3.8W 830 Frosted E27

LED CLASSIC A ENERGY EFFICIENCY A S

GTIN: 4099854002786 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Lamps with innovative LED "filament" technology
Low energy consumption
Design, dimensions, luminous flux comparable to a halogen lamp
Instant 100 % light, no warm-up time
Low flickering

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

LED lamps for line voltage
Luminous efficacy: up to 210 lm/W
Beam angle: up to 300°
Very long lifetime of up to 50,000 h
Very high number of switching cycles 500,000

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

References / Links

For dimming conformity see www.ledvance.com/dim
For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	4 W
Construction wattage	4.00 W
Nominal voltage	220…240 V
Operating mode	Mains voltage
Claimed equiv. conventional lamp power	60 W
Nominal current	36 mA
Type of current	AC
Inrush current	3.96 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	113
Max. lamp number on MCB B16 A	181
Total harmonic distortion	128.6 %
Power factor λ	≥ 0.48

Photometrical data

Luminous flux	840 lm
Nominal useful luminous flux 90°	840 lm
Luminous efficacy	210 lm/W
Lumen main.fact.at end of nom.life time	0.96
Light color (designation)	Warm White
Color temperature	3000 K
Color rendering index Ra	≥80
Light color	830
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4

Light technical data

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	105.00 mm
Diameter	60.00 mm
Maximum diameter	60 mm
Product weight	31.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	<65 °C

Lifespan

Lifespan L70/B50 at 25 °C	50000 h
Number of switching cycles	500000
Lumen maintenance at end of service lifetime	0.96
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Design / version	Frosted

Capabilities

Dimmable

Certificates & Standards

Energy efficiency class	A
Energy consumption	4.00 kWh/1000h
Type of protection	IP20
Standards	CE, ERP, ROHS, REACH, UKCA
Photobiological safety group acc. to EN62778	RG0

Country-specific categorizations

Order reference

LED CLA60 4W/83

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Networked standby power for CLS	not applicable
Claim of equivalent power	Yes
Length	105.00 mm
Height	60.00 mm
Width	60.00 mm
Chromaticity coordinate x	0,45
Chromaticity coordinate y	0,437
R9 Colour rendering index	0.00
Beam angle correspondence	SPHERE_360
Survival factor	0,90
Displacement factor	not applicable
LED light source replaces a fluorescent light source	No
EPREL ID	1260029
Model number	AC43719

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854002786	Folding box 1	60 mm x 60 mm x 145 mm	46.00 g	0.52 dm³
4099854002793	Shipping box 6	202 mm x 134 mm x 130 mm	381.00 g	3.52 dm³

Declarations of conformity
LED lamp CLA FIL lamp

PDF (309.26 KB)

Product image: white background, diagonal
LED CLA GL FR E27

JPG (1.13 MB)

Product image: white background, diagonal
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27

JPG (1.51 MB)

Product image: white background, upright
LED CLA GL FR E27

JPG (1.06 MB)

Product image: white background, upright
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27

JPG (1.4 MB)

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V2 1200x1200 2023 EN

JPG (727.86 KB)

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V1 1200x1200 2023 EN

JPG (1.61 MB)

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V3 1200x1200 2023 EN

JPG (629.36 KB)

Product line drawing with letters
LED CLA GL FR E27

SVG (7.17 KB)

Product line drawing with letters
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27

SVG (8.54 KB)

Product line drawing with numbers
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27

SVG (10.35 KB)

Product line drawing, front, no dimensions
LED CLA GL FR E27

SVG (4.26 KB)

Product line drawing - technical
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27

SVG (4.67 KB)

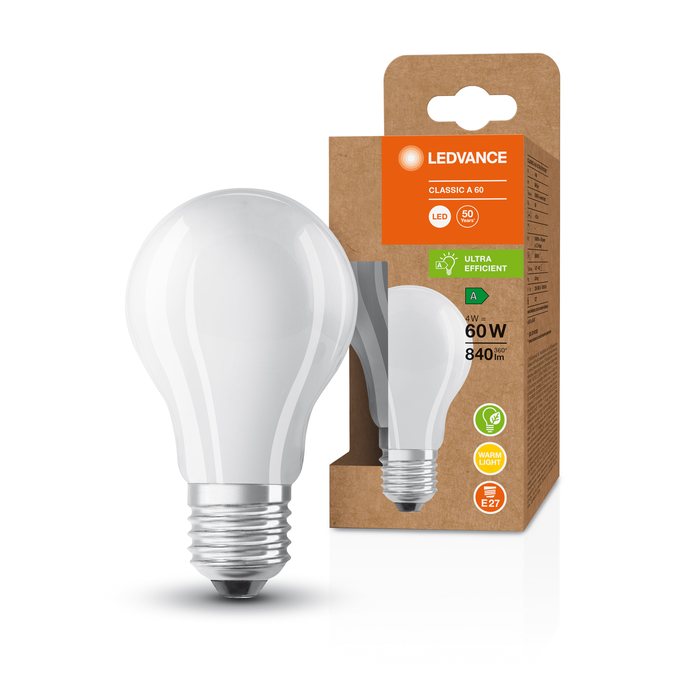

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA 60 ULTRA EFFICIENT 4W 830 GLFR E27 MiCh

JPG (1.39 MB)

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA 60 ULTRA EFFICIENT 4W 830 GLFR E27 MiCh

JPG (2.56 MB)

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA 60 ULTRA EFFICIENT 4W 830 GLFR E27 MiCh

JPG (1.98 MB)

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA60ULTRAEFFICIENT 4W830GLFRE27

JPG (2.71 MB)

Packaging image, frontal
LEDCLA 60 ULTRA EFFICIENT 4W 830 GLFR E27 MiCh

JPG (1.79 MB)

Packaging image, spacial
LEDCLA 60 ULTRA EFFICIENT 4W 830 GLFR E27 MiCh

JPG (2.51 MB)

Energy label
EL-4099854002786-AC437 19

PDF (21.39 KB)

Spectral power distribution
EPREL Data Spectral Diagram LEDr _3000K_Energy Class A

JPG (162.2 KB)

EAN	STK number	ELDAS number
4099854002786	4736674	941814420

Successor product

LED Classic A 60 Filament Energy efficiency class A S 3.8W 830 Frosted E27 LED CLASSIC A ENERGY EFFICIENCY A S

LED lamps, classic bulb shape, ENERGY EFFICIENCY CLASS A
