LED Classic A 75 Filament Energy efficiency class A S 5W 830 Frosted E27
LED CLASSIC A ENERGY EFFICIENCY A S
LED Classic A 75 Energy efficiency class A S 5W 830 Frosted E27

GTIN: 4099854002847
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lamps with innovative LED "filament" technology
- Low energy consumption
- Design, dimensions, luminous flux comparable to a halogen lamp
- Instant 100 % light, no warm-up time
- Low flickering
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED lamps for line voltage
- Luminous efficacy: up to 210 lm/W
- Beam angle: up to 300°
- Very long lifetime of up to 50,000 h
- Very high number of switching cycles 500,000
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see www.ledvance.com/dim
- For Guarantee see www.ledvance.com/guarantee
Electrical data
Nominal wattage | 5 W |
Construction wattage | 5.00 W |
Nominal voltage | 220…240 V |
Operating mode | Mains voltage |
Claimed equiv. conventional lamp power | 75 W |
Nominal current | 44 mA |
Type of current | AC |
Inrush current | 4.86 A |
Operating frequency | 50/60 Hz |
Mains frequency | 50/60 Hz |
Max. lamp number on MCB B10 A | 92 |
Max. lamp number on MCB B16 A | 148 |
Total harmonic distortion | 127,60 % |
Power factor λ | ≥ 0.51 |
Photometrical data
Luminous flux | 1055 lm |
Nominal useful luminous flux 90° | 1055 lm |
Luminous efficacy | 211 lm/W |
Lumen main.fact.at end of nom.life time | 0.96 |
Light color (designation) | Warm White |
Color temperature | 3000 K |
Color rendering index Ra | ≥80 |
Light color | 830 |
Standard deviation of color matching | ≤6 sdcm |
Flickering metric (Pst LM) | ≤1 |
Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
Beam angle | 300 ° |
Warm-up time (60 %) | ‹ 0.50 s |
Starting time | < 0.5 s |
Dimensions & Weight
Overall length | 105.00 mm |
Diameter | 60.00 mm |
Maximum diameter | 60 mm |
Product weight | 31.00 g |
Temperatures & operating conditions
Ambient temperature range | -20…+40 °C |
Maximum temperature at tc test point | <65 °C |
Lifespan
Lifespan L70/B50 at 25 °C | 50000 h |
Number of switching cycles | 500000 |
Lumen maintenance at end of service lifetime | 0.96 |
Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
Base (standard designation) | E27 |
Mercury content | 0.0 mg |
Design / version | Frosted |
Capabilities
Dimmable | No |
Certificates & Standards
Energy efficiency class | A |
Energy consumption | 5.00 kWh/1000h |
Type of protection | IP20 |
Standards | CE, ERP, ROHS, REACH, UKCA |
Photobiological safety group acc. to EN62778 | RG0 |
Country-specific categorizations
Order reference | LED CLA75 5W/83 |
LOGISTICAL DATA
Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | MLS |
Light source cap-type (or other electric interface) | E27 |
Connected light source (CLS) | No |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | SINGLE_VALUE |
Standby power | 0 W |
Networked standby power for CLS | not applicable |
Claim of equivalent power | Yes |
Length | 105.00 mm |
Height | 60.00 mm |
Width | 60.00 mm |
Chromaticity coordinate x | 0,45 |
Chromaticity coordinate y | 0,437 |
R9 Colour rendering index | 0.00 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0,90 |
Displacement factor | not applicable |
LED light source replaces a fluorescent light source | No |
EPREL ID | 1260031 |
Model number | AC43725 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4099854002847 | Folding box 1 |
60 mm x 60 mm x 145 mm | 46.00 g | 0.52 dm³ |
4099854002854 | Shipping box 6 |
202 mm x 134 mm x 130 mm | 381.00 g | 3.52 dm³ |

Declarations of conformity
LED lamp CLA FIL lamp
LED lamp CLA FIL lamp

Product image: white background, diagonal
LED CLA GL FR E27
LED CLA GL FR E27

Product image: white background, diagonal
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27

Product image: white background, upright
LED CLA GL FR E27
LED CLA GL FR E27

Product image: white background, upright
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V2 1200x1200 2023 EN
Ultra efficient assortment E-Com-Grafik V2 1200x1200 2023 EN

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V1 1200x1200 2023 EN
Ultra efficient assortment E-Com-Grafik V1 1200x1200 2023 EN

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V3 1200x1200 2023 EN
Ultra efficient assortment E-Com-Grafik V3 1200x1200 2023 EN
Product line drawing with letters
LED CLA GL FR E27
LED CLA GL FR E27
Product line drawing with letters
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27
Product line drawing with numbers
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27
Product line drawing, front, no dimensions
LED CLA GL FR E27
LED CLA GL FR E27
Product line drawing - technical
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27
LED CLASSIC A 40/60/75 /100 EEL A GL FR E27

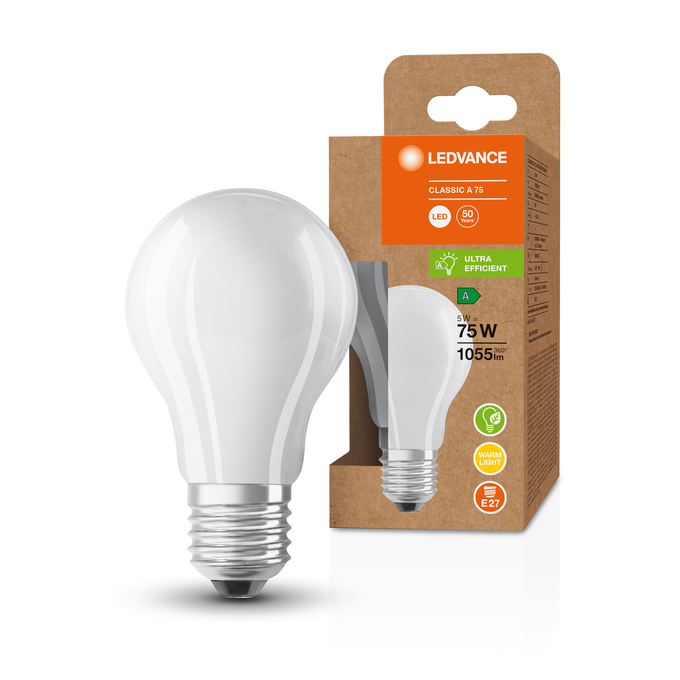

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA75ULTRAEFFICIENT 5W830GLFRE27
LEDCLA75ULTRAEFFICIENT 5W830GLFRE27

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA75ULTRAEFFICIENT 5W830GLFRE27MiCh
LEDCLA75ULTRAEFFICIENT 5W830GLFRE27MiCh

Packaging image, frontal
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh

Packaging image, spacial
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh
LEDCLA 75 ULTRA EFFICIENT 5W 830 GLFR E27 MiCh

Energy label
EL-4099854002847-AC437 25
EL-4099854002847-AC437 25

Spectral power distribution
EPREL Data Spectral Diagram LEDr _3000K_Energy Class A
EPREL Data Spectral Diagram LEDr _3000K_Energy Class A
EAN | STK number | ELDAS number |
---|---|---|
4099854002847 | 4736675 | 941814430 |
