LED Classic Edison 60 Filament Energy efficiency class A S 4W 830 Clear E27

Newer edition available:

LED Classic Edison 60 Filament Energy efficiency class A S 3.8W 830 Clear E27

LED CLASSIC EDISON ENERGY EFFICIENCY A S

GTIN: 4099854002946 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Lamps with innovative LED "filament" technology
Low energy consumption
Design, dimensions, luminous flux comparable to a halogen lamp
Instant 100 % light, no warm-up time
Low flickering

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

LED lamps for line voltage
Luminous efficacy: up to 210 lm/W
Beam angle: up to 300°
Very long lifetime of up to 50,000 h
Very high number of switching cycles 500,000

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

References / Links

For dimming conformity see www.ledvance.com/dim
For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	4 W
Construction wattage	4.00 W
Nominal voltage	220…240 V
Operating mode	Mains voltage
Claimed equiv. conventional lamp power	60 W
Nominal current	37 mA
Type of current	AC
Inrush current	2.57 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	54
Max. lamp number on MCB B16 A	68
Total harmonic distortion	125 %
Power factor λ	≥ 0.40

Photometrical data

Luminous flux	840 lm
Nominal useful luminous flux 90°	840 lm
Luminous efficacy	210 lm/W
Lumen main.fact.at end of nom.life time	0.98
Light color (designation)	Warm White
Color temperature	3000 K
Color rendering index Ra	≥80
Light color	830
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0,4

Light technical data

Beam angle	320 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	140.00 mm
Diameter	64.00 mm
Maximum diameter	64 mm
Product weight	46.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	<49 °C

Lifespan

Lifespan L70/B50 at 25 °C	50000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.98
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Design / version	Clear

Capabilities

Dimmable

Certificates & Standards

Energy efficiency class	A
Energy consumption	4.00 kWh/1000h
Type of protection	IP20
Standards	CE, ERP, ROHS, REACH, UKCA
Photobiological safety group acc. to EN62778	RG0

Country-specific categorizations

Order reference

LEDISON60 4W/83

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Networked standby power for CLS	not applicable
Claim of equivalent power	Yes
Length	140.00 mm
Height	64.00 mm
Width	64.00 mm
Chromaticity coordinate x	0,46
Chromaticity coordinate y	0,445
R9 Colour rendering index	0.00
Beam angle correspondence	SPHERE_360
Survival factor	0,90
Displacement factor	not applicable
LED light source replaces a fluorescent light source	No
EPREL ID	1260034
Model number	AC43735

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854002946	Folding box 1	65 mm x 65 mm x 179 mm	65.00 g	0.76 dm³
4099854002953	Shipping box 6	216 mm x 143 mm x 153 mm	495.00 g	4.73 dm³

Declarations of conformity
LED lamp Globe FIL lamp

PDF (306.61 KB)

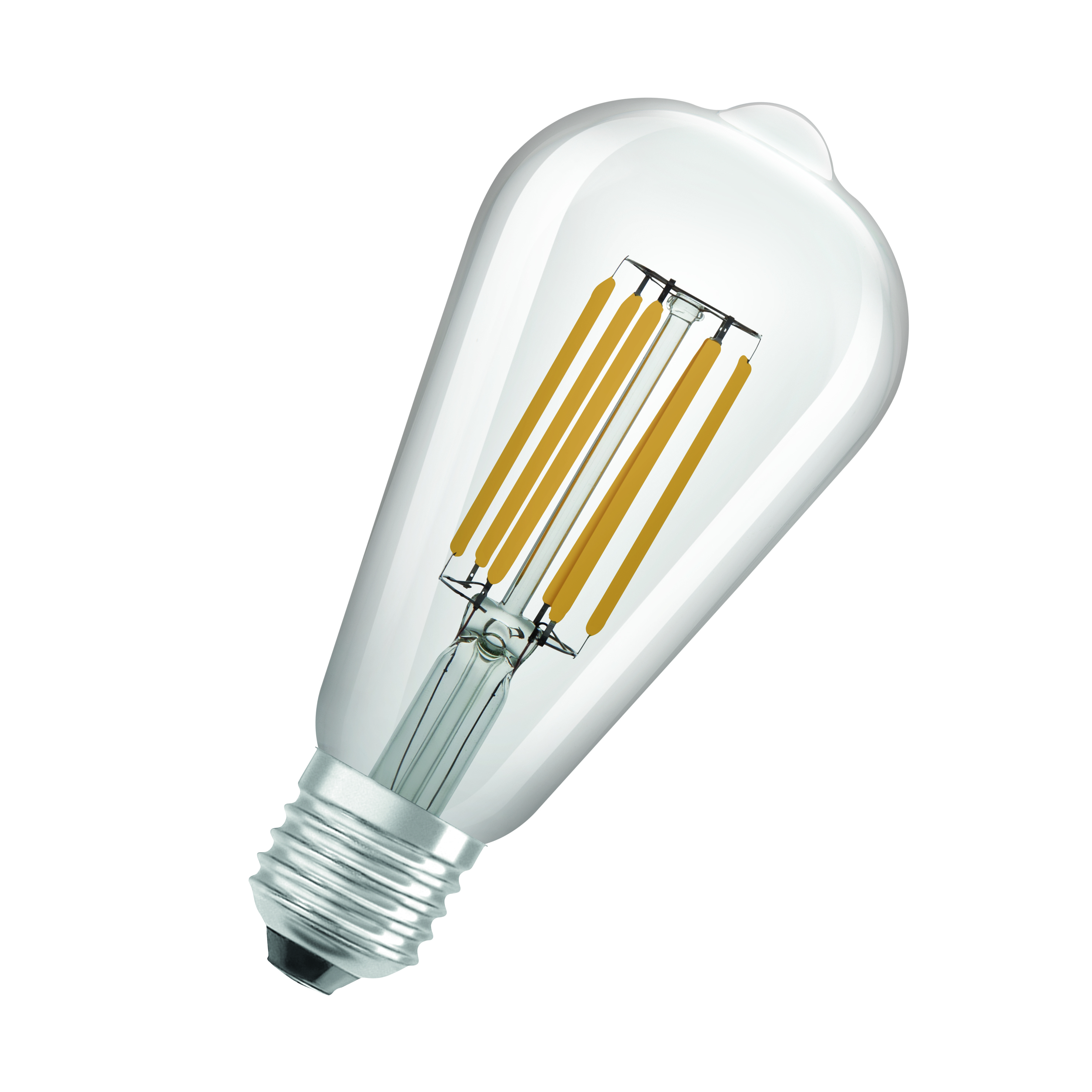

Product image: white background, diagonal
LEDISON60 4W/830 230V FIL UE E276X1OSRAM

JPG (1.95 MB)

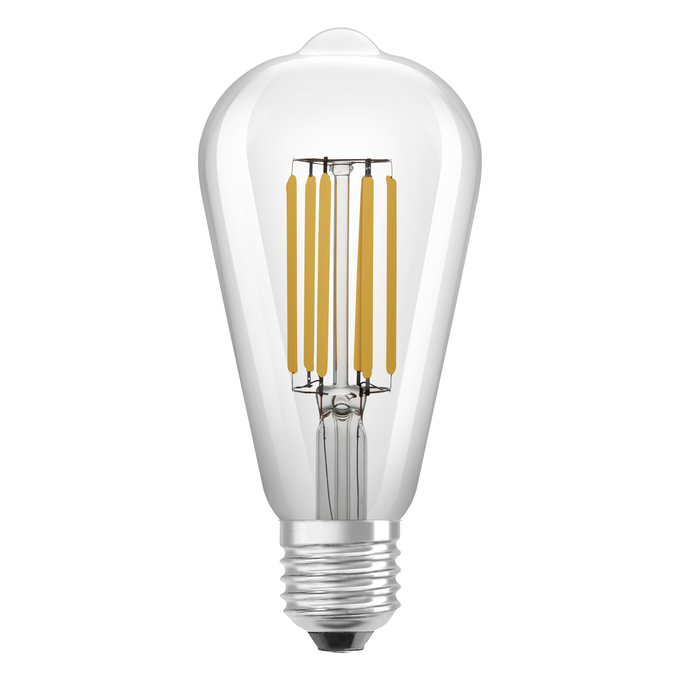

Product image: white background, upright
LEDISON60 4W-830 230V FIL UE E276X1OSRAM

JPG (1.79 MB)

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V2 1200x1200 2023 EN

JPG (727.86 KB)

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V1 1200x1200 2023 EN

JPG (1.61 MB)

Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V3 1200x1200 2023 EN

JPG (629.36 KB)

Product line drawing with letters
LEDISON60 4W/830 230V FIL UE E276X1OSRAM

SVG (16.92 KB)

Product line drawing with numbers
LEDISON60 4W/830 230V FIL UE E276X1OSRAM

SVG (18.28 KB)

Product line drawing - technical
LEDISON60 4W/830 230V FIL UE E276X1OSRAM

SVG (13.01 KB)

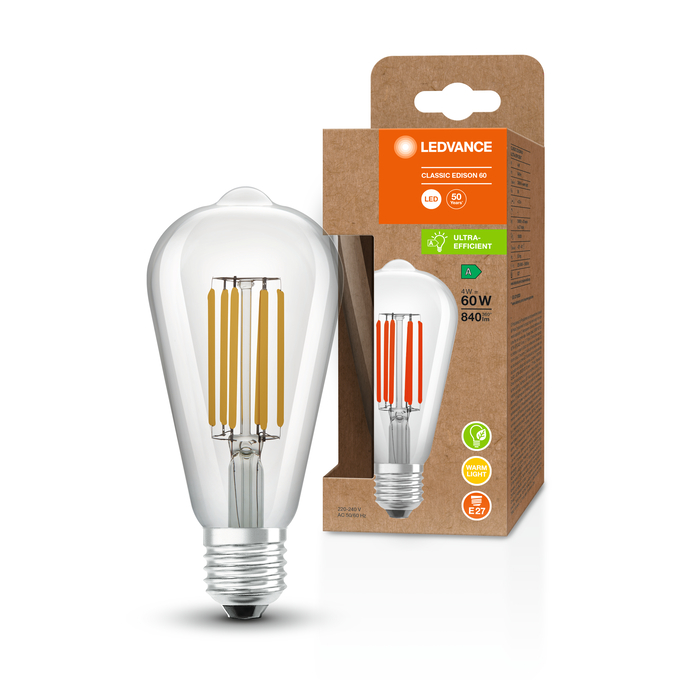

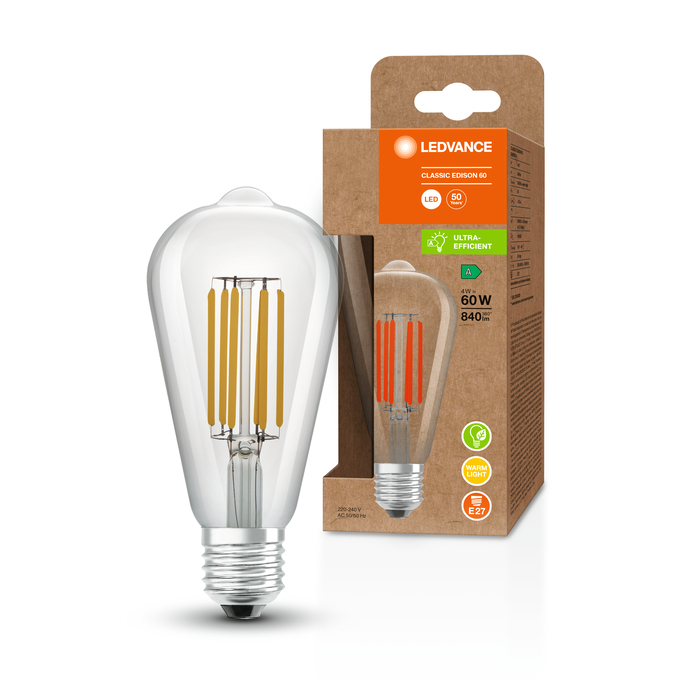

Combo Shot = Product Beauty Shot + Packaging Image
EDISON 60 ULTRA EFFICIENT 4W 830 FIL E27 MiCh

JPG (754.67 KB)

Combo Shot = Product Beauty Shot + Packaging Image
LEDEdison60ULTRAEFFICI ENT4W830FILE27

JPG (2.95 MB)

Combo Shot = Product Beauty Shot + Packaging Image
LEDEDISON60ULTRAEFFICI ENT4W830FILE27 2

JPG (3.31 MB)

Combo Shot = Product Beauty Shot + Packaging Image
LEDEDISON60ULTRAEFFICI ENT4W830FILE27MiCh

JPG (3.17 MB)

Packaging image, frontal
EDISON 60 ULTRA EFFICIENT 4W 830 FIL E27 MiCh

JPG (2.09 MB)

Packaging image, spacial
EDISON 60 ULTRA EFFICIENT 4W 830 FIL E27 MiCh

JPG (2.74 MB)

Energy label
EL-4099854002946-AC437 35

PDF (21.43 KB)

Spectral power distribution
EPREL Data Spectral Diagram LEDr 3000K Energy Class A Globe Edison

SVG (67.34 KB)

EAN	STK number	ELDAS number
4099854002946	4736679	941814480

Successor product

LED Classic Edison 60 Filament Energy efficiency class A S 3.8W 830 Clear E27 LED CLASSIC EDISON ENERGY EFFICIENCY A S

LED lamps, classic edison shape, ENERGY EFFICIENCY CLASS A
