NEW
LED CLASSIC STICK P
LED STICK 95 11W 11W 827 FROSTED E27
GTIN: 4099854483837
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Attractive lamp appearance
- Instant 100 % light, no warm-up time
- Made of recycled plastics, the lamp contributes to the reduction of CO2 emissions and landfill waste
Areas of application
- All domestic rooms, especially where the lamps are visible
- Wherever compact and efficient lamps are needed
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Lifetime up to 15,000 h
- Not dimmable
- Minimum 50 % of recycled plastic (out of total plastic weight) used
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 11 W |
| Construction wattage | 11.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 95 W |
| Nominal current | 85 mA |
| Type of current | AC |
| Inrush current | 6.8 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 49 |
| Max. lamp number on MCB B16 A | 61 |
| Total harmonic distortion | 119 % |
| Power factor λ | 0.60 |
Photometrical data
| Luminous flux | 1470 lm |
| Luminous efficacy | 133 lm/W |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | 80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Beam angle | 240 ° |
| Warm-up time (60 %) | 0.50 s |
| Starting time | 0.5 s |
Dimensions & Weight
| Overall length | 117.00 mm |
| Diameter | 40.00 mm |
| Maximum diameter | 40 mm |
| Product weight | 35.00 g |
Temperatures & operating conditions
| Ambient temperature range | -40…+40 °C |
| Maximum temperature at tc test point | 90 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.93 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | E 1) |
| Energy consumption | 11.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC, UKCA |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | LED STICK95 11W |
LOGISTICAL DATA
| Temperature range at storage | -40…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 W |
| Claim of equivalent power | Yes |
| Length | 117.00 mm |
| Height | 40.00 mm |
| Width | 40.00 mm |
| Chromaticity coordinate x | 0.4578 |
| Chromaticity coordinate y | 0.4101 |
| R9 Colour rendering index | 5.9 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.864 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 2190114 |
| Model number | AC69385 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854483837 | Folding box 1 |
42 mm x 42 mm x 121 mm | 48.00 g | 0.21 dm³ |
| 4099854483844 | Shipping box 10 |
218 mm x 92 mm x 132 mm | 552.00 g | 2.65 dm³ |
Product image: white background, diagonal with LEDVANCE logo
LED STICK E27 FROSTED LEDVANCE
LED STICK E27 FROSTED LEDVANCE
Product image: white background, diagonal
LECO STICK E27
LECO STICK E27

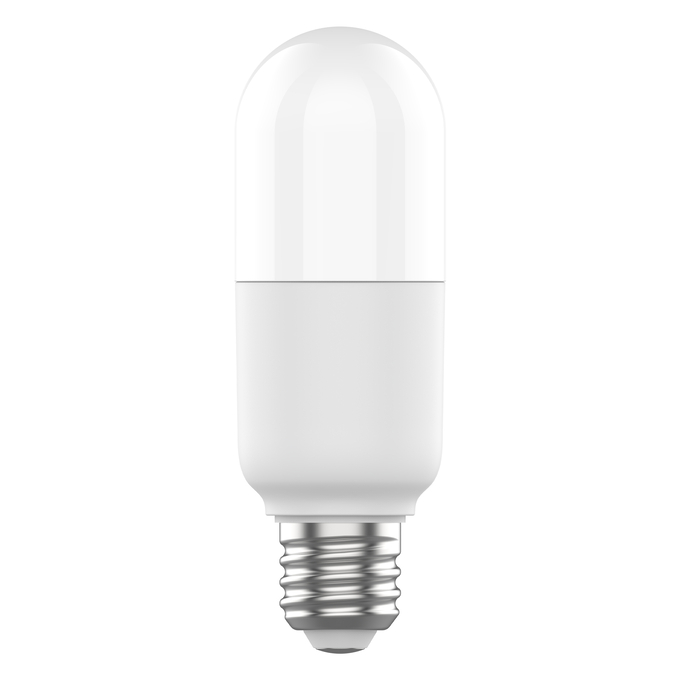

Product image: white background, upright
LECO STICK E27
LECO STICK E27
Product line drawing, front, no dimensions
LED STICK Lamp
LED STICK Lamp
Energy label
EL-4099854483837-AC693 85
EL-4099854483837-AC693 85

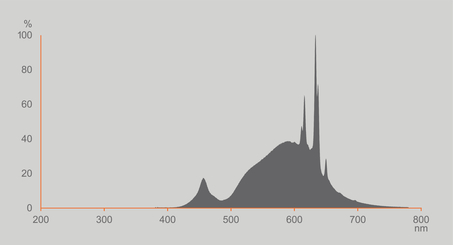

Spectral power distribution
Spectral graph classic B 2700K EA
Spectral graph classic B 2700K EA
