Vintage 1906 LED Special Shapes Dimmable

Vintage 1906 AW 15 Filament DIM 4W 818 Smoke E27

GTIN: 4058075761018 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Available in various bulb shapes and diameters
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Can be used directly as luminaire
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 15 W
Nominal current 25 mA
Type of current AC
Inrush current 0.22 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 2045
Max. lamp number on MCB B16 A 3272
Total harmonic distortion 84.2 %
Power factor λ > 0.70
Photometrical data
Luminous flux 140 lm
Nominal useful luminous flux 90° 140 lm
Luminous efficacy 35 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Comfort warm white
Color temperature 1800 K
Color rendering index Ra 80
Light color 818
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 400.00 mm
Diameter 193.00 mm
Maximum diameter 193 mm
Product weight 187.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 65 °C
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes 1)
1) Check dimmer compatibility at ledvance.com/compatibility
Certificates & Standards
Energy efficiency class G 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference 1906LEDAWD15 4W
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 400.00 mm
Height 193.00 mm
Width 193.00 mm
Chromaticity coordinate x 0,549
Chromaticity coordinate y 0,408
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0,9
Displacement factor ≥0,70
LED light source replaces a fluorescent light source No
EPREL ID 1212464
Model number AC42194,AC42194
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075761018 Folding box
1		 217 mm x 217 mm x 464 mm 684.00 g 21.85 dm³
4058075761025 Shipping box
4		 454 mm x 454 mm x 490 mm 4077.00 g 101.00 dm³
Declarations of conformity
CL A,C lamp
PDF (306.7 KB)
PRODUCT DATASHEET
Vintage1906AW188DIM154 W1800KE27en
PDF (272.92 KB)

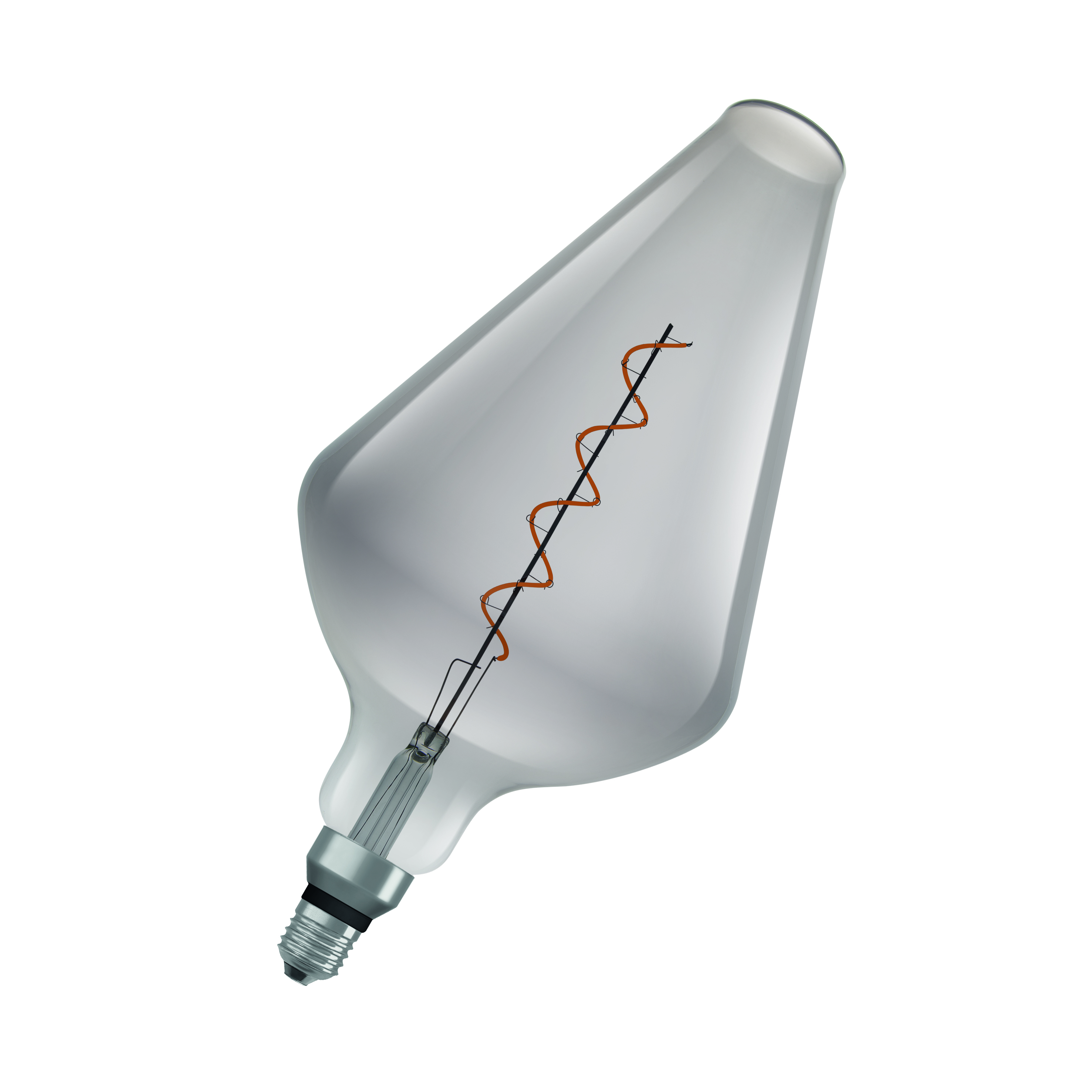

Product image: white background, diagonal
1906LEDAW188D 15 4W/818 230V FILSME27 4x1 OSRAM
JPG (1.71 MB)

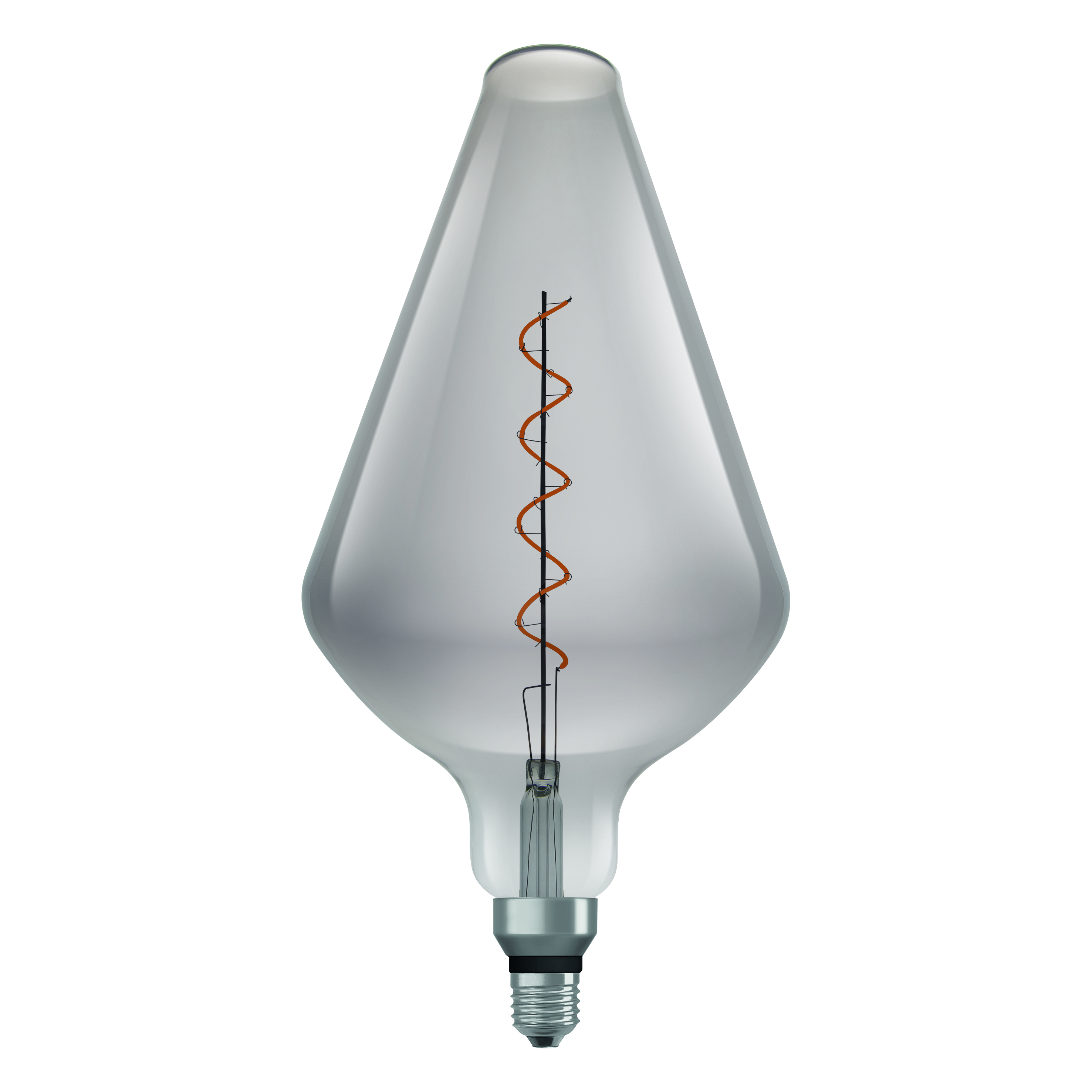

Product image: white background, upright
1906LEDAW188D 15 4W/818 230V FILSME27 4x1 OSRAM
JPG (1.69 MB)
Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com_Grafik V2 1200x1200px 2023 EN
JPG (809.28 KB)
Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com Grafik V1 1200x1200px 2023 EN
JPG (629.63 KB)
Product line drawing with letters
1906LEDAW188D 15 4W/818 230V FILSME27 4x1 OSRAM
SVG (15.5 KB)
Product line drawing with numbers
1906LEDAW188D 15 4W/818 230V FILSME27 4x1 OSRAM
SVG (17.83 KB)
Product line drawing - technical
1906LEDAW188D 15 4W/818 230V FILSME27 4x1 OSRAM
SVG (11.33 KB)

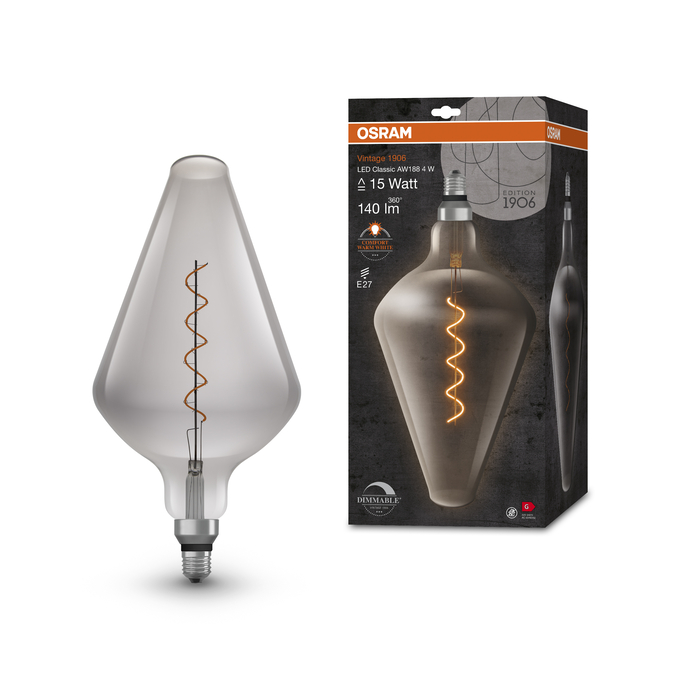

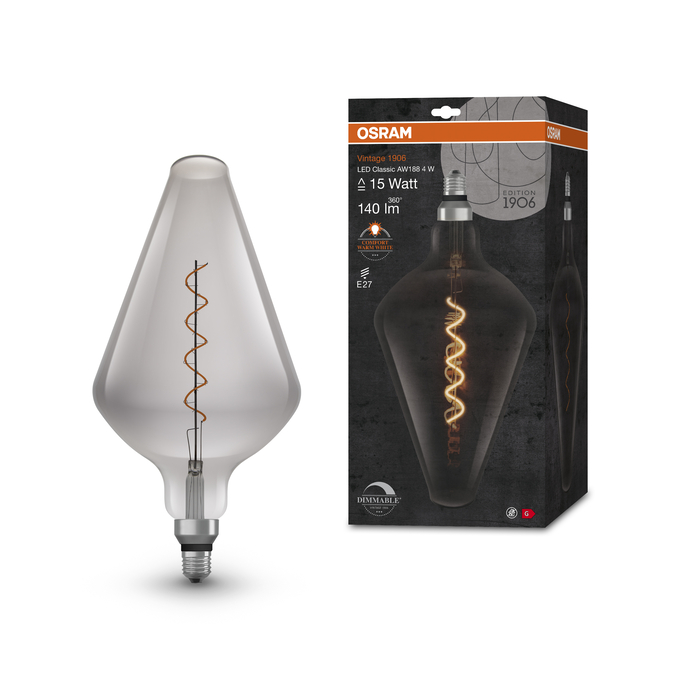

Combo Shot = Product Beauty Shot + Packaging Image
LEDV1906CLAAW188DIM4W8 18FILSMOKEE27
JPG (1.92 MB)

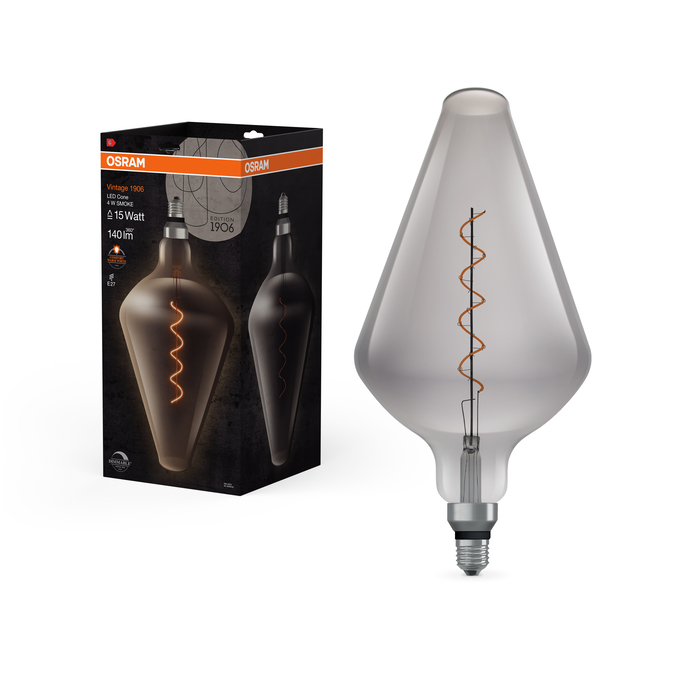

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 CLA AW188 DIM 4W 818 FIL SMOKE E27 MiCh
JPG (1.92 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDV1906CLAAW188DIM4W8 18FILSMOKEE27MiCh
JPG (1.08 MB)
Packaging image, frontal
LED V1906 CLA AW188 DIM 4W 818 FIL SMOKE E27 MiCh
JPG (1.04 MB)

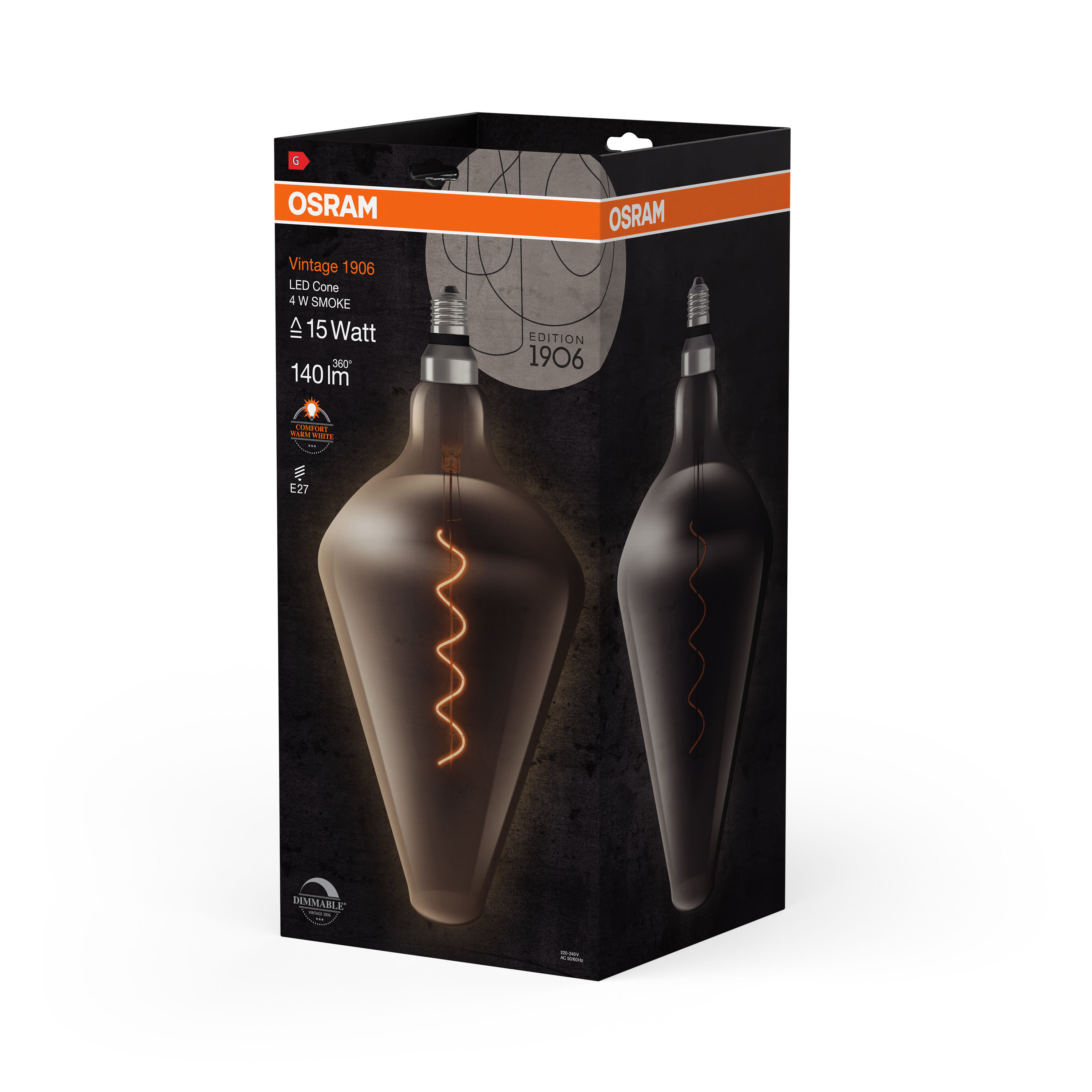

Packaging image, spacial
LED V1906 CLA AW188 DIM 4W 818 FIL SMOKE E27 MiCh
JPG (1.17 MB)
Energy label
EL-4058075761018-AC421 94
PDF (21.3 KB)

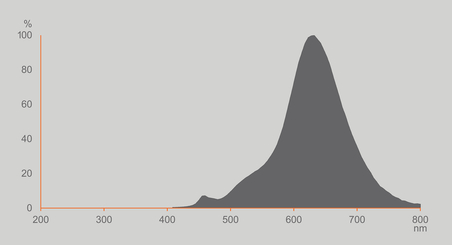

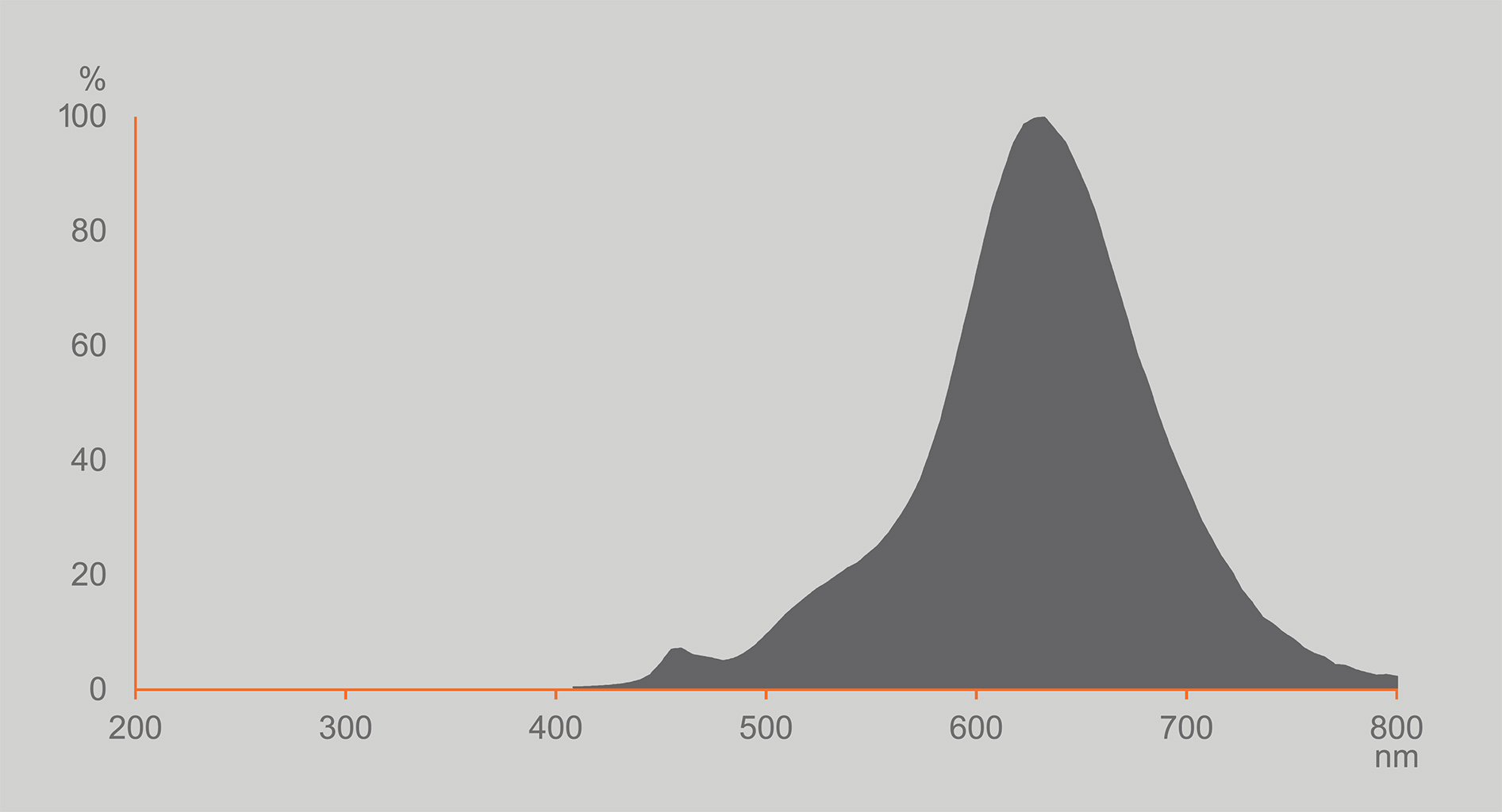

Spectral power distribution
EPREL Data Spectral Diagram LEDr _1800K_Big_Shape_Smoke
JPG (171.63 KB)
Application pictures

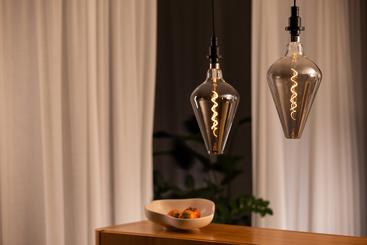

Vintage 1906 AW188 DIM SMOKE Sideboard 1
JPG (18.36 MB)
Application pictures
Vintage 1906 AW188 DIM SMOKE Sideboard 2
JPG (18.99 MB)
Application pictures

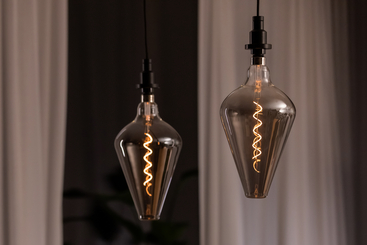

Vintage 1906 AW188 DIM SMOKE Close Up 1
