LED Star Classic A 45 6.5W 827 12-36V Frosted E27

LED STAR CLASSIC A FOR LOW VOLTAGE

GTIN: 4099854040368 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Fit for off-grid use
Lower energy consumption than incandescent or halogen lamps

Areas of application

Battery power system without main connection
Camping, Camper, Garden house
Outdoor applications only in suitable luminaires

Product features

LED lamp for low voltage power system (AC/DC 12 V - 36 V)

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

References / Links

For dimming conformity see www.ledvance.com/dim
For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	6.5 W
Construction wattage	6.50 W
Nominal voltage	12…36 V
Operating mode	12V-36V AC/DC
Claimed equiv. conventional lamp power	45 W
Nominal current	800 mA
Type of current	AC/DC
Inrush current	3.44 A
Max. lamp number on MCB B10 A	9
Max. lamp number on MCB B16 A	15
Total harmonic distortion	130 %
Power factor λ	> 0.50

Photometrical data

Luminous flux	600 lm
Nominal useful luminous flux 90°	600 lm
Luminous efficacy	92 lm/W
Lumen main.fact.at end of nom.life time	0.96
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

Light technical data

Beam angle	200 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	112.00 mm
Diameter	60.00 mm
Maximum diameter	60 mm
Product weight	35.00 g

Temperatures & operating conditions

Ambient temperature range	-20…40 °C
Maximum temperature at tc test point	82.9 °C

Lifespan

Lifespan L70/B50 at 25 °C	25000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.96
Rated lamp survival factor at 6,000 h	0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted

Capabilities

Dimmable

Certificates & Standards

Energy efficiency class	F ¹⁾
Energy consumption	7.00 kWh/1000h
Type of protection	IP20
Standards	CE
Photobiological safety group acc. to EN62778	RG0

¹⁾ Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference

LEDSCLA45 6,5W/

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	NMLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0.00 W
Networked standby power for CLS	0.00 W
Claim of equivalent power	Yes
Length	112.00 mm
Height	60.00 mm
Width	60.00 mm
Chromaticity coordinate x	0.458
Chromaticity coordinate y	0.410
R9 Colour rendering index	0.00
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	0.50
LED light source replaces a fluorescent light source	No
EPREL ID	1338699
Model number	AC45061,AC45061

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854040368	Folding box 1	60 mm x 60 mm x 162 mm	51.00 g	0.58 dm³
4099854040375	Shipping box 6	208 mm x 135 mm x 137 mm	403.00 g	3.85 dm³

Declarations of conformity
CLASSIC A NON-DIM LOW E27 20000H FR

PDF (382.54 KB)

Product image: white background, diagonal with OSRAM logo
LED CLA FR E27 WITH OSRAM BRAND

JPG (1.31 MB)

Product image: white background, diagonal
LED CLASSIC A60 E27

JPG (1.1 MB)

Product image: white background, upright, OSRAM logo
LED CLA FR E27 WITH OSRAM BRAND

JPG (1.26 MB)

Product image: white background, upright
LED CLASSIC A60 E27

JPG (1.01 MB)

Product line drawing with letters
344046_CLASSIC A 60 ADVANCED FROSTED PLANET

SVG (9.47 KB)

Product line drawing with numbers
LED CLASSIC A 75 FROSTED E27

SVG (10.67 KB)

Product line drawing, front, no dimensions
344047_CLASSIC A 60 ADVANCED FROSTED PLANET

SVG (6.32 KB)

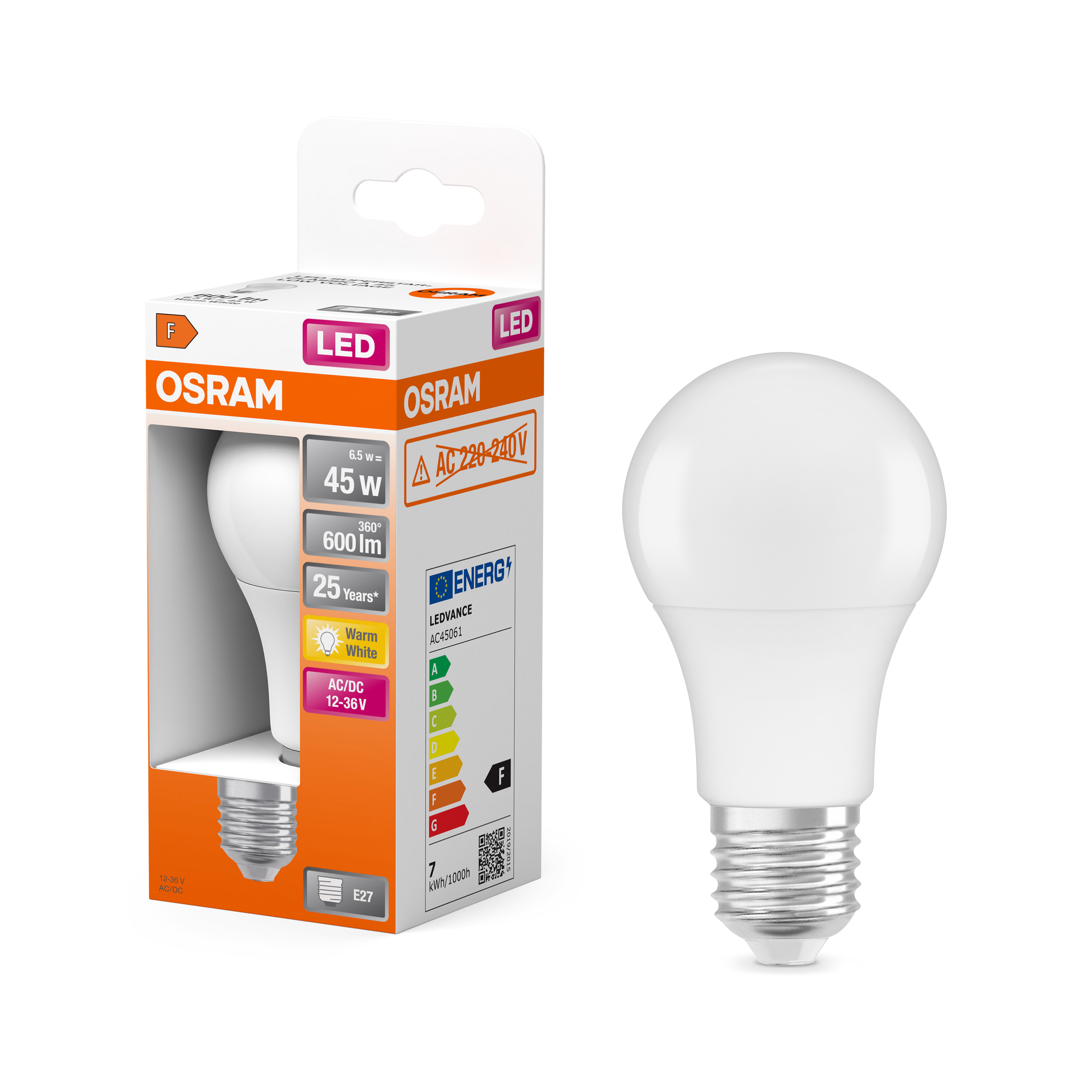

Combo Shot = Product Beauty Shot + Packaging Image
LED SST CLA 45 6.5W 827 FR E27 MiCh

JPG (645.23 KB)

Packaging image, frontal
LED SST CLA 45 6.5W 827 FR E27 MiCh

JPG (486.91 KB)

Packaging image, spacial
LED SST CLA 45 6.5W 827 FR E27 MiCh

JPG (604.23 KB)

Energy label
EL-4099854040368-AC450 61

PDF (21.48 KB)

Spectral power distribution
EPREL Data Spectral Diagram LEDr_classic A_B_P_2700K_827

PNG (84.86 KB)

EAN	SEG number	STK number	ELDAS number
4099854040368	8299342	4737094	941004420
