PARATHOM CLASSIC A DIM
P CLAS A 150 18 W/2700 K E27
GTIN: 4058075439917
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low energy consumption
- High color consistency thanks to narrow binning
- Easy replacement of classic lamps thanks to compact design
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Dimmable (with many common dimmers, see also www.ledvance.com/dim)
- Long lifetime up to 25,000 h
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
References / Links
- For dimming conformity see www.ledvance.com/dim
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 18 W |
| Construction wattage | 18.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 150 W |
| Nominal current | 86 mA |
| Type of current | AC |
| Inrush current | 2.9 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 26 |
| Max. lamp number on MCB B16 A | 44 |
| Power factor λ | > 0.90 |
Photometrical data
| Luminous flux | 2452 lm |
| Nominal useful luminous flux 90° | 2452 lm |
| Luminous efficacy | 136 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 330 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 141.00 mm |
| Diameter | 70.00 mm |
| Maximum diameter | 70 mm |
| Product weight | 71.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 84 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Energy efficiency class | D 1) |
| Energy consumption | 18.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | LEDPCLA150D 18W |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 141.00 mm |
| Height | 70.00 mm |
| Width | 70.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075439917 | Folding box 1 |
70 mm x 70 mm x 143 mm | 54.00 g | 0.70 dm³ |
| 4058075439924 | Shipping box 10 |
364 mm x 150 mm x 157 mm | 680.00 g | 8.57 dm³ |

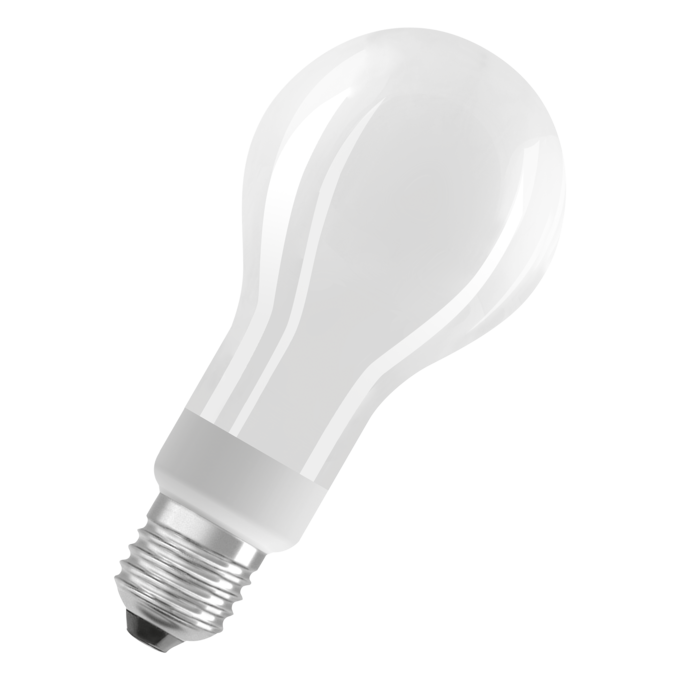

Product image: white background, diagonal
CL A GL FR 150 non-dim E27
CL A GL FR 150 non-dim E27
Product image: white background, diagonal
LED CLA GL FR 150 dim E27
LED CLA GL FR 150 dim E27
Product image: white background, diagonal
LED CLA GL FR 150 dim E27
LED CLA GL FR 150 dim E27

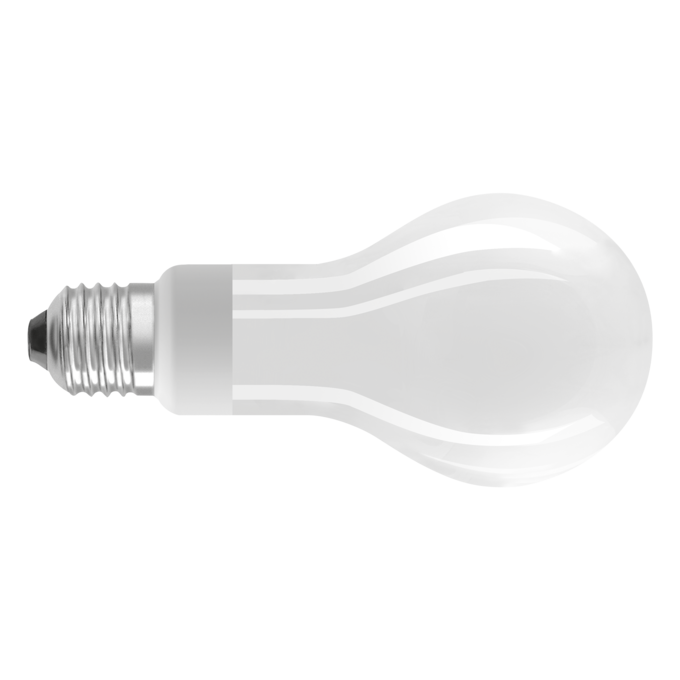

Product image: white background, horizontal
LED CLA GL FR 150 dim E27
LED CLA GL FR 150 dim E27
Product image: white background, horizontal
LED CLA GL FR 150 dim E27
LED CLA GL FR 150 dim E27
Product image: white background, upright
LED CLA GL FR 150 dim E27
LED CLA GL FR 150 dim E27
Product line drawing with letters
LED CLA GL FR 150 dim E27
LED CLA GL FR 150 dim E27
Product line drawing with numbers
LED CLA GL FR 150 dim E27
LED CLA GL FR 150 dim E27
Product line drawing - technical
CL A GL FR 150 non-dim E27
CL A GL FR 150 non-dim E27
Product line drawing - technical
LED CLA GL FR 150 dim E27
LED CLA GL FR 150 dim E27
Packaging image, frontal
PARA DIM CLA 150 18W 827 GLFR E27 MiCh
PARA DIM CLA 150 18W 827 GLFR E27 MiCh
Packaging image, spacial
PARA DIM CLA 150 18W 827 GLFR E27 MiCh
PARA DIM CLA 150 18W 827 GLFR E27 MiCh
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075439917 | 8295361 | 4731384 | 3766298 | 941805550 |
