LED Classic A 60 Filament DIM P 7W 827 Clear E27
PARATHOM CLASSIC A DIM
P CLAS A 60 6.5 W/2700 K E27

GTIN: 4058075591172
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Lower energy consumption than incandescent or halogen lamps
- Robust against vibrations
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
- Can be easily fitted instead of ordinary light bulbs
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Beam angle: up to 300°
- Dimmable
- Base: E27, B22d
- Lifetime up to 15,000 h
- Lamp made of glass
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
Nominal wattage | 6.5 W |
Construction wattage | 6.50 W |
Nominal voltage | 220…240 V |
Claimed equiv. conventional lamp power | 60 W |
Nominal current | 42 mA |
Type of current | AC |
Inrush current | 0.46 A |
Operating frequency | 50…60 Hz |
Mains frequency | 50…60 Hz |
Max. lamp number on MCB B10 A | 1210 |
Max. lamp number on MCB B16 A | 1935 |
Power factor λ | > 0.50 |
Photometrical data
Luminous flux | 806 lm |
Nominal useful luminous flux 90° | 806 lm |
Luminous efficacy | 124 lm/W |
Lumen main.fact.at end of nom.life time | 0.70 |
Light color (designation) | Warm White |
Color temperature | 2700 K |
Color rendering index Ra | ≥80 |
Light color | 827 |
Standard deviation of color matching | ≤6 sdcm |
Flickering metric (Pst LM) | 1.0 |
Stroboscope effect metric (SVM) | 0.9 |
Light technical data
Beam angle | 300 ° |
Warm-up time (60 %) | ‹ 0.50 s |
Starting time | < 0.5 s |
Dimensions & Weight
Overall length | 105.00 mm |
Diameter | 60.00 mm |
Maximum diameter | 60 mm |
Product weight | 32.00 g |
Temperatures & operating conditions
Ambient temperature range | -20…+40 °C |
Maximum temperature at tc test point | 65 °C |
Lifespan
Lifespan L70/B50 at 25 °C | 15000 h |
Number of switching cycles | 100000 |
Lumen maintenance at end of service lifetime | 0.70 |
Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
Base (standard designation) | E27 |
Mercury content | 0.0 mg |
Mercury-free | Yes |
Design / version | Clear |
Capabilities
Dimmable | Yes |
Certificates & Standards
Energy efficiency class | E 1) |
Energy consumption | 7.00 kWh/1000h |
Type of protection | IP20 |
Standards | CE, EAC |
Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference | LEDPCLA60D 6,5W |
Energy labelling regulation data acc EU 2019/2015
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | MLS |
Light source cap-type (or other electric interface) | E27 |
Connected light source (CLS) | No |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | SINGLE_VALUE |
Claim of equivalent power | Yes |
Length | 105.00 mm |
Height | 60.00 mm |
Width | 60.00 mm |
Chromaticity coordinate x | 0.463 |
Chromaticity coordinate y | 0.420 |
R9 Colour rendering index | >0 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0.90 |
Displacement factor | 0.50 |
LED light source replaces a fluorescent light source | No |
EPREL ID | 523168 |
Model number | AC32334 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075591172 | Folding box 1 |
60 mm x 60 mm x 111 mm | 46.00 g | 0.40 dm³ |
4058075591189 | Shipping box 10 |
315 mm x 131 mm x 126 mm | 554.00 g | 5.20 dm³ |

Declarations of conformity
LED lamps CLA,B,G,P
LED lamps CLA,B,G,P

Product image: white background, diagonal
CLA FIL60 E27
CLA FIL60 E27

Product image: white background, upright
CLA FIL60 E27
CLA FIL60 E27
Product line drawing with letters
CLA FIL60 E27 ml
CLA FIL60 E27 ml

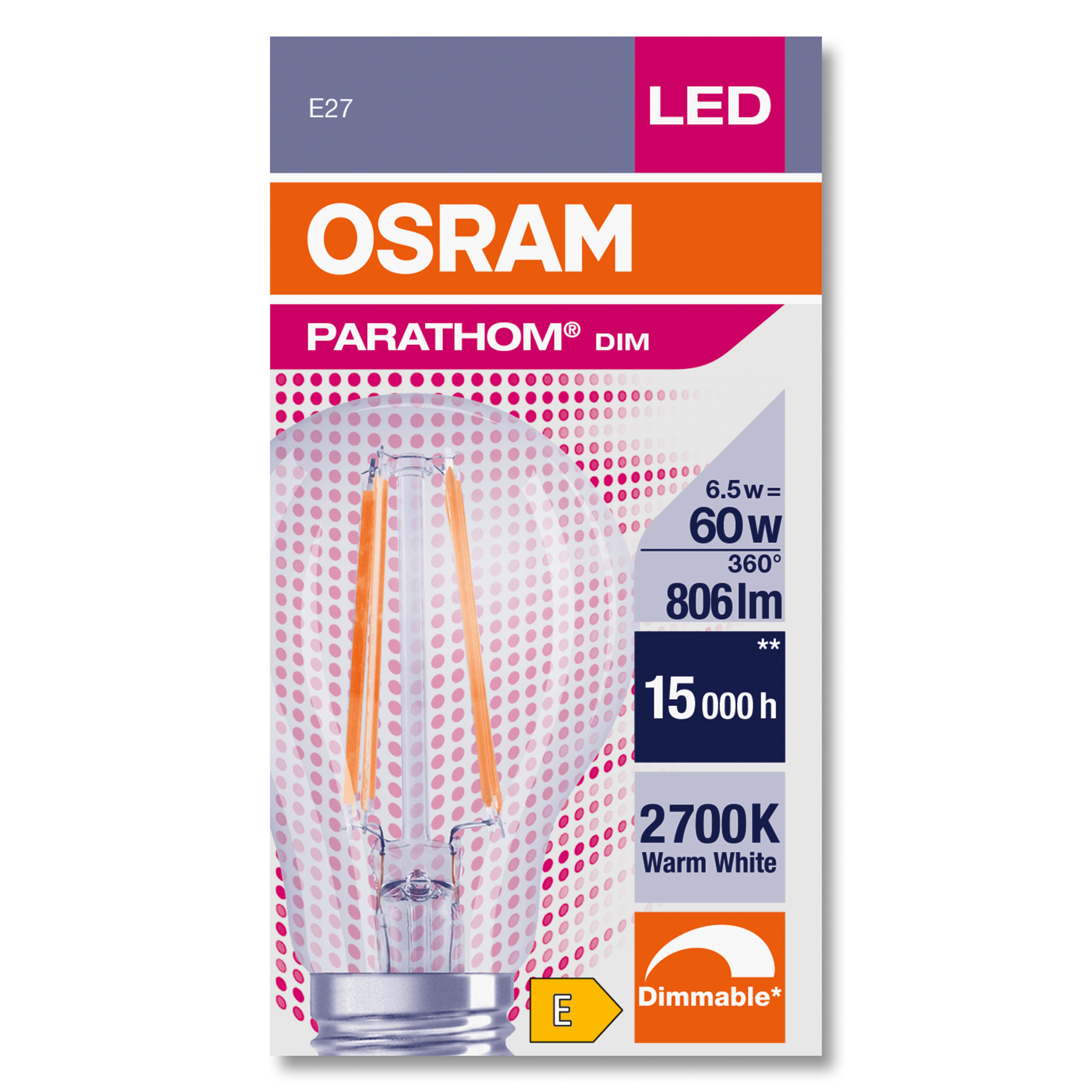

Packaging image, frontal
PARA DIM CLA 60 DIM 7.0W 827 FIL E27 MiCh
PARA DIM CLA 60 DIM 7.0W 827 FIL E27 MiCh

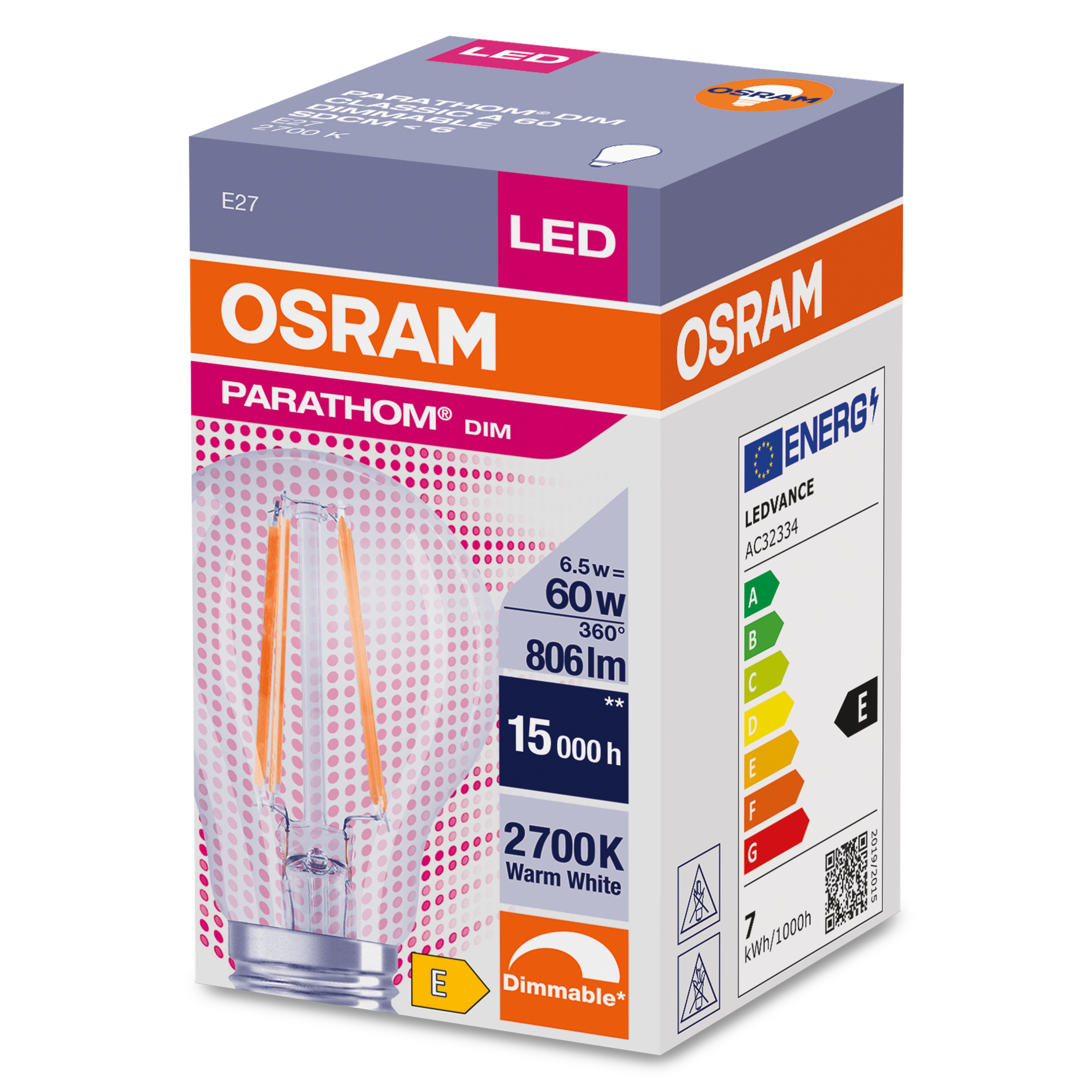

Packaging image, spacial
PARA DIM CLA 60 DIM 7.0W 827 FIL E27 MiCh
PARA DIM CLA 60 DIM 7.0W 827 FIL E27 MiCh

Energy label
EL-4058075591172-AC323 34
EL-4058075591172-AC323 34

Spectral power distribution
EPREL data spectral diagram PROF LEDr 2700K
EPREL data spectral diagram PROF LEDr 2700K
EAN | SEG number | STK number | EFO number |
---|---|---|---|
4058075591172 | 8296749 | 4731596 | 3766006 |
