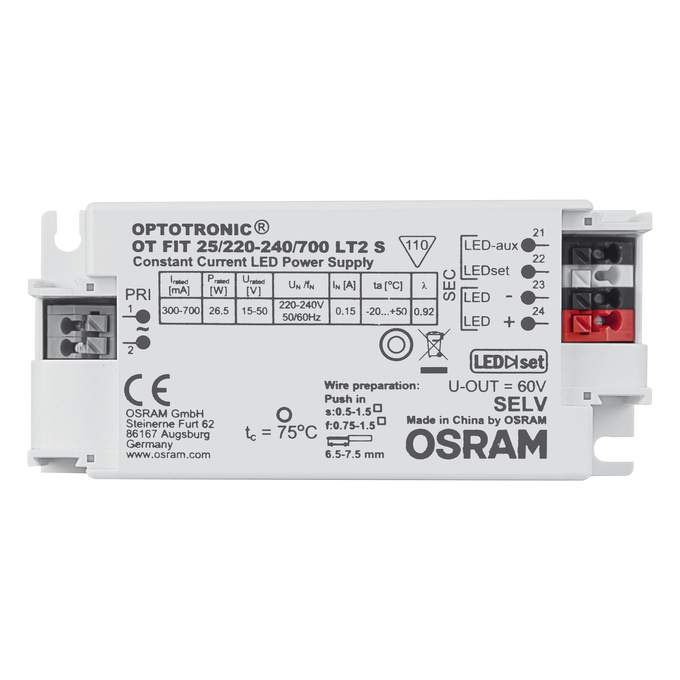

OT FIT 25/220…240/700 LT2 S

GTIN: 4052899957008 Unpacked / 1 Show all packages

Nominal wattage	26.50 W
Nominal output power	8.0…26.5 W
Nominal voltage	220…240 V
Nominal output voltage	15…50 V
Input voltage AC	198…264 V
U-OUT (working voltage)	60 V
Nominal current	0.13 A
Nominal output current	300…700 mA
Inrush current	15 A
Output current tolerance	±5 %
Output ripple current (100 Hz)	< 1 %
Mains frequency	50/60 Hz
Total harmonic distortion	15 %
Power factor λ	0.92
ECG efficiency	86.5 %
Device power loss	4,5 W
Max. ECG no. on circuit breaker 10 A (B)	20
Max. ECG no. on circuit breaker 16 A (B)	30
Max. ECG no. on circuit breaker 25 A (B)	42
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV

Length	97.00 mm
Mounting hole spacing, length	88,0 mm
Width	43.00 mm
Height	29.50 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Wire preparation length, input side	6,5…7,5 mm
Wire preparation length, output side	6,5…7,5 mm
Product weight	95.00 g

Casing material	Plastic
Body material	Plastic

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

100000 h ¹⁾

¹⁾ At T_case = 65°C at T_c point / 10% failure rate

Encapsulated

Dimmable	No
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	I, II
Suitable for emergency lighting	No
Type of connection, output side	Push terminal

Approval marks – approval	CE
Standards	Acc. to IEC 61347-1, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to CISPR 15, Acc. to IEC 61000-3-2, Acc. to IEC 61547, Acc. to IEC 61000-3-3
Protection class	II
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
