ELEMENT LD
Element LD 30/220…240/700
GTIN: 4052899947108
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Compatible with LEDs with Chip-On-Board technology and discrete LEDs
- High efficiency
- Simple installation and wiring
Areas of application
- Spotlight and downlight installations for shops
- Recessed luminaires
- Suitable for luminaires of protection classes I and II
- Suitable for indoor SELV installations
Product features
- Available with wattages up to 60 W
- Constant output current
- Integrated cable clamp for luminaire and independent installation
- Operated with Safety extra-low voltage (SELV): < 60 V
- Reversible overtemperature, overload, short-circuit and open-circuit protection
Electrical data
| Nominal wattage | 8.00 W |
| Nominal output power | 30 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 21…42 V 1) |
| Input voltage AC | 220…240 V 2) |
| U-OUT (working voltage) | 60 V |
| Nominal output current | 700 mA |
| Inrush current |
|
| Output current tolerance | ±10 % |
| Output ripple current (100 Hz) | 40 % 3) |
| Mains frequency | 50/60 Hz |
| Total harmonic distortion | < 20 % |
| Power factor λ | 0.98 4) |
| ECG efficiency | > 90 % 5) |
| Device power loss | 4.4 W 6) |
| Max. ECG no. on circuit breaker 10 A (B) | 25 |
| Max. ECG no. on circuit breaker 16 A (B) | 40 |
| Max. ECG no. on circuit breaker 25 A (B) | - |
| Surge capability (L/N-Ground) | 1 kV |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | SELV |
1) DC voltage
2) VAC
3) Ripple average at 100 Hz %
4) Full load at 230 V/50 Hz
5) At full load and 230 V / Typical / At 50 Hz
6) At 230 V / Input power 34.5 W max.
2) VAC
3) Ripple average at 100 Hz %
4) Full load at 230 V/50 Hz
5) At full load and 230 V / Typical / At 50 Hz
6) At 230 V / Input power 34.5 W max.
Dimensions & Weight
| Length | 103.00 mm |
| Mounting hole spacing, length | 94,0 mm |
| Width | 67.00 mm |
| Height | 29.50 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Wire preparation length, input side | 8.0…9.0 mm |
| Wire preparation length, output side | 8.0…9.0 mm |
| Product weight | 150.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -10…+50 °C |
| Maximum temperature at tc test point | 75 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 30000 h 1) |
1) At Tcase = 75°C at Tc point / 10% failure rate
Additional product data
| Encapsulated | No |
Capabilities
| Dimmable | No |
| Overheating protection | Automatic switch off, reversible by manual mains reset |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 2,0 m |
| Suitable for fixtures with prot. class | I, II |
| Type of connection, output side | Push terminal |
Certificates & Standards
| Approval marks – approval | CCC, CE, ENEC 10, RCM |
| Standards | Acc. to IEC 61347-1, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to IEC 61000-3-2, Acc. to CISPR 15, Acc. to IEC 61000-3-3, Acc. to IEC 61547 |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -10…75 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899947108 | Unpacked 1 |
150.00 g | ||
| 4052899947177 | Shipping box 20 |
346 mm x 216 mm x 80 mm | 3315.00 g | 5.98 dm³ |
Declarations of conformity
612430_ELEMENT CE declaration
612430_ELEMENT CE declaration
Declarations of conformity
Declaration of Conformity ELEMENT LD
Declaration of Conformity ELEMENT LD
Certificates
730563_VDE Certificate
730563_VDE Certificate
Certificates
VDE ENEC Certificate 40038447
VDE ENEC Certificate 40038447
PRODUCT DATASHEET
608214_Element Technical datasheet 30W
608214_Element Technical datasheet 30W
Product image: white background, diagonal
607617_Element LD 30W_220-240V_700mA_Dia gonal
607617_Element LD 30W_220-240V_700mA_Dia gonal
Product image: white background, horizontal

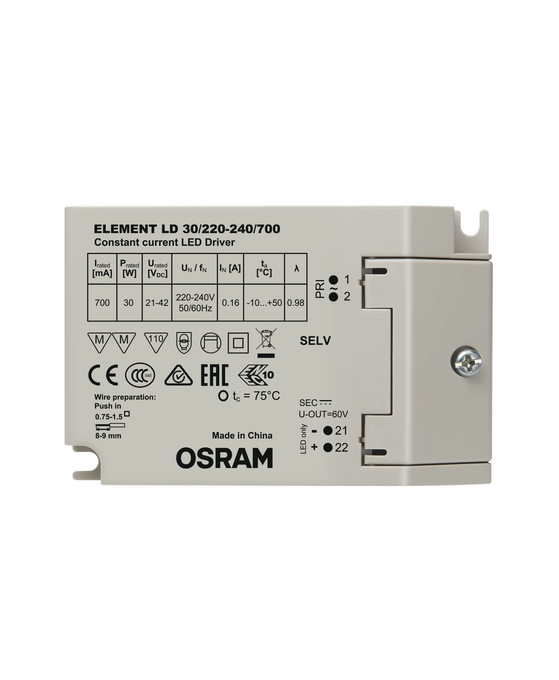

607618_Element LD 30W_220-240V_700mA_Ver tical
