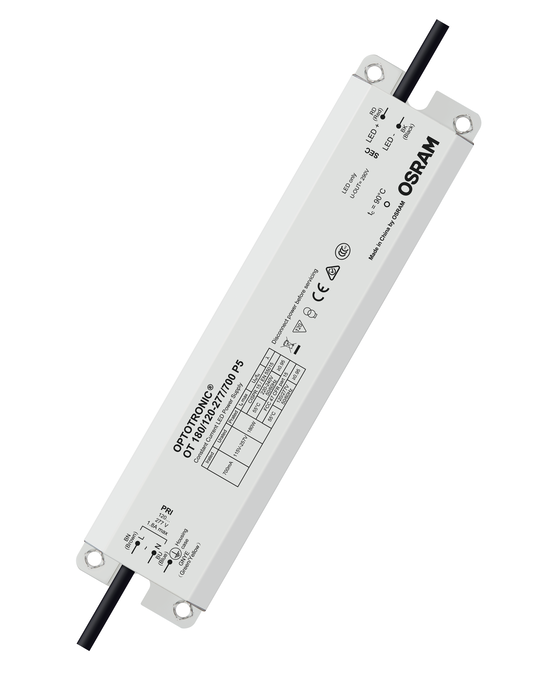

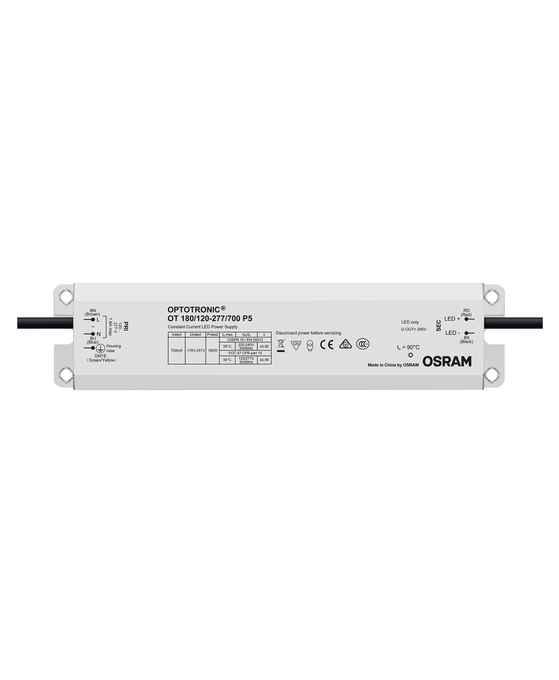

OT 180/120…277/700 P5

OPTOTRONIC Outdoor

GTIN: 4052899259027 Unpacked / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

High surge protection: up to 6 kV (L-N) / 6 kV (L/N-PE)
High efficiency
Great flexibility due to wide operating temperature range of -40…50 °C or 55 °C
IP rating: IP65

Areas of application

Street and urban lighting
Industry
Suitable for luminaires of protection class I

Product features

Available with different wattage: 50 W, 100 W, 180 W, 250 W
Input voltage: 120…277 V
Output current: 700 mA
Overtemperature protection

Electrical data

Nominal wattage	180.00 W
Nominal output power	180 W ¹⁾
Nominal voltage	120…277 V
Nominal output voltage	115…257 V
Input voltage AC	108…305 V ²⁾
U-OUT (working voltage)	290 V
Nominal current	0.86 A ³⁾
Nominal output current	700 mA ⁴⁾
Inrush current	110 A ⁵⁾
Output current tolerance	±5 %
Output ripple current (100 Hz)	30 %
Mains frequency	50/60 Hz
Total harmonic distortion	10 % ⁶⁾
Power factor λ	0.95 ⁷⁾
ECG efficiency	90 % ⁸⁾
Device power loss	18 W ⁹⁾
Max. ECG no. on circuit breaker 10 A (B)	4 ¹⁰⁾
Max. ECG no. on circuit breaker 16 A (B)	7 ¹⁰⁾
Max. ECG no. on circuit breaker 25 A (B)	12 ¹⁰⁾
Surge capability (L/N-Ground)	6 kV
Surge capability (L-N)	6 kV ¹¹⁾
Galvanic isolation	basic

¹⁾ Partial Load 80…180 W
²⁾ Permitted voltage range
³⁾ At 230 V / 1.67 A for 120 V_AC
⁴⁾ ±5%
⁵⁾ t_width = 200 µs (measured at 50 % I_peak)
⁶⁾ Max. output power at 230 V_AC
⁷⁾ Minimum/Full load at 230 V/Half load at 230 V
⁸⁾ At full load and 230 V
⁹⁾ Maximum / At 230 V_AC
¹⁰⁾ Type B
¹¹⁾ @ 2 Ohm, acc. to EN61547

Dimensions & Weight

Length	251.00 mm
Mounting hole spacing, length	236,3 mm
Width	60.00 mm
Height	39.00 mm
Cable cross-section, input side	0.75 mm²
Cable cross-section, output side	0.5 mm²
Wire preparation length, input side	10 mm
Wire preparation length, output side	10 mm
Product weight	1000.00 g

Colors & materials

Casing material	Metal
Body material	Metal

Temperatures & operating conditions

Ambient temperature range	-40…+55 °C
Maximum temperature at tc test point	90 °C ¹⁾
Max.housing temperature in case of fault	120 °C
Permitted rel. humidity during operation	5…85 % ²⁾

¹⁾ Maximum at the Tc-point
²⁾ Non condensing, absolute humidity: 36g/m³

Lifespan

ECG lifetime

80000 h ¹⁾

¹⁾ At T_case = 80°C at T_c point / 10% failure rate

Additional product data

Encapsulated

Yes

Capabilities

Dimmable	No
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	10 m
Suitable for fixtures with prot. class	I
Type of connection, output side	Wires

Certificates & Standards

Approval marks – approval	CE, CQC
Standards	Acc. to IEC 61347-1, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to CISPR 15, Acc. to IEC 61547, Acc. to FCC 47 part 15 class B, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3
Protection class	III
Type of protection	IP65

LOGISTICAL DATA

Temperature range at storage

-25…80 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
