LS PD CM KIT

QBM 220-240 LS-PD CM KIT

GTIN: 4062172161466 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Enables surface and recessed ceiling mounting
Areas of application
  • Open offices
  • Individual offices
  • Conference rooms
  • Classrooms
  • Storage and break areas
  • Stairways
  • Toilets
  • Entrance halls
  • Industry
  • Production halls
Product features
  • Surface mounting box
  • Recessed ceiling spring clips
Equipment / Accessories
  • Suitable for QBM 220-240 LS/PD CI and QBM 220-240 LS/PD HB CI

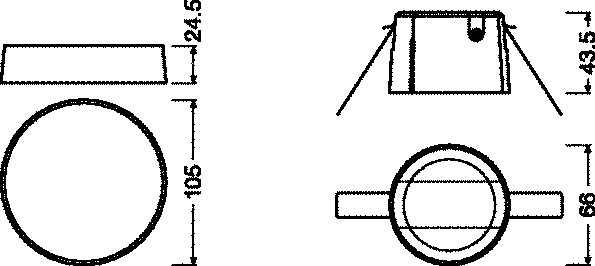

Dimensions & Weight
Length 66.00 mm
Mounting hole spacing, length 68.00 mm
Width 66.00 mm
Height 43.50 mm
Diameter 66.00 mm
Product weight 80.00 g
Colors & materials
Product color White
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Capabilities
Dimmable No
Type of installation Surface mounting
Certificates & Standards
Approval marks – approval CE, UKCA
Protection class II
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4062172161466 Folding box
1		 110 mm x 110 mm x 100 mm 144.00 g 1.21 dm³
4062172161473 Shipping box
48		 630 mm x 460 mm x 244 mm 8032.00 g 70.71 dm³
User instruction / safety instructions
QBM 220-240 LS/PD
PDF (4.11 MB)
Declarations of conformity
QBM 220-240 LS/PD
PDF (184.81 KB)

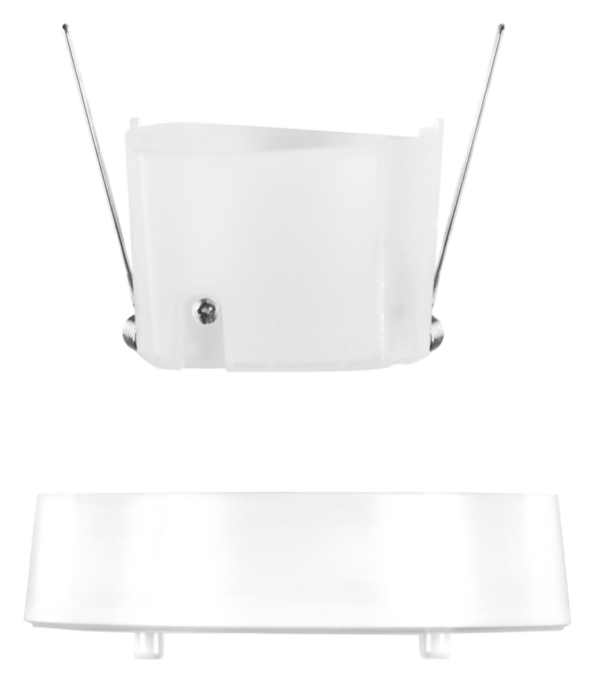

Product image: white background, horizontal
QBM 220-240 LS PD CM KIT
JPG (43.73 KB)

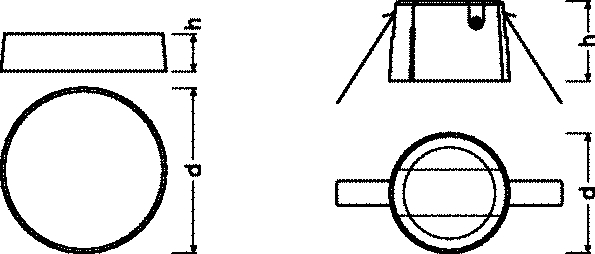

Product line drawing with letters
QBM 220-240 LS PD CM KIT
JPG (43.3 KB)

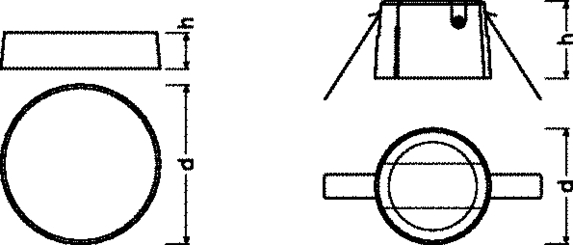

Product line drawing with numbers
QBM 220-240 LS PD CM KIT
JPG (43.58 KB)

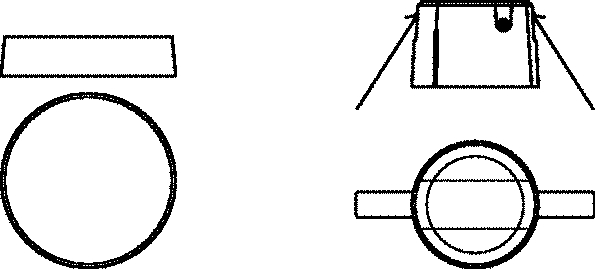

Product line drawing, front, no dimensions
QBM 220-240 LS/PD CM KIT
JPG (38.37 KB)
EAN SEG number ELDAS number
4062172161466 7985455 941004780
