DAMP PROOF FLEX THROUGHWIRING
DP FLEX TH 1500 P 42W ML 840 IP66
GTIN: 4099854440663
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Uniform light distribution
- Easy upgradeability of light source and driver (EVERLOOP design)
- Enables participation in funding programs to replace light source and driver
- Easy access to electrical terminal thanks to end caps with twist and lock mechanism
- Easy installation as mounting brackets can be positioned freely on the luminaire
- Tool-free electrical connection due to push button connector
- Energy savings of up to 66 % (compared to luminaires that use fluorescent lamps)
- Low flicker ≤ 5 %
Areas of application
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- High luminous efficacy: up to 165 lm/W
- Lifetime (L80/B50): up to 100,000 h (at 25 °C)
- Housing and diffuser material: polycarbonate (PC)
- Multi Lumen function: power steps selectable
- Through-wiring 3x1.5mm² already installed
- Beam angle: 120°
- Protection rating: IP65
- Impact resistance: IK08
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
- EVERLOOP luminaire: upgrades and replacements available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 42 W / 23 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 187/104 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 212 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Max. number of luminaires per miniature circuit breaker C10 | 28 |
| Max. number of luminaires per miniature circuit breaker C16 | 42 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | ≤ 23 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 6900 lm / 3700 lm |
| Luminous efficacy | 164 lm/W / 161 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤ 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 42 W | 4000 K | 6900 lm | 164 lm/W |
| 23 W | 4000 K | 3700 lm | 161 lm/W |
Dimensions & Weight
| Length | 1590.00 mm |
| Height | 73.00 mm |
| Width | 88.00 mm |
| Product weight | 1450.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Screwless terminal, 3-Pole (N, E, L) |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 90000 h 1) |
| Lifespan L90/B10 at 25 °C | 83000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 275/150 mA |
| ECG - Output ripple current | 5 % |
Certificates & Standards
| Standards | CE, CB, ENEC, TÃœV SÃœD, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | By the end consumer |
Additional product data
| Product remark | Available from March 2025, When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime |
| Added function | EVERLOOP, MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854440663 | Folding box 1 |
1,328 mm x 95 mm x 78 mm | 1682.00 g | 9.84 dm³ |
| 4099854440670 | Shipping box 6 |
1,650 mm x 248 mm x 215 mm | 11660.00 g | 87.98 dm³ |
| Product image | Product name | Product brand | Product component type | GTIN |
|---|---|---|---|---|
|
DR DS-P -40/220-240/475 L NSV | LEDVANCE | driver direct | 4099854258497 |
User instruction / safety instructions
DP FLEX TH
DP FLEX TH
Legal information
Safety Insert G11201420
Safety Insert G11201420
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
LSI DP FLEX TH IP66
LSI DP FLEX TH IP66
Declarations of conformity
DP FLEX TH
DP FLEX TH
Certificates
DAMP PROOF FLEX TH
DAMP PROOF FLEX TH
EPD
ENVIRONMENTAL PRODUCT DECLARATION DAMP PROOF FLEX
ENVIRONMENTAL PRODUCT DECLARATION DAMP PROOF FLEX

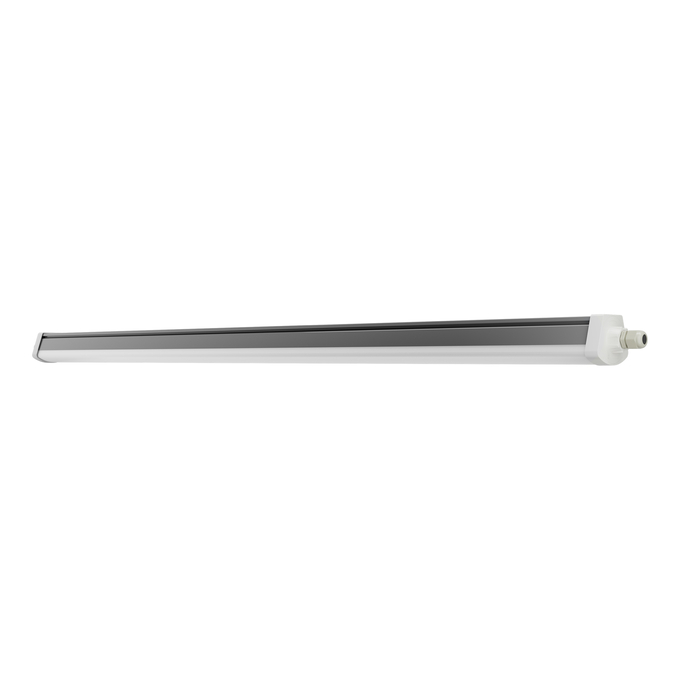

Product image: white background, diagonal
DP FLEX TH 1500 P 42W ML
DP FLEX TH 1500 P 42W ML

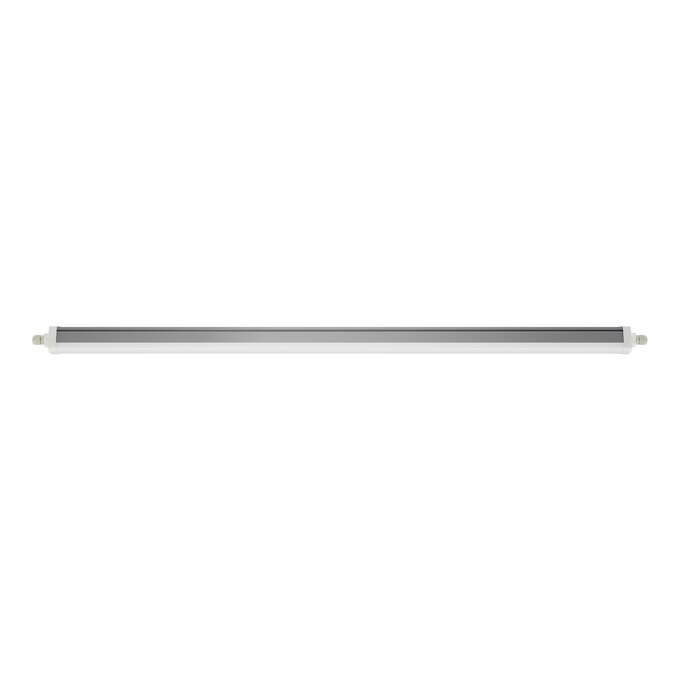

Product image: white background, horizontal
DP FLEX TH 1500 P 42W ML
DP FLEX TH 1500 P 42W ML
Product image: white background, horizontal, alternative image
DP FLEX TH 1500 P 42W ML
DP FLEX TH 1500 P 42W ML

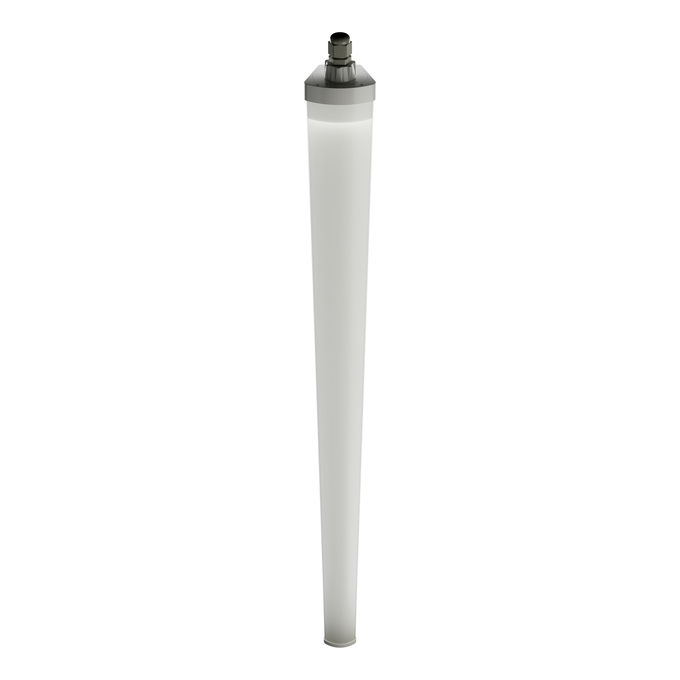

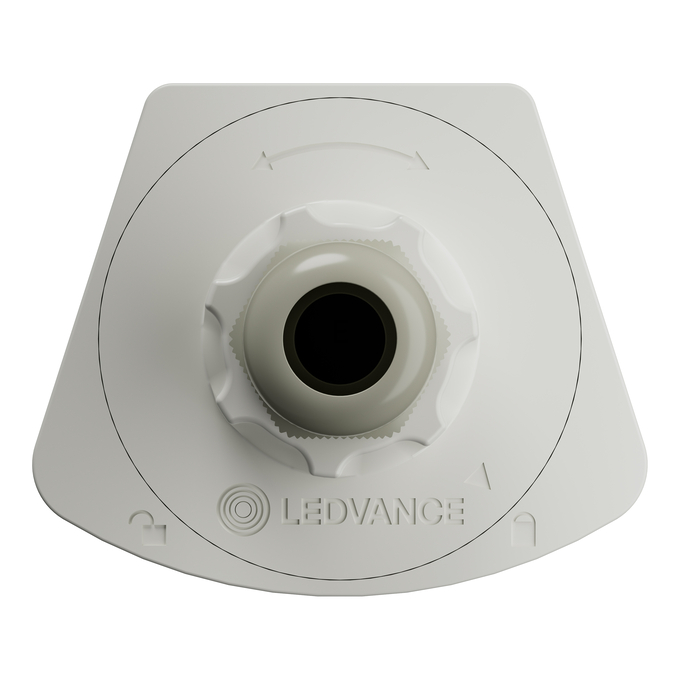

Product image: white background, upright
DP FLEX TH 1500 P 42W ML
DP FLEX TH 1500 P 42W ML
Product image: white background, upright
DP FLEX TH 1500 P 42W ML
DP FLEX TH 1500 P 42W ML
Product image: white background, upright
DP FLEX TH 1500 P 42W ML
DP FLEX TH 1500 P 42W ML

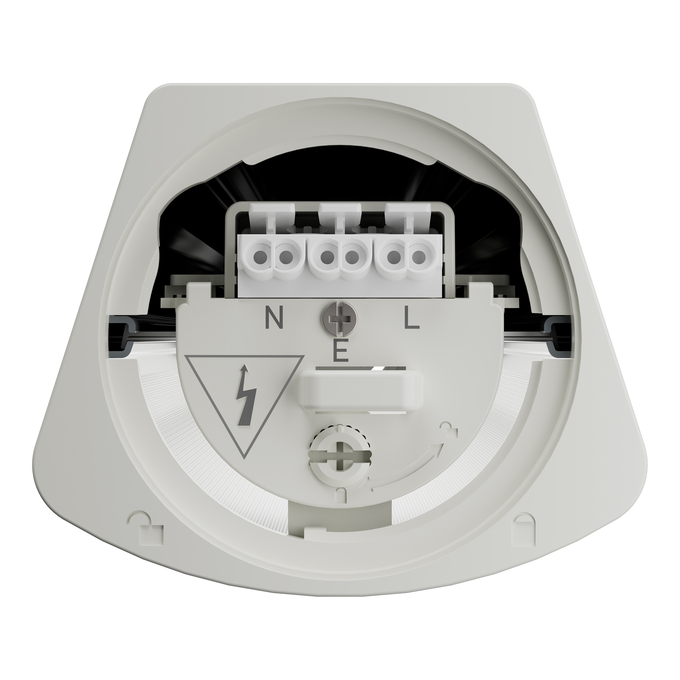

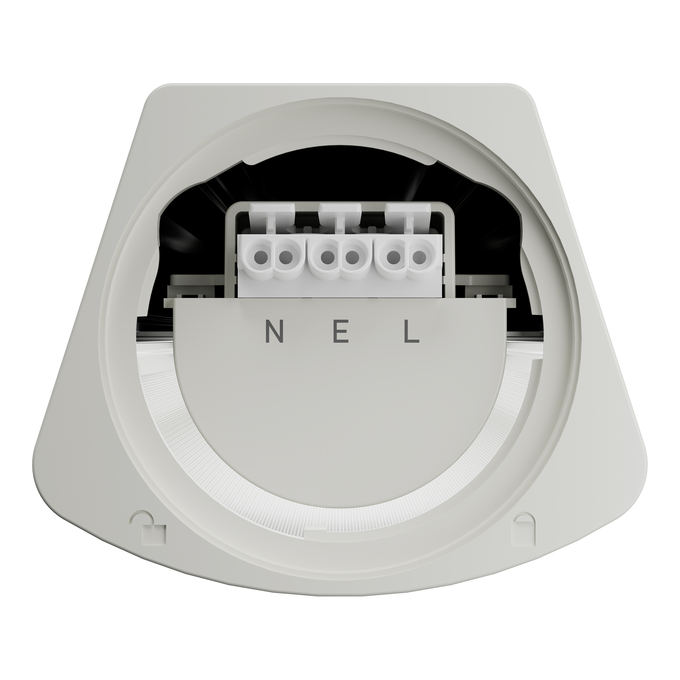

Product image: white background, internal view
