DAMP PROOF COMPACT THROUGHWIRING GEN 2
DP COMP TH 1200 V 33W 840 IP66 PS
GTIN: 4058075740914
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Excellently usable in bigger installations due to preinstalled through-wiring (3x1.5mm²)
- Easy access to electrical terminal thanks to end caps with twist and lock mechanism
- Tool-free electrical connection due to push button connector
- Uniform light distribution
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- Power select option available to select between 2 lumen packages
- Through-wiring 3x1.5mm² already installed
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- High luminous efficacy: up to 123 lm/W
- Polycarbonate housing IP66 and IK08
- Beam angle: 120°
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 33 W / 21 W 1) |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 145.000 mA 1) |
| Inrush current | 33.6 A |
| Inrush current time Th50 | 4.65 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Max. number of luminaires per miniature circuit breaker C10 | 42 |
| Max. number of luminaires per miniature circuit breaker C16 | 67 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
1) For possible options refer to lumen/power table image
Photometrical data
| Luminous flux | 3960 lm / 2600 lm 1) |
| Luminous efficacy | 123 lm/W / 120 lm/W 1) |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤ 1 |
| Stroboscope effect metric (SVM) | ≤ 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
1) For possible options refer to lumen/power table image
Dimensions & Weight
| Length | 1285.00 mm |
| Height | 53.00 mm |
| Width | 60.00 mm |
| Product weight | 770.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Screwless terminal, 3-Pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | DIP SWITCH |
| Mounting type | Surface/Suspended |
| Mounting location | Wall, Ceiling |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 75000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 365 mA |
| ECG - Output ripple current | < 20 % |
Certificates & Standards
| Standards | CE, CB, TÜV SÜD, UKCA, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00004-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075740914 | Folding box 1 |
60 mm x 1,312 mm x 67 mm | 993.00 g | 5.27 dm³ |
| 4058075740921 | Shipping box 9 |
1,340 mm x 210 mm x 195 mm | 10059.00 g | 54.87 dm³ |
User instruction / safety instructions
UI DP COMP V
UI DP COMP V
Legal information
LSI DP COMP V
LSI DP COMP V
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
DP COMP_CE
DP COMP_CE
Declarations of conformity
DP COMP_UKCA
DP COMP_UKCA
EPD
EPD EN DAMP PROOF COMPACT GEN 2
EPD EN DAMP PROOF COMPACT GEN 2
Product image: white background, diagonal
DP COMP TH 1200 V
DP COMP TH 1200 V
Product image: white background, horizontal
DP COMP TH 1200 V
DP COMP TH 1200 V
Product image: white background, upright
DP COMP TH 1200 V
DP COMP TH 1200 V
Product line drawing with letters
DP COMP TH 1500 V
DP COMP TH 1500 V
Product line drawing with numbers
DP COMP TH 1200 V
DP COMP TH 1200 V
Product line drawing, front, no dimensions
DP COMP TH 1500 V
DP COMP TH 1500 V

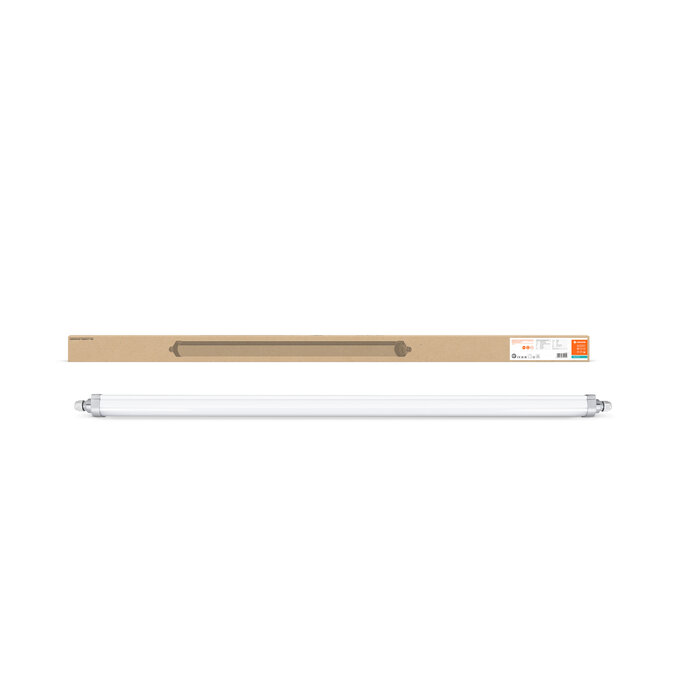

Combo Shot = Product Beauty Shot + Packaging Image
