DAMP PROOF DALI
DP DALI 1200 32W 830 IP65 GY

GTIN: 4058075541689
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High compatibility thanks to DALI-2 certification
- Premium driver with up to 100,000 h lifetime
- Driver suitable for Emergency escape lighting systems acc. to EN 50172
- Driver configuration and dimming possible via mains
- Low flicker ≤ 3 %
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- DALI installations
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 139 lm/W
- Type of protection: IP65
- Beam angle: 110°
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
Nominal wattage | 32.00 W |
Nominal voltage | 220…240 V |
Mains frequency | 0/50/60 Hz |
Nominal current | 155 mA |
Inrush current | 29 A |
Inrush current time Th50 | 180 µs |
Max. number of luminaires per miniature circuit breaker B16 | 13 |
Max. number of luminaires per miniature circuit breaker C10 | 21 |
Max. number of luminaires per miniature circuit breaker C16 | 36 |
Power factor λ | > 0.90 |
Total harmonic distortion | < 20 % |
Protection class | I |
Operating mode | Integrated LED driver |
Photometrical data
Luminous flux | 4000 lm |
Luminous efficacy | 125 lm/W |
Color temperature | 3000 K |
Light color (designation) | Cool White |
Color rendering index Ra | > 80 |
Standard deviation of color matching | 4 sdcm |
Low flicker | Yes |
Flickering metric (Pst LM) | ≤ 1 |
Stroboscope effect metric (SVM) | ≤ 0.4 |
Photobiological safety group acc. to EN62778 | RG0 |
Beam angle | 110 ° |
Dimensions & Weight
Length | 1200.00 mm |
Height | 68.00 mm |
Width | 82.00 mm |
Product weight | 1430.00 g |
Materials & Colors
Product color | Gray |
Housing color | Gray |
Body material | Polycarbonate (PC) |
Cover material | Polycarbonate (PC) |
Light emitting surface material | Polycarbonate (PC) |
Glow Wire Test according to IEC 60695-2-12 | 850 °C |
Mercury content | 0.0 mg |
Application & Mounting
Ambient temperature range | -25…+40 °C |
Temperature range at storage | -25…+80 °C |
Type of connection | Screwless terminal, 5-Pole |
Type of protection | IP65 |
Protection class IK (shock resistance) | IK08 |
Dimmable | Yes |
Type of dimming | DALI |
Mounting type | Suspended/Surface |
Mounting location | Ceiling, Wall |
Application environment | Indoor |
With light source | Yes |
Lifespan
Lifespan L70/B50 at 25 °C | 70000 h 1) |
Lifespan L80/B10 at 25 °C | 50000 h 1) |
Lifespan L90/B10 at 25 °C | 44000 h |
Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
ECG - Output voltage | 79 V |
Output current | 370 mA |
Certificates & Standards
Standards | CE, CB, ENEC, TÜV SÜD, EAC, RoHS |
Luminaire with limited surface temperature, "D sign" | Yes |
Ball shot safe | No |
Replaceable light source (EPREL) | Not replaceable |
Additional product data
Product remark | When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime |
Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075541689 | Folding box 1 |
1,210 mm x 87 mm x 74 mm | 1465.00 g | 7.79 dm³ |
4058075541696 | Shipping box 6 |
1,232 mm x 191 mm x 245 mm | 9810.00 g | 57.65 dm³ |

User instruction / safety instructions
DP DALI IP65
DP DALI IP65

Legal information
Legal Insert DP DALI IP65
Legal Insert DP DALI IP65

Legal information
LSI DP DALI IP65
LSI DP DALI IP65

Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG

Declarations of conformity
CE Declaration_DP DALI
CE Declaration_DP DALI

Declarations of conformity
CE Declaration DP DALI IP65 GY
CE Declaration DP DALI IP65 GY

Certificates
DP DALI
DP DALI

Product image: white background, spacial
DAMP PROOF 1200, DALI, EMERGENCY,SENSOR
DAMP PROOF 1200, DALI, EMERGENCY,SENSOR

Product image: white background, with accessory, alternative image
Damp proof Gen 2 mounting clips
Damp proof Gen 2 mounting clips
Product line drawing with letters
DP S 1200 32W 840 IP65 GY
DP S 1200 32W 840 IP65 GY
Product line drawing with numbers
DP S 1200 32W 840 IP65 GY
DP S 1200 32W 840 IP65 GY
Product line drawing, front, no dimensions
DP S 1200 32W 840 IP65 GY
DP S 1200 32W 840 IP65 GY

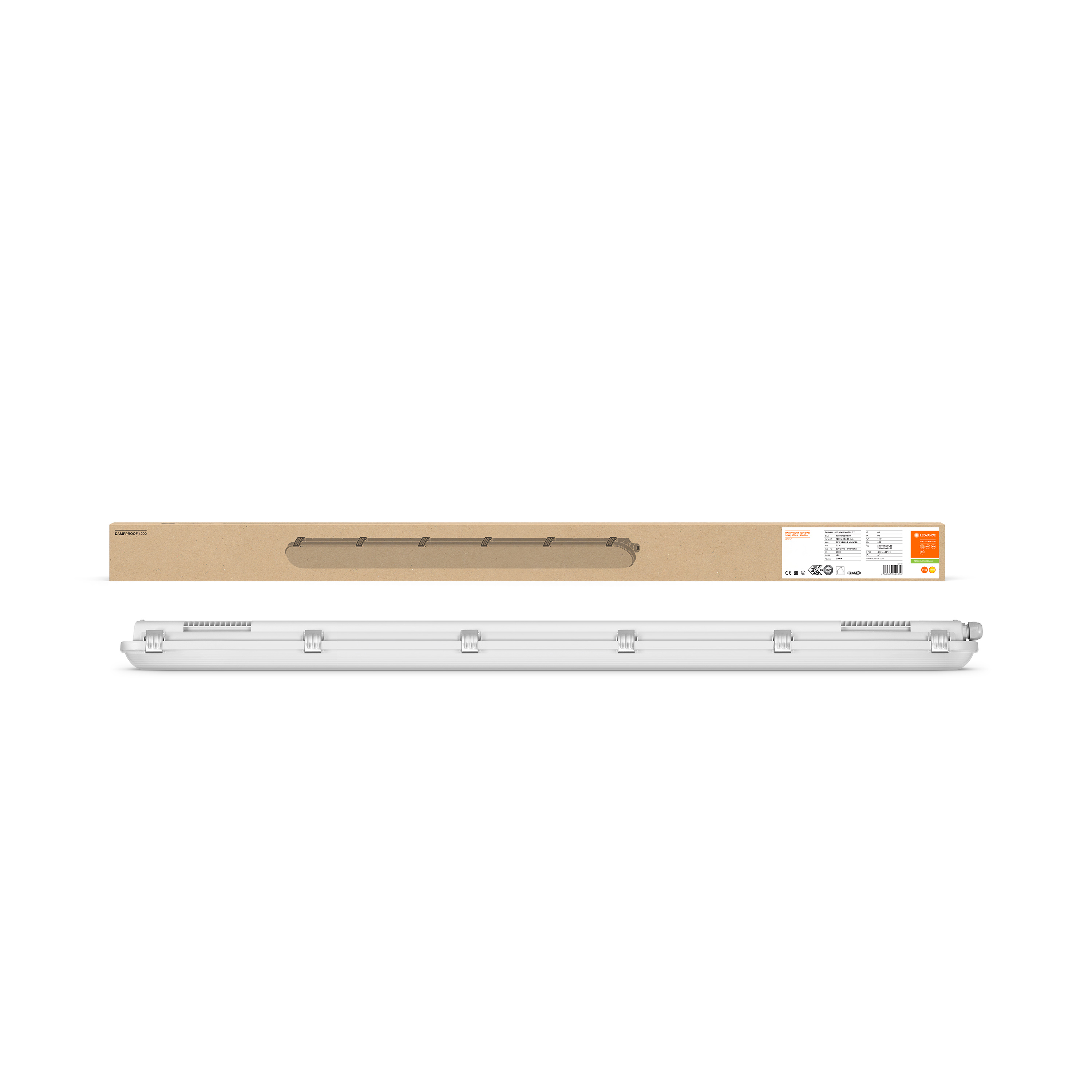

Combo Shot = Product Beauty Shot + Packaging Image
DP DALI 1200 32W 830 IP65 GY
DP DALI 1200 32W 830 IP65 GY

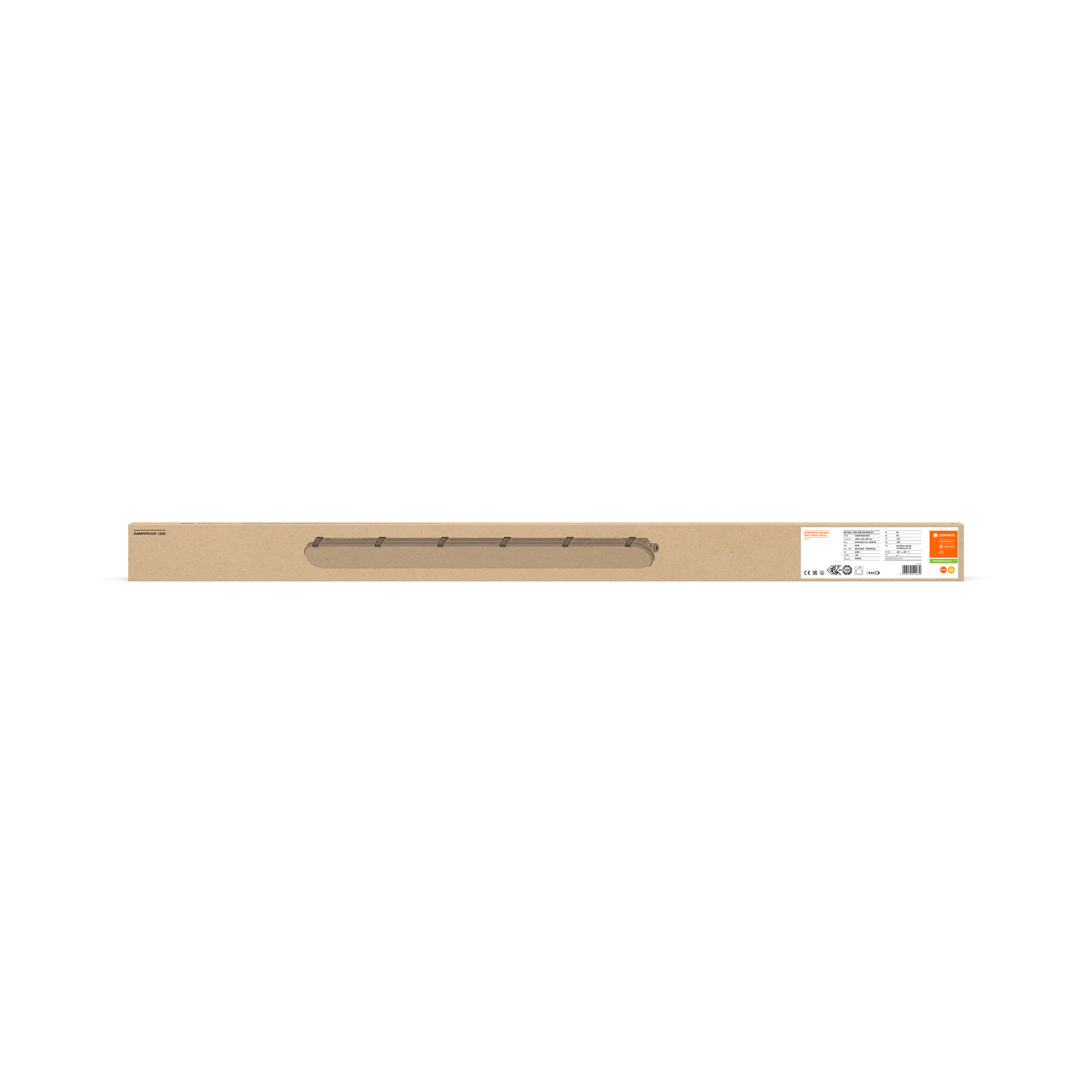

Packaging image, frontal
DP DALI 1200 32W 830 IP65 GY
DP DALI 1200 32W 830 IP65 GY

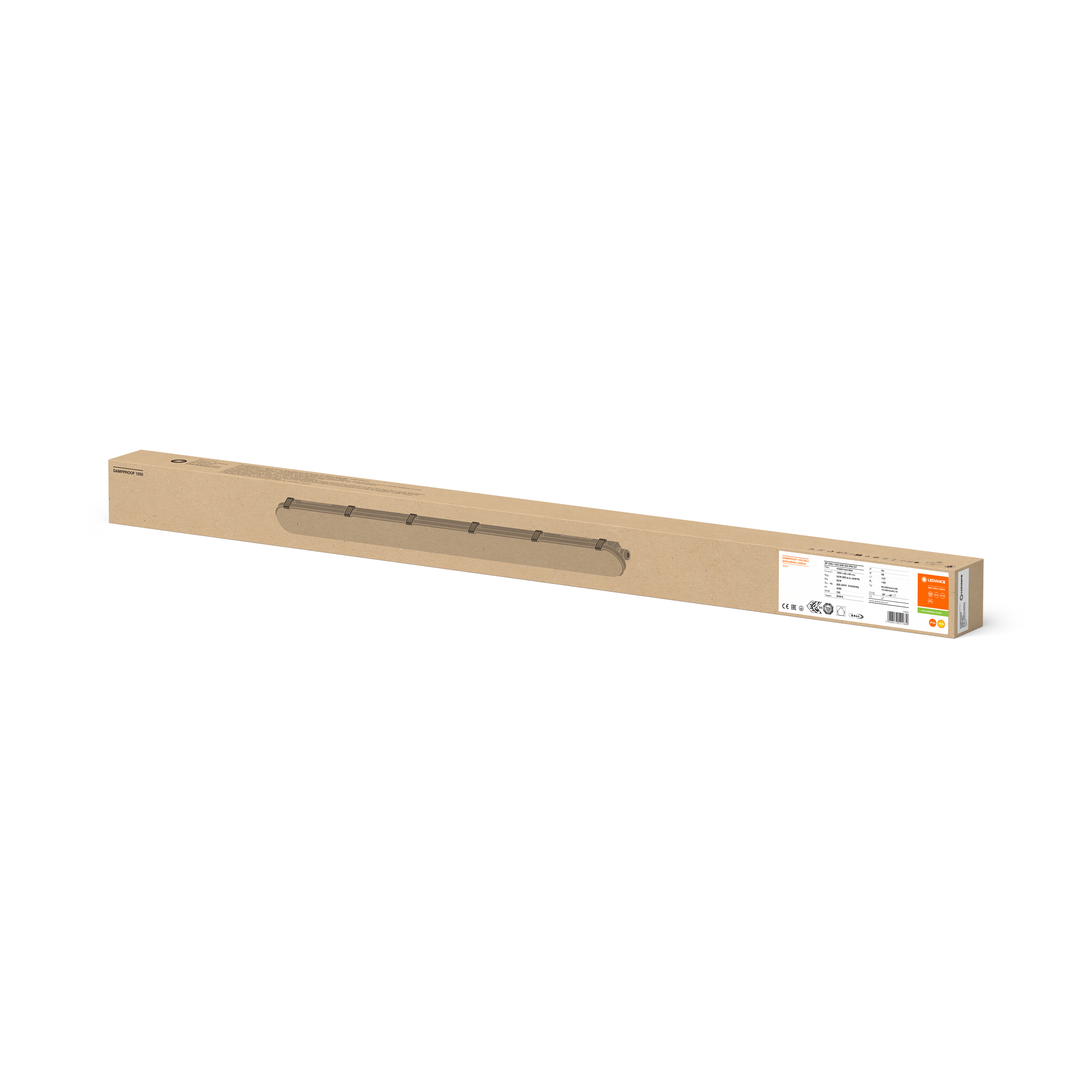

Packaging image, spacial
DP DALI 1200 32W 830 IP65 GY
DP DALI 1200 32W 830 IP65 GY

IES file (IES)
DP DALI 1200 32W 830 IP65 GY
DP DALI 1200 32W 830 IP65 GY

LDT file (Eulumdat)
DP DALI 1200 32W 830 IP65 GY
DP DALI 1200 32W 830 IP65 GY

ULD file (DIALux)
DP DALI 1200 32W 830 IP65
DP DALI 1200 32W 830 IP65

ROLF file (RELUX)
DP DALI 1200 32W 830
DP DALI 1200 32W 830

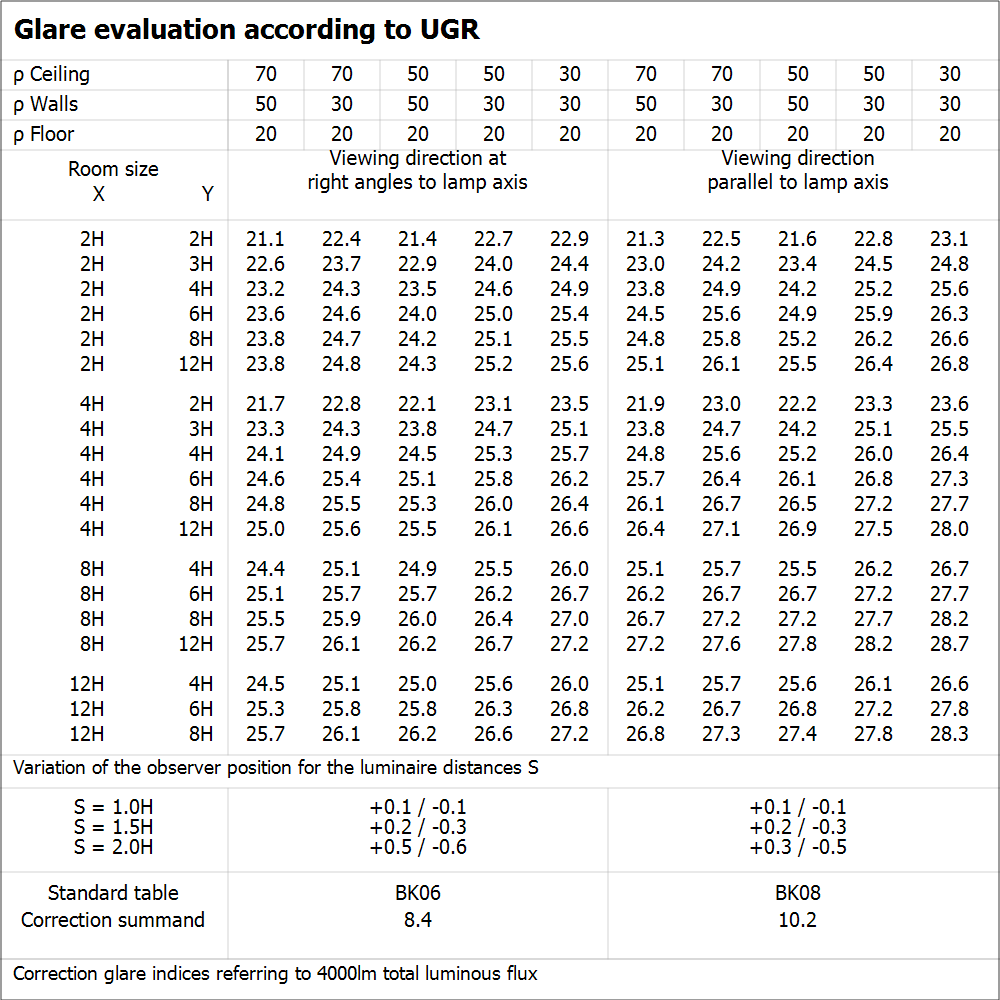

UGR file (UGR table)
