DAMP PROOF
DP 1500 58W 840 IP65 GY
GTIN: 4058075541245
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low flicker ≤ 10 %
- Uniform light distribution
- Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
- Easy installation, no tools required for connection
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 139 lm/W
- Beam angle: 110°
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 58.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 380.000 mA |
| Inrush current | 12.6 A |
| Inrush current time Th50 | 222 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Max. number of luminaires per miniature circuit breaker C10 | 23 |
| Max. number of luminaires per miniature circuit breaker C16 | 38 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 8000 lm |
| Luminous efficacy | 135 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 4 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤ 1 |
| Stroboscope effect metric (SVM) | ≤ 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 1500.00 mm |
| Height | 68.00 mm |
| Width | 82.00 mm |
| Product weight | 1650.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -25…+40 °C |
| Temperature range at storage | -25…+80 °C |
| Type of connection | Terminal, 3-pin |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 34000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 490 mA |
Emergency lighting
| Wattage in maintained operation mode | 58.0 W |
Certificates & Standards
| Standards | CE, CB, ENEC, TÃœV SÃœD, EAC, RoHS, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00002-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075541245 | Folding box 1 |
1,512 mm x 87 mm x 74 mm | 1729.00 g | 9.73 dm³ |
| 4058075541252 | Shipping box 6 |
1,532 mm x 191 mm x 245 mm | 11605.00 g | 71.69 dm³ |
User instruction / safety instructions
UI Damp Proof IP65
UI Damp Proof IP65
Legal information
LS Insert DP IP65
LS Insert DP IP65
Legal information
LS DAMP PROOF IP65 GY
LS DAMP PROOF IP65 GY
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration DP 1200 and DP1500
CE Declaration DP 1200 and DP1500
Declarations of conformity
DP IP65
DP IP65
Certificates
DP 1500
DP 1500
EPD
ENVIRONMENTAL PRODUCT DECLARATION Damp Proof Gen2
ENVIRONMENTAL PRODUCT DECLARATION Damp Proof Gen2
Product image: white background, diagonal
DAMP PROOF 1500, DALI, EMERGENCY
DAMP PROOF 1500, DALI, EMERGENCY
Product image: white background, horizontal
DAMP PROOF 1500, DALI, EMERGENCY
DAMP PROOF 1500, DALI, EMERGENCY
Product image: white background, upright
DAMP PROOF 1500, DALI, EMERGENCY
DAMP PROOF 1500, DALI, EMERGENCY
Product image: white background, with accessory, alternative image
Damp proof Gen 2 mounting clips
Damp proof Gen 2 mounting clips
Product line drawing with letters
DAMP PROOF 1500, DALI, EMERGENCY
DAMP PROOF 1500, DALI, EMERGENCY
Product line drawing with numbers
DAMP PROOF 1500, DALI, EMERGENCY
DAMP PROOF 1500, DALI, EMERGENCY
Product line drawing, front, no dimensions
DAMP PROOF
DAMP PROOF
Combo Shot = Product Beauty Shot + Packaging Image
DP 1500 58W 840 IP65 GY LEDV
DP 1500 58W 840 IP65 GY LEDV
Packaging image, frontal
DP 1500 58W 840 IP65 GY
DP 1500 58W 840 IP65 GY
Packaging image, spacial
DampProof IP65 Gen2 1500 MiCh
DampProof IP65 Gen2 1500 MiCh
Catalog info 1
Catalog info Damp Proof IP65
Catalog info Damp Proof IP65
IES file (IES)
DP 1500 58W 840 IP65 GY
DP 1500 58W 840 IP65 GY
LDT file (Eulumdat)
DP 1500 58W 840 IP65 GY
DP 1500 58W 840 IP65 GY
ULD file (DIALux)
DP 1500 58W 840 IP65
DP 1500 58W 840 IP65
ROLF file (RELUX)
DP 1500 58W 840
DP 1500 58W 840
UGR file (UGR table)
DP 1500 58W 840 IP65 GY
DP 1500 58W 840 IP65 GY
Light distribution curve type cone
DP 1500 58W 840 IP65 GY
DP 1500 58W 840 IP65 GY
Light distribution curve type polar
DP 1500 58W 840 IP65 GY
DP 1500 58W 840 IP65 GY
BIM Revit 3D
Damp Proof G2
Damp Proof G2
CAD STEP 3D
DP-Gen2 1500
DP-Gen2 1500
Tender documents
DAMP PROOF 1500 58W 840 IP65 GY-EN
DAMP PROOF 1500 58W 840 IP65 GY-EN
Application pictures
Inter Cars
Inter Cars
Application pictures
Tente Rollen Wermelskirchen RET Dampproof
Tente Rollen Wermelskirchen RET Dampproof
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures
Application Pictures Series Servex Panningen
Application Pictures Series Servex Panningen
Application pictures

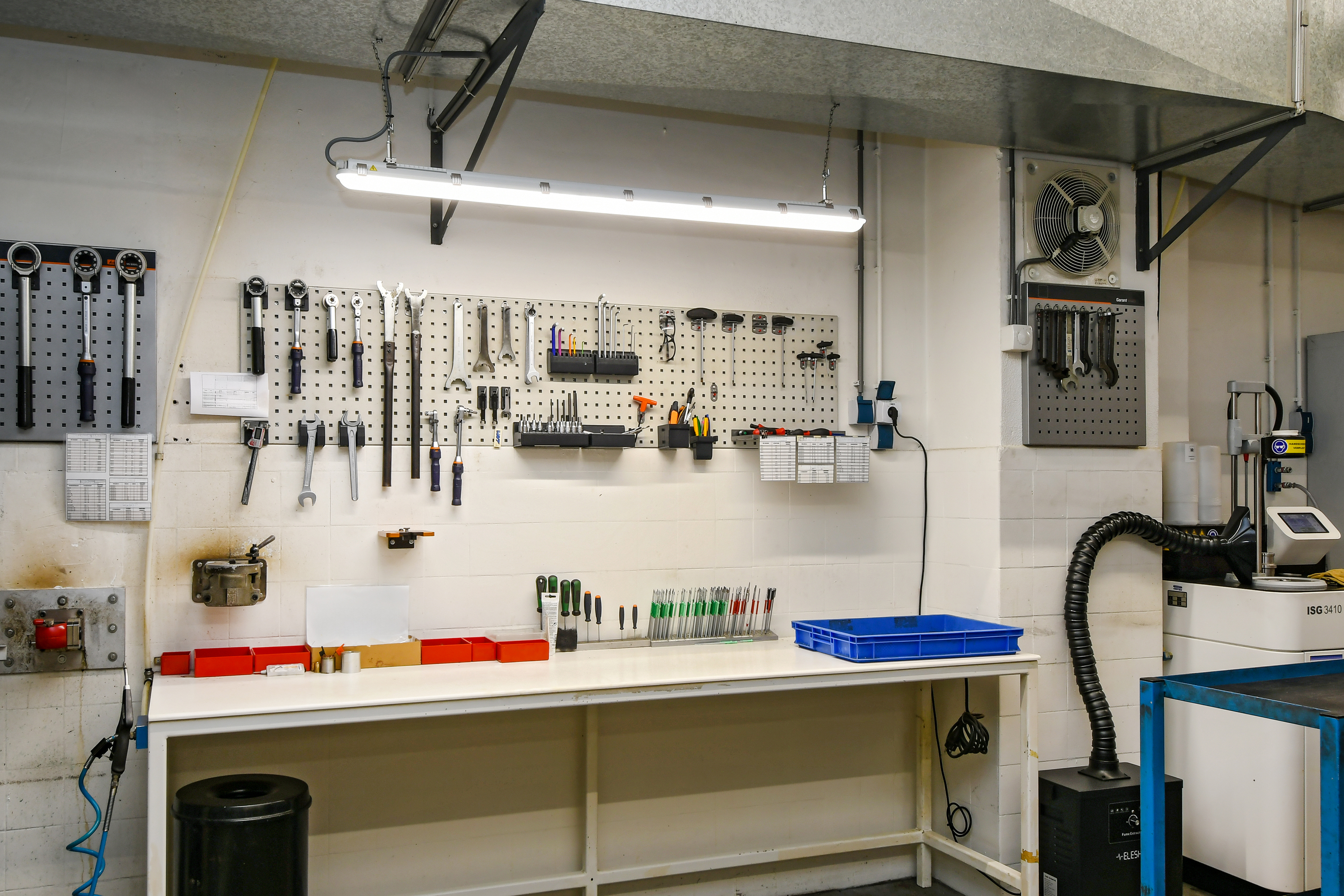

case machinefactoryklinkers
