DOWNLIGHT ALU DALI
DL ALU DALI DN 200 25 W 4000 K IP44/IP20 WT
GTIN: 4058075091634
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Advanced functionality due to already included DALI driver
- DALI driver with individual luminaire current set-up already installed
- High luminous efficacy
- Energy savings up to 60 % (compared to luminaires that use CFL lamps)
- Very homogenous light
- Functional design
- Easy installation with fast connection
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Foyers
- Shops
Product features
- Advanced applications with DALI light installations
- Diameter of required ceiling cut-out: 150 mm or 200 mm (depending on version)
- Type of protection: IP44
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 25.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 110.000 mA |
| Inrush current | 23 A |
| Inrush current time Th50 | 151 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 32 |
| Max. number of luminaires per miniature circuit breaker C10 | 31 |
| Max. number of luminaires per miniature circuit breaker C16 | 53 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 2370 lm |
| Luminous efficacy | 95 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 100 ° |
Dimensions & Weight
| Diameter | 215.00 mm |
| Height | 61.00 mm |
| Product weight | 600.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Screwless terminal, 5-Pole |
| Type of protection | IP44/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 200 mm |
| Mounting depth | 120 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, CB, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | Not relevant |
| Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075091634 | Folding box 1 |
225 mm x 225 mm x 110 mm | 775.00 g | 5.57 dm³ |
| 4058075091641 | Shipping box 8 |
658 mm x 466 mm x 263 mm | 7680.00 g | 80.64 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
EM CONVERSION BOX | 4058075237025 |
User instruction / safety instructions
DOWNLIGHT ALU DALI
DOWNLIGHT ALU DALI
Legal information
LSI DL ALU DALI
LSI DL ALU DALI
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
Declaration of conformity
Declaration of conformity
Product image: white background, diagonal
DL ALU DN200
DL ALU DN200
Product image: white background, horizontal
DL ALU DN200
DL ALU DN200
Product line drawing with letters
DL ALU DN200
DL ALU DN200
Product line drawing with numbers
DL ALU DN200
DL ALU DN200
Product line drawing, front, no dimensions
DL ALU DN200
DL ALU DN200

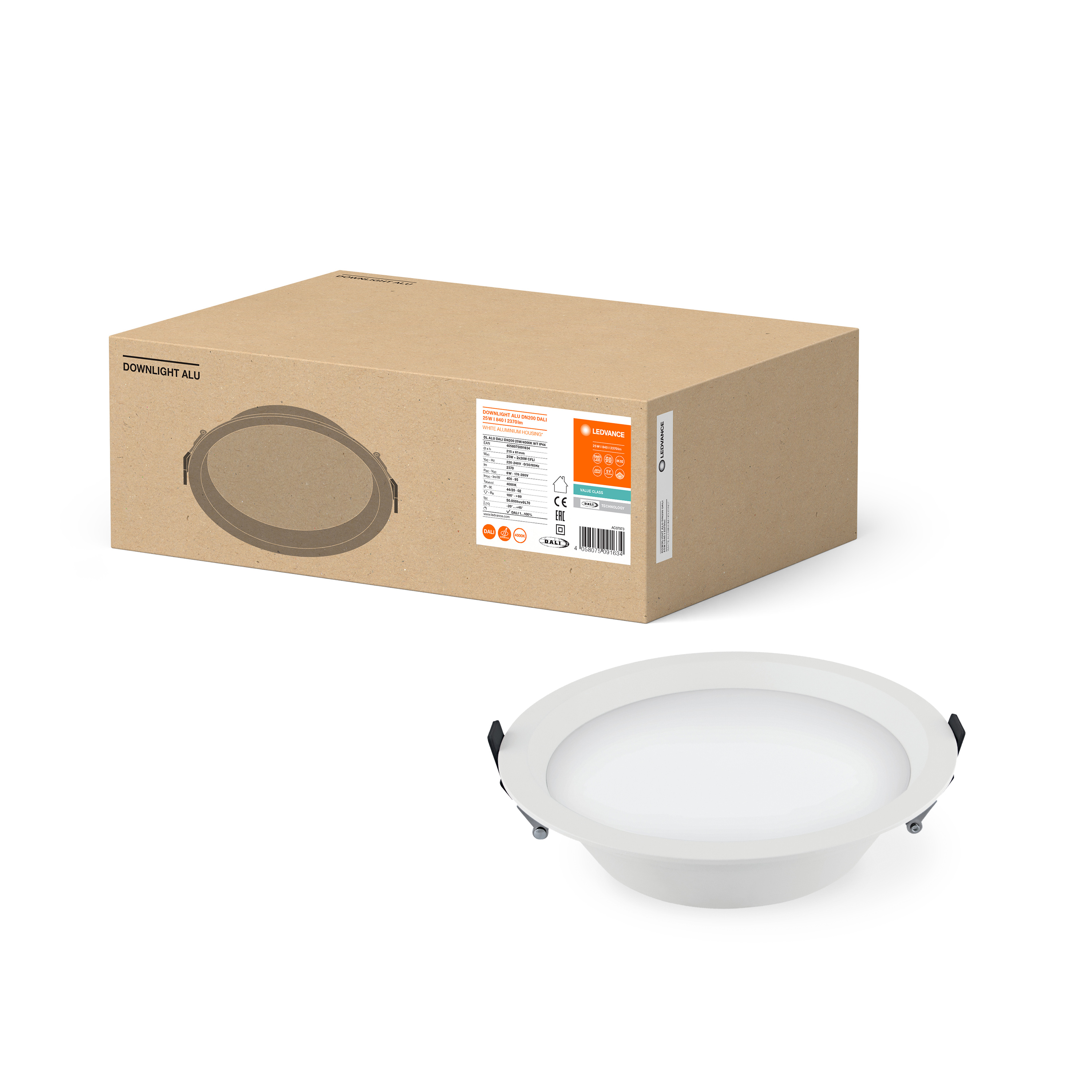

Combo Shot = Product Beauty Shot + Packaging Image
DL ALU DALI DN200 25W-4000K WT IP44 LEDV
DL ALU DALI DN200 25W-4000K WT IP44 LEDV

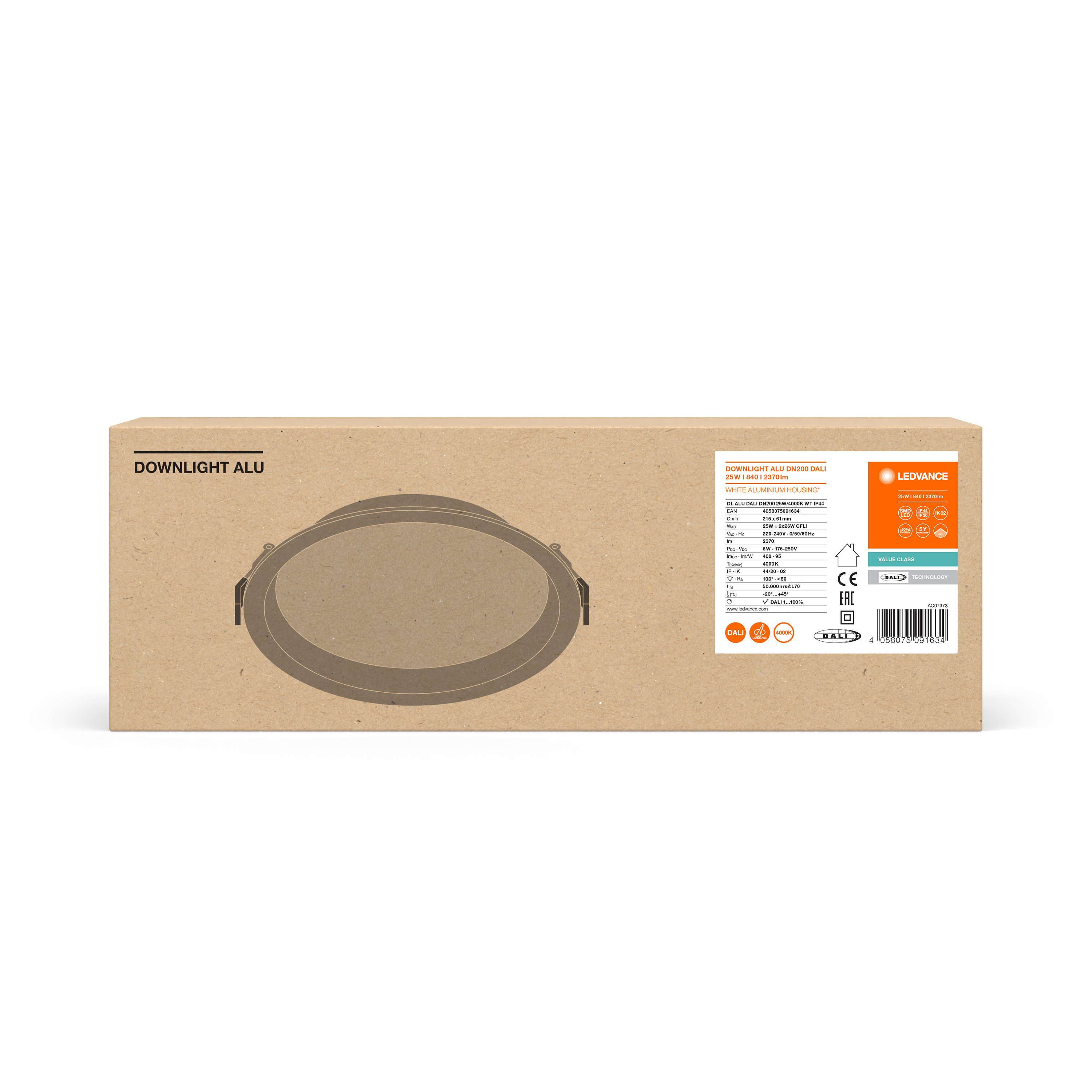

Packaging image, frontal
DL ALU DALI DN200 25W-4000K WT IP44 LEDV
DL ALU DALI DN200 25W-4000K WT IP44 LEDV

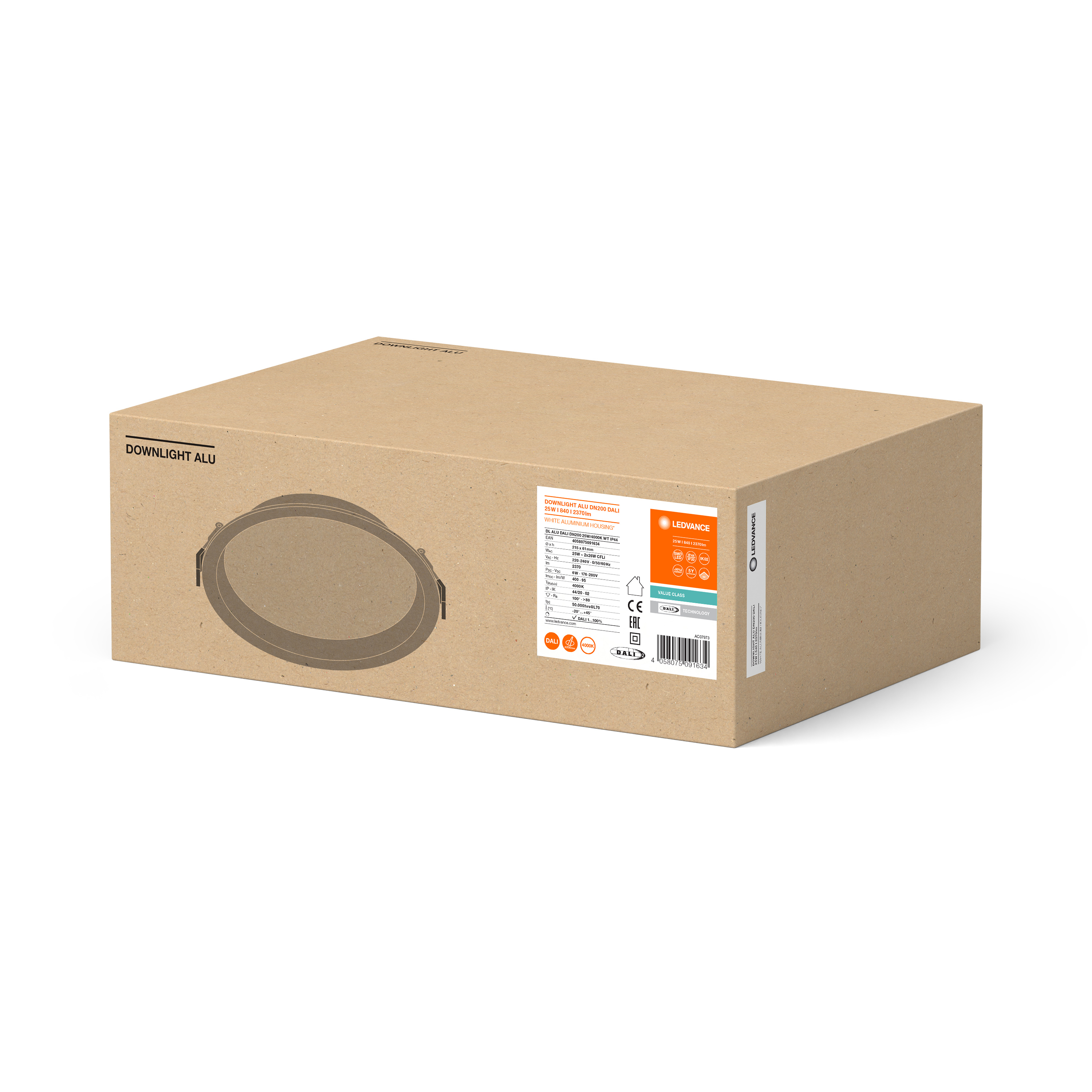

Packaging image, spacial
DL ALU DALI DN200 25W-4000K WT IP44 LEDV
DL ALU DALI DN200 25W-4000K WT IP44 LEDV
Catalog info 1
UI_Downlight_Alu_DALI
UI_Downlight_Alu_DALI
IES file (IES)
DL ALU DALI DN200 25W 4000K WT IP44
DL ALU DALI DN200 25W 4000K WT IP44
LDT file (Eulumdat)
DL ALU DALI DN200 25W 4000K WT IP44
DL ALU DALI DN200 25W 4000K WT IP44
ULD file (DIALux)
DL ALU DALI DN200 25W-4000K
DL ALU DALI DN200 25W-4000K
ROLF file (RELUX)
DL ALU DALI DN200 25W-4000K
DL ALU DALI DN200 25W-4000K

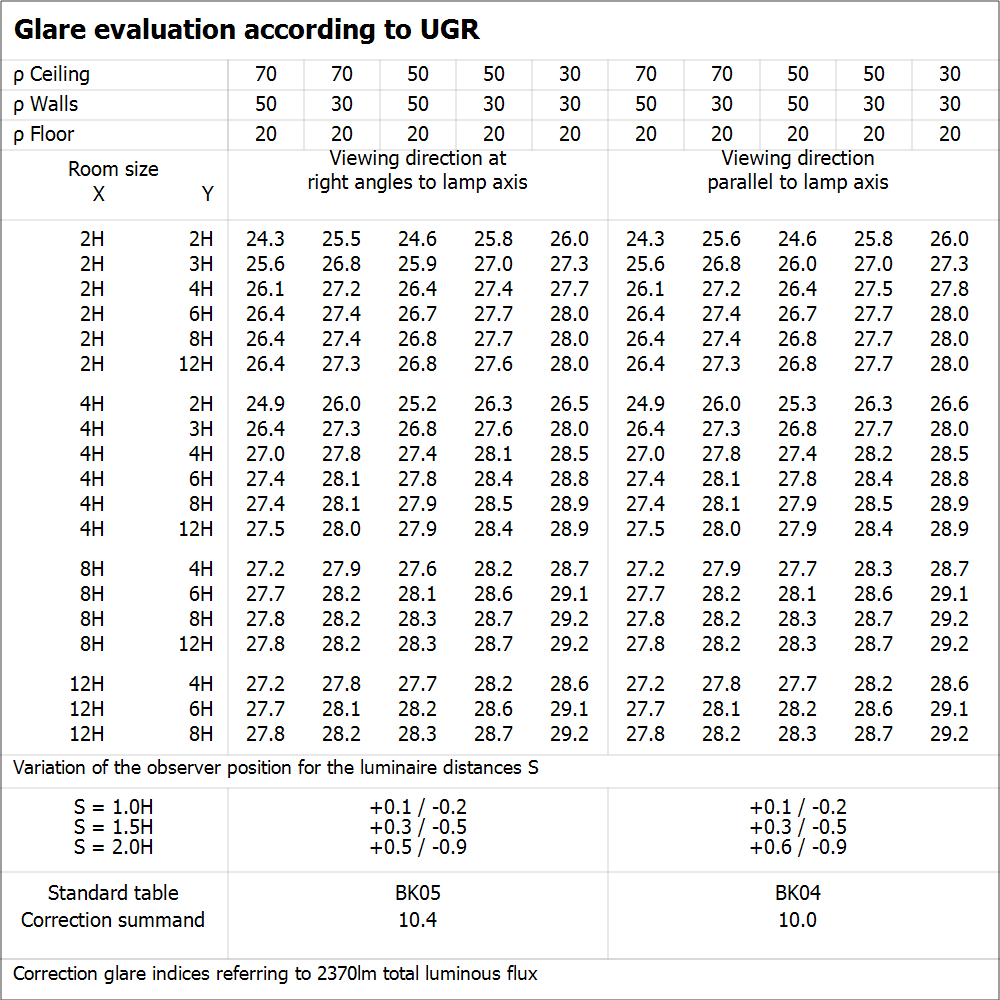

UGR file (UGR table)
DL ALU DALI DN200 25W 4000K WT IP44
DL ALU DALI DN200 25W 4000K WT IP44
Light distribution curve type cone
DL ALU DALI DN200 25W 4000K WT IP44
DL ALU DALI DN200 25W 4000K WT IP44
Light distribution curve type polar
DL ALU DALI DN200 25W 4000K WT IP44
DL ALU DALI DN200 25W 4000K WT IP44
BIM Revit 3D
Downlight ALU
Downlight ALU
CAD STEP 3D
DL ALU 25W 35W
DL ALU 25W 35W
Tender documents
DOWNLIGHT ALU DALI 200 25 W 4000 K IP44IP20 WT-EN
DOWNLIGHT ALU DALI 200 25 W 4000 K IP44IP20 WT-EN
Application pictures
Tirol Kliniken 2019 18
Tirol Kliniken 2019 18
Application pictures
Tirol Kliniken 2019 23
Tirol Kliniken 2019 23
Application pictures
Tirol Kliniken 2019 20
Tirol Kliniken 2019 20
Application pictures
Tirol Kliniken 2019 19
Tirol Kliniken 2019 19
Application pictures
Tirol Kliniken 2019 29
Tirol Kliniken 2019 29
Application pictures
Tirol Kliniken 2019 17
Tirol Kliniken 2019 17
Application pictures
Tirol Kliniken 2019 6
Tirol Kliniken 2019 6
Application pictures
Tirol Kliniken 2019 25
Tirol Kliniken 2019 25
Application pictures
Tirol Kliniken 2019 26
Tirol Kliniken 2019 26
Application pictures
Tirol Kliniken 2019 7
Tirol Kliniken 2019 7
Application pictures
Tirol Kliniken 2019 27
Tirol Kliniken 2019 27
Application pictures
Tirol Kliniken 2019 21
Tirol Kliniken 2019 21
Application pictures
Tirol Kliniken 2019 22
Tirol Kliniken 2019 22
Application pictures
Tirol Kliniken 2019 28
Tirol Kliniken 2019 28
Application pictures
Tirol Kliniken 2019 8
Tirol Kliniken 2019 8
Application pictures
Tirol Kliniken 2019 16
Tirol Kliniken 2019 16
Application pictures
Tirol Kliniken 2019 24
Tirol Kliniken 2019 24
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075091634 | 7470505 | 4231891 | 3201676 | 941400840 |
