ECO HIGH POWER FLOODLIGHT
ECO HP FLOOD 300W 857 W 40500LM BK
GTIN: 4058075372498
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy savings of up to 90 % compared to halogen lamp floodlights
- Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
- Homogeneous light output
- 5 years guarantee
Areas of application
- Direct replacement for luminaires using HID lamps
- Sports facilities
- Industry
- Lighting of large areas
Product features
- Rotational symmetric light distribution for high mast area lighting
- Various versions with different types of light distribution available
- Mounting bracket for up to 180° tilting
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 300.00 W |
| Nominal voltage | 100…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 1550.000 mA |
| Inrush current | 80 A |
| Inrush current time Th50 | 500 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 2 |
| Max. number of luminaires per miniature circuit breaker C10 | 2 |
| Max. number of luminaires per miniature circuit breaker C16 | 3 |
| Power factor λ | > 0.95 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 40500 lm |
| Luminous efficacy | 135 lm/W |
| Color temperature | 5700 K |
| Light color (designation) | Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 90 ° |
Dimensions & Weight
| Length | 522.00 mm |
| Height | 152.00 mm |
| Width | 370.00 mm |
| Product weight | 10500.00 g |
| Cable length | 1000 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -40…+45 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, RoHS, REACH |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | - |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075372498 | Shipping box 1 |
597 mm x 442 mm x 225 mm | 11623.00 g | 59.37 dm³ |
User instruction / safety instructions
UI ECO HP FLOOD 300W BK
UI ECO HP FLOOD 300W BK
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration of Conformity ECO CLASS HP FLOODLIGHT
CE Declaration of Conformity ECO CLASS HP FLOODLIGHT
Product image: white background, diagonal
HP FLOODLIGHT 300W
HP FLOODLIGHT 300W
Product line drawing with letters
HP FLOOD 300W
HP FLOOD 300W
Product line drawing with numbers
HP FLOODLIGHT 300W
HP FLOODLIGHT 300W
Product line drawing, front, no dimensions
HP FLOODLIGHT 300W
HP FLOODLIGHT 300W
LDT file (Eulumdat)
ECOHPFLOOD 300W 857 W40500LM BK
ECOHPFLOOD 300W 857 W40500LM BK
Light distribution curve type polar
ECO CLASS HP FLOODLIGHT WIDE
ECO CLASS HP FLOODLIGHT WIDE
Application pictures

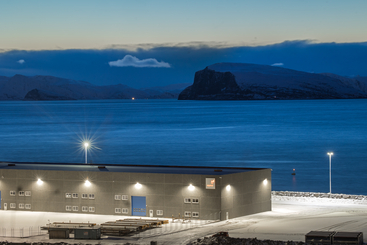

NorSea Polarbase case study NO 1T0A6960
NorSea Polarbase case study NO 1T0A6960
Application pictures

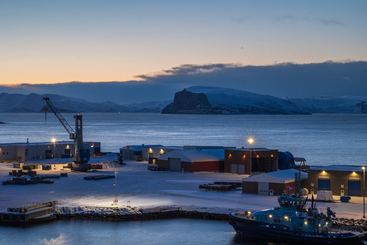

NorSea Polarbase case study NO 1T0A6926
NorSea Polarbase case study NO 1T0A6926
Application pictures
NorSea Polarbase case study NO DJI 0911
NorSea Polarbase case study NO DJI 0911
Application pictures

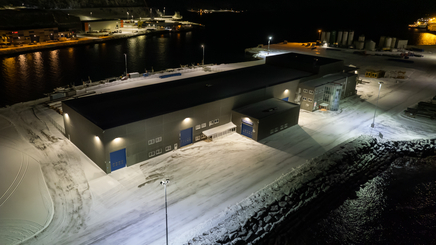

NorSea Polarbase case study NO DJI 0905
NorSea Polarbase case study NO DJI 0905
Application pictures

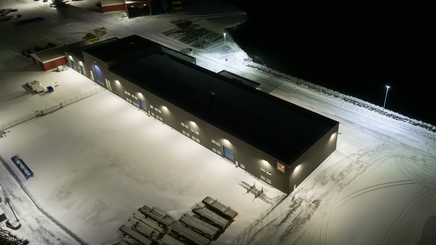

NorSea Polarbase case study NO DJI 0901
NorSea Polarbase case study NO DJI 0901
Application pictures
NorSea Polarbase case study NO 1T0A7032
NorSea Polarbase case study NO 1T0A7032
Application pictures

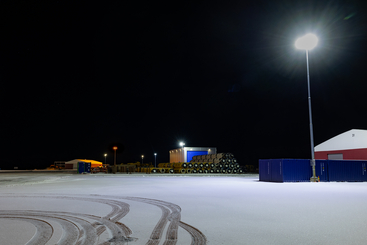

NorSea Polarbase case study NO 1T0A7030
NorSea Polarbase case study NO 1T0A7030
Application pictures
NorSea Polarbase case study NO 1T0A6962
NorSea Polarbase case study NO 1T0A6962
Application pictures
NorSea Polarbase case study NO 1T0A6997
NorSea Polarbase case study NO 1T0A6997
Application pictures
NorSea Polarbase case study NO 1T0A6949
NorSea Polarbase case study NO 1T0A6949
Application pictures

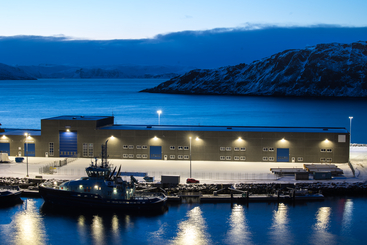

NorSea Polarbase case study NO 1T0A6947
NorSea Polarbase case study NO 1T0A6947
Application pictures

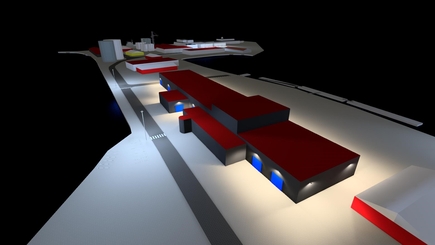

NorSea Polarbase case study NO DJI 3D
