HIGH BAY DALI GEN 3
HB DALI 155 W 4000 K 110DEG IP65
GTIN: 4058075543928
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High compatibility thanks to DALI-2 certification
- DALI 2.0 interface for dimming and sensor operations
- Low flicker light thanks to special electronic control gear
- High luminous efficacy
- Energy savings of up to 90 % compared to conventional high bay luminaires
- 5 years guarantee
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Pre-configured DALI driver included
- Luminous efficacy: up to 140 lm/W
- Type of protection: IP65
- Dimming range (DALI): 10…100 %
Equipment / Accessories
- Mounting hook and brackets included
- Reflectors and refractors as separate accessory available
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 155.00 W |
| Nominal voltage | 100…277 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 700 mA |
| Inrush current | 60.4 A |
| Inrush current time Th50 | 312 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 3 |
| Max. number of luminaires per miniature circuit breaker C10 | 3 |
| Max. number of luminaires per miniature circuit breaker C16 | 5 |
| Power factor λ | ≥0.95 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 22000 lm |
| Luminous efficacy | 140 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
| UGR | < 25 |
Dimensions & Weight
| Diameter | 321.00 mm |
| Height | 163.00 mm |
| Product weight | 3568.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | 2 Cables (2-pole/3-pole) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 200000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Output ripple current | < 10 % |
Certificates & Standards
| Standards | CE, CB, ENEC, TÃœV SÃœD, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00021-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075543928 | Shipping box 1 |
357 mm x 357 mm x 184 mm | 4180.00 g | 23.45 dm³ |
User instruction / safety instructions
UI_High Bay DALI
UI_High Bay DALI
Legal information
LS Insert HB DALI IP65
LS Insert HB DALI IP65
Legal information
Legal insert HB DALI
Legal insert HB DALI
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
EC Declaration High Bay DALI
EC Declaration High Bay DALI
EPD
ENVIRONMENTAL PRODUCT DECLARATION HIGH BAY GEN 3 DALI
ENVIRONMENTAL PRODUCT DECLARATION HIGH BAY GEN 3 DALI
Product image: white background, diagonal
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE

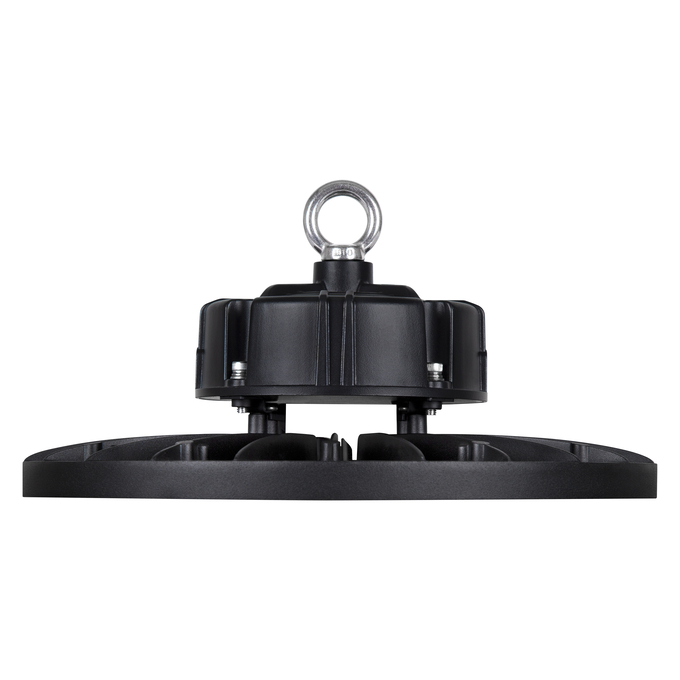

Product image: white background, upright
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE
Product line drawing with letters
HB DALI
HB DALI
Product line drawing with numbers
HB DALI
HB DALI

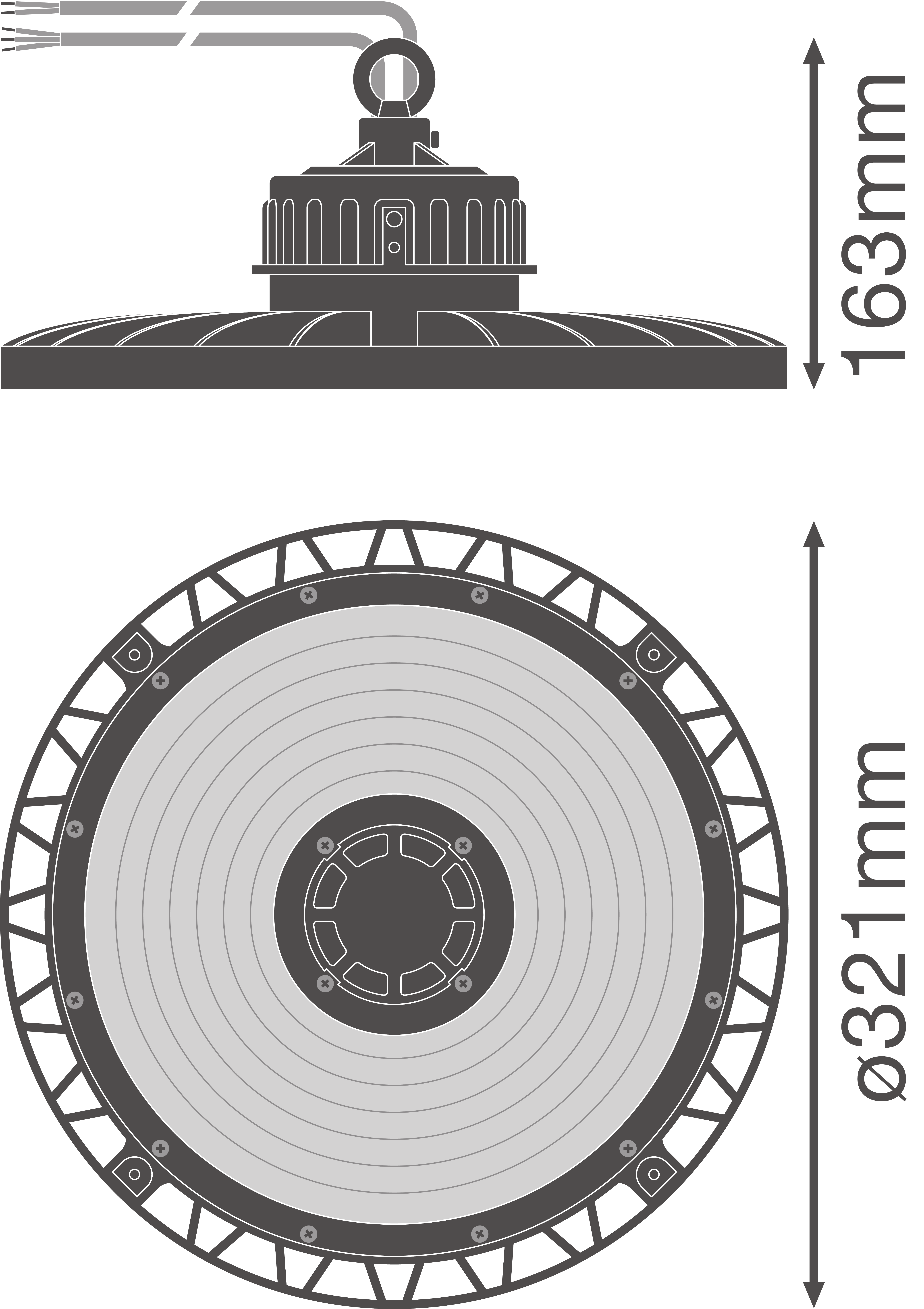

Product line drawing, front, no dimensions
HB DALI
HB DALI

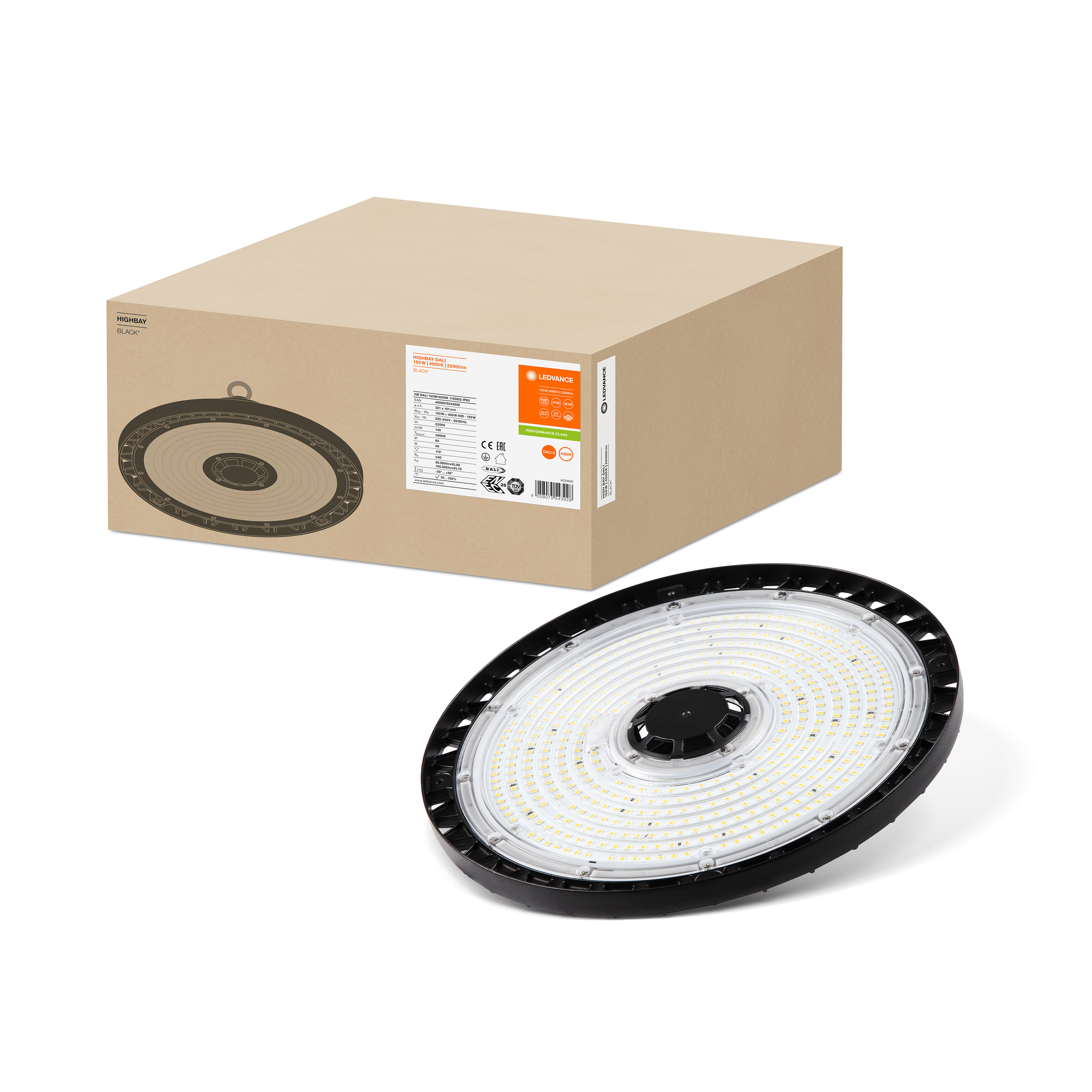

Combo Shot = Product Beauty Shot + Packaging Image
HB DALI 155W-4000K 110DEG IP65 LEDV
HB DALI 155W-4000K 110DEG IP65 LEDV

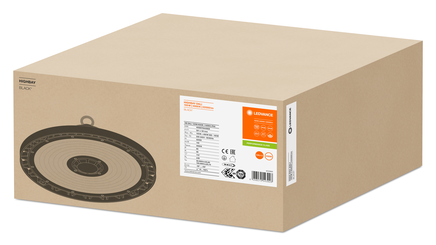

Packaging image, spacial
