HIGH BAY GEN 4
HB P 190W 865 110DEG IP65
GTIN: 4058075764255
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Improved UGR compared to previous generations, down to UGR ā¤ 22 in combination with reflector
- High luminous efficacy
- Energy savings of up to 64 % compared to conventional high bay luminaires
- 5 years guarantee
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Different luminous flux and beam angle for mounting heights of ~ 6 m to 14 m in 4000 K or 6500 K
Equipment / Accessories
- Mounting hook included
- Mounting brackets, reflectors and refractors available as separate accessory
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 190.00 W |
| Nominal voltage | 220ā¦240 V |
| Mains frequency | 50ā¦60 Hz |
| Nominal current | 840 mA |
| Inrush current | 50.4 A |
| Inrush current time Th50 | 480 Āµs |
| Max. number of luminaires per miniature circuit breaker B16 | 3 |
| Max. number of luminaires per miniature circuit breaker C10 | 3 |
| Max. number of luminaires per miniature circuit breaker C16 | 5 |
| Power factor Ī» | ā„0.95 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 27000 lm |
| Luminous efficacy | 140 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ā„80 |
| Standard deviation of color matching | ā¤5 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 Ā° |
| UGR | ā¤ 29 |
Dimensions & Weight
| Diameter | 321.00 mm |
| Height | 156.00 mm |
| Product weight | 2830.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 850 Ā°C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30ā¦+50 Ā°C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 Ā°C | 80000 h 1) |
| Lifespan L80/B10 at 25 Ā°C | 50000 h 1) |
| Lifespan L90/B10 at 25 Ā°C | 35000 h |
| Number of switching cycles | 200000 |
1) t[h]: L70 / B50 @ 25 Ā°C (Ta), t[h]: L80 / B10 @ 25 Ā°C (Ta), t[h]: L90 / B10 @ 25 Ā°C (Ta)
Certificates & Standards
| Standards | CE, CB, ENEC, TĆV SĆD, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00006-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075764255 | Shipping box 1 |
368 mm x 368 mm x 168 mm | 3323.00 g | 22.75 dmĀ³ |
User instruction / safety instructions
UI HighBay Gen4
UI HighBay Gen4
Legal information
LS Insert HighBay Gen4
LS Insert HighBay Gen4
Legal information
Legal insert HB P GEN 4 AND HB GEN 3
Legal insert HB P GEN 4 AND HB GEN 3
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration HB P 865
CE Declaration HB P 865
Declarations of conformity
CE Declaration of Conformity HIGHBAY P IP65
CE Declaration of Conformity HIGHBAY P IP65
Certificates
ENEC Certificate HB P and HB Sensor P
ENEC Certificate HB P and HB Sensor P
EPD
PEP Ecopassport HB G4
PEP Ecopassport HB G4
Product image: white background, diagonal
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE
Product image: white background, upright
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE
Product line drawing with letters
HB 180W 200W 70 DEG 110 DEG
HB 180W 200W 70 DEG 110 DEG
Product line drawing with numbers
HB 180W 200W 70 DEG 110 DEG
HB 180W 200W 70 DEG 110 DEG
Product line drawing, front, no dimensions
HB 180W 200W 70 DEG 110 DEG
HB 180W 200W 70 DEG 110 DEG
Packaging image, spacial
HighBay 190W 210W MiCh
HighBay 190W 210W MiCh
Catalog info 1
Catalog info 1 HB Gen4
Catalog info 1 HB Gen4
IES file (IES)
HB P 190W 865 110DEG IP65
HB P 190W 865 110DEG IP65
LDT file (Eulumdat)
HB P 190W 865 110DEG IP65
HB P 190W 865 110DEG IP65
ULD file (DIALux)
HB P 190W 865 110DEG
HB P 190W 865 110DEG
ROLF file (RELUX)
HB P 190W 865 110DEG IP65
HB P 190W 865 110DEG IP65

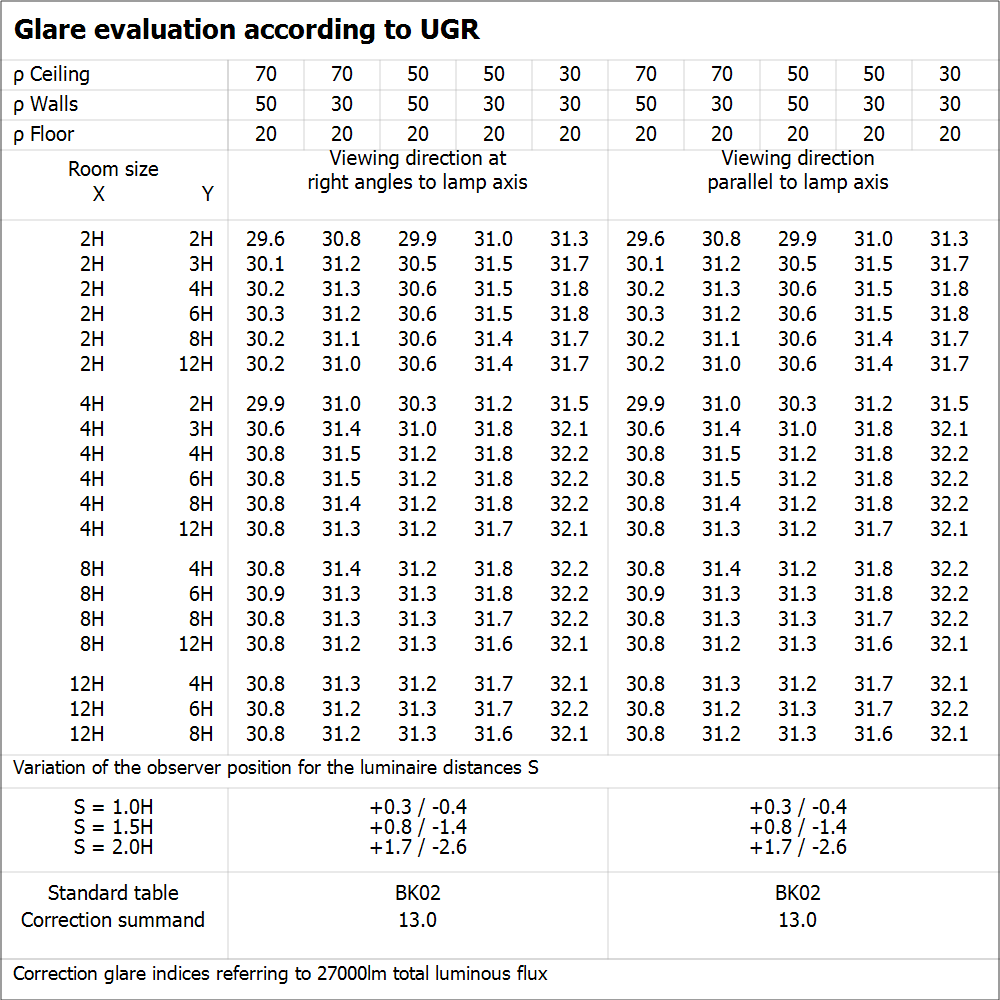

UGR file (UGR table)
HB P 190W 865 110DEG IP65
HB P 190W 865 110DEG IP65
Light distribution curve type cone
HB P 190W 865 110DEG IP65
HB P 190W 865 110DEG IP65
Light distribution curve type polar
HB P 190W 865 110DEG IP65
HB P 190W 865 110DEG IP65
BIM Revit 3D
HB G4
HB G4
CAD STEP 3D
HB G4 190W
HB G4 190W
Tender documents
HIGH BAY GEN 4 190W 865 110DEG IP65-EN
HIGH BAY GEN 4 190W 865 110DEG IP65-EN
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075764255 | 7218239 | 4324861 | 941465030 |
