HIGH BAY DALI GEN 5
HB DA P 150W 865 70DEG IP66
GTIN: 4058075844483
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
- High luminous efficacy
- Energy savings of up to 70 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses, logistic halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- DALI versions with IoT-ready DALI-2 driver
- Different luminous flux and beam angle for mounting heights of ~ 6 m to 18 m in 4000 K or 6500 K
- Dimming range (DALI): 10…100 %
- Lifetime (L80/B10): up to 100,000 h (at 35 °C)
Equipment / Accessories
- Mounting hook included
- Mounting brackets, reflectors and refractors available as separate accessory
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 150.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 665.000 mA |
| Inrush current | 17.1 A |
| Inrush current time Th50 | 314 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 13 |
| Max. number of luminaires per miniature circuit breaker C10 | 10 |
| Max. number of luminaires per miniature circuit breaker C16 | 16 |
| Power factor λ | > 0.95 |
| Total harmonic distortion | < 15 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 26250 lm |
| Luminous efficacy | 175 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤4 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 70 ° |
Dimensions & Weight
| Diameter | 321.00 mm |
| Height | 160.00 mm |
| Product weight | 2900.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | Yes |
| Type of dimming | DALI2 |
| Mounting type | Surface/Suspended |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 120000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 49000 h |
| Number of switching cycles | 200000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Nominal output current | 615 mA |
| Output current | 615 mA |
| ECG - Output ripple current | < 5 % |
Certificates & Standards
| Standards | CE, UKCA, EAC, CB, ENEC, TÃœV SÃœD, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00032-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075844483 | Shipping box 1 |
368 mm x 368 mm x 172 mm | 3553.00 g | 23.29 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
HB BRACKET 138 | 4058075844643 |
|
HB ALU REFLECTOR 500 | 4058075844582 |
|
HB PC REFRACTOR 500 | 4058075844629 |
User instruction / safety instructions
HB ACC
HB ACC
Legal information
HB DA P
HB DA P
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11205496
Safety Insert G11205496
Declarations of conformity
HIGHBAY DALI P
HIGHBAY DALI P
Certificates
ENEC HIGHBAY P DALI
ENEC HIGHBAY P DALI
EPD
HIGH BAY GEN 5 DALI
HIGH BAY GEN 5 DALI
Product image: white background, diagonal
HB P
HB P

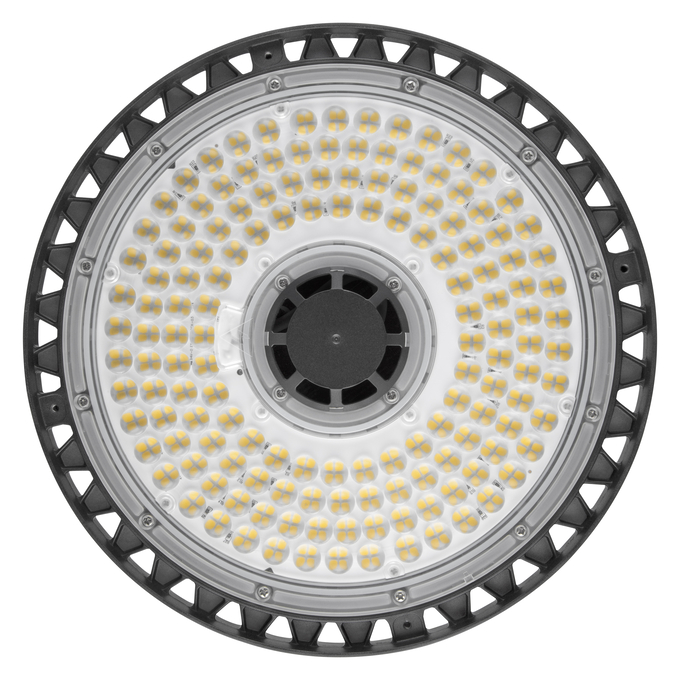

Product image: white background, upright
HB P PS
HB P PS
Product line drawing with numbers
HB P
HB P
Product line drawing - technical
HB P
HB P
Product line drawing - technical
HB P
HB P

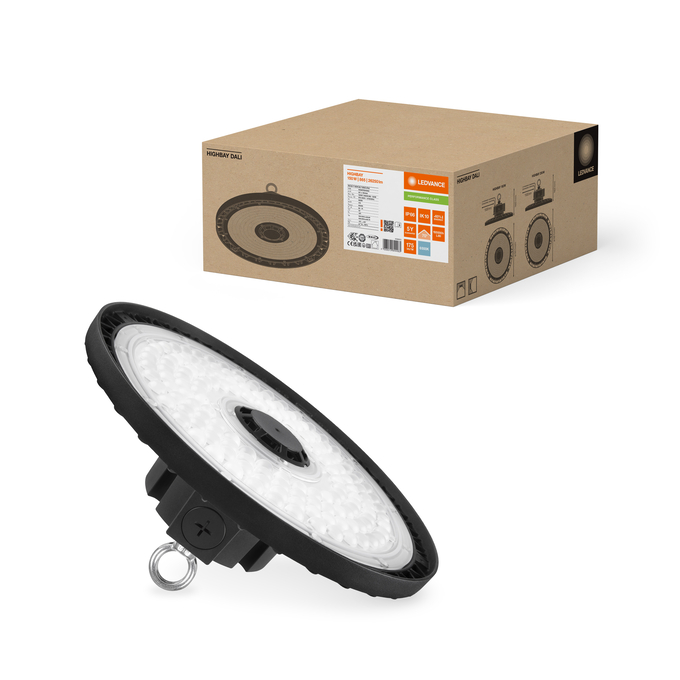

Combo Shot = Product Beauty Shot + Packaging Image
