HIGH BAY GEN 5

HB P 75W 865 70DEG IP66 PS

GTIN: 4058075844346 Shipping box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 70 % compared to conventional high bay luminaires
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses, logistic halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Multi Lumen function: power steps selectable
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 18 m in 4000 K or 6500 K
  • 0-10 V dimmable
  • Lifetime (L80/B10): up to 100,000 h (at 35 °C)
Equipment / Accessories
  • Mounting hook included
  • Mounting brackets, reflectors and refractors available as separate accessory
References / Links
Electrical data
Nominal wattage 75 W / 53 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 335…240 mA
Inrush current 14 A
Inrush current time Th50 324 µs
Max. number of luminaires per miniature circuit breaker B16 15
Max. number of luminaires per miniature circuit breaker C10 12
Max. number of luminaires per miniature circuit breaker C16 19
Power factor λ > 0.95
Total harmonic distortion < 15 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 13125 lm / 9275 lm
Luminous efficacy 175 lm/W
Color temperature 6500 K
Light color (designation) Cool Daylight
Color rendering index Ra ≥80
Standard deviation of color matching ≤4 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0,4
Photobiological safety group acc. to EN62778 RG1
Beam angle 70 °
Dimensions & Weight
Diameter 280.00 mm
Height 161.00 mm
Product weight 2600.00 g
Cable length 1500 mm
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -30…+50 °C
Temperature range at storage -40…+80 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK10
Dimmable Yes
Mounting type Surface/Suspended
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 120000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 49000 h
Number of switching cycles 200000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 305 mA
ECG - Output ripple current < 5 %
Certificates & Standards
Standards CE, UKCA, EAC, CB, ENEC, TÜV SÜD, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00032-V01.01-EN
Replaceable light source (EPREL) Not replaceable
Additional product data
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075844346 Shipping box
1		 338 mm x 328 mm x 171 mm 3208.00 g 18.96 dm³
User instruction / safety instructions
HB ACC UI
PDF (11.46 MB)
Legal information
HB P
PDF (2.23 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert G11205496
PDF (364.68 KB)
Declarations of conformity
HIGHBAY P
PDF (238.62 KB)
Certificates
ENEC HIGHBAY P ON_OFF
PDF (418.84 KB)
EPD
HIGH BAY GEN 5 DALI
PDF (670.25 KB)
Product image: white background, diagonal
HB P 75W 840 70DEG IP66 PS
JPG (1.71 MB)
Product image: white background, upright
HB P 75W 840 70DEG IP66 PS
JPG (3.37 MB)
Product line drawing with numbers
HB P
SVG (138.68 KB)
Product line drawing - technical
HB P
SVG (133.45 KB)
Product line drawing - technical
HB P
SVG (130.6 KB)

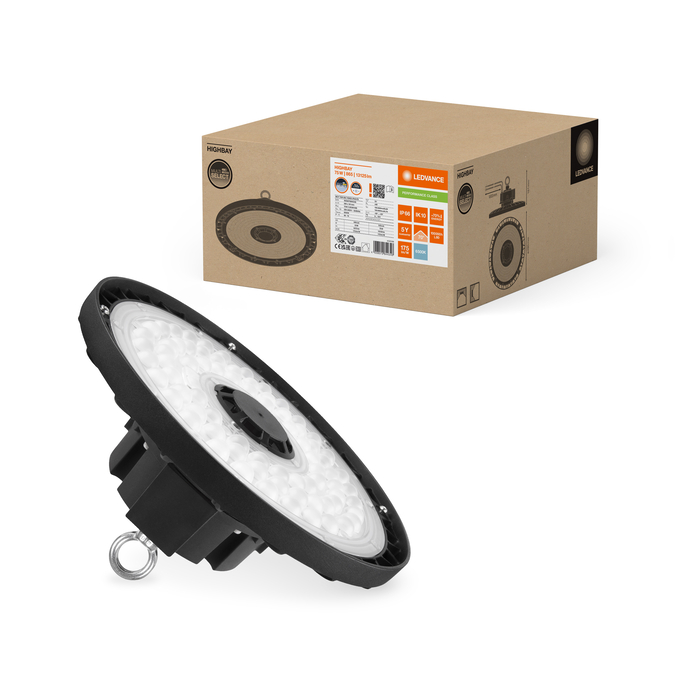

Combo Shot = Product Beauty Shot + Packaging Image
