LINEAR ULTRA OUTPUT GEN 1
LN UO 1200 25 W 4000 K
GTIN: 4058075479951
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Replacement of conventional T8 luminaires with up to 7100 lm
- Energy savings up to 60 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Indoor applications
- Industrial and commercial halls
- Public areas
- Corridors, stairwells, basements
Product features
- Very high luminous efficacy: up to 125 lm/W
- Robust metal housing and PC diffusor
- Wiring at back side of luminaire
- Through wiring possible
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 25.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 115 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 100 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 41 |
| Max. number of luminaires per miniature circuit breaker C10 | 33 |
| Max. number of luminaires per miniature circuit breaker C16 | 53 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 2950 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 1168.00 mm |
| Height | 74.00 mm |
| Width | 62.00 mm |
| Product weight | 1260.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075479951 | Folding box 1 |
69 mm x 1,174 mm x 77 mm | 1345.00 g | 6.24 dm³ |
| 4058075479968 | Shipping box 6 |
1,184 mm x 225 mm x 170 mm | 9320.00 g | 45.29 dm³ |
User instruction / safety instructions
LINEAR ULTRA OUTPUT
LINEAR ULTRA OUTPUT
Legal information
LINEAR ULTRA OUTPUT 1200
LINEAR ULTRA OUTPUT 1200
Legal information
LS Insert Linear Ultra Output
LS Insert Linear Ultra Output
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
LN UO
LN UO
Product image: white background, horizontal
LINEAR ULTRA OUTPUT 1200
LINEAR ULTRA OUTPUT 1200
Product image: white background, upright
LINEAR ULTRA OUTPUT 1200
LINEAR ULTRA OUTPUT 1200
Product image: white background, spacial
LINEAR ULTRA OUTPUT 1200
LINEAR ULTRA OUTPUT 1200
Product line drawing with letters
LINEAR ULTRA OUTPUT 1200
LINEAR ULTRA OUTPUT 1200
Product line drawing with numbers
LINEAR ULTRA OUTPUT 1200
LINEAR ULTRA OUTPUT 1200
Product line drawing, front, no dimensions
LINEAR ULTRA OUTPUT 1200
LINEAR ULTRA OUTPUT 1200

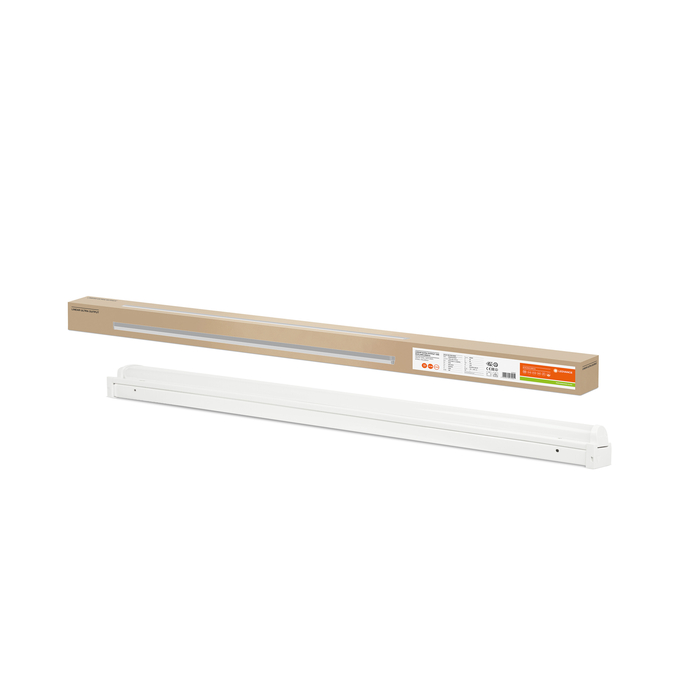

Combo Shot = Product Beauty Shot + Packaging Image
LN UO 1200 25W-4000K LEDV
LN UO 1200 25W-4000K LEDV
Packaging image, spacial
Linear Ultra Output 1200 33W 840 MiCh Side
Linear Ultra Output 1200 33W 840 MiCh Side
IES file (IES)
LINEAR UO 1200 25W 4000K IES
LINEAR UO 1200 25W 4000K IES
LDT file (Eulumdat)
LINEAR UO 1200 25W 4000K LDT
LINEAR UO 1200 25W 4000K LDT
ULD file (DIALux)
LN UO 1200 25W-4000K
LN UO 1200 25W-4000K
ROLF file (RELUX)
LN UO 1200 25W-4000K
LN UO 1200 25W-4000K

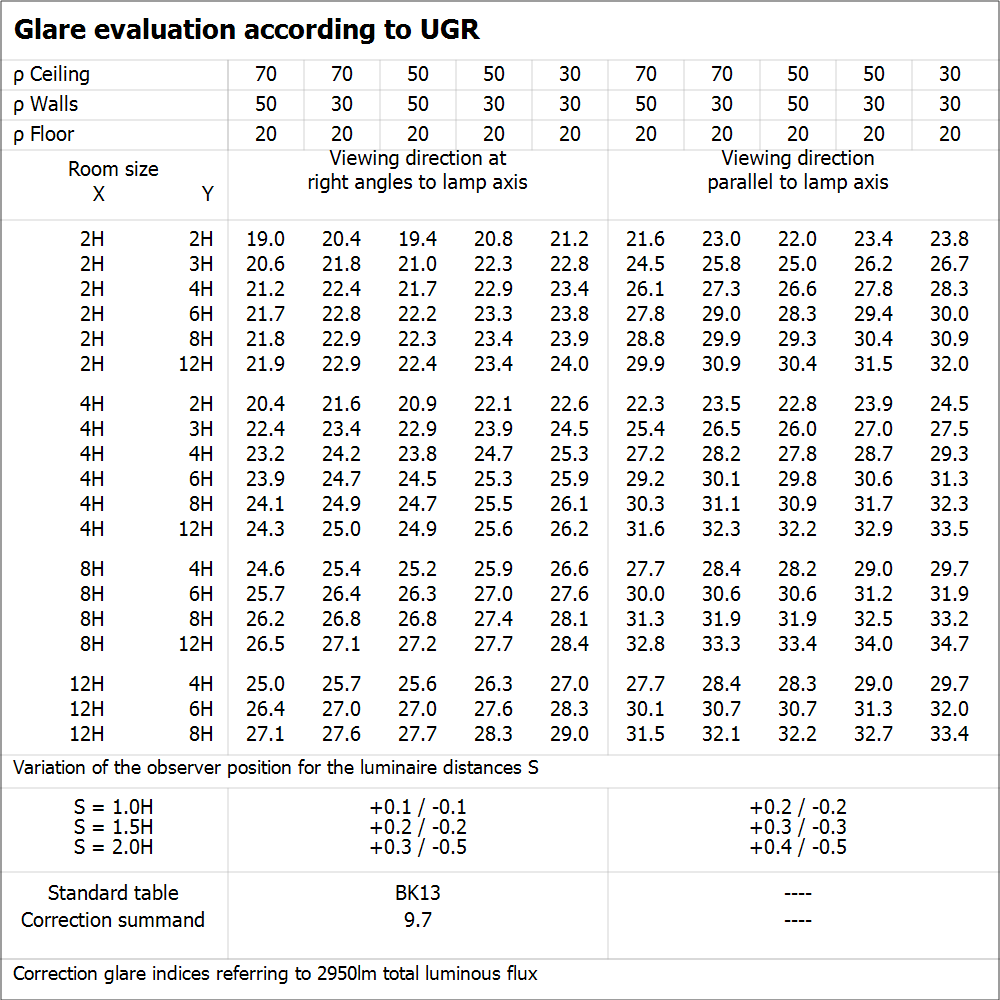

UGR file (UGR table)
