LINEAR ULTRA OUTPUT EMERGENCY GEN 2
LN UO EL 1500 P 48W CPS WT
GTIN: 4058075850477
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen)
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- High luminous efficacy in normal operation
- Replacement of conventional T8 luminaires with up to 7200 lm
- Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Direct replacement for luminaires with fluorescent lamps
- Indoor applications
- Industrial and commercial halls
- Public areas
- Corridors, stairwells, basements
Product features
- Certified according to European norms (EN 60598-1:2020; EN 60598-2-22:2021)
- Luminaire suited for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Very high luminous efficacy: up to 150 lm/W
- Robust metal housing and PC diffusor
- Wiring at back side of luminaire
- Through wiring possible
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 48 W / 40 W / 32 W / 24 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 228/196/166/135 mA |
| Inrush current | 37 A |
| Inrush current time Th50 | 120 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 18 |
| Max. number of luminaires per miniature circuit breaker C10 | 13 |
| Max. number of luminaires per miniature circuit breaker C16 | 21 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 7200 lm / 6000 lm / 4800 lm / 3600 lm 1) |
| Luminous efficacy | 150 lm/W 2) |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
1) 6720lm / 5600lm / 4480lm / 3360lm @3000K
2) 140 lm/W @3000K
2) 140 lm/W @3000K
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 48 W | 3000 K | 6720 lm | 140 lm/W |
| 48 W | 4000 K | 7200 lm | 150 lm/W |
| 40 W | 3000 K | 5600 lm | 140 lm/W |
| 40 W | 4000 K | 6000 lm | 150 lm/W |
| 32 W | 3000 K | 4480 lm | 140 lm/W |
| 32 W | 4000 K | 4800 lm | 150 lm/W |
| 24 W | 3000 K | 3360 lm | 140 lm/W |
| 24 W | 4000 K | 3600 lm | 150 lm/W |
Dimensions & Weight
| Length | 1458.00 mm |
| Height | 74.00 mm |
| Width | 65.00 mm |
| Product weight | 1660.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 88000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 3.2 V |
| Nominal capacity of battery | 6000 mAh |
| Battery charging time | < 24 h |
Emergency lighting
| Area of emergency application | Anti-panic lighting, Escape route lighting |
| Type of emergency light operation | Maintained, Non-maintained |
| Type of emergency operation test | Automatic |
| Wattage in maintained operation mode | 48 W |
| Wattage in emergency operation mode | 3,0 W |
| Luminous flux in emergency operation mode | 450 lm |
| Battery life in emergency operation mode | 3 h |
| Integrated test switch | No |
Certificates & Standards
| Standards | CE, CB, ENEC, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075850477 | Folding box 1 |
69 mm x 1,464 mm x 77 mm | 1760.00 g | 7.78 dm³ |
User instruction / safety instructions
LINEAR ULTRA OUTPUT GEN2
LINEAR ULTRA OUTPUT GEN2
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
LISO Insert LINEAR ULTRA OUTPUT EMERGENCY
LISO Insert LINEAR ULTRA OUTPUT EMERGENCY
Legal information
Safety Insert G11205497
Safety Insert G11205497
Legal information
LN OU
LN OU
Declarations of conformity
LN UO EL
LN UO EL

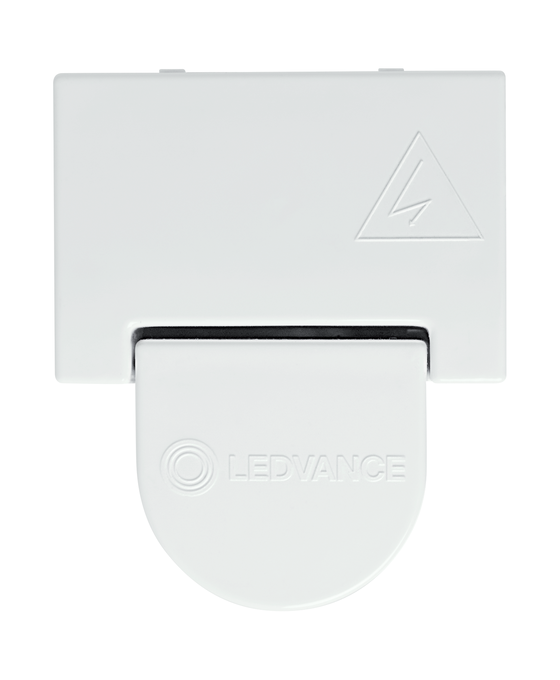

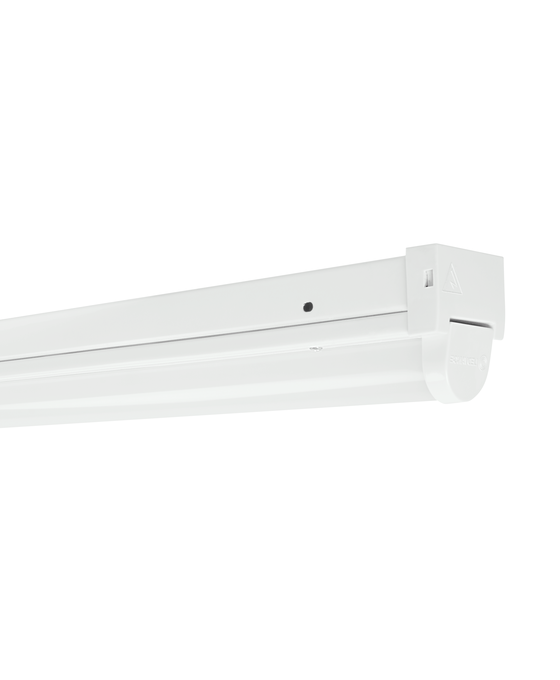

Product image: white background, diagonal
LINEAR ULTRA OUTPUT 1500
LINEAR ULTRA OUTPUT 1500

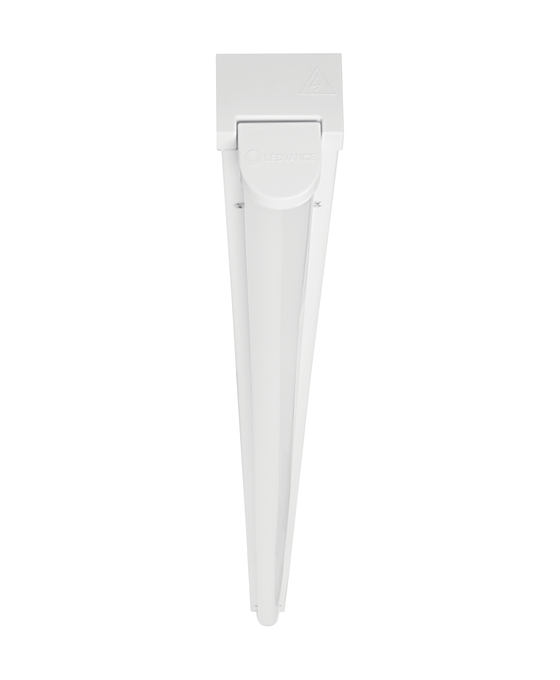

Product image: white background, diagonal, alternative image
LINEAR ULTRA OUTPUT 1500
LINEAR ULTRA OUTPUT 1500

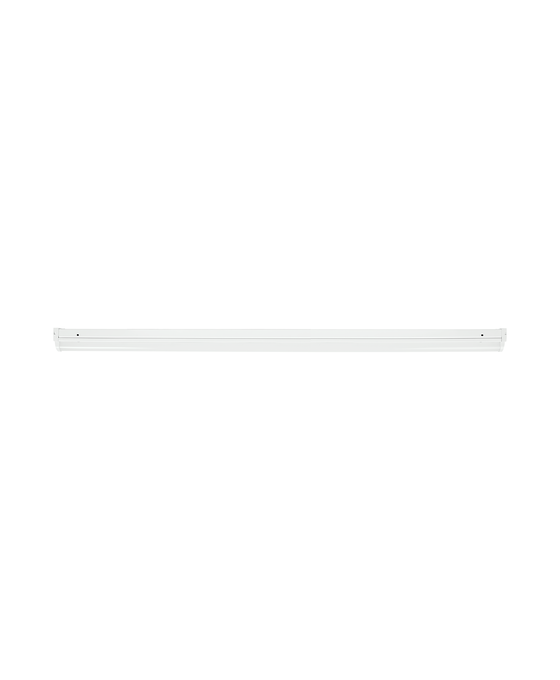

Product image: white background, horizontal
